Yamaha DBR10 10-Inch Powered Loudspeaker 700W 2-Way with Class D Amp
1,470.00 AED Included (5% UAE VAT)
The Yamaha DBR10 - 10" 2-Way Powered Loudspeaker delivers up to 700W of dynamic output from its Class D amplifier, featuring a 10" woofer, 1" high-frequency driver, and a maximum output of 129 dB. It includes an on-board 2-channel mixer with 1/4", XLR, and RCA connectors for microphone or line level sources. The ergonomic handle and lightweight design ensure easy portability for flexible use in various applications such as floor monitoring, front of house, or rigged setups.
Model number
DBR10
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

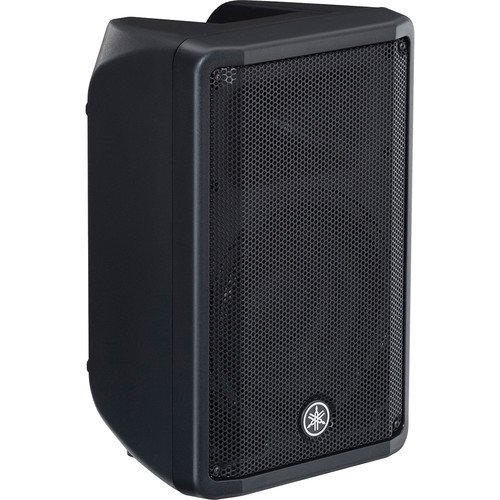

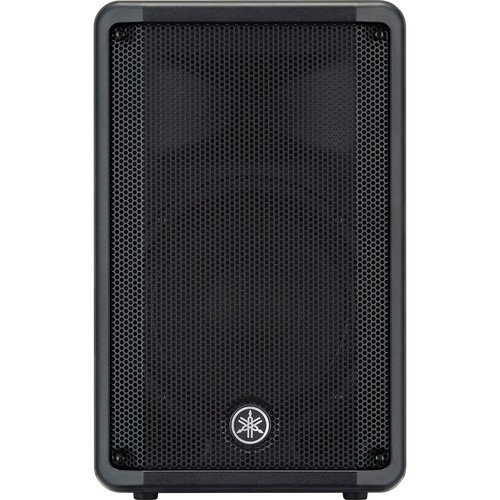

Yamaha DBR10 – 10″ 2-Way Powered Loudspeaker
The Yamaha DBR10 offers versatile use for floor monitoring, front of house, or rigged applications. With its Class D amplifier, this loudspeaker is capable of delivering up to 700W of dynamic output, combined with a 10″ woofer and a 1″ high-frequency driver, providing a maximum output of 129 dB. The built-in 2-channel mixer allows for the connection of microphone or line level sources through 1/4″, XLR, and RCA connectors. Designed with portability in mind, the DBR10 features an ergonomic handle and lightweight construction for easy transport.
Features
- High-Efficiency Class D Amplifier: Lightweight, high performance Class-D amplifier produces up to 700W of power.
- Custom Designed Transducer: 10″ woofer and 1″ precision compression driver for clear, powerful audio.
- Portable Cabinet: Compact, lightweight, durable plastic cabinet with ergonomic handles for easy transportation.

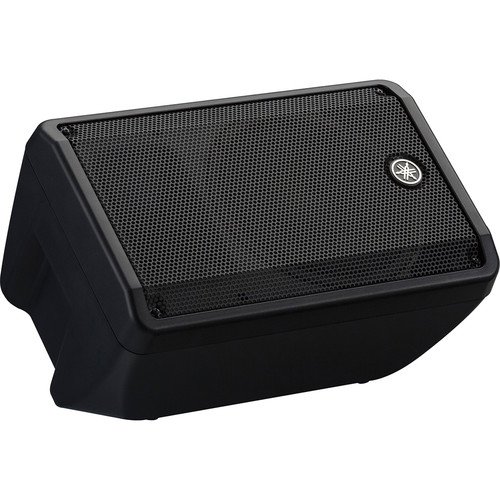

- Enclosure Design for Floor Monitoring: Optimized 50° wedge angle for floor monitoring.
- On-Board 2-Channel Mixer: Accommodates various input sources with flexible mixing options.
- Rigging Points: Equipped with M8 rigging threads for installed applications.
Specifications
| Specification | Details |
|---|---|
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 700 W Peak, 325 W RMS |
| Amplifier Power Rating | LF: 500 W Peak, 260 W RMS; HF: 200 W Peak, 65 W RMS |
| Frequency Range | 55 Hz to 20 kHz -10 dB |
| Maximum SPL | 129 dB SPL |
| Coverage Angle | 90° H x 60° V |

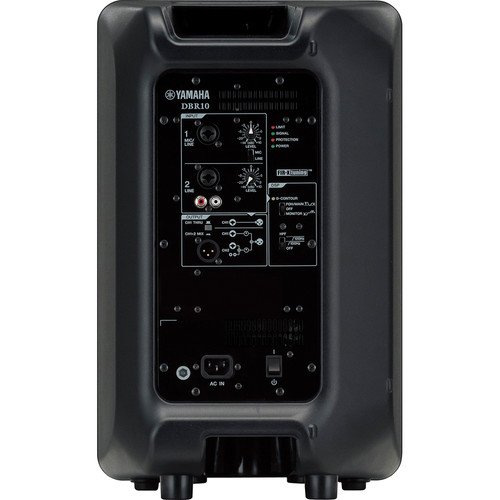

| Audio I/O | 2 x Combo XLR-1/4″ TRS Input, 1 x Stereo RCA Unbalanced Line Input, 1 x XLR 3-Pin Output |
| Power Consumption | 60 W (1/8 Power), 18 W (Idle) |
| Dimensions | 12.1 x 19.4 x 11.4″ / 308 x 493 x 289 mm |
| Weight | 23.2 lb / 10.5 kg |
Additional information
Additional information
| Brand | |
|---|---|
| EAN |
