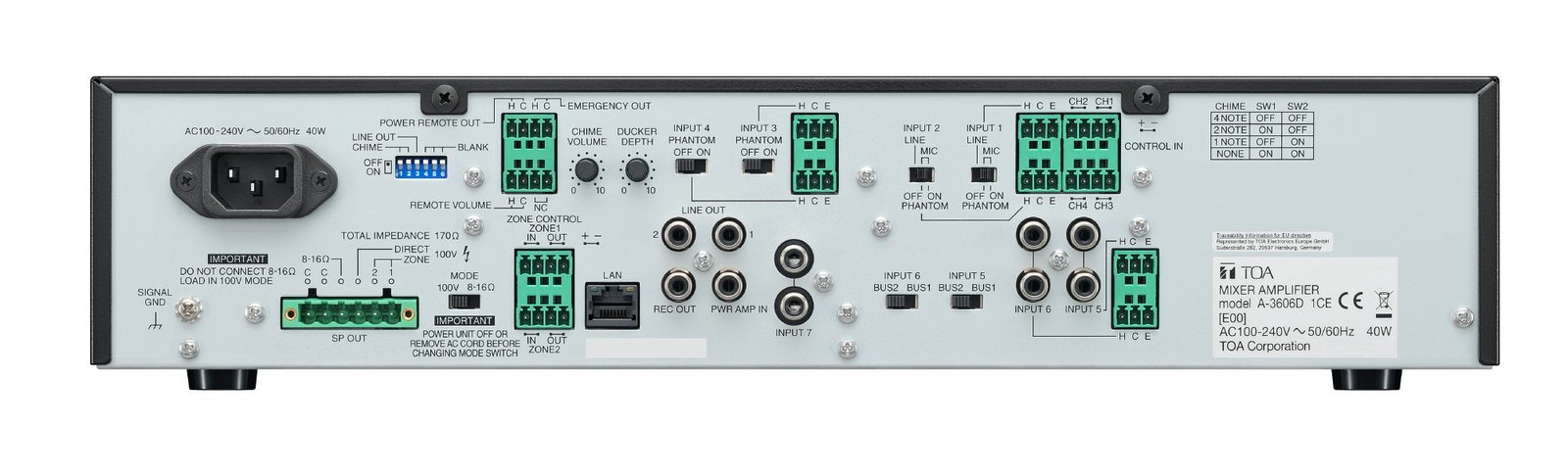

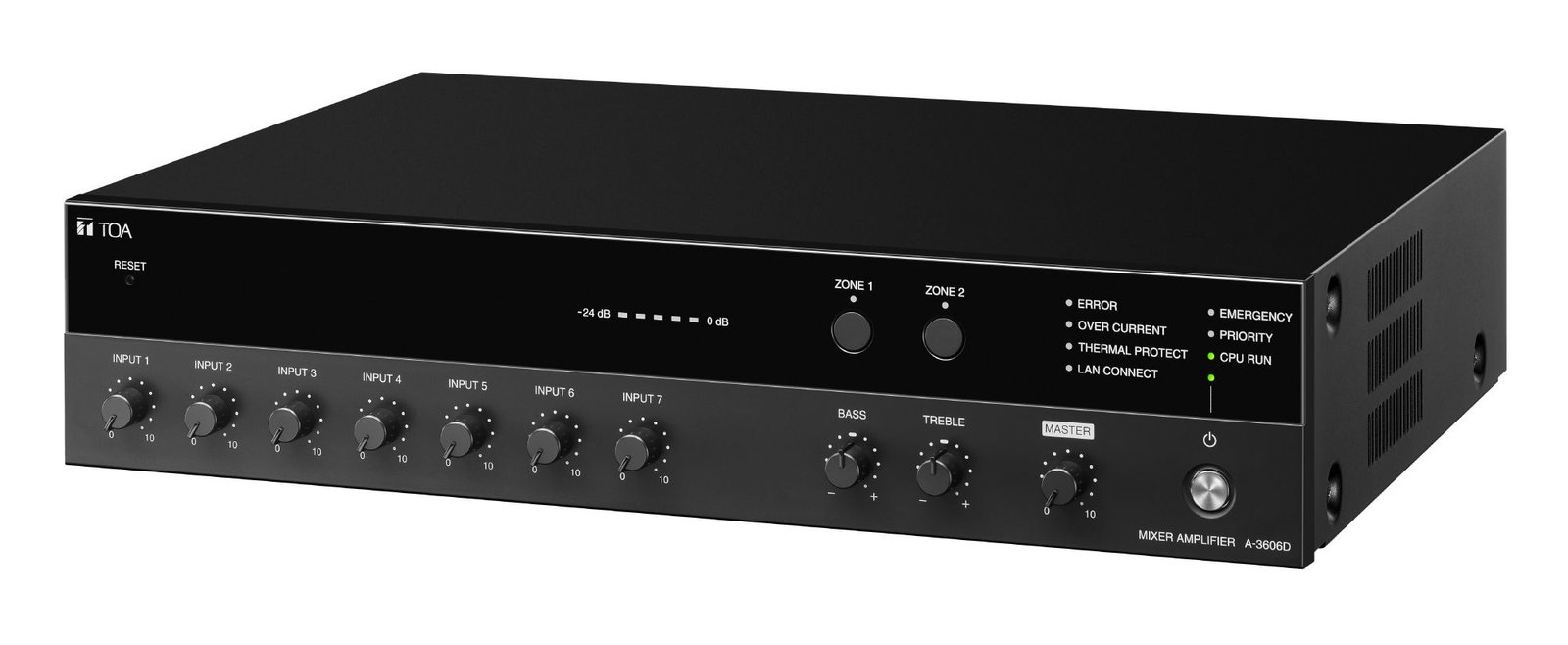

Toa Mixer Amplifier A-3612D 120W Class D 2-Zone Speaker Selector
4,077.15 AED Included (5% UAE VAT)
The A-3600D Series Digital Mixer Amplifier offers up to 480 W of power with seven inputs, browser-based remote control, feedback suppression, and a stylish design. Ideal for background music, paging, and noise masking in retail stores, schools, offices, worship houses, and factories, it ensures crystal clear sound with high and low impedance options, two-zone selectors, and emergency paging capabilities.
Model number
A-3612D 1CEE00
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The A-3600D Series Digital Mixer Amplifier integrates maximum versatility with advanced technology to meet various auditory demands. This high-performance amplifier delivers up to 480 watts of power across multiple zones, ensuring exceptional sound quality for background and foreground music, paging, and noise masking applications. The system can be controlled and monitored remotely, reducing maintenance time and enhancing operational efficiency. Ideal for use in retail environments, educational institutions, offices, houses of worship, and industrial settings, the A-3600D series guarantees clear, reliable broadcast and emergency paging capabilities.
Key Features
- 7 audio inputs including 4 MIC/AUX selectable, 2 MIC, and 1 AUX
- Class D amplifier with 120 W rated output
- 2-zone speaker selector for high and low impedance speakers
- AC-mains 100V – 240V power source
- Browser-based control and monitoring
- Emergency paging via control input
- Eco-friendly and energy-efficient digital technology
Technical Specifications
| Specification | Details |
|---|---|
| Power Source | 100 – 240 V AC, 50 / 60 Hz |
| Rated Output | 120 W |
| Frequency Response | 50 Hz – 20 kHz (±3 dB) |
| Distortion | < 1 % (at 1 kHz, rated power) |
| Power Consumption | 48 W (EN62368-1), 171 W (rated output) |
| Speaker Output | 4-16 Ω low impedance, 100 V high impedance, zone 1, zone 2 |
| Amplifier | Class D |
| S/N Ratio | 88 dB (A-weighted) |
| Connectable Microphones | 6 |
| Controls | Volume, bass, treble, master volume, zone switches, power |
| Inputs | Multiple balanced and unbalanced, with phantom power options |
| Control Input | 4 channels, no-voltage make contact input |
| Outputs | Recording, line out, interlocked with zones |
| Control Output | Power remote, emergency, zone control |
| Operating Humidity | 85 % RH or less (no condensation) |
| Operating Temperature | -10°C to +40°C (14°F to 104°F) |
| Finish | ABS resin, black paint, surface-treated steel plate |
| Dimensions | 420 x 96.1 x 313.1 mm (W x H x D) |
| Accessory (Included) | Power cord, audio input removable terminal plug, and more |
