Midas Cat5e Ruggedized Network Cable 1m with Neutrik etherCON IP54
145.95 AED Included (5% UAE VAT)
The CAT5E-1M ruggedized Cat5e cable ensures reliable digital audio network data transfer with Neutrik etherCON NE8MC-1 connectors featuring IP54 water protection. Ideal for concert touring and festival use, it transmits up to 192 channels of 24-bit audio at 96 kHz with Midas and Klark Teknik products. The cable supports different channels for AES50 connections and is compatible with both 100 Mbit/s and Gigabit Ethernet networks.
Model number
CAT5E-1M
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

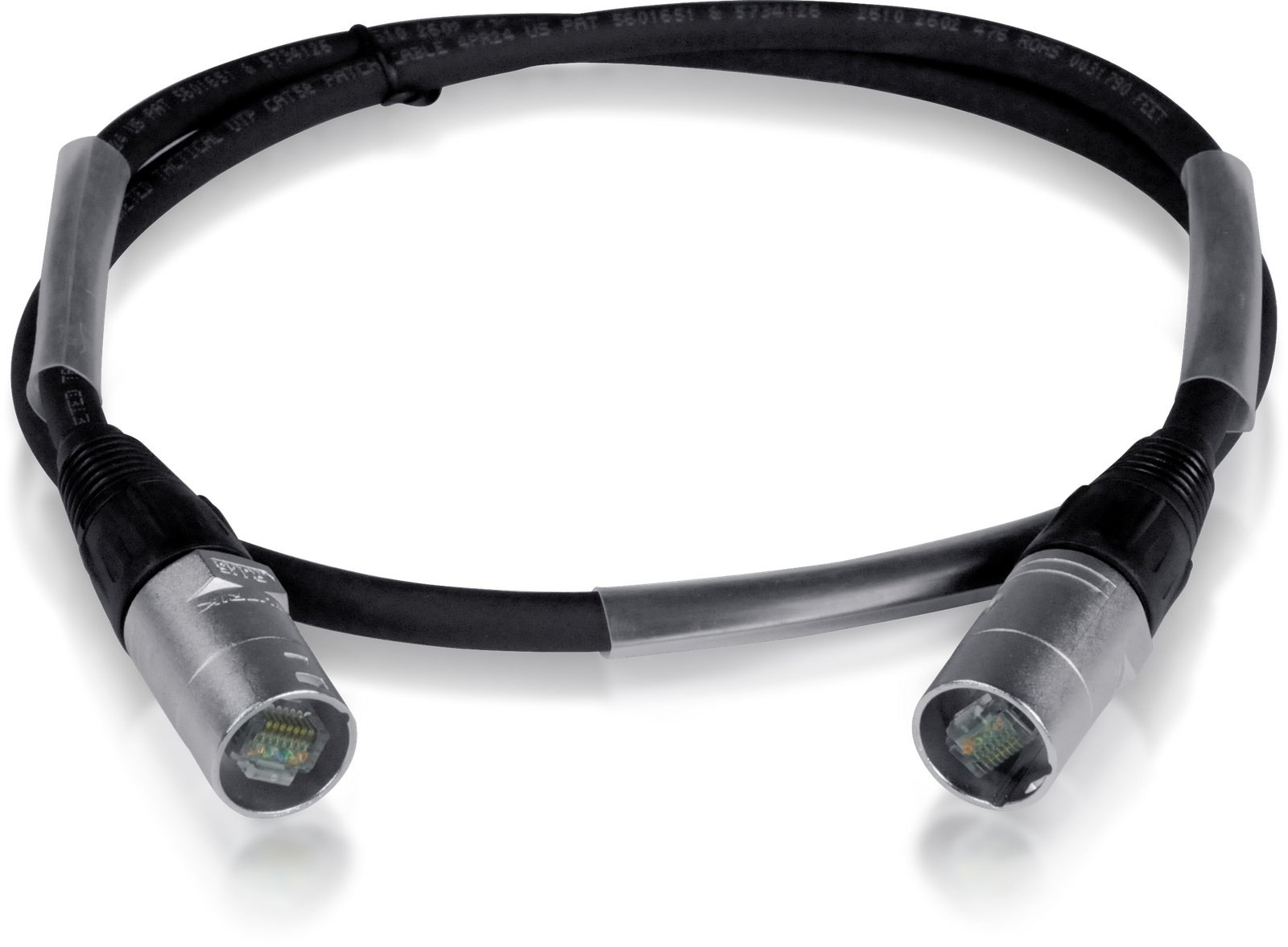

CAT5E-1M Ruggedised Cat5e Network Cable
The CAT5E-1M is a highly durable Cat5e cable designed for bi-directional digital audio network data transmission. It features Neutrik etherCON NE8MC-1 connectors with an integrated O-ring gasket, providing IP54 water protection. This cable is ideal for demanding environments such as concert tours and festival applications.
Compatible with Midas PRO and M Series, as well as Klark Teknik products equipped with HyperMAC and copper snake interfaces, the CAT5E-1M is capable of transmitting up to 192 bi-directional channels of 24-bit digital audio at a 96 kHz sample rate. Additionally, it supports 24 and 48 bi-directional channels at varying sample rates, making it versatile for different audio needs.
The CAT5E-1M is also suitable for standard Ethernet applications, supporting both 100 Mbit/s and Gigabit networks. Constructed with Belden 1305A unscreened cable, it features 24 AWG bonded-pair stranded copper conductors with polyolefin insulation and protective PVC jackets, ensuring durability and reliability.
Key Features
- Ruggedised Cat5e UTP network cable with Neutrik etherCON connectors
- 1-metre length
- Compatible with Midas and Klark Teknik products
- Transmits up to 192 bi-directional channels of 24-bit digital audio
- Supports both 100 Mbit/s and Gigabit Ethernet networks
- Durable Belden 1305A unscreened cable construction
Specifications
| Specification | Details |
|---|---|
| Cable specification | Cat5e |
| Cable length | 1 metre |
| Cable type | Belden 1305A |
| Connector carrier type | Neutrik NE8MC-1 |
| Cable diameter | 7.6 mm (nominal) |
| Maximum tensile load | 196 N |
| Minimum bend radius | 76 mm |
| Operating temperature | -20°C to +60°C |
| Connector carrier protection | IP54 |
