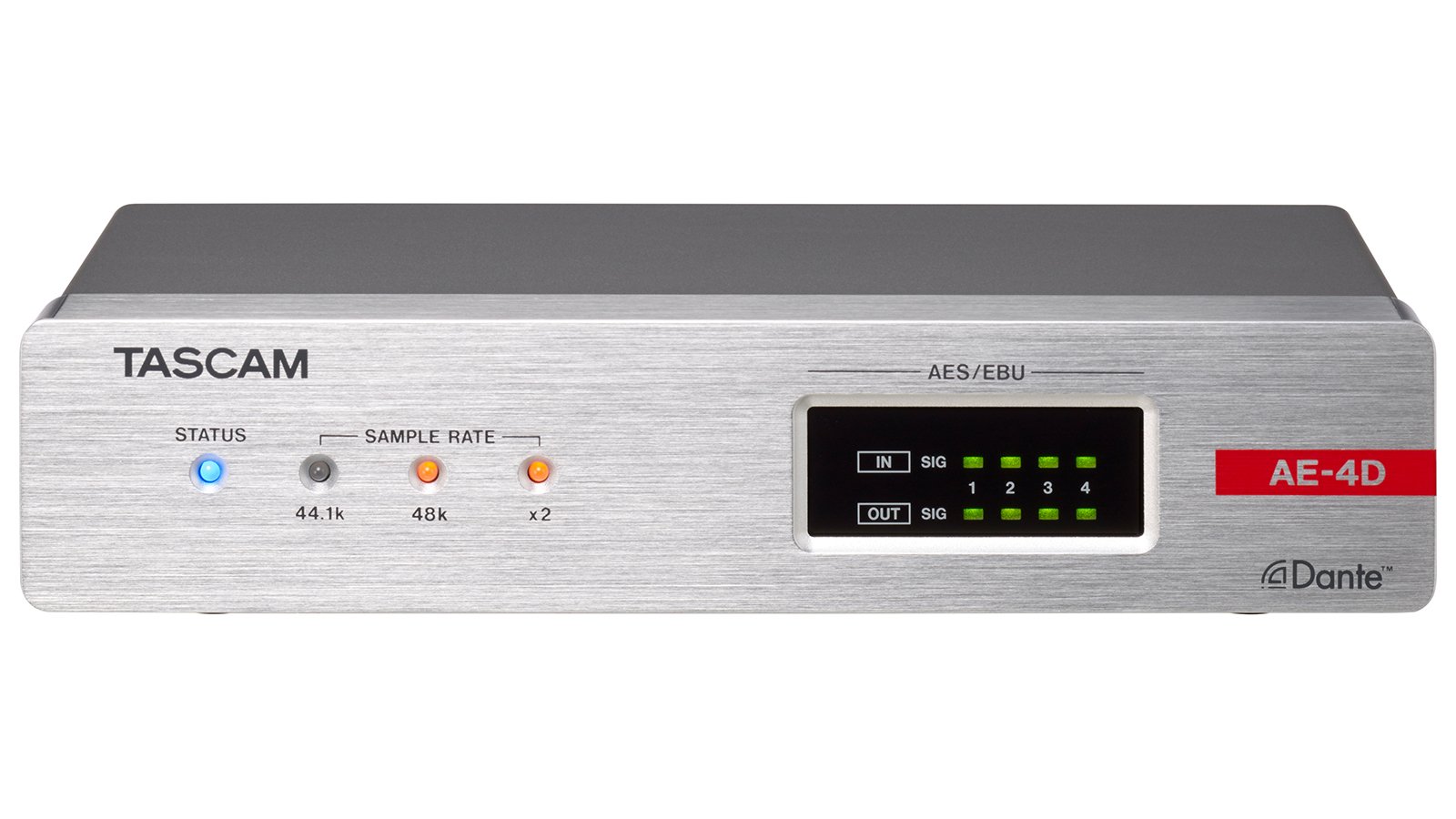

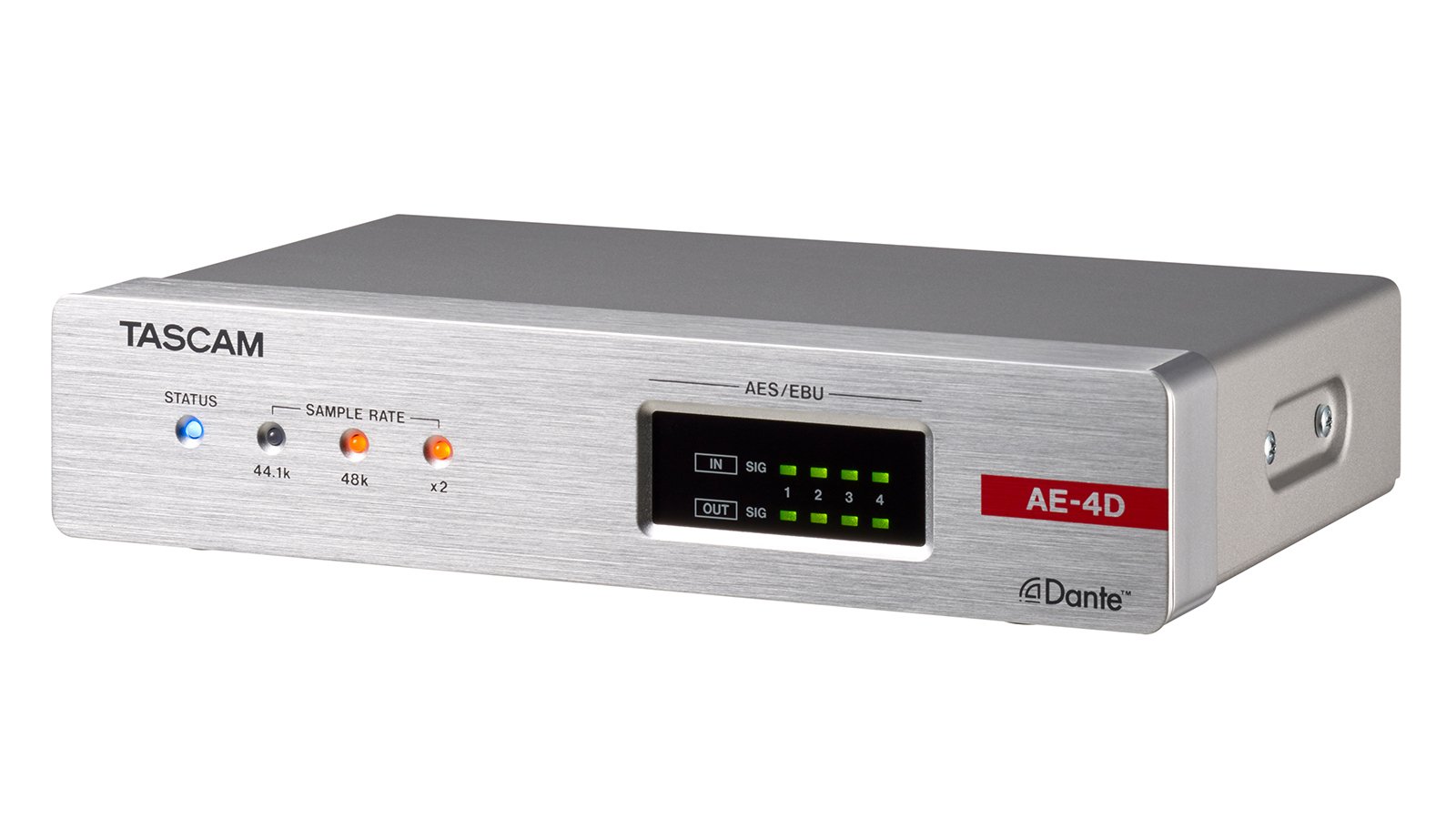

Tascam AE-4D 4-Channel AES/EBU Dante Converter with DSP Mixer 96kHz
2,711.10 AED Included (5% UAE VAT)
The AE-4D is a versatile converter for AES/EBU and 4-channel Dante signals, fitting into smaller setups at half the size of a 1U rack. It's an ideal input/output unit for different Dante configurations, featuring a built-in DSP mixer for enhanced performance. The AE-4D supports up to 96kHz/24bit audio and includes XLR connectors for AES/EBU output, aligning with the TASCAM Dante Compact Processor Series standards.
Model number
AE-4D
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.
Key Features
| Specification | Details |
|---|---|
| Input/Output | 4 AES/EBU input/output, 4 Dante input/output |
| Sampling Rate | Up to 24bit/96kHz |
| PoE Support | Yes, Power over Ethernet |
| Control Software | Available for Windows, Mac, iOS, Android |
| Scene Preset Function | Up to 50 presets |
| Timer Event Function | Planned for future update |
| Remote Control | Via Dante |
| Indicators | LAN/Dante connection status, sample rate, digital input/output signals |
| Included Accessories | Installation brackets, Owner’s manual |
Specifications
| Category | Details |
|---|---|
| Formats and Channels | 44.1/48kHz, 16/24-bit, 4 channels; 88.2/96kHz, 16/24-bit, 2 channels (double speed) |

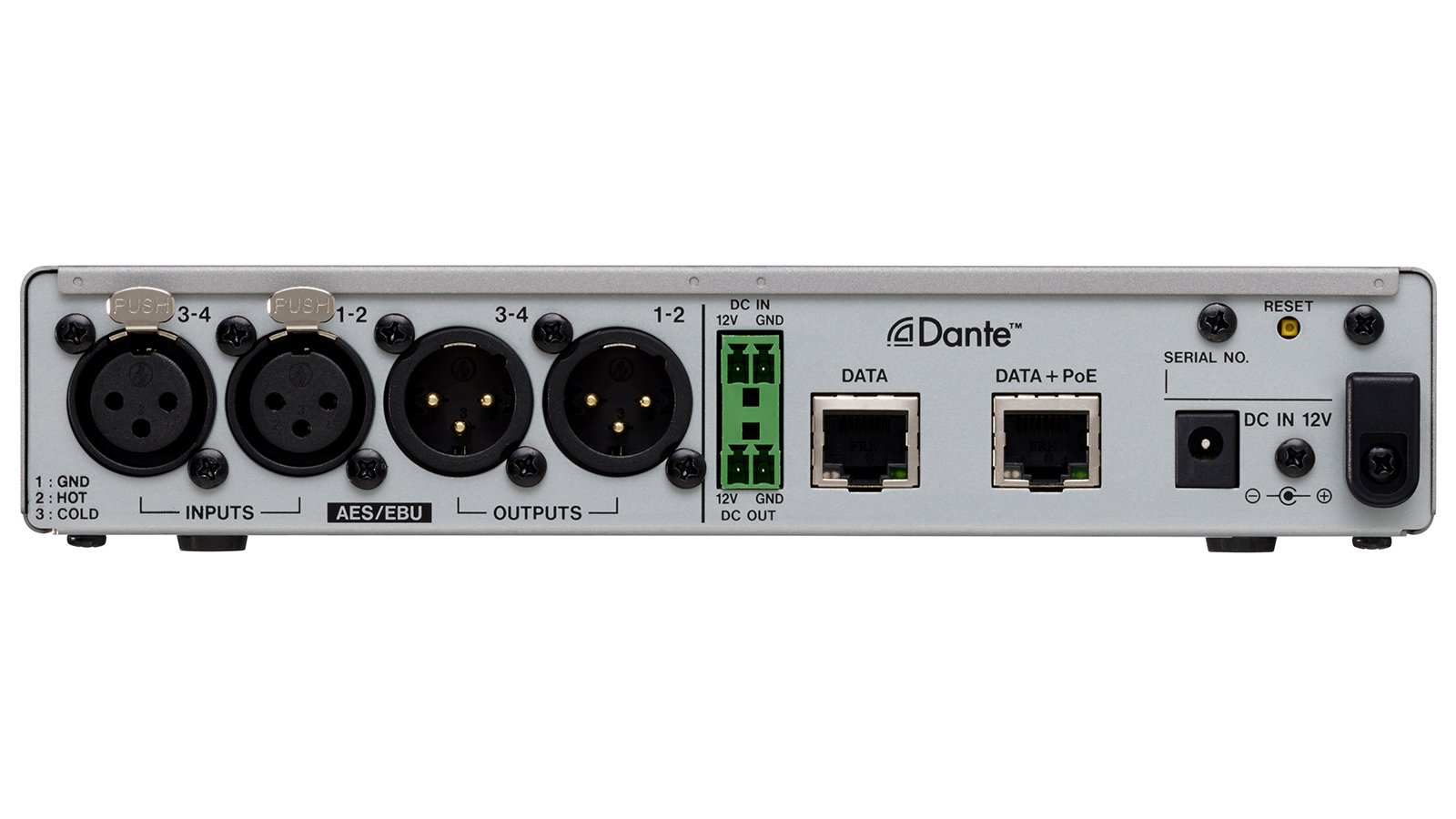

| Connector | RJ-45, XLR-3-31 for input, XLR-3-32 for output |
| Ethernet Standard | 1000BASE-T (IEEE 802.3ab) |
| Digital Input Impedance | 110 Ω |
| Digital Output Impedance | 110 Ω |
| Power | PoE class 0, TASCAM PS-P1220E AC adapter (sold separately) |
| Power Consumption | 3W |
| Dimension | 214 x 44.45 x 136.1 mm (W x H x D, including protrusions) |
| Weight | 795 g |
| Operating Temperature | 0°C-40°C |
