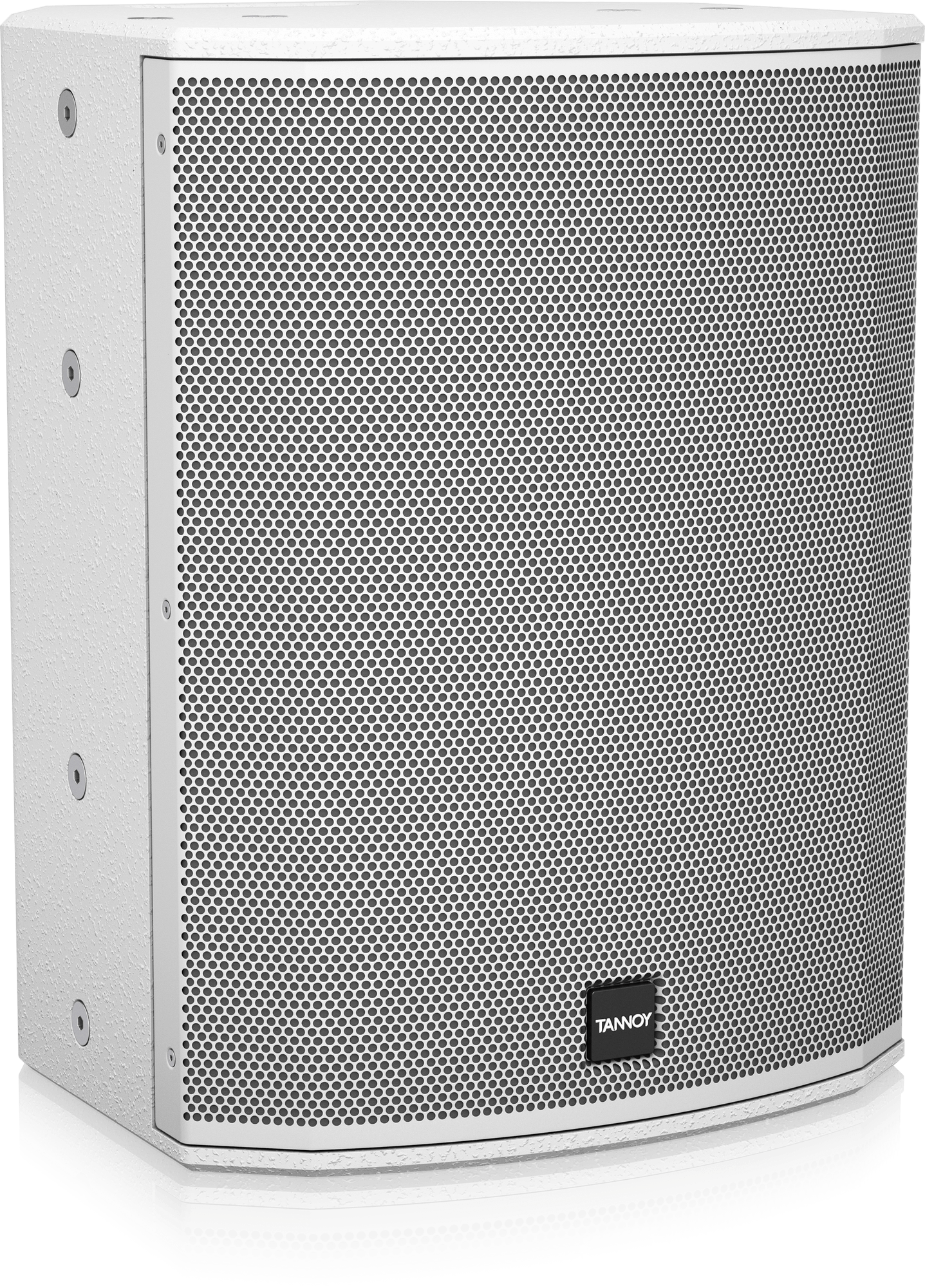

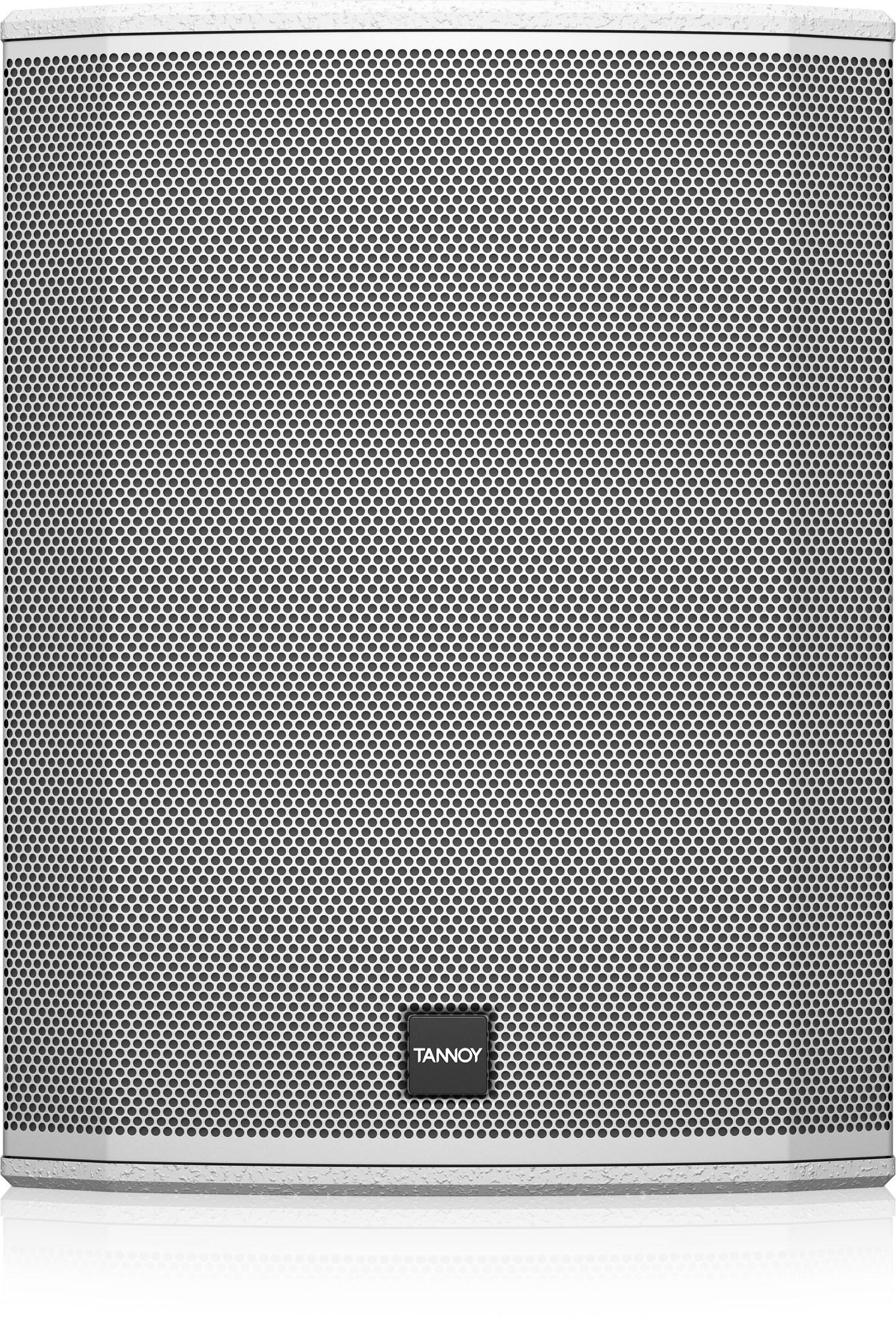

Tannoy VXP 12-WH 1600W 12″ Powered Loudspeaker Dual Concentric (White)
5,610.15 AED Included (5% UAE VAT)
The VXP 12-WH Dual Concentric Full Range Loudspeaker delivers impressive performance in a compact design, featuring LAB GRUPPEN IDEEA Class-D amplification. It offers robust sound for small-scale events, background music, and clear speech applications, while its twin driver setup and versatile mounting options make it suitable for both standalone use and as part of larger sound systems.
Model number
VXP 12-WH
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The VXP 12-WH Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio and includes LAB GRUPPEN IDEEA Class-D amplification. VXP 12-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 12-WH is also ideally suited for use complementing much larger systems, making it an excellent choice for both installed and portable applications.
Features
- Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
- 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification

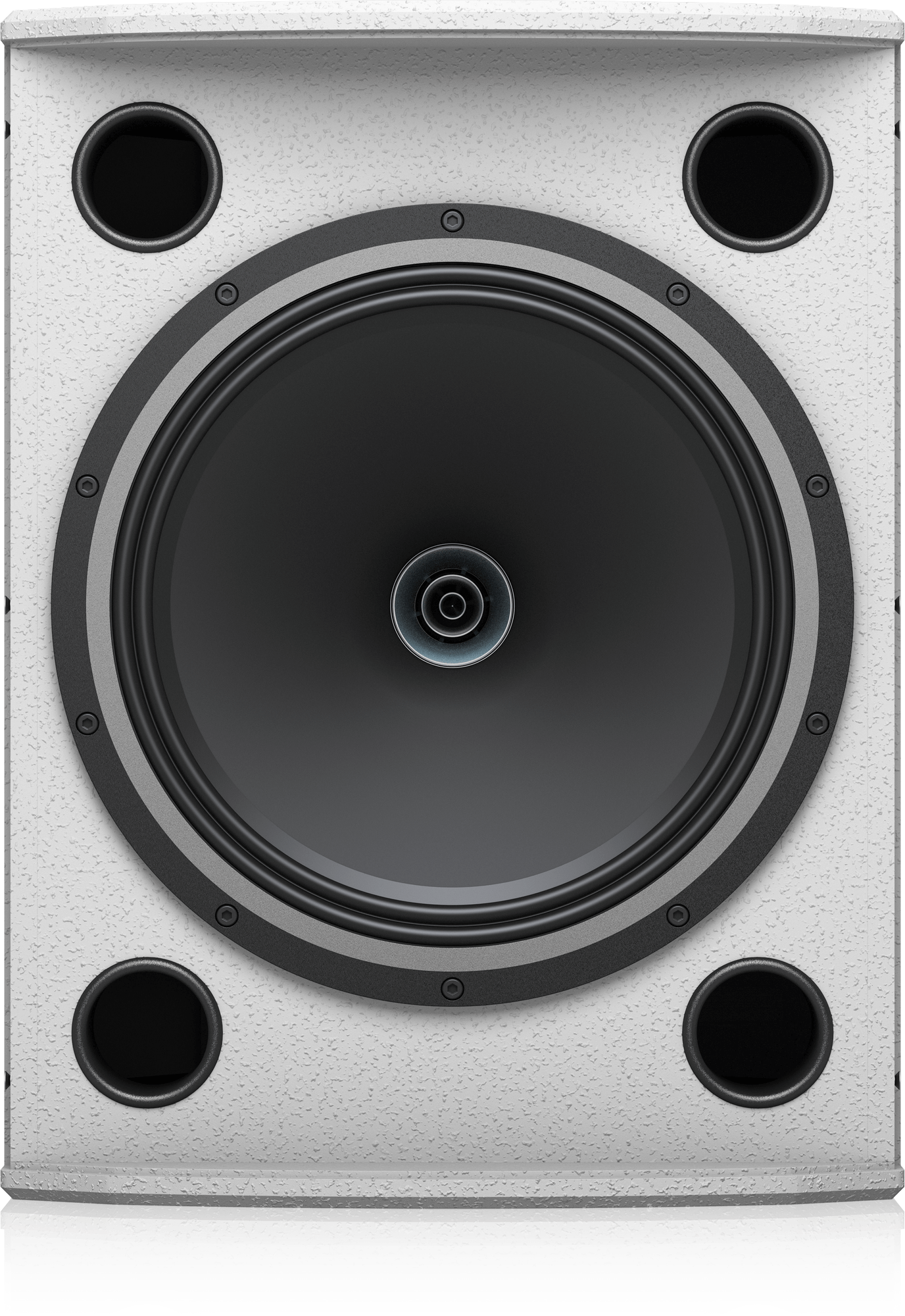

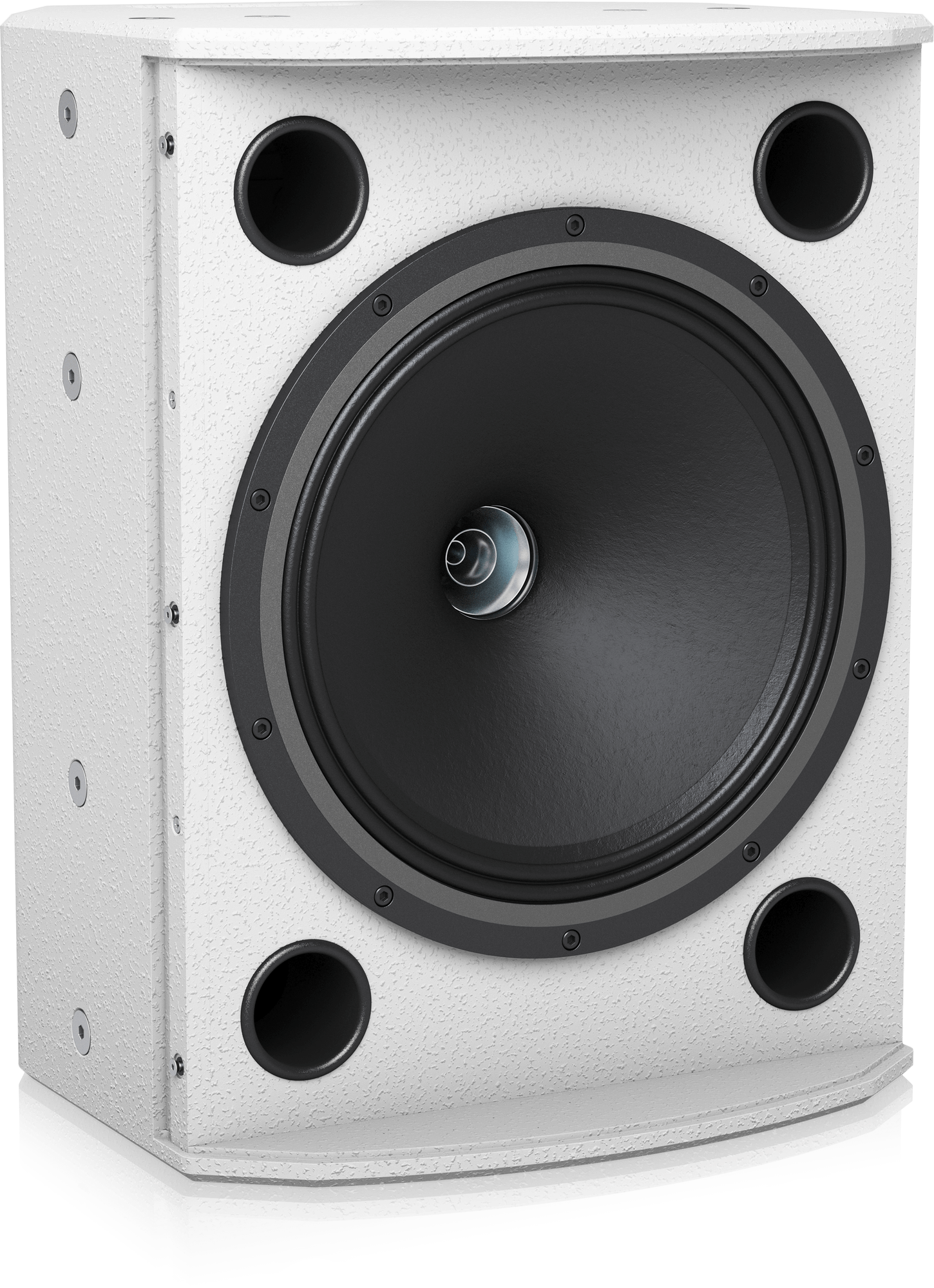

- 12″ Dual Concentric full range driver for point source phase coherence
- Tightly controlled 90″ dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, and side fill applications
- Switchable full range or high pass filter operation
- Vented and internally braced plywood enclosure
- Finished with hard-wearing semi-matt white paint
- Rugged powder-coated perforated steel mesh grille
- Blanking plate for optional VTH pole mount
- Versatile mounting via optional custom designed hardware

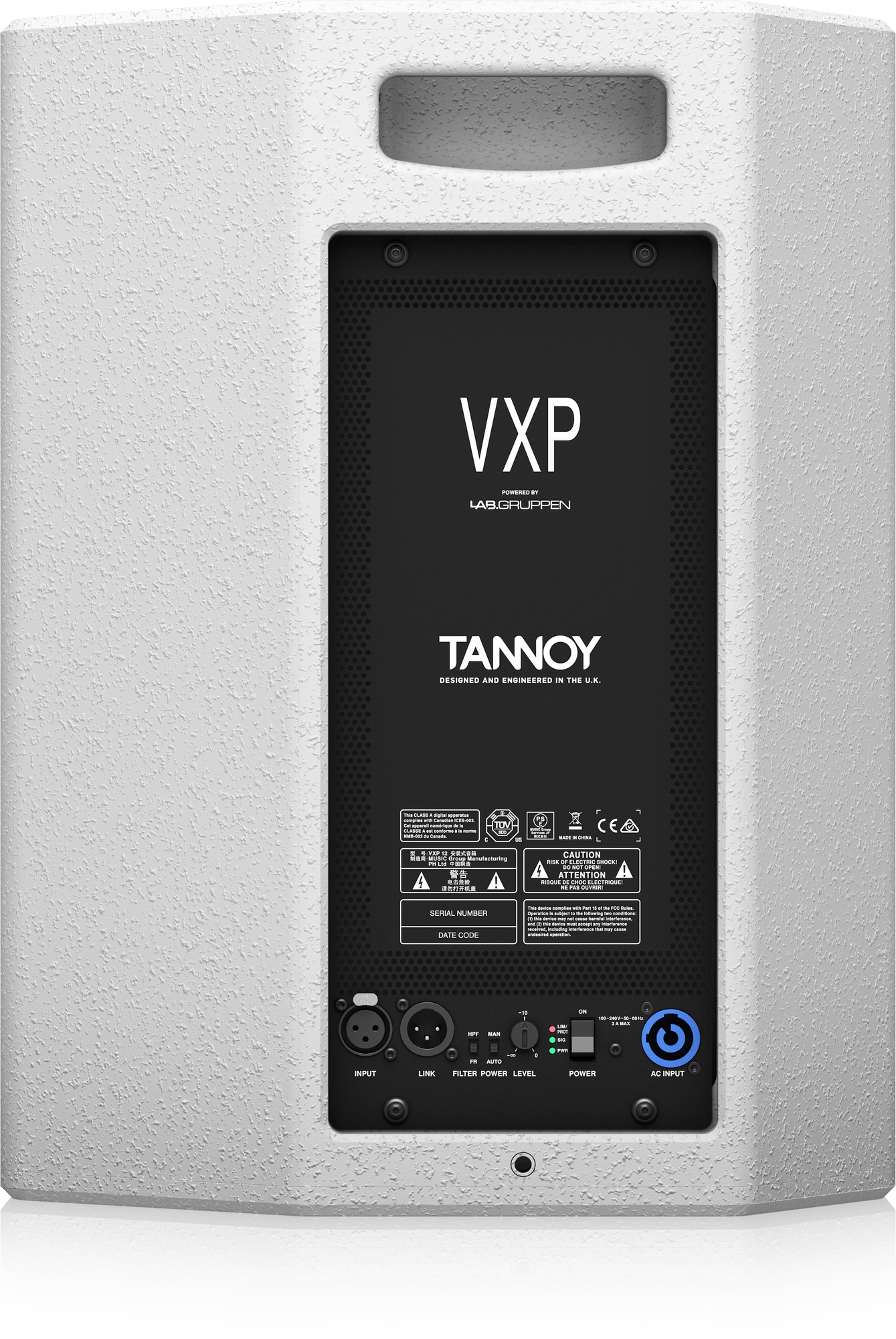

- Fully balanced input and link output on Neutrik XLR connectors
- Neutrik powerCON for a secure locking mains power connection
Specifications
| Specification | Details |
|---|---|
| Frequency response | 70 Hz – 25 kHz ±3 dB, 58 Hz – 30 kHz -10 dB |
| Nominal dispersion | 75° conical @ -6 dB points |
| Directivity factor (Q) | 9.7 |
| Directivity index (DI) | 9.9 |
| Power handling (IEC) | Passive: 400 W continuous, 1,600 W peak Bi-amp: LF: 400 W continuous, 1,600 W peak; HF: 80 W continuous, 320 W peak |
| Sensitivity | 99 dB (1 W @ 1 m) |
| Maximum SPL | Passive: 125 dB continuous, 131 dB peak Bi-amp: LF: 126 dB continuous, 132 dB peak; HF: 125 dB continuous, 131 dB peak |
| Impedance | Passive: 8 Ω Bi-amp: 8 Ω, 8 Ω |
| Crossover Type | Passive / Bi-amp switchable |
| Components | 1 x 15″ (380 mm) constant directivity Dual Concentric driver |
| Connectors | 2x Neutrik speakON NL4, 1 x barrier strip terminals |
| Wiring | Passive: Pins 1+ / 1- Input, Pins 2+ / 2- Link Bi-Amp: Pins 1+ / 1- LF, Pins 2+ / 2- HF |
| Dimensions H x W x D | 591 x 451 x 421 mm (23.3 x 17.8 x 16.6″) |
| Net weight | 25.5 kg (56.2 lbs) |
| Construction | 18 mm (3/4″) enclosure / 18 mm (3/4″) front, plywood, vented and internally braced |
| Finish | Semi-matt black paint (white optional) |
| Grille | Powder-coated perforated steel |
| Flying hardware | M10 x 8 flying inserts (portrait or landscape mounting), M10 x 8 yoke bracket inserts, 2 x Intergrip carrying handles, blanking plate for optional VTH pole mount, compatible with industry standard brackets, M6 x 4 inserts |
