Tannoy VQ 60 3-Way Dual 12″ Loudspeaker 1300W 60° Dispersion
14,007.00 AED Included (5% UAE VAT)
The VQ 60 is a high-output, self-powered, three-way loudspeaker system with exceptional pattern control, ideal for applications requiring superior sound clarity and versatility. Suitable for both arrayed setups and standalone use, the VQ 60 delivers powerful audio performance, keeping the integrity of venue aesthetics intact. Its low-frequency reach to 90 Hz allows seamless integration with VSX series subwoofers for extended sound range.
Model number
VQ 60
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
VQ 60 Three-Way Loudspeaker System
The VQ 60 is a full range, self-powered, three-way loudspeaker system designed for applications requiring exceptionally high output with excellent pattern control. Ideal for use individually or in paired clusters, the VQ 60 maintains aesthetic integrity while delivering unparalleled sound quality. With a low-frequency extension to 90 Hz, it can also be paired with VSX series subwoofers for extended bandwidth.
Features
- High performance 3-way full range large format loudspeaker
- 1,300 Watts continuous, 5,200 Watts peak power

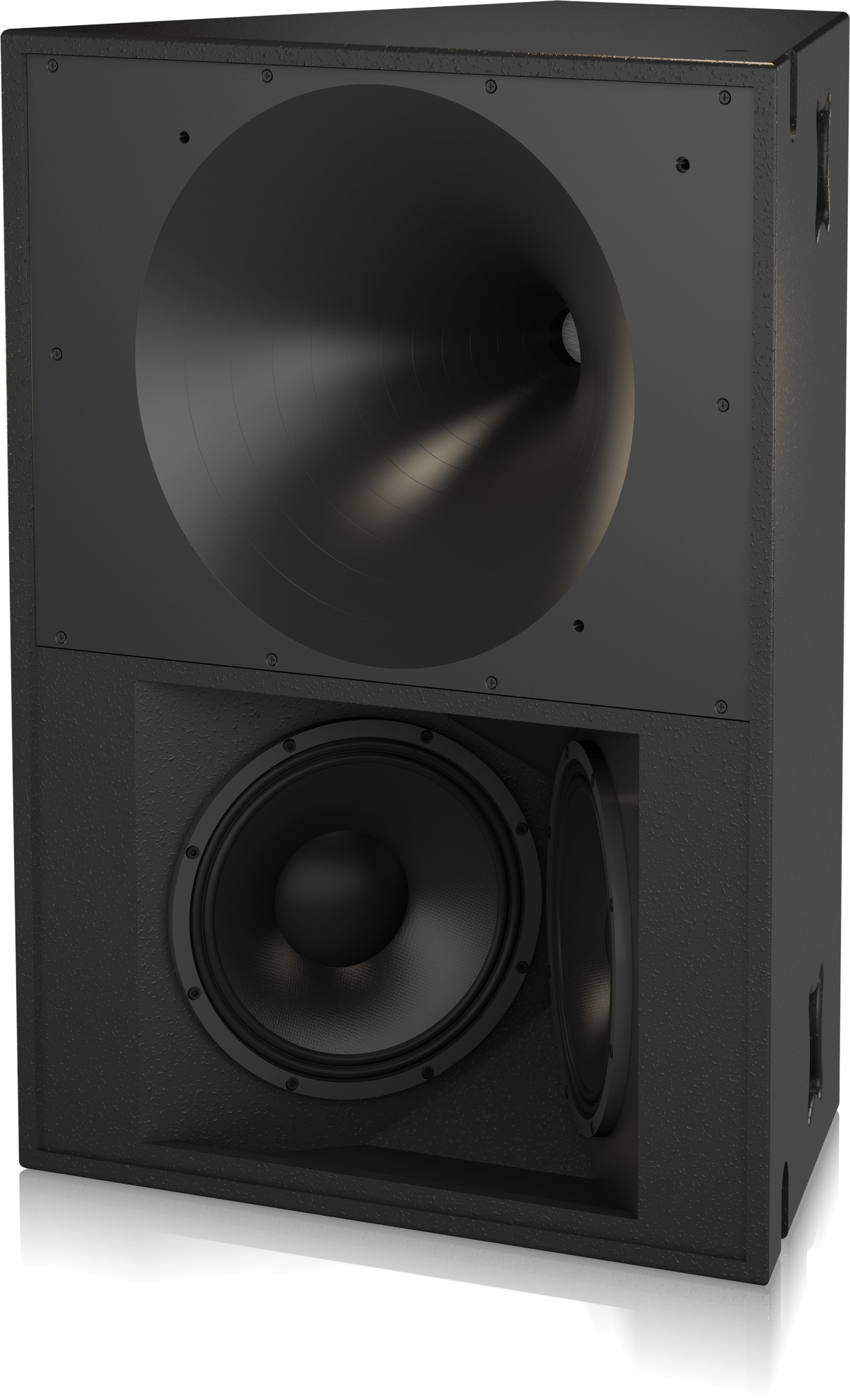

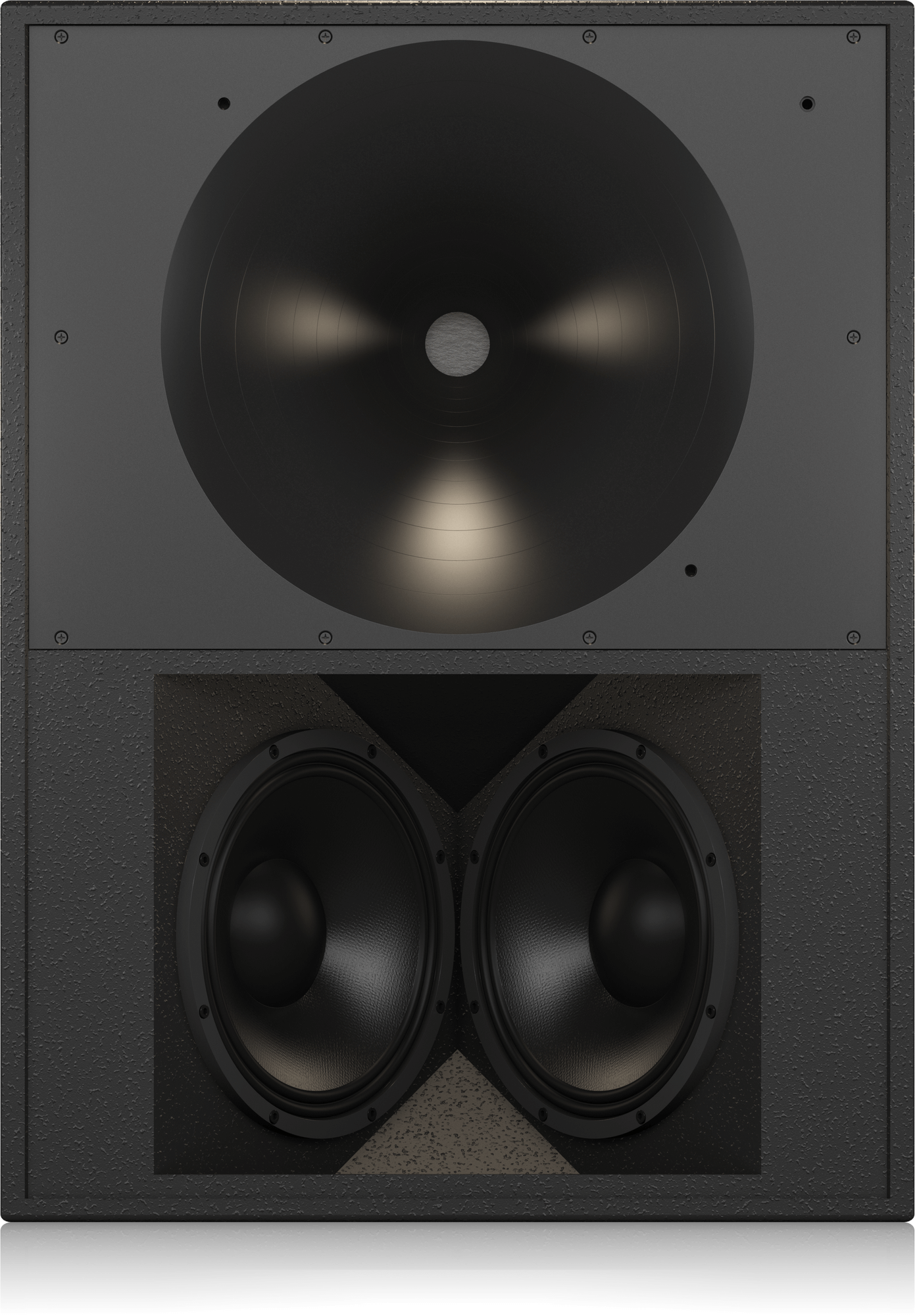

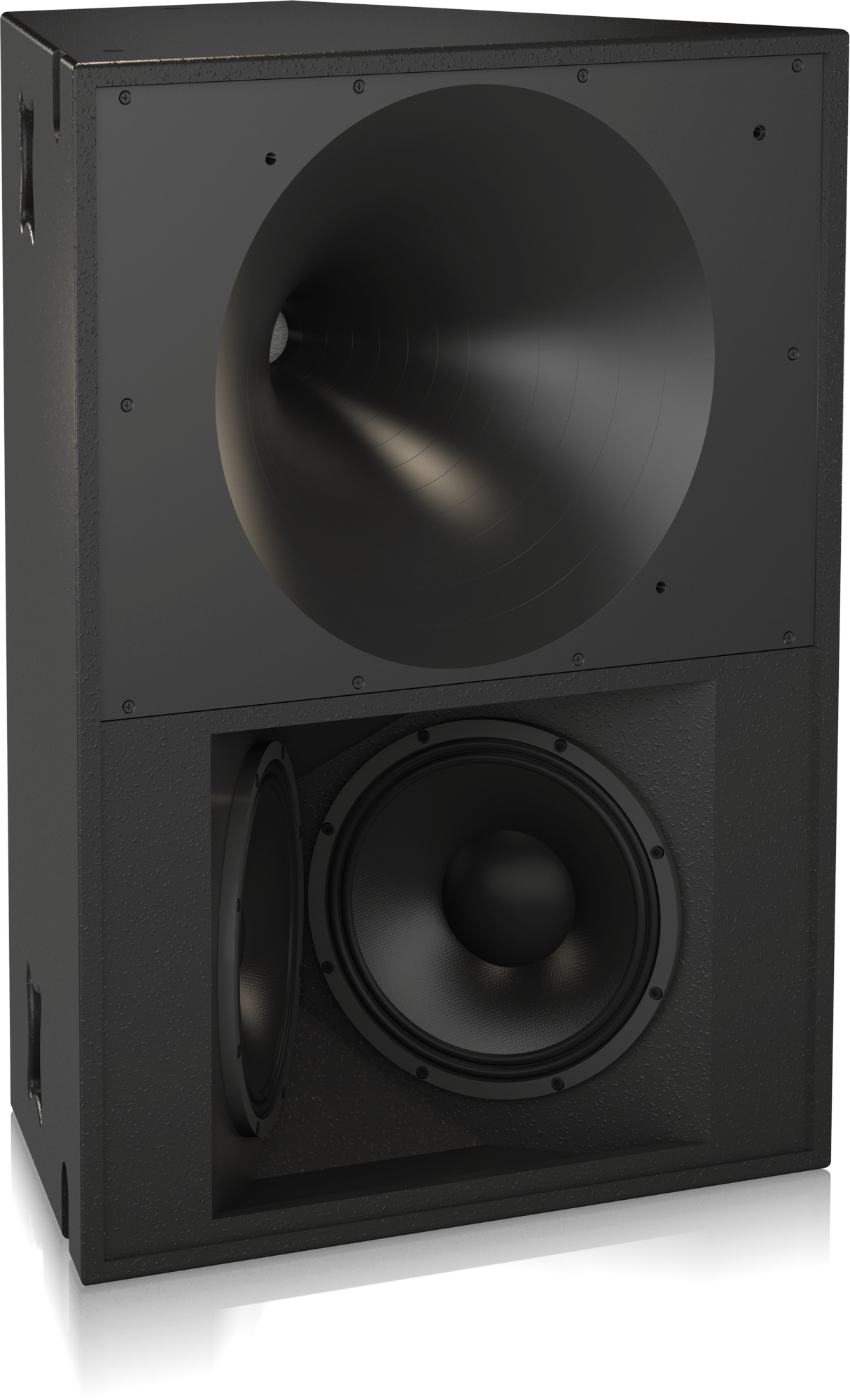

- Dual 12″ low frequency drivers in a semi horn-loaded configuration
- Dual Concentric 3.5″ and 1.75″ diaphragm compression drivers for mid and high frequencies
- Patented PSW waveguide technology for coherent wavefront alignment
- 60° conical dispersion for tightly packed point-source clusters
- Phase coherent point source with exceptional transient response
- User configurable for bi-amp and tri-amp operation
- Internally braced birch plywood enclosure
- Hard-wearing semi-matt black finish

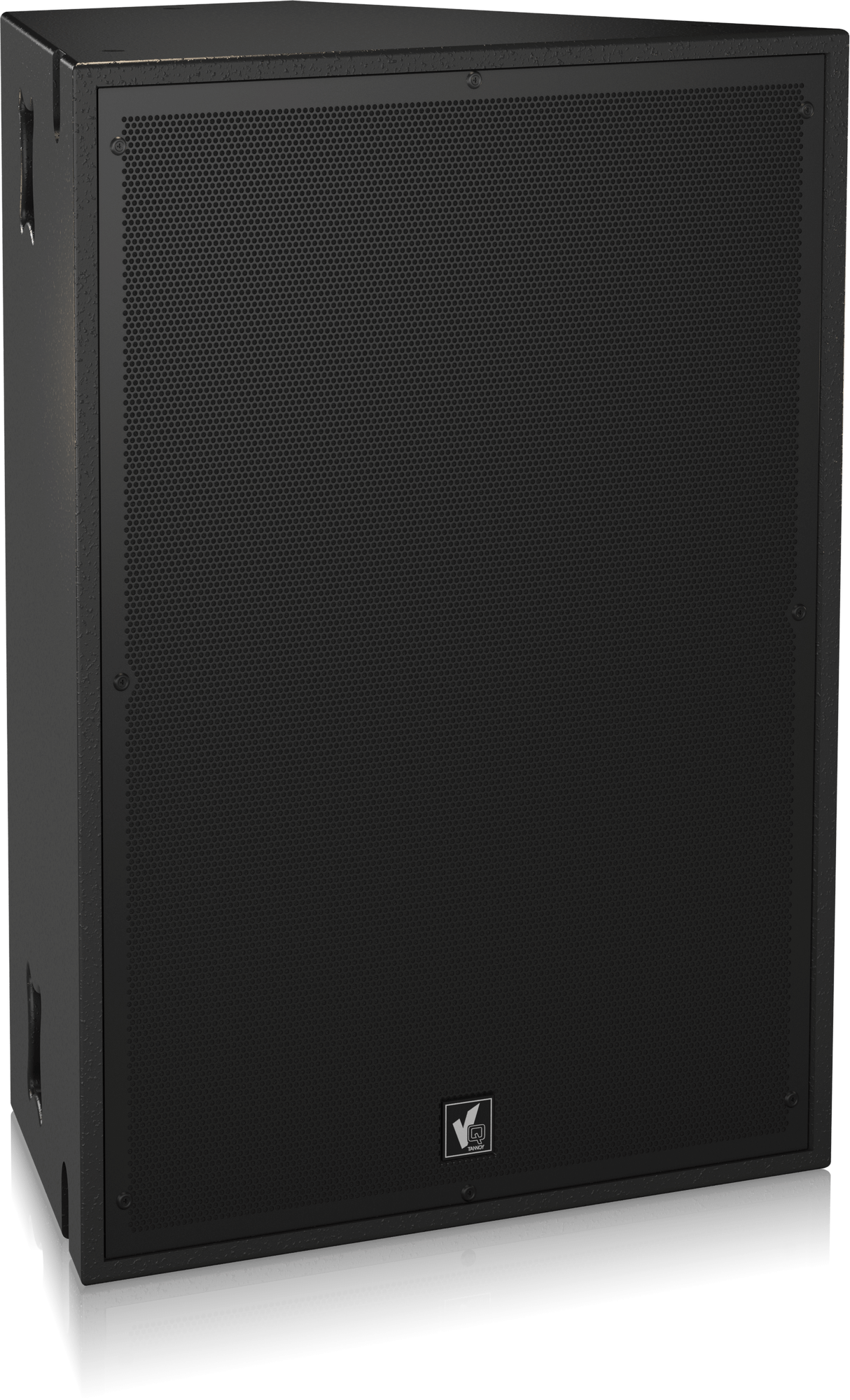

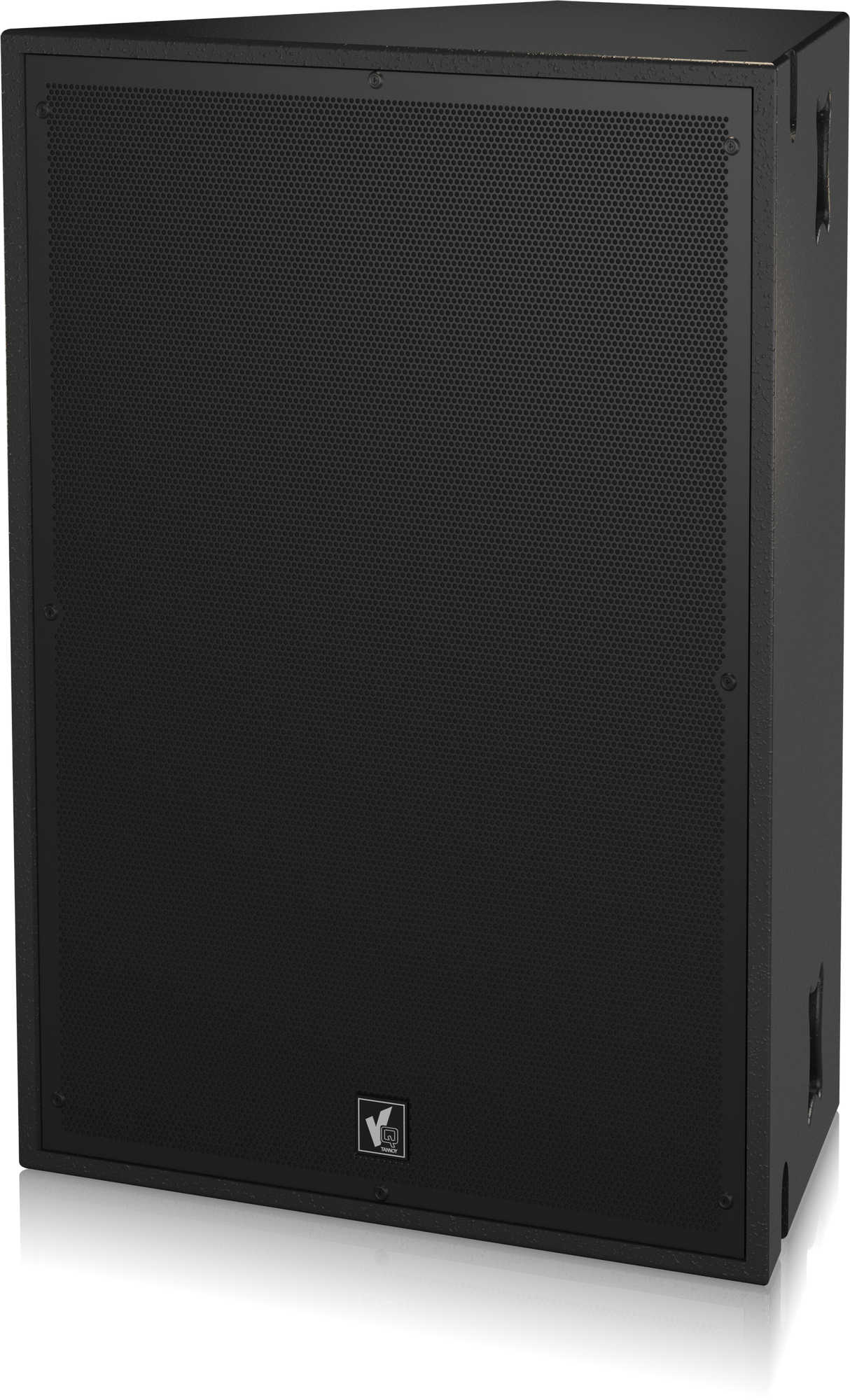

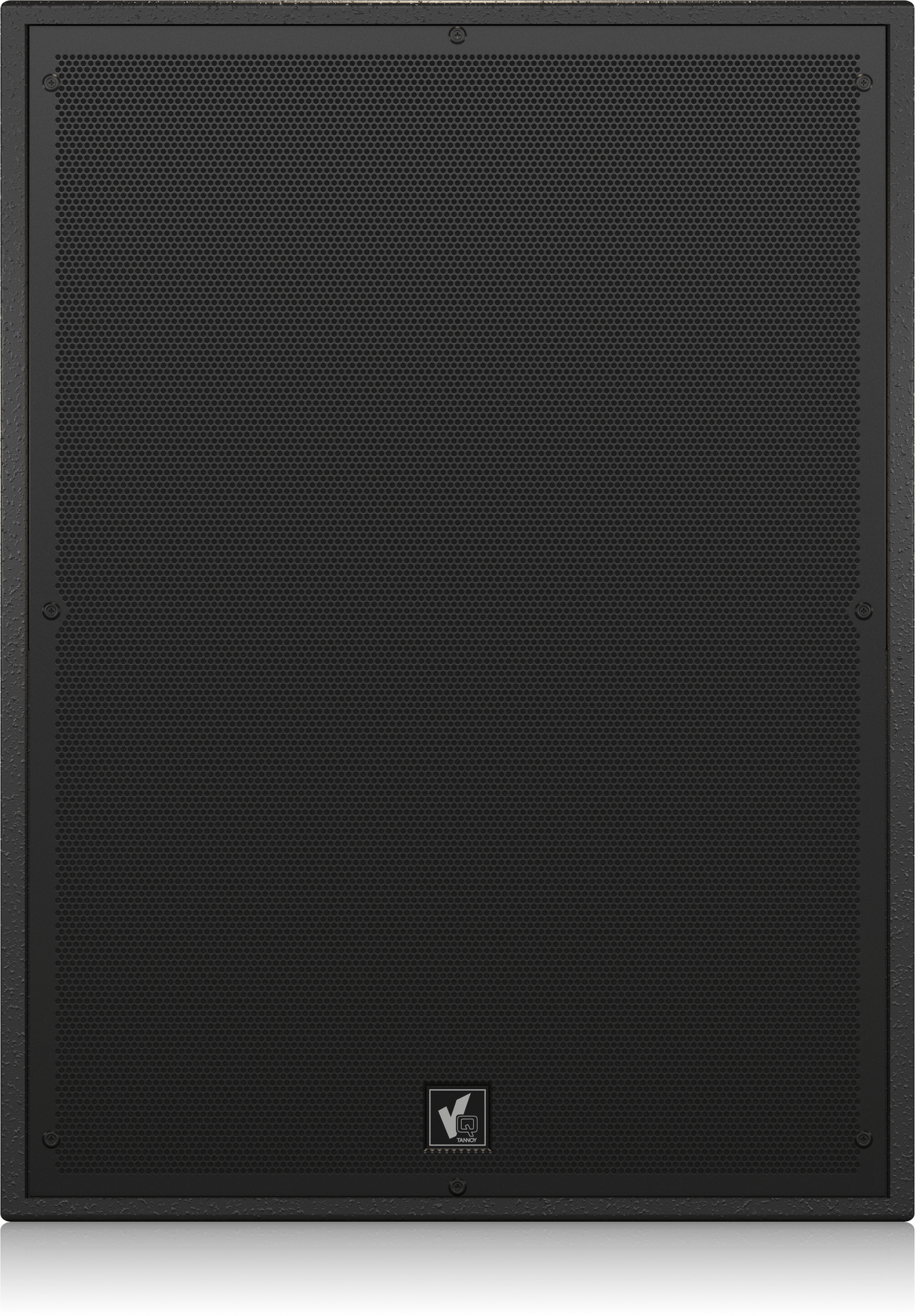

- Rugged powder-coated perforated steel grille
- Integral M10 rigging points for installation ease
- Ergonomically integrated handles

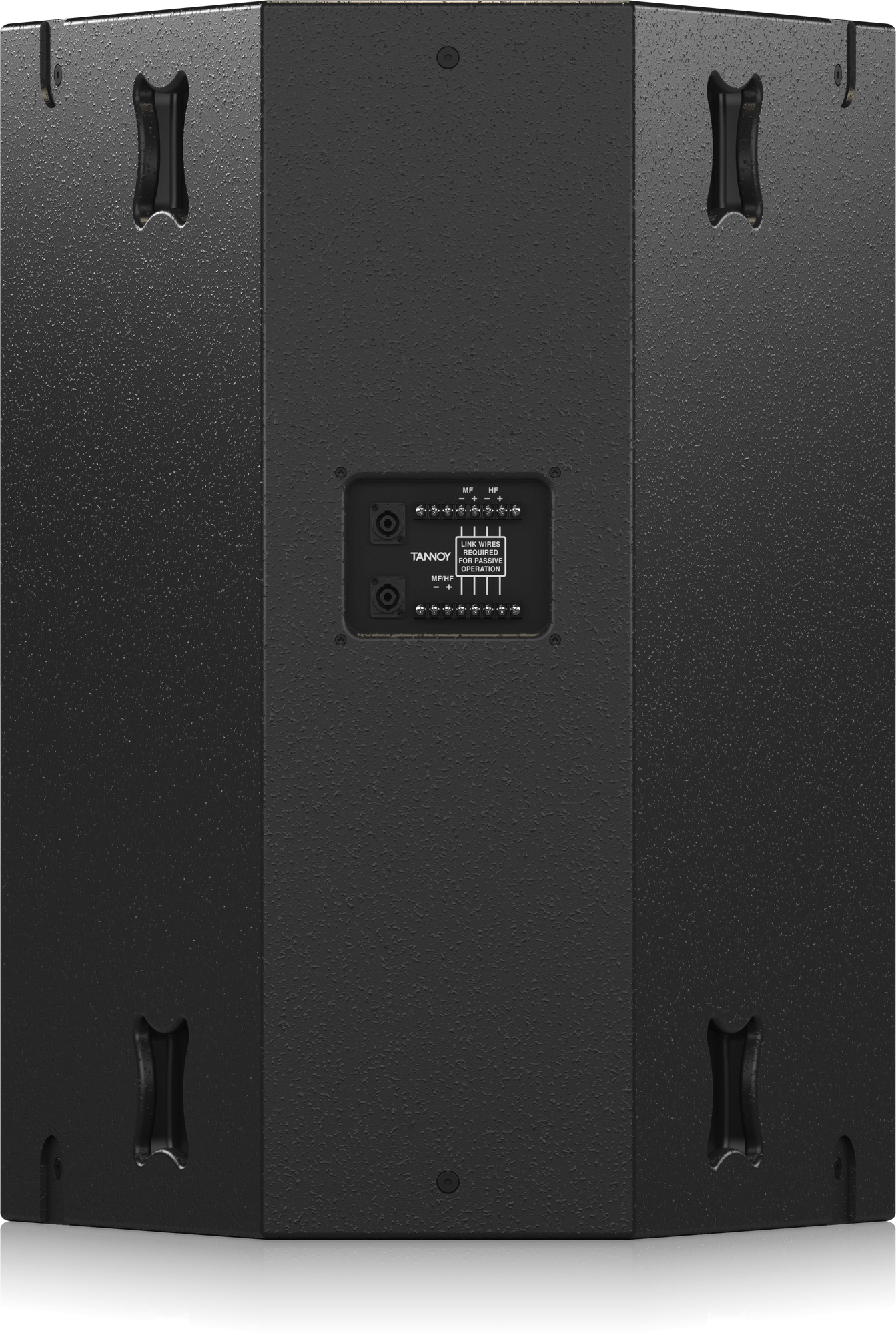

- Barrier strip and speakON NL4 connectors
Specifications
| Attribute | Details |
|---|---|
| Frequency Response (-3 dB) | 115 Hz – 23 kHz |
| Frequency Range (-10 dB) | 90 Hz – 27 kHz |
| Sensitivity (1 W @ 1m) | 115 dB |
| Dispersion (-6 dB) | 60° conical |
| Driver Components | LF: 2 x 300 mm (12″) low frequency transducers, semi horn-loaded, MF/HF: Dual concentric compression driver loaded into single PSW waveguide |
| Crossover | Biamp: 450 Hz (active), 7 kHz (passive); Triamp: 450 Hz, 7 kHz (active) |
| Directivity Factor (Q) | 21.2 |
| Directivity Index (DI) | 13.3 |
| Maximum SPL | 138 dB (averaged), 144 dB (peak) |
| Power Handling | LF: 1000 W continuous, 2000 W peak; MF: 200 W continuous, 400 W peak; HF: 90 W continuous, 180 W peak; Passive MF/HF: 200 W continuous, 400 W peak |
| Nominal Impedance | LF: 4 Ω, MF: 8 Ω, HF: 8 Ω |
Enclosure
| Element | Details |
|---|---|
| Construction | 18 mm (0.71″) birch plywood, internally braced |
| Grille | Powder-coated perforated steel |
| Finish | Textured black or white paint |
| Connectors | Barrier strip and speakON connector |
| Fittings | 8 x recessed handles, 12 x M10 flying inserts |
| Dimensions | 925 x 694 x 515 mm (36.4 x 27.3 x 20.3″) |
| Weight | 77 kg (169 lbs) |
