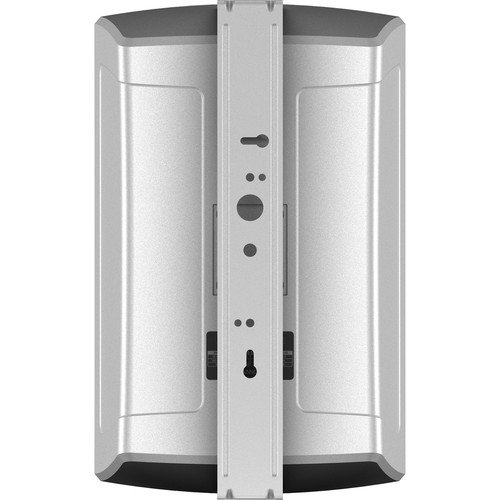

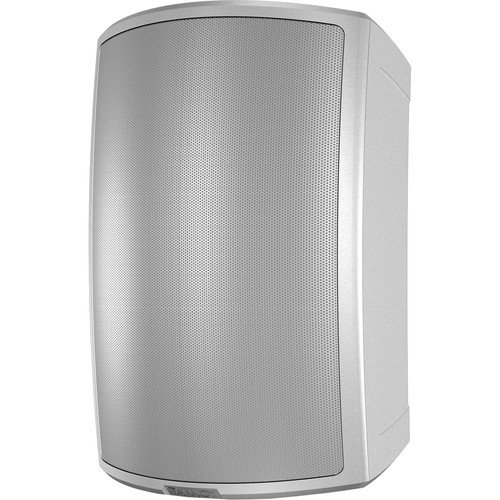

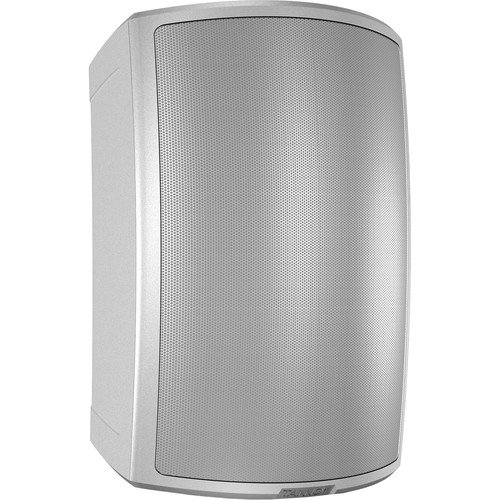

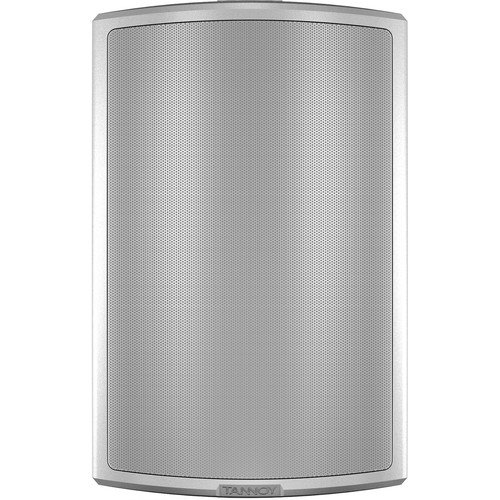

Tannoy AMS 8DC-WH 8″ Dual Concentric Loudspeaker 90W (White)
1,886.85 AED Included (5% UAE VAT)
The AMS 8DC-WH is a powerful 360-Watt loudspeaker featuring an 8-inch Dual Concentric driver with Omnimagnet technology, delivering wide directivity and enhanced intelligibility on a Torus Ogive Waveguide. It is perfect for background and foreground music in diverse settings including theme parks, hotels, restaurants, bars, retail stores, corporate AV setups, residential areas, and houses of worship, ensuring a coherent sound experience in multi-zoned environments.
Model number
AMS 8DC-WH
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Key Features
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) (1) | 65 Hz – 30 kHz |
| Frequency Range (-10 dB) (1) | 53 Hz – 40 kHz |
| System Sensitivity (1 W @ 1 m) (2) | 92 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling |
Average: 90 W Programme: 180 W Peak: 360 W |
| Recommended Amplifier Power | 180 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Rated Maximum SPL |
Average: 111 dB Peak: 117 dB |
| Transformer Taps (via front rotary switch) |
70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation |

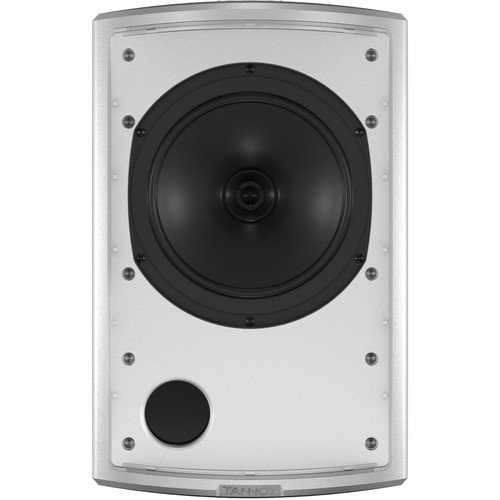

| Dual Concentric point source driver | 1 x 200 mm (8.0″) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 44 mm (1.75″) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 25 mm (1.00″) PEI dome |
Physical Characteristics
| Specification | Details |
|---|---|
| Enclosure | ABS |
| Grille | Weather-resistant zinc nickel-plated steel grille |
| Connectors | Removable locking connector with screw terminals |
| Transformer setting | Rotary switch |
| Dimensions (H x W x D) | 409.8 x 260.0 x 306.3 mm (16.13 x 10.24 x 12.06″) |
| Net Weight (ea) | 7.82 kg (17.24 lbs) |
| Shipping Weight | 8.69 kg (19.16 lbs) |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |
