Tannoy AMS 8DC 8″ Dual Concentric Loudspeaker 360W IP65 Rated
1,886.85 AED Included (5% UAE VAT)
The AMS 8DC is a 360-Watt high sensitivity loudspeaker featuring an 8" Dual Concentric point-source driver with Omnimagnet technology and a Torus Ogive Waveguide for broad and consistent sound quality. It is perfect for background or foreground music in various environments, including theme parks, hotels, restaurants, bars, retail stores, corporate AV setups, residential developments, and houses of worship, seamlessly integrating with ceiling and wall-mounted TANNOY loudspeakers.
Model number
AMS 8DC
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
AMS 8DC Loudspeaker
The AMS 8DC is a high-performance 360-Watt loudspeaker, utilizing the latest 8″ Dual Concentric point-source driver with Omnimagnet technology and a Torus Ogive Waveguide. This results in excellent broadband directivity and enhanced intelligibility, making it suitable for various indoor and outdoor audio applications.
Key Features
- 360 Watts peak power for robust audio output
- Omnimagnet technology for improved sound quality and directivity
- Weather resistant components suitable for outdoor use (IP65 rated)
- Versatile mounting options, including included yoke bracket
- Optimized for Lab Gruppen low impedance amplifiers
Specifications
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) | 65 Hz – 30 kHz |
| Frequency Range (-10 dB) | 53 Hz – 40 kHz |
| System Sensitivity | 92 dB (1 W @ 1 m) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 90 W, Programme: 180 W, Peak: 360 W |
| Recommended Amplifier Power | 180 W @ 16 Ohms |
| Nominal Impedance | 16 Ohms |
| Rated Maximum SPL | Average: 111 dB, Peak: 117 dB |
| Transformer Taps | 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation, 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation |

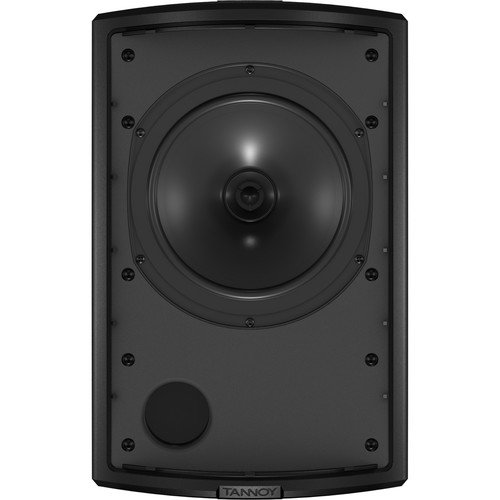

| Dual Concentric Driver | 8″ with Omnimagnet technology |
| Low Frequency | 44 mm voice coil, treated multi fiber paper pulp cone |
| High Frequency | 25 mm PEI dome |
| Enclosure | ABS |

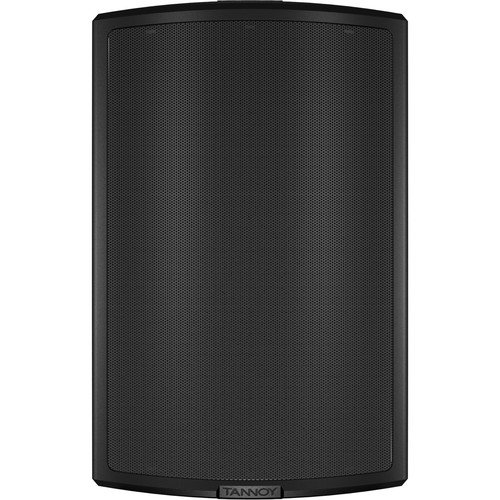

| Grille | Weather-resistant zinc nickel-plated steel grille |
| Dimensions (H x W x D) | 409.8 x 260.0 x 306.3 mm |
| Net Weight | 7.82 kg |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |
