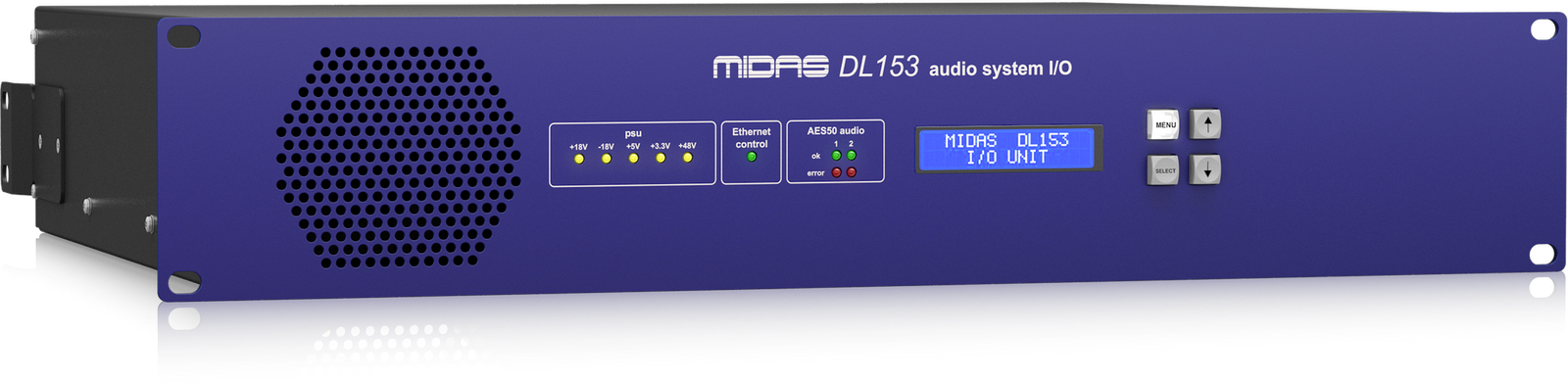

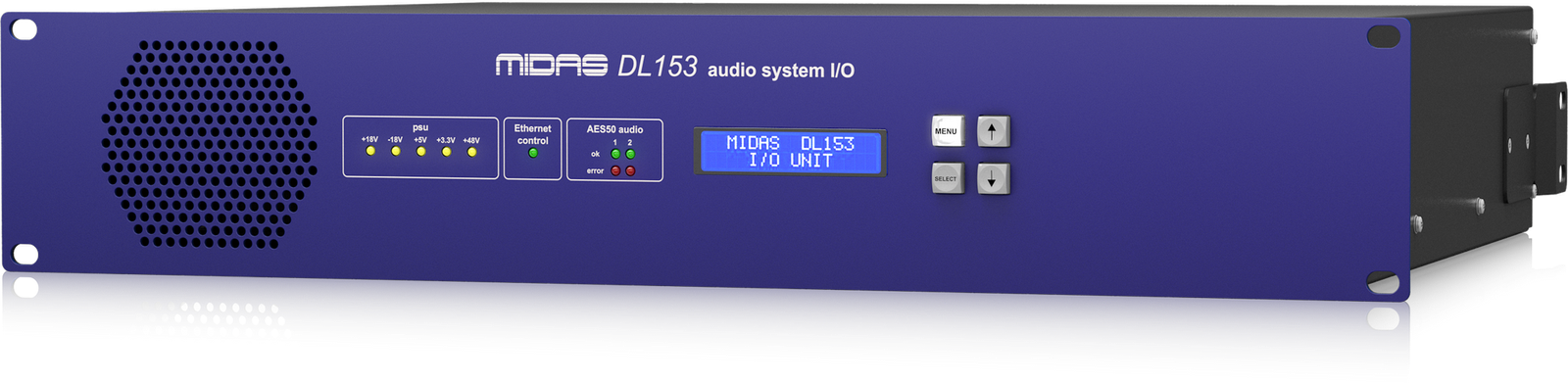

Midas DL153 Stage Box 16 Input 8 Output with 16 Mic Preamps
6,915.30 AED Included (5% UAE VAT)
The DL153 is a 2U 19″ rack I/O unit featuring 16 mic/line level inputs, 8 line level outputs, and delivers renowned Midas sound quality. It includes Midas microphone preamplifiers with 2.5 dB analogue gain steps and dual redundancy via two AES50 network ports, making it an ideal companion for Midas PRO and M32 Series digital consoles for seamless digital snake connections.
Model number
DL153
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
DL153 Rack I/O Unit
Experience superior audio quality with the DL153, a 2U 19″ fixed-configuration rack I/O unit designed for professional use. Featuring 16 mic/line level inputs and 8 line level outputs, the DL153 ensures outstanding performance with legendary Midas sound quality. This unit is ideal for creating a seamless digital snake connection from Front of House to stage, working perfectly with Midas PRO and M32 Series digital consoles.
Key Features
- 16 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
- 8 electronically balanced low impedance line level outputs
- Remote operation up to 100 m via CAT5/5e cable
- Selectable 96 kHz or 48 kHz sample rate operation
- All settings programmable from front panel controls or console

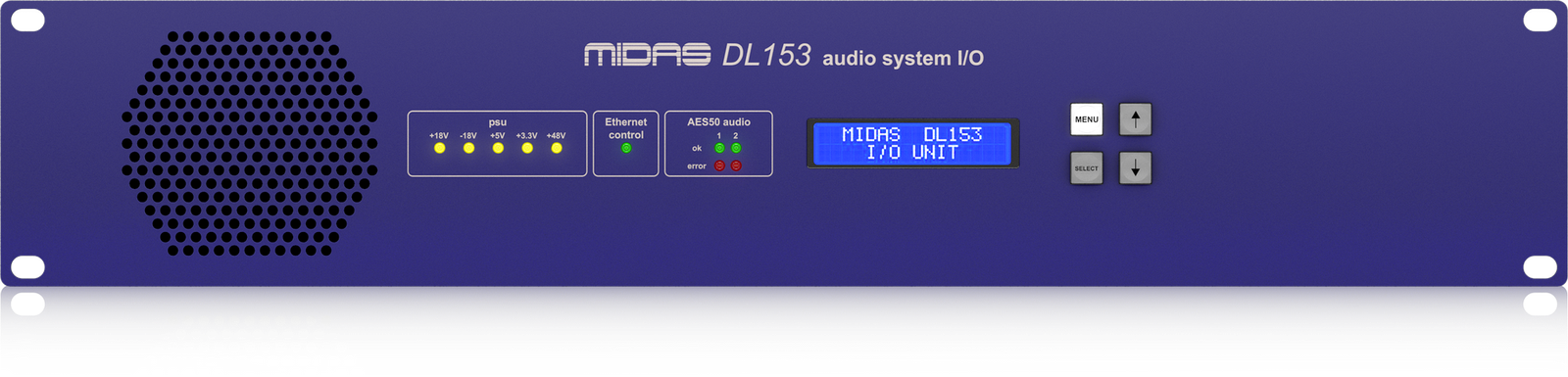

- PSU status indicator LEDs and configuration LCD display on front panel
- Supports dual redundant AES50 networks
- Features Neutrik etherCON AES50 network ports
- Rugged 2U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
Specifications
| Specification | Details |
|---|---|
| Sample rate | 48 kHz, 96 kHz |
| Dynamic range | >107 dB unweighted (20 Hz – 20 kHz) |
| Mic EIN (40 dB Gain) | -126 dBu |
| Maximum Output Level | +21 dBu into 600 Ω |
| Output Noise (Unity Gain) | -86 dBu |
| Frequency Response | ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz) |
| THD+N (Unity Gain) | <0.01% |
| Crosstalk @ 1 kHz | <-90 dB |

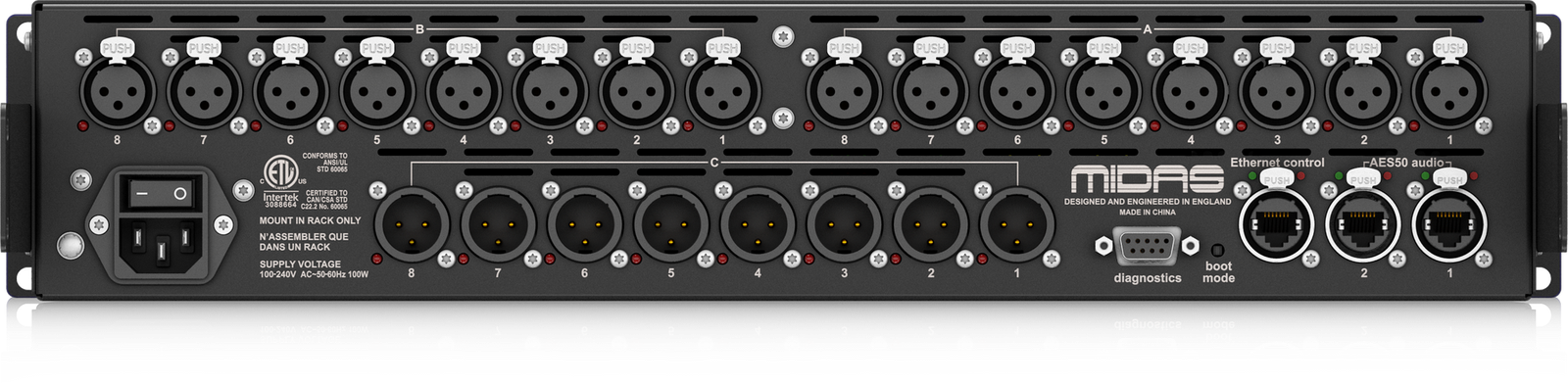

| Analogue Inputs | 16 |
| Type | Mic/Line Level |
| Connector | 3-pin XLR Balanced |
| Input Impedance | 10k Ω |
| A/D Conversion | 24 bit, 96 kHz with 128 times oversampling |
| Phantom Power | +48V, individually switchable per channel |
| Analogue Outputs | 8 |
| Type | Line Level |
| Connector | 3-pin XLR Balanced |
| Output Impedance | 50 Ω |
| D/A Conversion | 24 bit, 96 kHz with 128 times oversampling |
| Network Connections | 2 |
| Connector | Neutrik etherCON with status LEDs |
| Redundancy | Dual cable redundancy |
| Network Interface | Conforms to AES50-2011 |
| Ethernet Control Port | 1 |
| Connector | Neutrik etherCON with status LEDs |
| Power | 1 |
| Connector | IEC mains inlet |
| Mains Input Voltage | 100 to 240 VAC, 50-60 Hz |
| Power Consumption | <150 W |
| Dimensions | 483 x 416 x 88 mm (19.0 x 16.4 x 3.5″) |
| Net Weight | 6.7 kg (14.7 lbs) |
| Operating Temperature Range | +5°C to +45°C |
| Storage Temperature Range | -20°C to +60°C |
