Midas DL151 24-Input Stage Box with 24 Mic Preamps and AES50 Network
6,915.30 AED Included (5% UAE VAT)

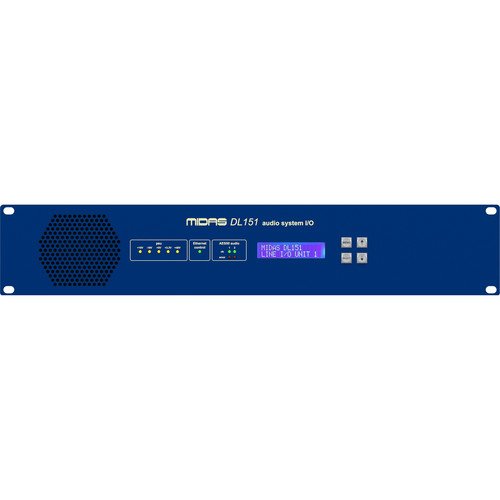

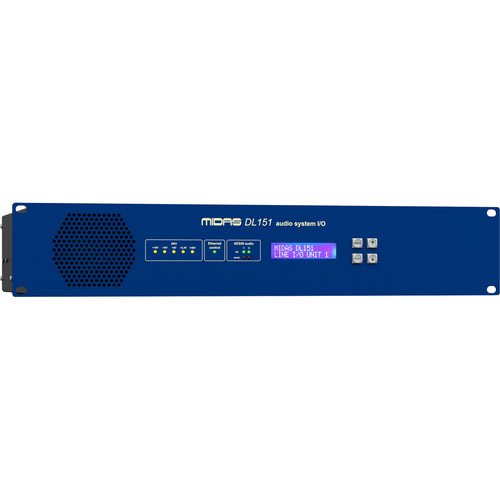

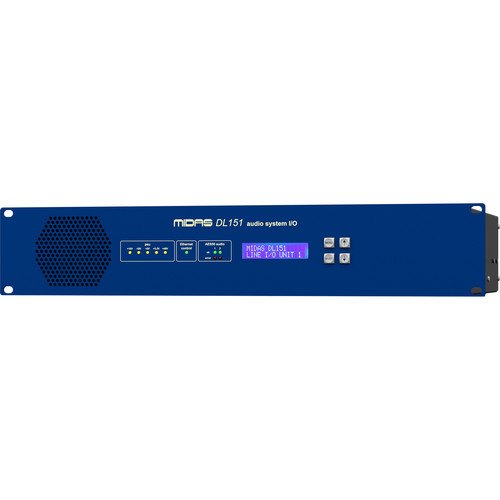

The DL151 is a 2U 19" fixed-configuration rack I/O unit featuring 24 mic/line level inputs that deliver high-quality Midas sound using established technologies. It includes Midas microphone preamplifiers with 2.5 dB analogue gain steps and dual-redundant AES50 network ports, making it an ideal companion for Midas PRO and M32 Series digital consoles, enabling seamless digital snake connections from Front of House to stage.
Model number
DL151
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Midas DL151 24-Input I/O Unit
The Midas DL151 is a 2U 19″ fixed-configuration rack I/O unit designed for high-quality audio input. With 24 mic/line level inputs featuring renowned Midas sound quality, this unit leverages advanced technologies and is ideal for Midas PRO and M32 Series digital consoles. It supports dual redundant AES50 networks, allowing seamless and reliable digital connections from the Front of House to the stage.
Key Features
- 24 Midas microphone preamplifiers with +48 V phantom power
- Remote operation over CAT5/5e cable up to 100 meters
- Selectable 96 kHz or 48 kHz sample rates
- Programmable settings from front panel or console
- PSU status LEDs and configuration LCD display
- Supports dual redundant AES50 networks
- Durable Neutrik etherCON AES50 network ports
- Rugged 2U rackmount chassis for portable use
- Auto-ranging universal switch-mode power supply
Specifications
| Specification | Details |
|---|---|
| Sample Rates | 48 or 96 kHz |
| Analog Inputs | 24 x XLR 3-pin male Microphone |
| Analog Outputs | None |

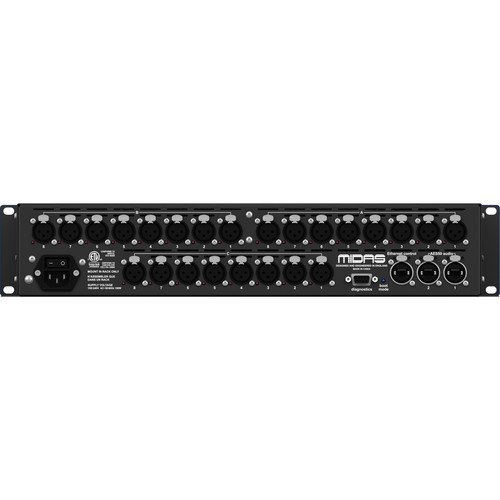

| Other Connectors | 1 x RJ45 Ethernet, 2 x Neutrik etherCON ports, 1 x 9-pin D-Sub (diagnostics) |
| Power Requirements | 100~240VAC, 50/60 Hz |
| Dimensions | 19″ 2U rackmount |
Packaging Info
| Package Weight | 20.45 lb |
| Box Dimensions (LxWxH) | 22.6 x 19.8 x 19.6 inches |
