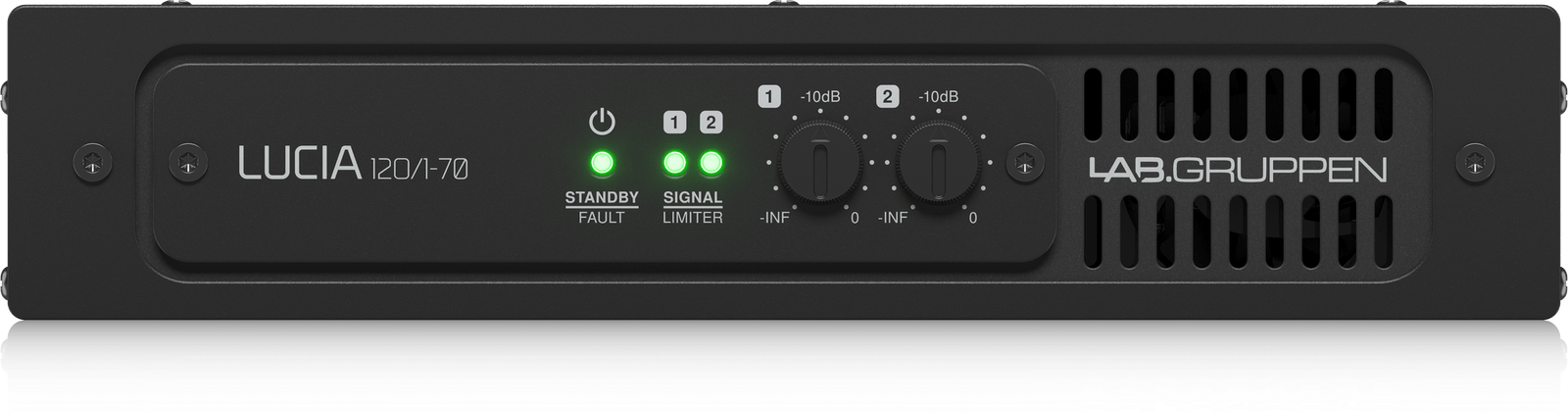

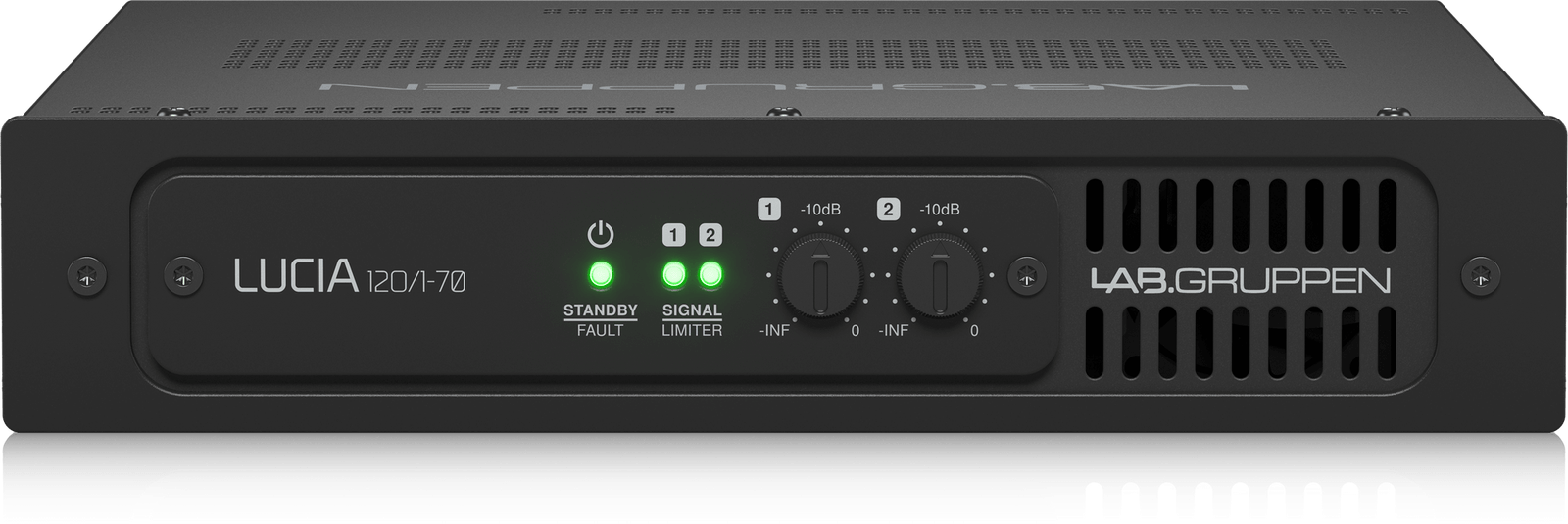

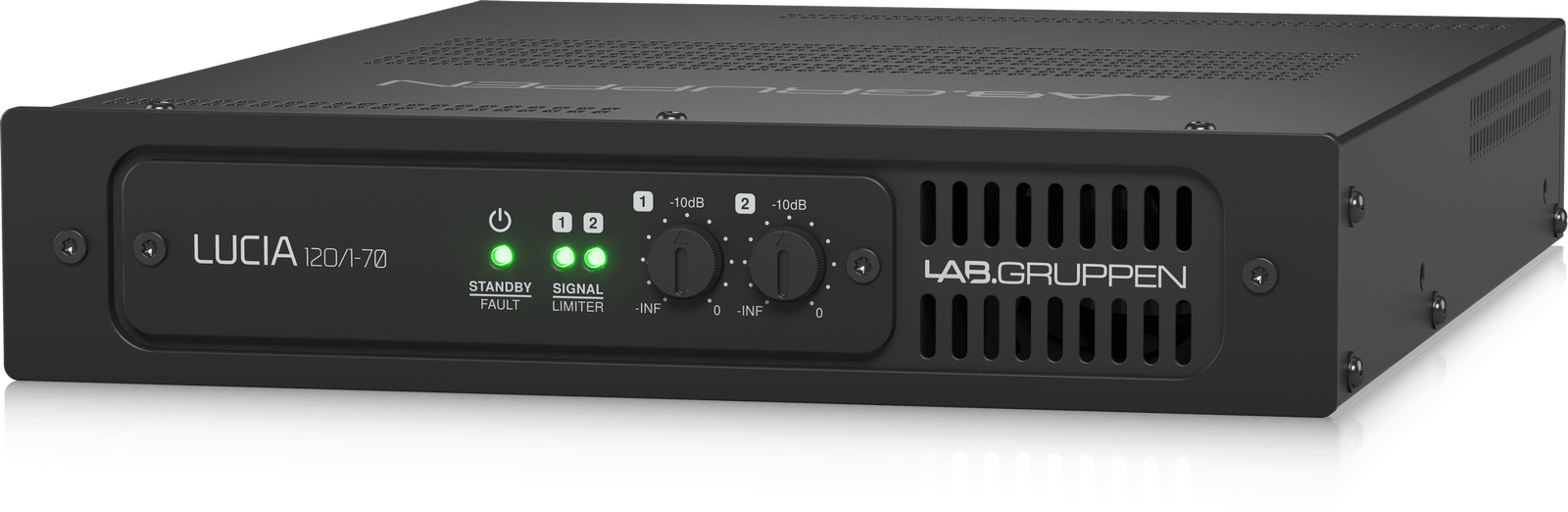

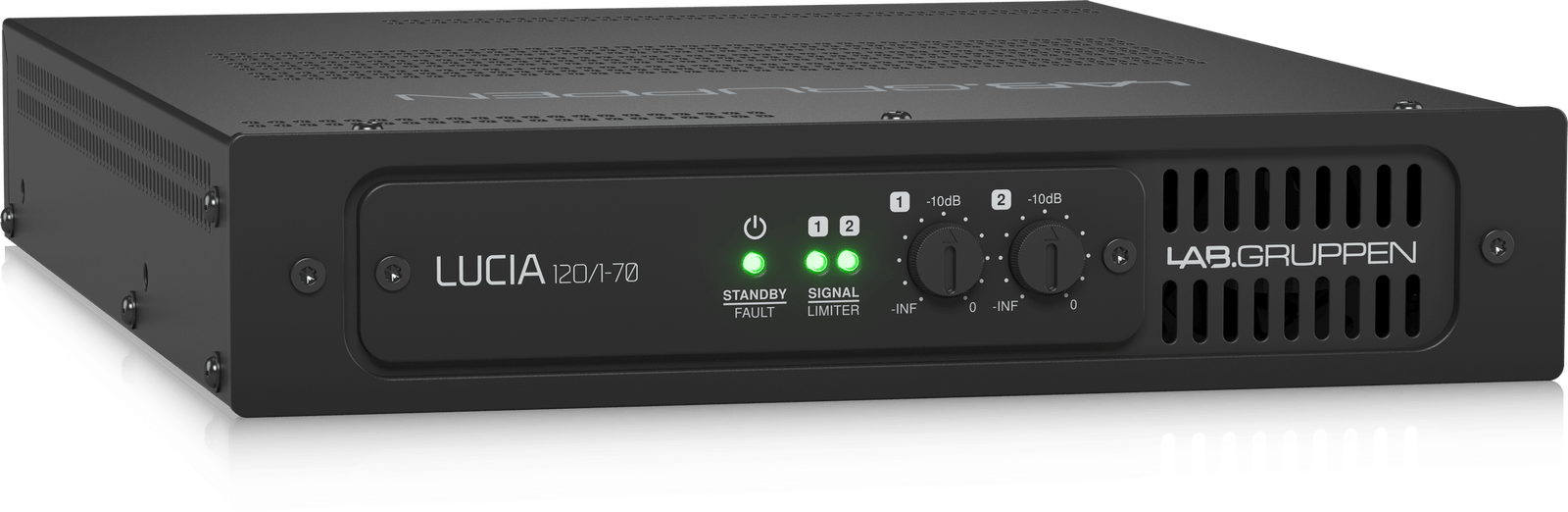

Lab Gruppen LUCIA 120/1-70 Compact 120W Mono 70V Amplifier
1,783.95 AED Included (5% UAE VAT)
The LUCIA 120/1-70 combines 120 W of decentralized power with easy installation in a compact, Energy Star compliant amplifier. Featuring Lab Gruppen's cutting-edge digital and firmware-controlled front end, it delivers superior audio performance, flexibility, and reliability, making it an ideal solution for AV applications needing outstanding performance without the need for a centralized equipment room.
Model number
LUCIA 120/1-70
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Product Overview
The LUCIA 120/1-70 is a compact and energy-efficient amplifier designed for high impedance speaker systems. This cutting-edge amplifier is part of Lab Gruppen’s LUCIA series, offering unprecedented flexibility and superior audio performance in AV system design.
Key Features
- 120 W mono amplifier for 70 V distribution lines
- On-board DSP with advanced loudspeaker processing
- Automatic Dynamic Loudness Contouring for optimal performance at any output level
- Energy Star certification for low operating costs and high energy efficiency
- USB connection for firmware updates and configuration
- Compact design with half-rack, 1U chassis
- Configurable GPIO port for versatile remote control
- Comprehensive circuit protection for fail-safe operation
Specifications
| Category | Specification | Details |
|---|---|---|
| General | Number of amplifier channels | 1 |
| Max total output | 120 W | |
| Max output voltage | 100 Vpeak | |
| Max output current | 3.5 Arms | |
| Performance | 70 V | 120 W |
| 100 V | 60 W | |
| 16 ohms | 120 W | |
| Signal to Noise Ratio | >100 dBA | |
| Gain, Sensitivity, and Limiters | VPL | 100 Vpeak |
| Sensitivity, balanced input | 4 dBu / 1.23 Vrms | |
| Sensitivity, RCA input | -2 dBu / 0.62 Vrms | |

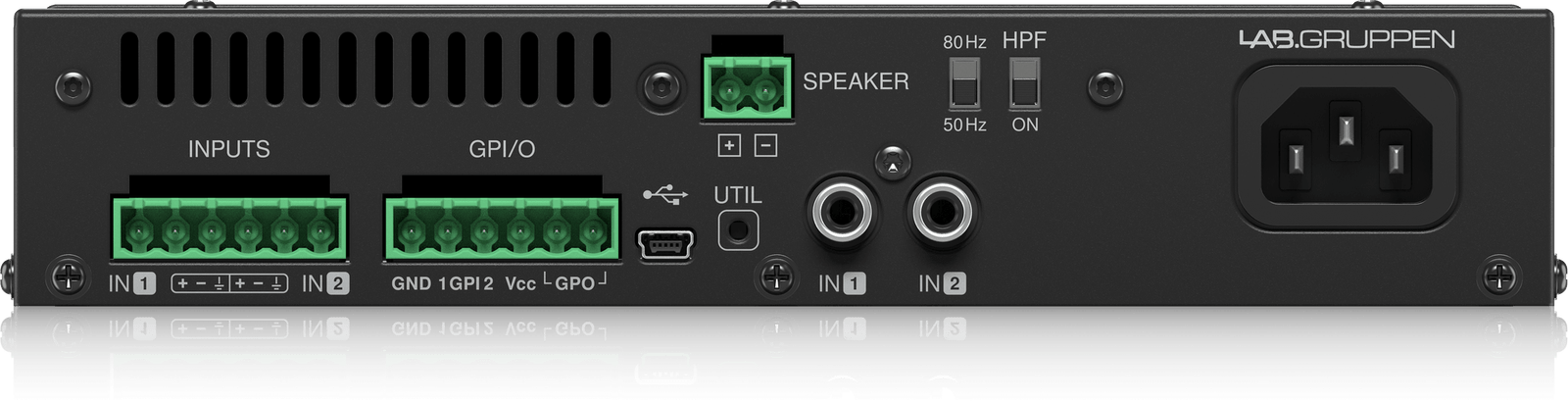

| Connectors and Buttons | Input connectors | 3 – pin detachable screw terminals, electronically balanced |
| Output connector | 2 – pin detachable screw terminal | |
| USB | For firmware update and configuration | |
| Power | Nominal voltage | 100 – 240 VAC |
| Operating voltage | 85 – 265 VAC | |
| Standby consumption | <1 W | |
| Dimensions | Width | 216 mm (8.5”) |
| Height | 44 mm (1 U) | |
| Depth | 280 mm (11”) | |
| Weight | 1.9 kg (4.2 lbs) | |
| Certifications | Approvals | CE, CSA, CCC, PSE, FCC, Energy Star |
