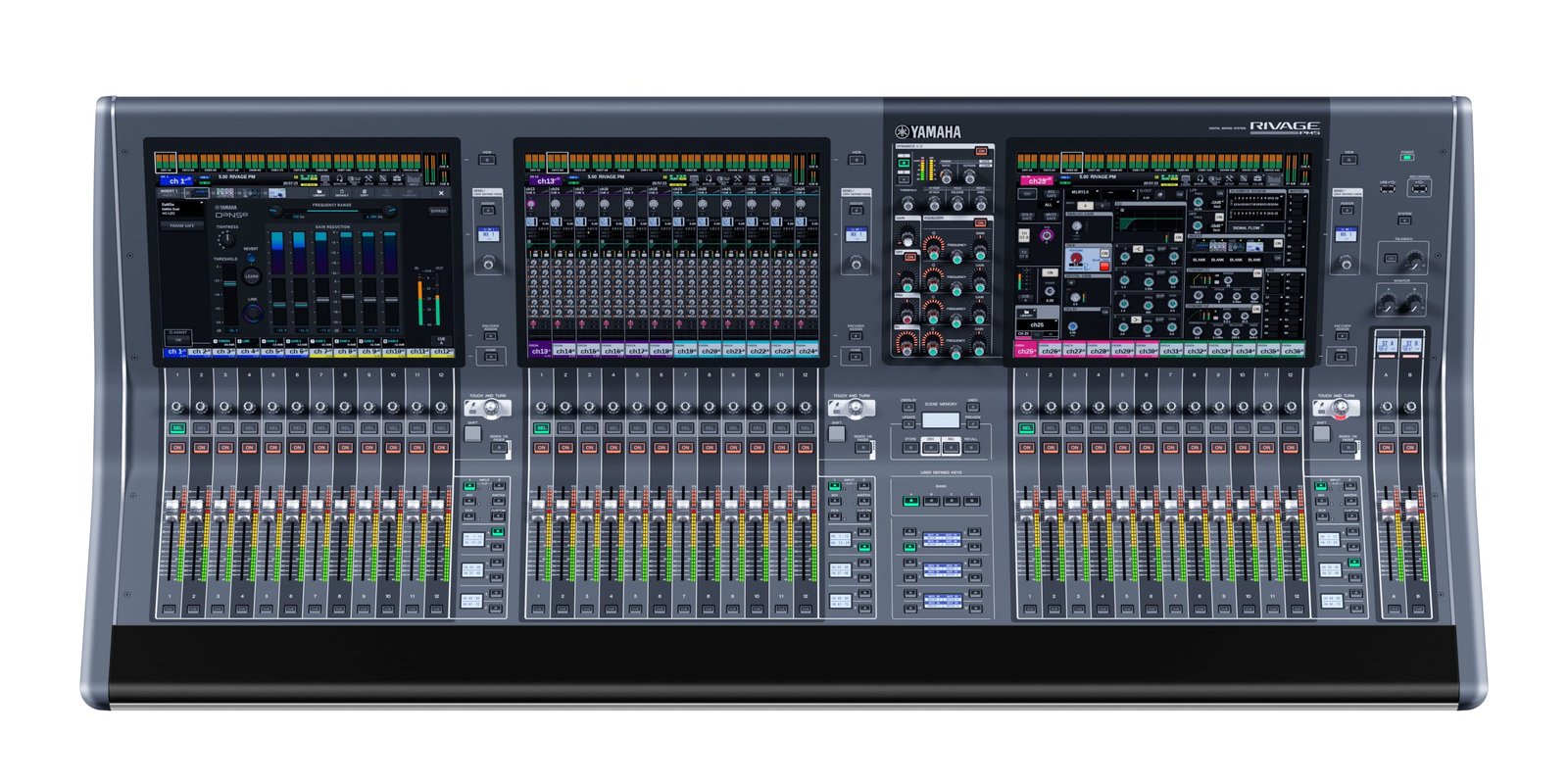

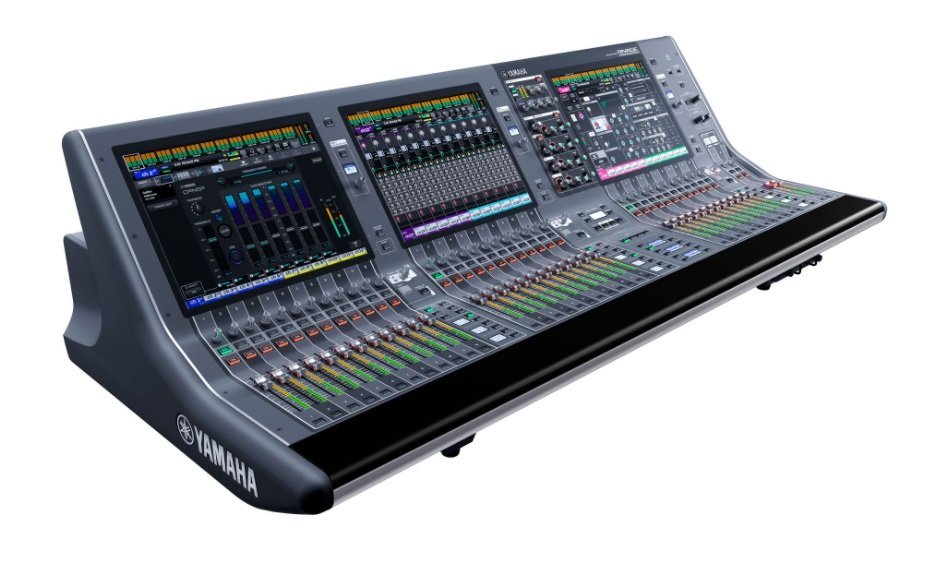

Yamaha Digital Mixing Console CS-R5 38-Fader with Touch Displays
206,004.75 AED Included (5% UAE VAT)
The Yamaha RIVAGE PM mixing system's CS-R5 control surface offers superior sound quality and versatile control, featuring a compact design with 38 faders, three touch-panel displays, and an intuitive Selected Channel section for streamlined operation.
Model number
CS-R5
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Yamaha’s RIVAGE PM series is celebrated for its top-notch audio quality and versatile control. The CS-R5 control surface enhances your mixing experience with unmatched scalability and compact design. This 38-fader console includes three intuitive touch-panel displays, making it a breeze to operate. With customizable fader banks, user-defined keys, knobs, and advanced connectivity options, the CS-R5 is ideal for professionals seeking both performance and flexibility. Its ergonomic design guarantees perfect stage visibility from the engineer’s position. The CS-R5 is a fundamental component of the RIVAGE PM system, which also features a DSP engine and an I/O rack, ensuring a comprehensive and reliable mixing setup.
Features:
- 38-fader control surface
- Three 15-inch touch-panel displays with Centralogic UI
- Streamlined Selected Channel section for intuitive operation
- Custom Fader banks and user-defined controls

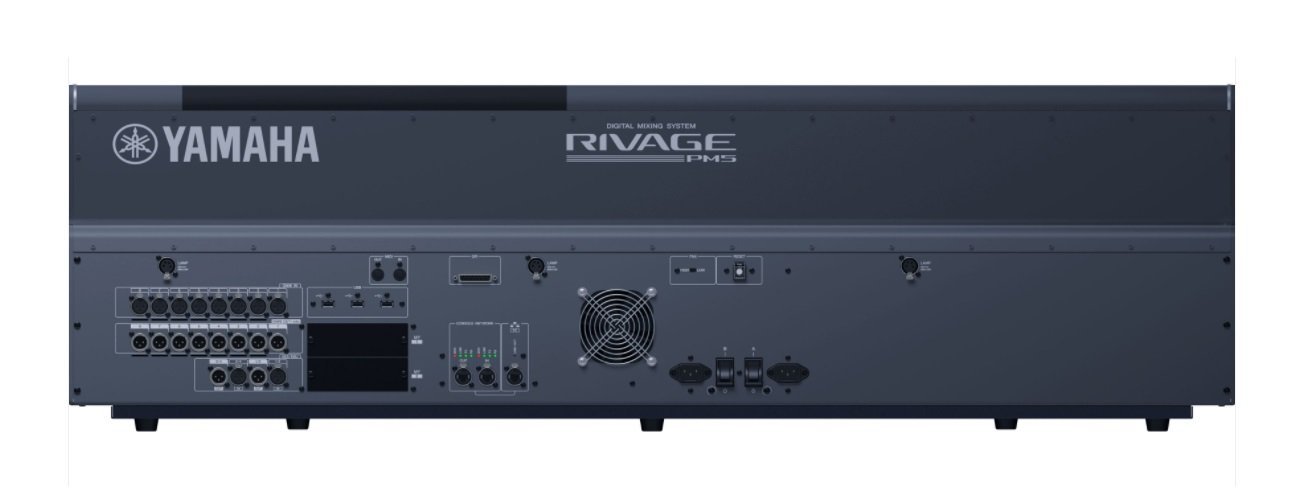

- Extensive connectivity with analog, digital, GPI, and MIDI I/O
- Five USB ports, including direct recording to a flash drive
- Dual redundant power supplies
- Ergonomic design for optimal stage visibility
- Nuendo Live DAW software included
Specifications:
| Specification | Details |
|---|---|
| Input Mixing Channels | DSP-RX: 120, DSP-RX-EX: 288 |
| Mix Buses | DSP-RX: 48, DSP-RX-EX: 72 |
| Matrices | DSP-RX: 24, DSP-RX-EX: 36 |
| Stereo Buses | 2 |
| Mono Buses | 1 |
| Cue Buses | 2 |
| Analog Inputs/Outputs | 8/8 |
| Digital AES Inputs/Outputs | 4/4 |
| Expansion Slots | HY: 4, MY: 2+2 |
| Meter Bridge | On screen |
| External PSU | Dual redundant |
| Number of Scenes | 1000 |
| Direct Out | Yes |
| Number of Inserts | 4 slots on each 2 insert points |
| Dynamics | Comp, Gate, Expander, De-Esser, Ducking |
| Recording Methods | USB, DVS |
| Surround Sound | 5.1 Panning, Surround Monitor |
| Monitor Functions | Solo Mode, Oscillator |
