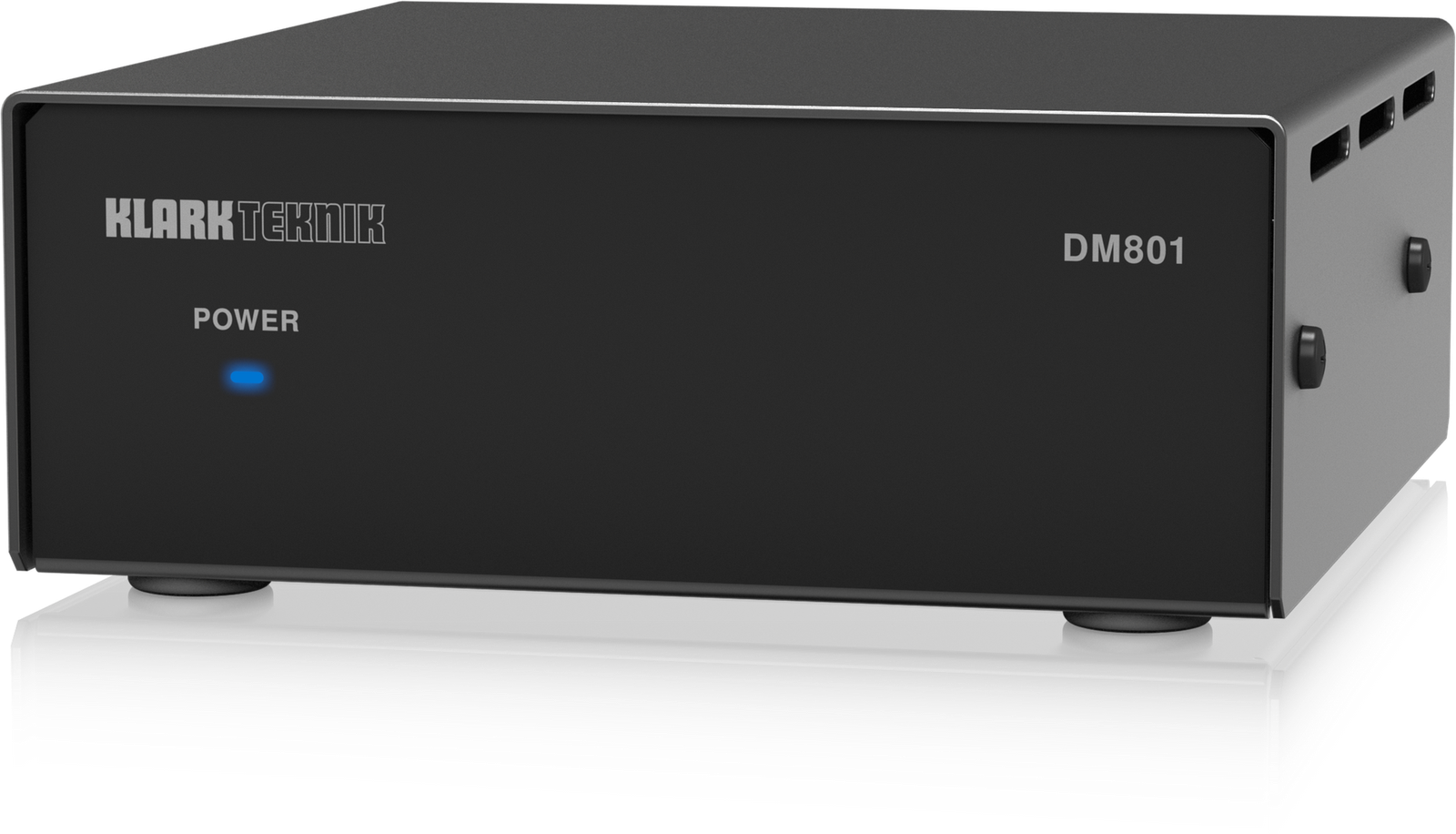

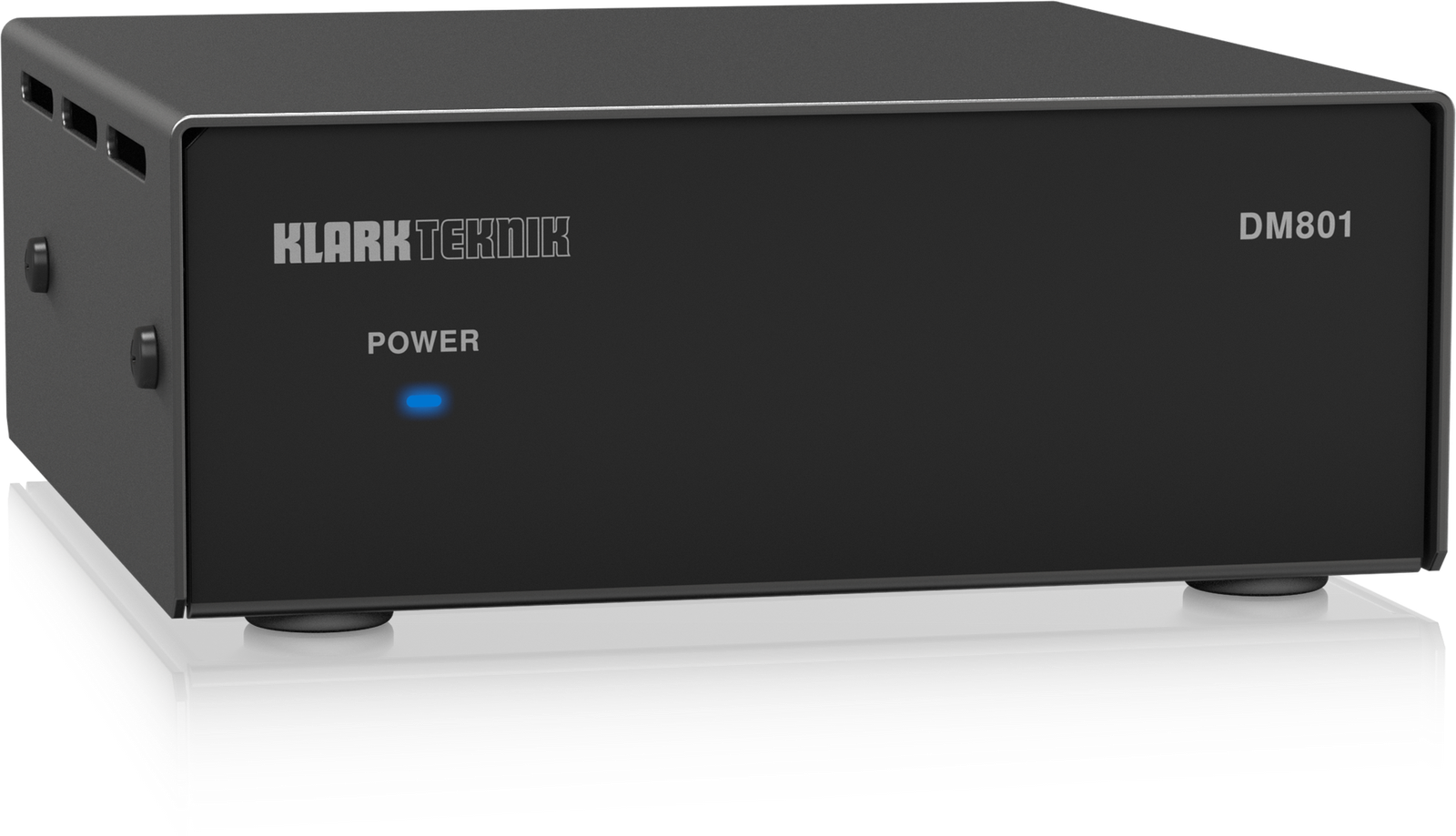

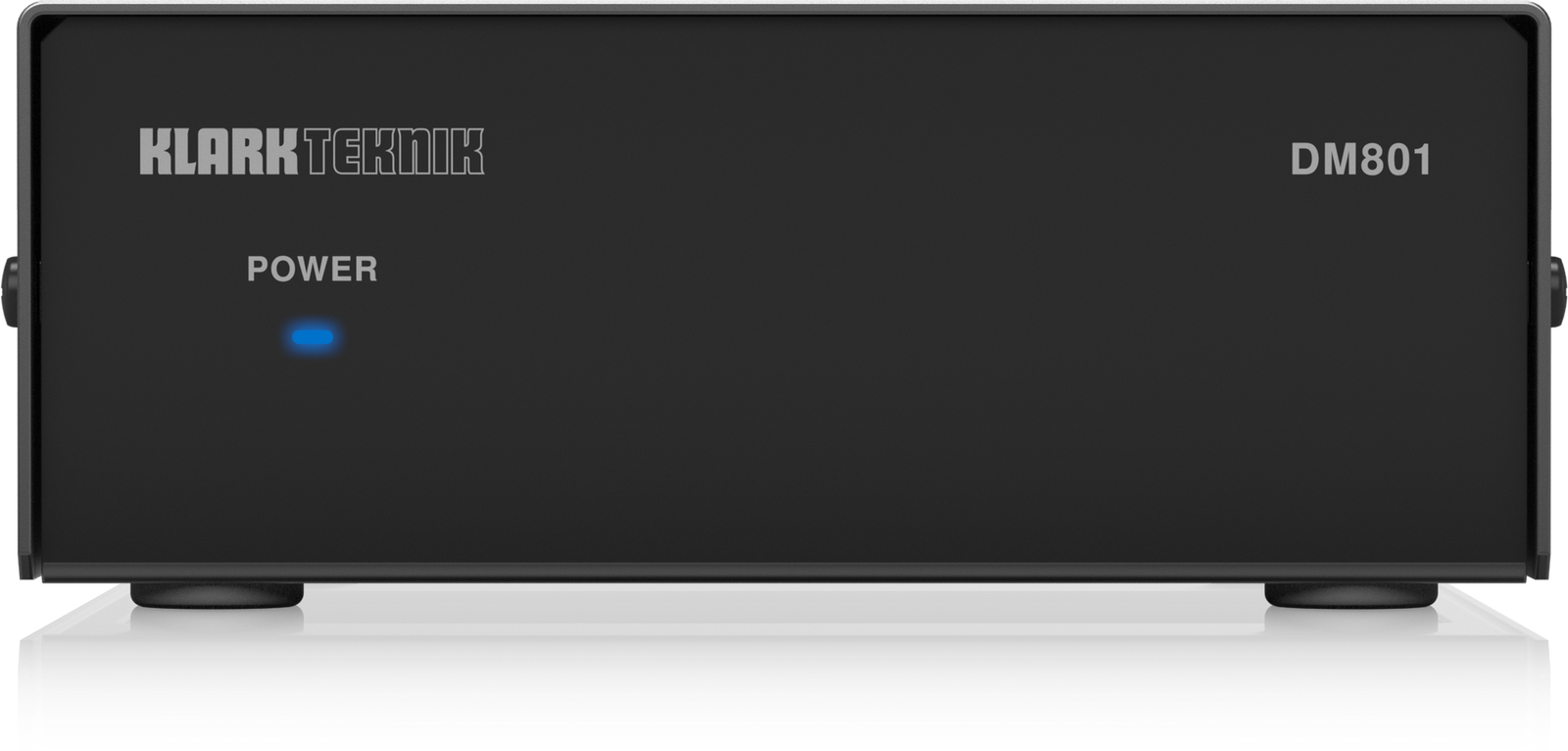

Klark Teknik DM801 RS232/Ethernet Interface for DM8000 with PoE Support

Name: Klark Teknik DM801 RS232/Ethernet Interface for DM8000 with PoE Support
Brand: Klark Teknik
SKU: DM801
Price: 416.85 AED
Availability: InStock

Brand Klark Teknik

416.85 AED Included (5% UAE VAT)

The DM801 offers customers an Ethernet interface to enable IP network control of the Klark Teknik DM8000 Digital Audio Processor, making it highly compatible with various third-party control systems.

Ask a question

Model number DM801

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

Klark Teknik DM801 Ethernet Interface

The DM801 is designed for customers seeking an Ethernet interface for IP network control of their Klark Teknik DM8000 Digital Audio Processor. It is ideal for integration with third-party control systems, offering robust connectivity and reliable performance.

Features

RS232 / Ethernet adapter device for IP network control of DM8000
Provides IP control from 3rd-party controllers through DM8000 RS232 port
POE (Powered over Ethernet) for convenient network deployment
Extra RS232 port to connect to 3rd-party control systems
Built-in LED provides power indication

Specifications

Parameter	Details

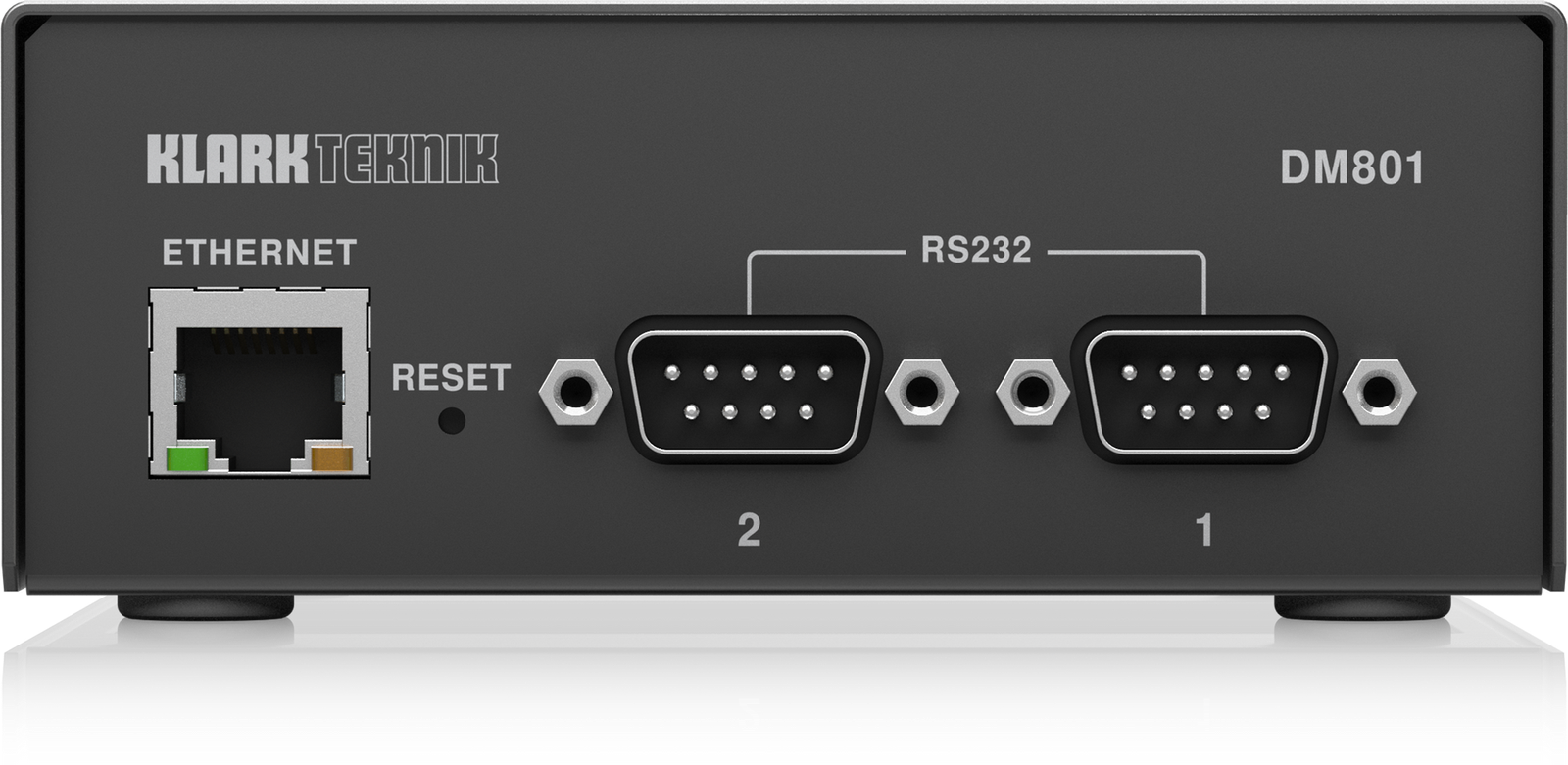

Interface Ports	1x RJ45, 2x RS-232
Processor	AM3352 ARM Cortex-A8
RAM	256 MB DDR3
Flash Memory	256 MB NAND
Port Speed	1200 to 115,200 b/s (Selectable), 115,200 b/s
Data Bits	8-Bit Protocol Supported
Network	10 Base-T / 100 Base-TX Ethernet
Indicators	Power LED (Blue), Ethernet Link/Activity LEDs (Yellow/Green)
Operating Temperature	41 to 104°F / 5 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Power Consumption	3.84 W Maximum
Power Requirement	PoE
Dimensions	1.8 x 4.6 x 4.7″ / 4.5 x 11.7 x 12.0 cm
Weight	1.9 lb / 0.9 kg
