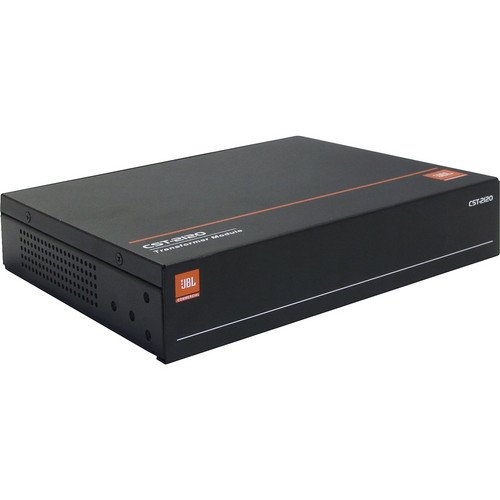

JBL Professional Transformer Module CST-2120 with 70V 100V Output for Commercial Audio
510.00 AED Included (5% UAE VAT)
The JBL Commercial CST-2120 transformer module is designed to provide impedance and voltage matching for the CSA-2120 amplifier, enabling it to drive 70V and 100V distributed-speaker systems. Suitable for restaurants, theaters, and grocery stores, it allows amplifiers to work with systems designed for those voltages, featuring two channels capable of providing 120W each.
Model number
CST2120
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The JBL Commercial CST-2120 is a transformer module ideal for environments such as restaurants, theater lobbies, grocery stores, and other venues requiring background music. Designed to work with the CSA-2120 amplifier, this module enables the amplifier to drive 70V and 100V distributed-speaker systems, making it suitable for commercial installations. With the capability of impedance and voltage matching, the CST-2120 allows older amplifiers to adapt to modern system requirements by providing two channels, each delivering 120W.
Features
- Provides 2 channels of impedance and voltage matching for constant voltage operation
- Enables 70V and 100V output with CSA-2120 amplifiers
- Rackmountable design for easy integration

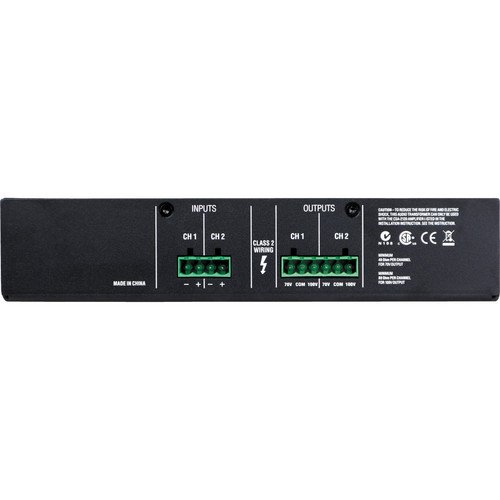

- Equipped with detachable block-input/output connectors
Specifications
| Specification | Details |
|---|---|
| Number of Channels | 2 |
| Frequency Response | 70 Hz to 15 kHz +0/-1 dB |
| Input Sensitivity | 1.4 Vrms (at 8 Ohms) |
| SNR (Signal-to-Noise Ratio) | > 100 dB |
| Dimensions | 8.2 x 1.7 x 7.0″ / 208.2 x 43.1 x 177.8 mm |
| Weight | 2.9 lb / 1.3 kg |
| Package Weight | 5.5 lb |
| Box Dimensions (LxWxH) | 11.75 x 11 x 5″ |
