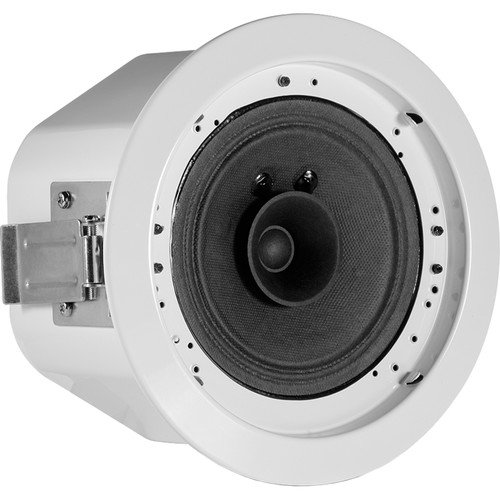

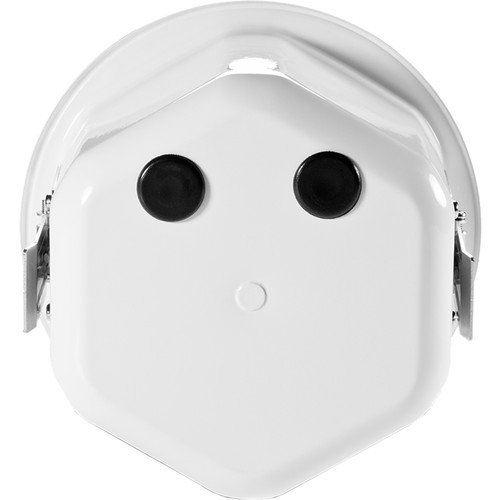

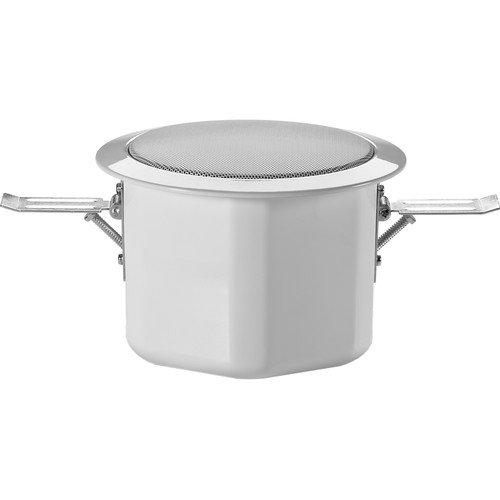

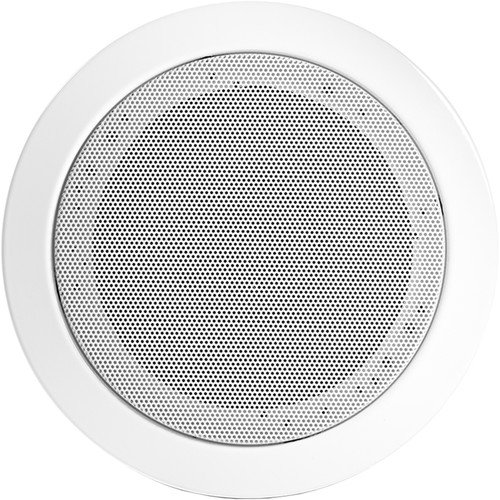

JBL Professional Ceiling Speaker CSS-15C-VA 5in EN54-24 Certified
254.10 AED Included (5% UAE VAT)
The CSS-15C-VA is an EN54-24 certified ceiling speaker featuring a 127 mm dual-cone driver, mounted in an easy-install blind-mount metal fire dome, designed to deliver clear and intelligible sound for settings needing EN54 or BS5839 compliance.
Model number
CSS-15C-VA
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
CSS-15C-VA Ceiling Speaker
The CSS-15C-VA is a high-performance, EN54-24 certified ceiling speaker designed to deliver clear and intelligible sound. It features a 127 mm (5 inch) full-range dual-cone driver, mounted in a convenient blind-mount metal fire dome. This loudspeaker meets the stringent requirements of EN54 and BS5839 compliance, making it ideal for life safety applications.
Key Features
- 127 mm (5 in) full-range dual-cone driver
- EN 54-24 certified and compliant with BS5839-8 standard
- Multiple transformer taps: 6W, 3W, 1.5W
- Easy installation with clip-in torsion-mount
Specifications
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 180 Hz – 20 kHz |
| Power Capacity | 6 Watts |
| Rated Pink Noise Power | 6 Watts |
| Rated Pink Noise Voltage | 100V |
| Nominal Sensitivity | 92 dB |
| EN54 Sensitivity (@4 m) | 80 dB |
| Coverage Angle | 120° conical |
| Maximum SPL (1m) | 100 dB |
| EN54 Max SPL (@4m) | 88 dB |
| Nominal Impedance | 1667 Ω (6W tap) |
| Transformer Taps | 6W, 3W, 1.5W at 100V |
| Fuse | Thermal fuse, open temperature 150°C |
| Drivers | 127 mm (5 in) dual-cone, paper cone |
| Connections | Ceramic block with brass inserts |
| Safety Agency | EN54-24, CE, ROHS compliant |
| Ambient Temp Range | -10°C to +55°C |
| Warranty | Contact for details |
| Materials | Metal fire dome, metal grille |
| Dimensions | 162 mm diameter, 116 mm depth |
| Color | White |
| Net Weight | 1.5 Kg |
