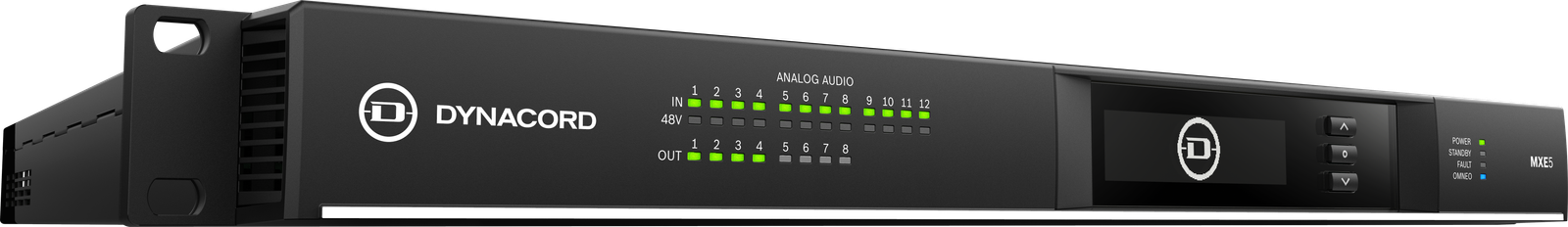

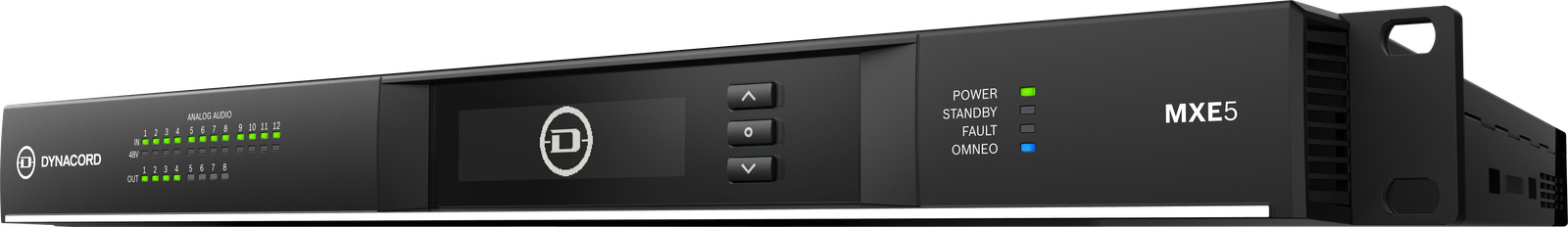

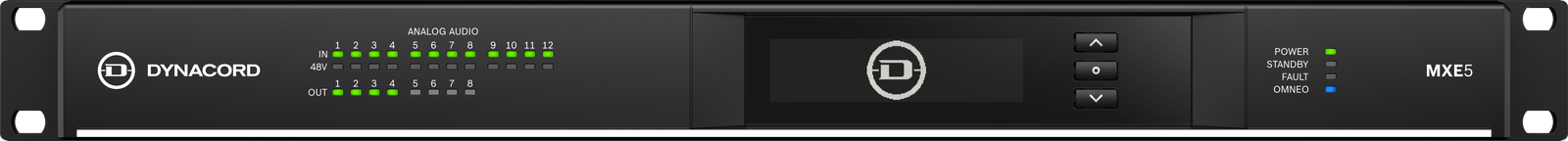

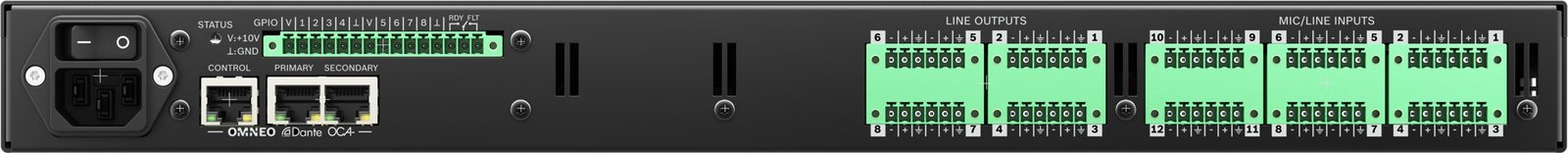

Dynacord MXE5 Audio Matrix Mix Engine 24×24 with Dante Networking
19,311.51 AED Included (5% UAE VAT)
The MXE5, part of the MXE matrix mix engine series, features a 24 x 24 crosspoint audio matrix for routing and mixing, including 12 analog mic/line inputs, eight line outputs, and 24 Dante audio channels. It also acts as a communication hub for IP peripherals, managing system-wide commands effectively.
Model number
MXE5
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
MXE5 Matrix Mix Engine
The MXE5 is the first member of the MXE matrix mix engine series. This 24 x 24 crosspoint performance audio matrix offers both routing and mixing functionalities, equipped with 12 analog mic/line inputs, eight line outputs, and 24 Dante audio channels. It serves as a communications hub for all IP-based peripherals, providing comprehensive supervision of all system-wide commands.
Features
- Delivers the highest audio quality for both background music (BGM) and live performances
- System-wide control and supervision for a wide range of applications
- Advanced feature set provides professional audio mixing and routing capabilities
- Complete integration with SONICUE sound system software
Specifications
| Specification | Details |
|---|---|
| Matrix size | 24 x 24 |
| Sampling rate | 48 kHz / 96 kHz |
| Dante in/out | 24/24 |
| Analog inputs | 12 mic/line |
| Analog outputs | 8 |
| Max. input/output level | + 22 dBu |
| Signal to noise ratio (inputs/outputs) | > 118 dB |
| Signal processing | 32/40-bit floating point |
| THD+N | < 0.002 % |
| Latency (analog in/out, 48 kHz / 96 kHz) | < 0.45 ms / < 0.22 ms |
| Control ports | 8 GPIO |
| Dimensions (w x h x d) | 483 x 43.5 x 471 mm (19″, 1 RU) |
| Weight | 6.0 kg (13.2 lbs) |
