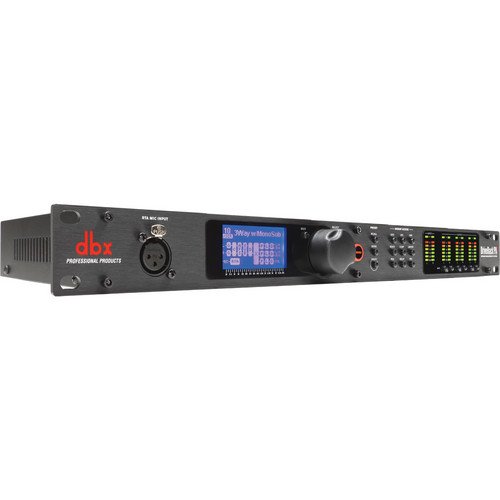

DBX Professional DriveRack PA2 Loudspeaker Management System with AutoEQ and AFS Feedback Elimination
2,541.00 AED Included (5% UAE VAT)
The dbx DriveRack PA2 is a comprehensive loudspeaker management system that can be operated via Mac, PC, or mobile Android/iOS devices. It features AutoEQ for automatic room equalization, AFS for feedback suppression, integrated dbx compression and limiting, graphic and 8-band parametric EQ, driver-alignment delays, and support for full-range, 2-way, and 3-way systems. Connectivity options include a USB port for direct control and an Ethernet port for wireless connectivity.
Model number
DBXPA2-V-EU
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
dbx DriveRack PA2 Complete Loudspeaker Management System
The dbx DriveRack PA2 is your all-in-one solution for controlling and optimizing your PA system. With the ability to manage your loudspeakers via Mac, PC, or mobile devices, the DriveRack PA2 offers an unmatched suite of features designed to provide outstanding sound quality and reliability. Whether you are using a full-range, 2-way, or 3-way system, this unit ensures professional-grade performance for any live sound application.
Key Features
| Specification | Details |
|---|---|
| AutoEQ | Automatically adjusts speaker levels and room EQ using optional RTA Mic |
| AFS Feedback Elimination | Suppresses feedback while preserving original sound quality |
| Wizard Setup Functions | Guides through setup for optimal configuration, including level balancing and speaker tunings |
| Input Processing | Includes dbx Compression, Advanced Feedback Suppression, Graphic EQ, 8-band Parametric EQ, Subharmonic Synthesis |
| Output Processing | Features crossover for various system configurations, 8-band parametric EQs, dbx Limiting, and driver alignment delays |
Specifications
| Specification | Details |
|---|---|

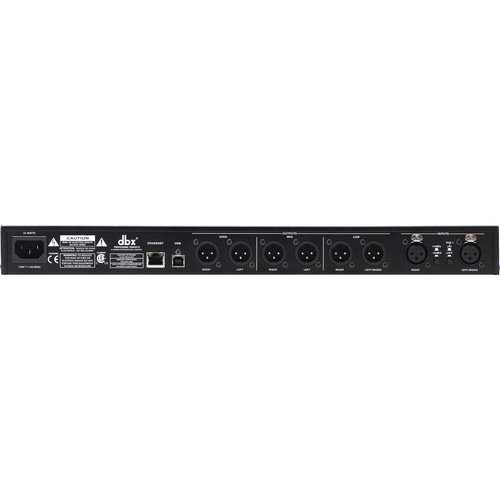

| Analog Inputs | 2 x Line Inputs, 1 x RTA Mic Input, Female XLR, balanced |
| Analog Outputs | 6 x Line Outputs, Male XLR, electronically balanced |
| A/D and D/A Conversion | 24-bit, 112/110 dB dynamic range (A-Weighted/Unweighted) |
| Internal Processing | 32-Bit Floating Point |
| Sample Rate | 48 kHz |
| Dynamic Range | 110 dB A-Weighted, 107 dB Unweighted |
| THD + N | 0.003% typical at +4 dBu, 1 kHz |
| Frequency Response | 20 Hz to 20 kHz (+0/-0.5 dB) |
| Crosstalk | Input to Output: < -100 dB |
| Latency | Input to Output: 1.847 ms |
| Power | 100 to 120 VAC, 50/60 Hz, 22 W |
| Dimensions (HxWxD) | 1.8 x 5.8 x 19″ / 4.4 x 14.6 x 48.3 cm |
| Weight | 5.3 lb / 2.4 kg |
Packaging Info
| Specification | Details |
|---|---|
| Package Weight | 6.8 lb |
| Box Dimensions (LxWxH) | 22.3 x 11.5 x 3.8″ |
