DBX Professional DriveRack 260 Loudspeaker Management System with 28-Band EQ
4,561.00 AED Included (5% UAE VAT)
The dbx DriveRack 260 Loudspeaker Management System provides control over equalization, dynamics, and routing for live or contractor sound setups, featuring a 28-band graphic EQ, 9-band parametric EQ, built-in compressor, PeakStopPlus limiters, pink noise generator, real time analyzer, alignment time delay, and phantom powered mic input, with user-friendly customization via the Wizard setup and DriveWare GUI.
Model number
DBX260V-EU
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

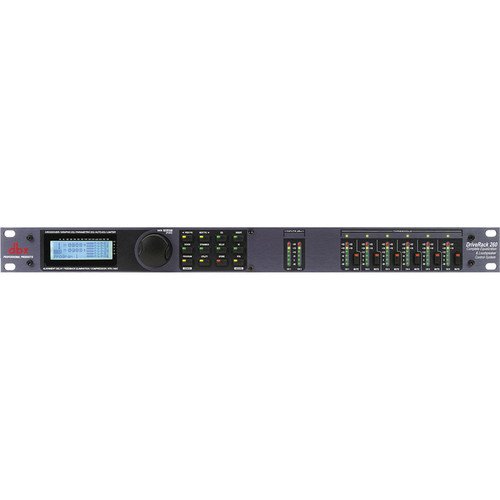

dbx DriveRack 260 Loudspeaker Management System
The dbx DriveRack 260 Loudspeaker Management System is designed to provide comprehensive control over equalization, dynamics, and routing for live or contractor sound applications. It includes a versatile 28-band graphic and 9-band parametric EQ, a built-in compressor for dynamic control, and PeakStopPlus limiters for component protection. Utilize the internal pink noise generator and real-time analyzer to understand room acoustics. Additionally, it features a flexible alignment time delay and a 15V phantom powered mic input for enhanced room management.
This powerful control processor is equipped with custom templates for specific amplifier and speaker combinations and allows for easy user adjustments using a Wizard setup system and a complete DriveWare GUI control.
Features
- Compression and limiting
- Graphic and parametric equalization
- Full bandpass, crossover, and routing configurations
- Feedback elimination
- Built-in subharmonic synthesizer
- Pink noise generator and full-time RTA
- 2.7 seconds of alignment and zone delay
- Auto-EQ function
- Auto-gain control
Specifications
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | 110 dB unweighted >107 dB weighted |

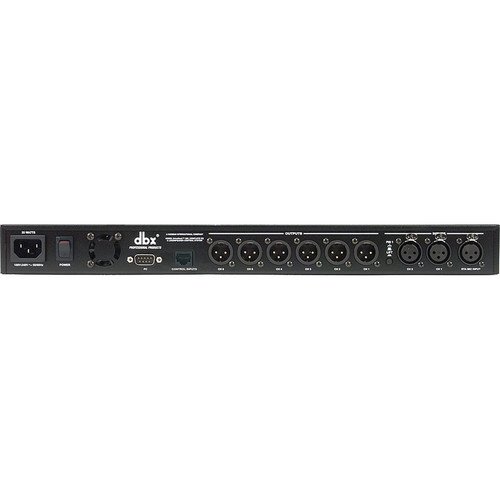

| Input Connections | 2 x XLR female 1 x XLR RTA Mic |
| Output Connections | 6 x XLR male |
| Input Impedance | >40 kOhms |
| Output Impedance | 120 Ohms |
| Maximum Input Level | 34 dBu with input jumpers in +30 position |
| Maximum Output Level | 22 dBu |
| Sample Rate | 48 kHz |
| RTA Mic Phantom Voltage | 15 V |
| Crosstalk (Main Outputs) | >100 dB |
| THD & Noise | 0.002% typical at +4 dBu, 1 kHz, 0 dB input gain |
Packaging Info
| Package Weight | 8.75 lb |
| Box Dimensions (LxWxH) | 22.2 x 11.5 x 4.3″ |
