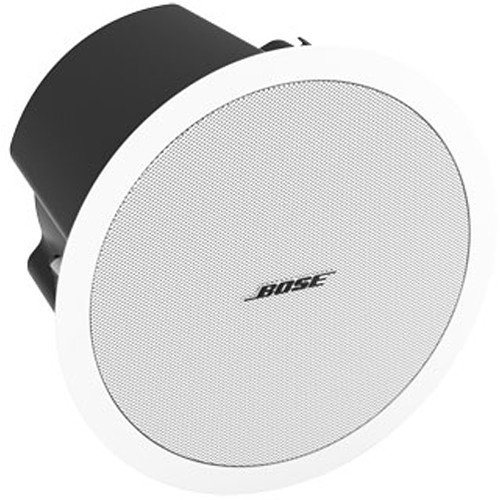

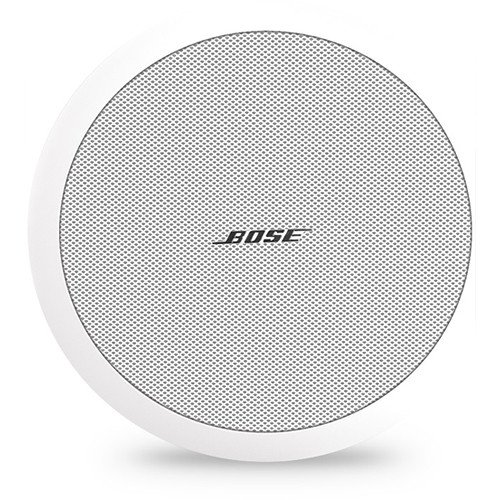

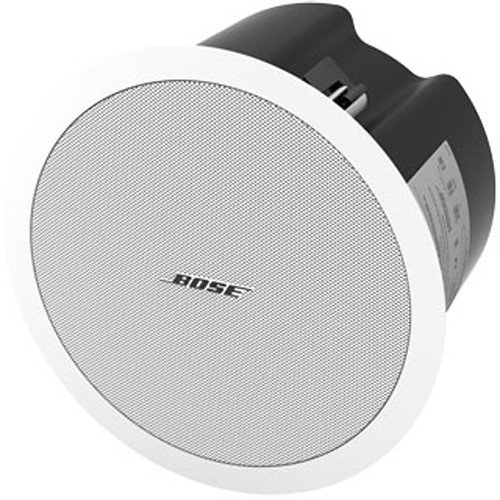

Bose Professional FreeSpace DS 100F 2-Way 100W Ceiling Speaker (White)
1,345.00 AED Included (5% UAE VAT)
The white Bose Professional FreeSpace DS 100F is a flush-mount passive 2-way loudspeaker featuring a 5.25" woofer, 2.25" Twiddler driver, and 160° conical coverage for clear foreground music and speech in various settings. It handles up to 100W continuous power, with a peak of 400W and a maximum SPL of 111 dB, configurable for 70V/100V via an integrated multi-tap transformer. Consistent tonality with other FreeSpace DS family speakers allows seamless installation with options like ceiling-mount brackets and pendant-mount kits.
Model number
DS100F
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Bose Professional FreeSpace DS 100F
Overview
The Bose Professional FreeSpace DS 100F is a sleek, flush-mount passive 2-way loudspeaker designed to deliver clear, intelligible music and speech in various environments such as retail stores, restaurants, resorts, and other venues. With a 5.25″ woofer and a 2.25″ Twiddler driver, it provides broad and even coverage with a 160° conical pattern, ensuring consistent sound quality throughout the listening area. The DS 100F integrates seamlessly into the Bose FreeSpace DS family for a cohesive audio experience across installations.
Features
- Designed for diverse applications including retail, hospitality, and worship spaces

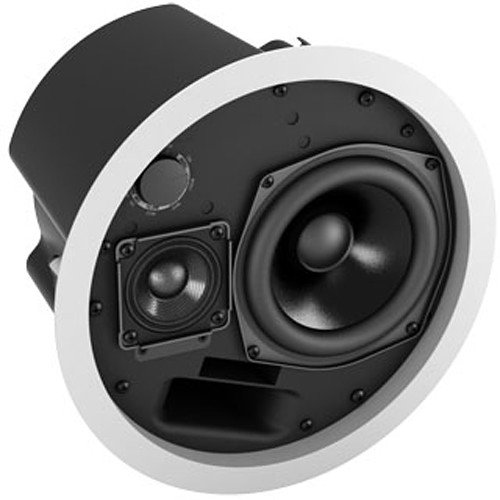

- Two-way speaker system with 5.25″ woofer and 2.25″ Twiddler driver
- 160° conical coverage pattern for wide area sound dispersion
- Handles up to 100W continuous power and 400W peak
- Integrated multi-tap transformer for easy 70V/100V configurations
- Voiced to match other FreeSpace DS family loudspeakers
- Support for ceiling, pendant, and other mounting options
Specifications
| Specification | Details |
|---|---|
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | 100W RMS, 400W Peak |
| Transformer Taps | 70V: 12.5 / 25 / 50 / 100W or 8 Ohms Bypass 100V: 25 / 50 / 100W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Nominal, Transformer Bypassed) |
| Enclosure Type | Bass-Reflex |
| Frequency Range | 60 Hz to 20 kHz (-10 dB) |
| Frequency Response | 75 Hz to 18 kHz (±3 dB) |
| Maximum SPL | 105 dB (Continuous), 111 dB (Peak) |
| Sensitivity | 85 dB SPL |
| Coverage Angle | 160° (Conical) |
| Protections | Transducer Overdrive |
| Input Connections | Barrier Strip 3-Pin Speaker Input |
| Color | White |
| Dimensions | 11.8 x 8.2″ / 29.97 x 20.83 cm |
| Weight | 13 lb / 5.9 kg |
| Water / Weather Resistance | None |
