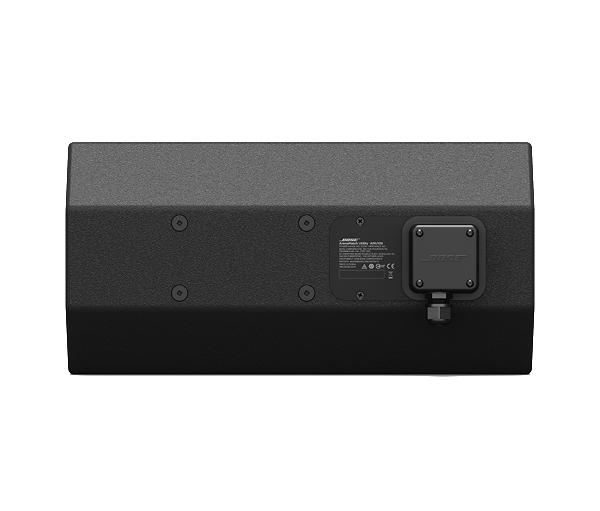

Bose AMU108 ArenaMatch Utility Outdoor Loudspeaker

The compact Bose AMU108 loudspeaker is designed for zone-fill coverage or high-SPL foreground music. It offers a similar tonal balance to ArenaMatch array modules and features the same EMB2S compression driver, ensuring consistent sound quality. With an IP55 weather rating, this loudspeaker is perfect for outdoor environments requiring high-quality audio delivery.

Key Applications

  • Performance venues
  • Houses of worship
  • Hospitality venues
  • Retail stores
  • Conference centers
  • Restaurants and bars

Features

  • IP55 weather rating with protective design for outdoor use
  • 70/100V transformer inputs with passive crossover
  • Compatible with Bose Professional audio systems

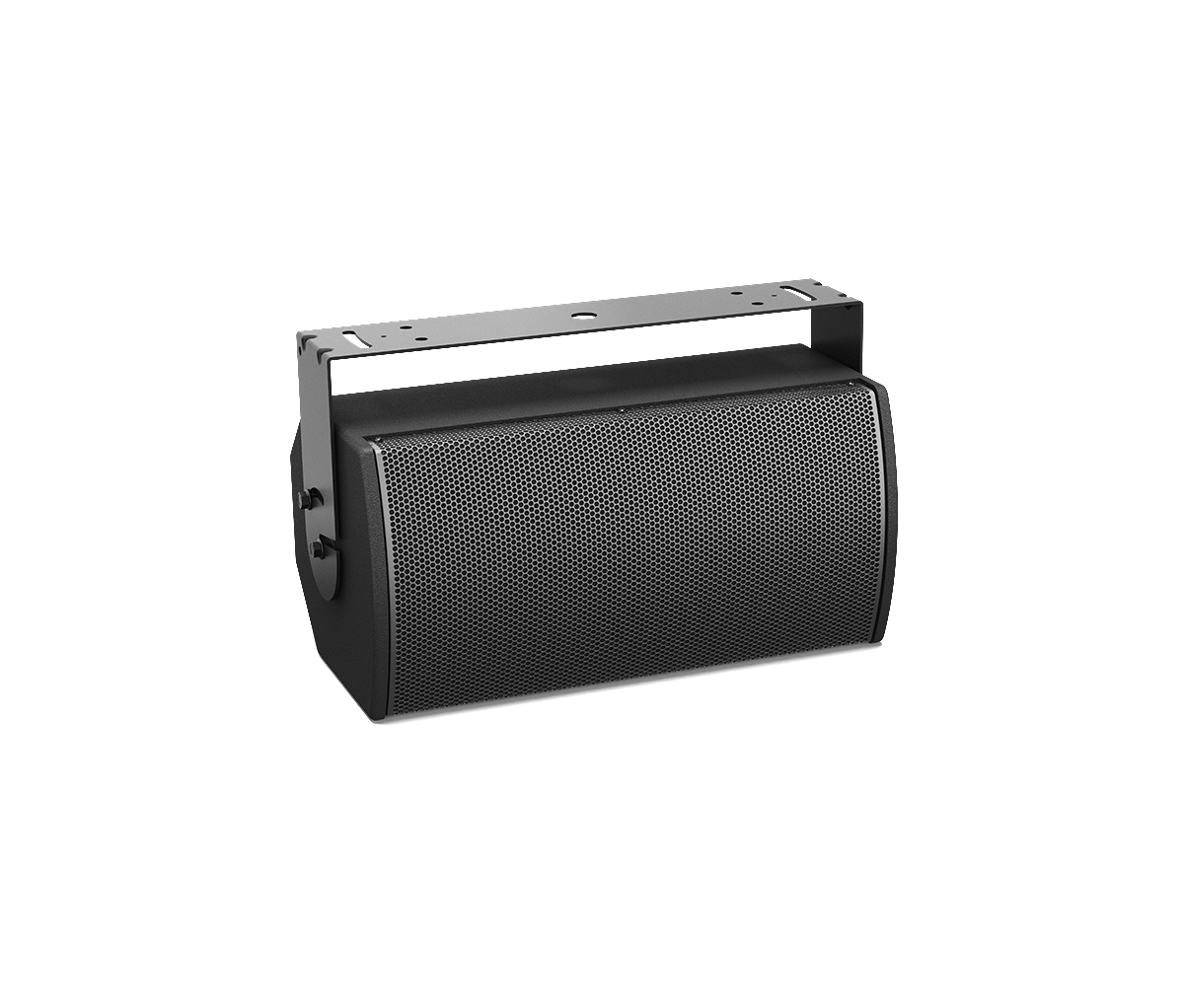

  • Easy mounting with included U-bracket and M8 inserts for third-party brackets
  • Rotatable 90° x 60° high-frequency horn for versatile coverage
  • Available in black or white finish

Specifications

Specification Details
Frequency Response 90Hz to 16kHz (±3dB)
Frequency Range 80Hz to 16kHz
Sensitivity 91dB free field, 93dB wall/ceiling mounted
Max. SPL 119dB free field, 122dB wall/ceiling mounted
Power Handling 800W peak, 200W continuous
Transducers
  • LF: 1x Bose LF8 8-inch woofer
  • HF: 1x Bose EMB2S compression driver
Nominal Impedance
Coverage Pattern 90° horizontal x 60° vertical
Enclosure Exterior-grade plywood
Finish 2-part spray polyurea coating
Connectors 1x barrier strip (accepts 10 to 18 wire gauge)
Dimensions 9.3” H x 18.5” W x 11.0” D (235 x 470 x 279 mm)
Weight 23.3 lbs. (10.6 kg), 27.7 lbs. (12.6 kg) with U-bracket
