Yamaha Digital Mixing Console TF1 40-Channel with Touchscreen Display
10,384.50 AED Included (5% UAE VAT)
The Yamaha TF1 is a compact digital audio mixing console designed for both live sound reinforcement and recording, featuring a user-friendly touchscreen display, 17 motorized faders, and the ability to expand up to 40 input channels with the optional Tio1608-D I/O rack. It supports 34 x 34 channel digital recording and playback via USB 2.0 with a computer, alongside 2 x 2 channel functionality using a USB storage device.
Model number
TF1
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Yamaha TF1 Digital Audio Mixing Console

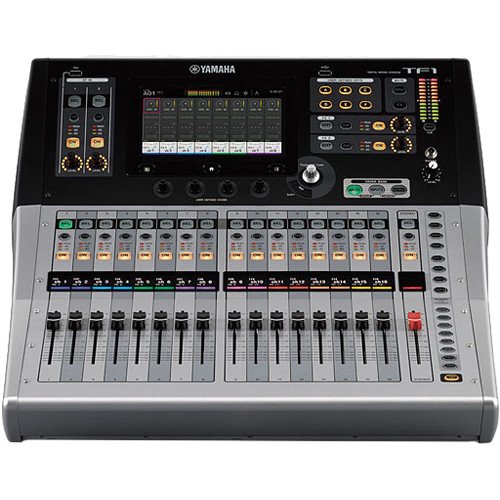

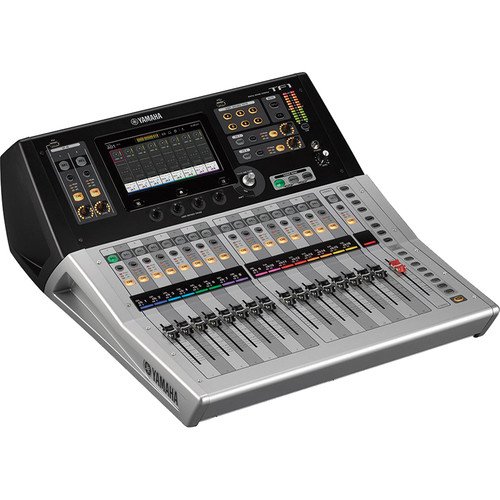

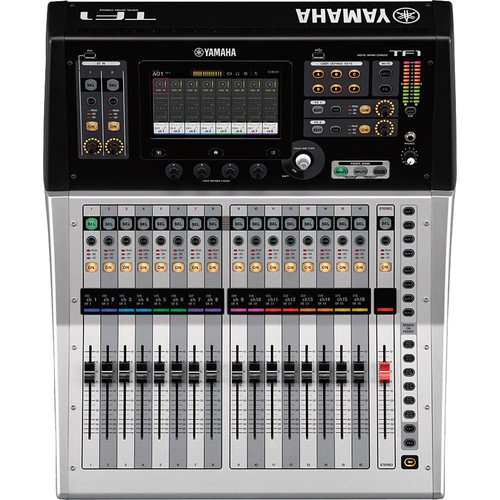

The Yamaha TF1 is a versatile and compact rack-mountable digital audio mixing console designed for live sound reinforcement and recording applications. With its user-friendly touchscreen display and 17 motorized faders, the TF1 offers seamless control over your mix. Expandability up to 40 input channels through the optional Tio1608-D I/O rack ensures it meets the demands of various audio environments.
Alongside live mixing capabilities, the TF1 excels in recording scenarios, providing 34 x 34 channel digital recording and playback via USB 2.0. It features compatibility with any DAW software for easy integration into your recording workflow, and supports 2 x 2 channel recording and playback from USB storage devices.
Connectivity and Inputs

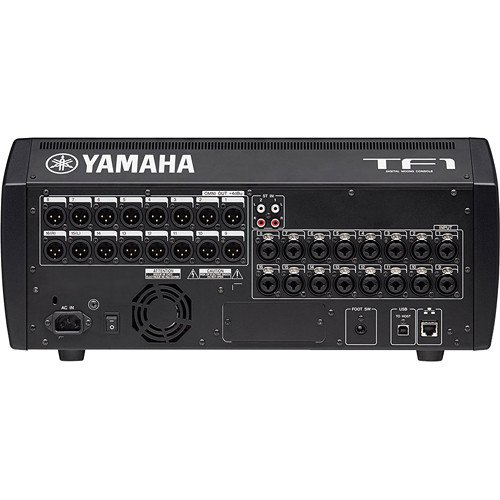

The TF1 offers 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, plus an additional 2 analog RCA stereo line inputs. For output, there are 16 analog XLR outputs, ensuring robust connectivity for all your audio needs. Each combo input features a recallable D-PRE microphone preamp, comprehensive EQ, and dual dynamics processors for superior sound shaping.
Processing Power
The TF1 console is equipped with eight advanced FX processors, providing a wide array of effects such as reverb, delay, flanger, chorus, and multi-band compression, perfect for fine-tuning your sound. Steinberg’s Nuendo Live software is included, enhancing multi-track recording and virtual sound check capabilities.
Key Features
| Specification | Details |
|---|---|
| Motorized Faders | 17 (16 channels + 1 master) |
| Input Channels | 40 (32 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) + Stereo + Sub |
| DCA Groups | 8 with Roll-out |
| Analog Inputs | 16 XLR/TRS combo mic/line + 2 RCA |
| Analog Outputs | 16 XLR |
| Digital Recording | 34 x 34 channels via USB 2.0 |
| USB Storage | 2 x 2 channel recording/playback |
| DAW Compatibility | Cubase AI download included |
| Expansion Slot | 1 for NY64-D Dante audio interface card |
| Optional Rack | Tio1608-D (16 inputs, 8 outputs, Dante equipped) |
| Software Included | Steinberg’s Nuendo Live |
