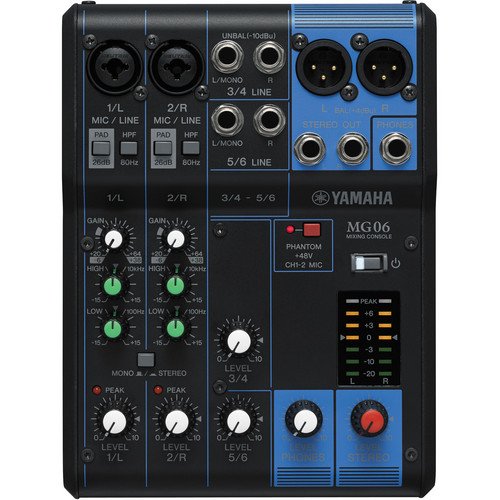

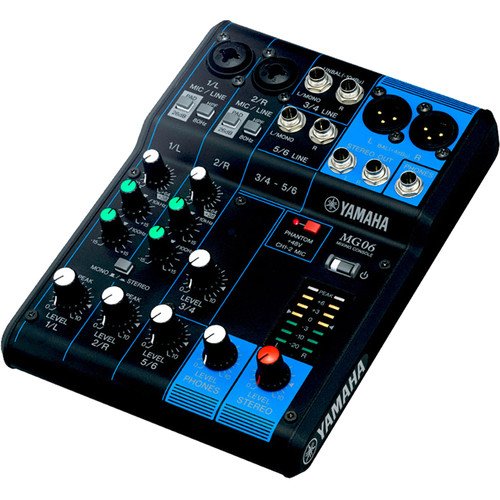

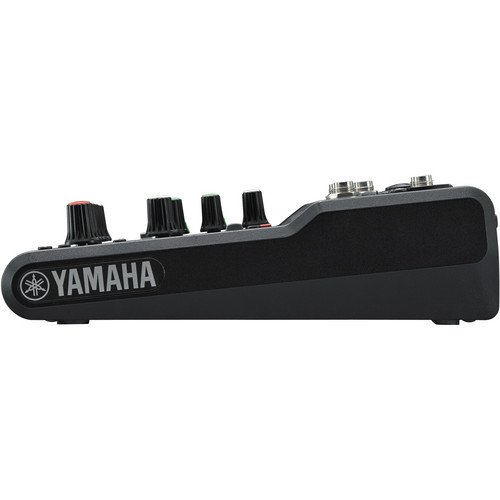

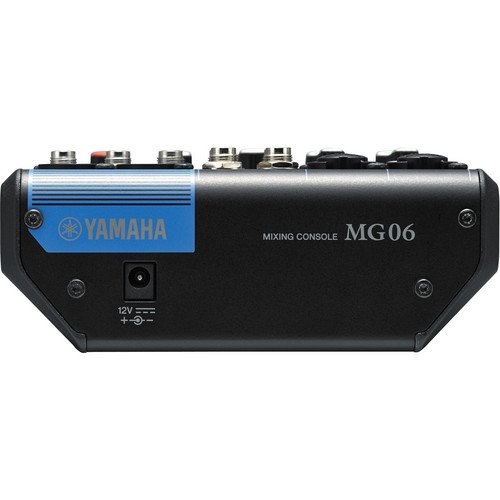

Yamaha MG06 6-Channel Analog Mixer with D-PRE Mic Preamps
628.95 AED Included (5% UAE VAT)
The Yamaha MG06 is a compact six-input mixer designed for small performances, lectures, and recordings. It includes two XLR-1/4" combo mic/line inputs with D-PRE mic preamps and two 1/4" stereo line inputs with level controls. Each mic/line input has a 2-band EQ, a high-pass filter, and 48V phantom power. Additionally, the D-PRE mic preamps come with 26 dB attenuation switches, making them suitable for both dynamic and condenser microphones, as well as for recording loud sound sources.
Model number
MG06
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Yamaha MG06 6-Input Compact Mixer
The Yamaha MG06 is a versatile 6-input mixer designed to cater to small performances, lectures, and recording sessions. With its compact build, it boasts a wide range of features to deliver pristine audio quality.
Key Features
- Two XLR-1/4″ combo mic/line inputs with high-performance D-PRE mic preamps.
- Two 1/4″ stereo line inputs for a variety of audio sources.
- Equipped with 2-band EQ and high-pass filter on mic/line inputs.
- Stereo XLR and 1/4″ outputs for enhanced connectivity.
- Durable metal chassis built to withstand rigorous usage.
- Optional microphone stand adapter for versatile mounting options (sold separately).
Specifications
| Specification | Details |
|---|---|
| Input Channels | 2 x XLR-1/4″ Combo (Mic/Line) 2 x 1/4″ Stereo (Line) |
| Phantom Power | +48 V Switchable |
| Output Channels | 2 x XLR Stereo, 2 x 1/4″ Stereo, 1 x 1/4″ Headphone |
| Bus | 1 x 1/4″ Stereo |
| Pad | 26 dB (Mono Channels) |
| High-Pass Filter (HPF) | 80 Hz, 12 dB/Oct (Mono Channels) |
| Equalizer | High Gain: ±15 dB, 10 kHz; Low Gain: ±15 dB, 100 Hz |
| LED Indicators | Post EQ signal – 3 dB below clipping |
| Level Metering | 2 x 7-Segment LED Meter |
| Total Harmonic Distortion | 0.01% @ +8 dBu (20 Hz – 20 kHz); 0.003% @ +18 dBu (1 kHz) |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| Equivalent Input Noise | -128 dBu (Mono Input) |
| Residual Output Noise | -102 dBu (Stereo Out) |
| Crosstalk | -88 dB |
| Power Requirements | PA-130 (12 VDC / 1 A), 120 VAC, 60 Hz; MU18 (12 VDC / 1.5 A), 100-240 VAC, 50/60 Hz |
| Power Consumption | 12 W |
| Dimensions | 5.9 x 2.4 x 7.9″ / 149 x 62 x 202 mm |
| Net Weight | 1.98 lb / 0.9 kg |
Packaging Information
| Specification | Details |
|---|---|
| Package Weight | 3.27 lb |
| Box Dimensions (LxWxH) | 10.65 x 9.65 x 4.8″ |
