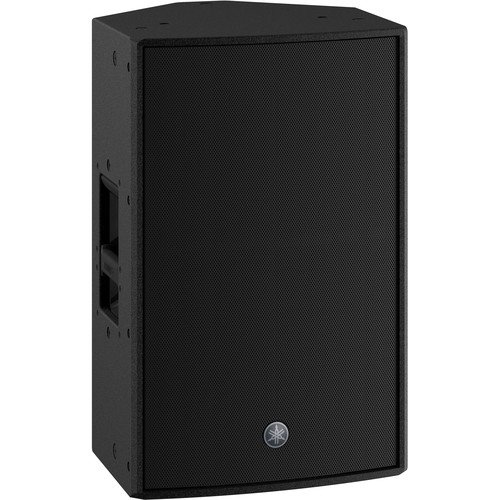

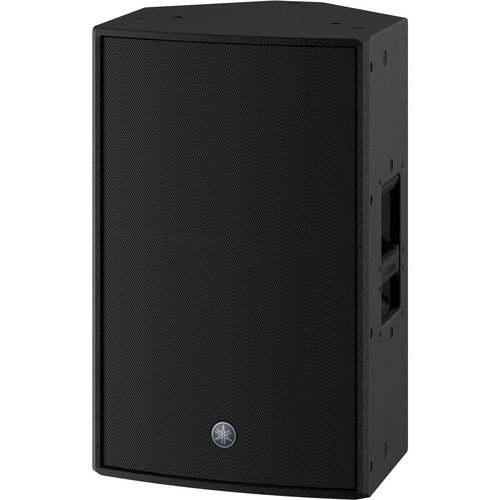

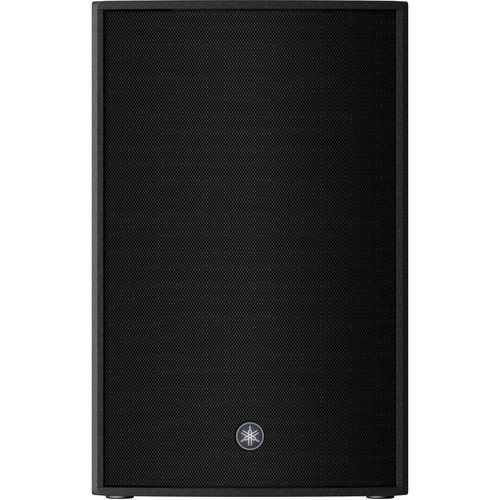

Yamaha DZR12-D 2000W 12″ Powered Loudspeaker with Dante – Black
6,573.00 AED Included (5% UAE VAT)

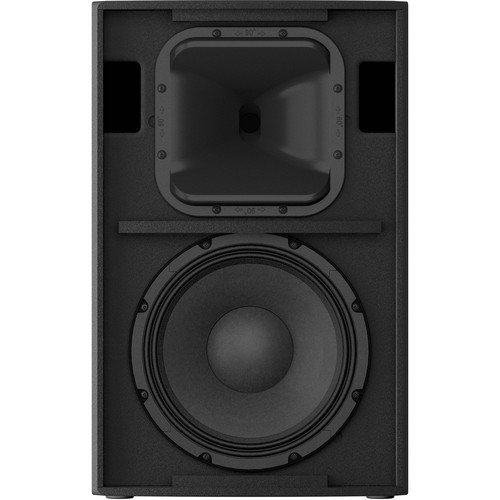

The Yamaha DZR12-D is a black, 2-way powered loudspeaker with Dante-capability, perfect for main/FOH and floor monitor use. It features a 2000W Class-D bi-amp that drives a 12” woofer and 2” compression driver, delivering a frequency range of 39 Hz to 20 kHz and a max SPL of 139 dB. The rotatable horn allows for versatile mounting, ensuring smooth coverage across any venue. Equipped with a 96 kHz DSP processor using Advanced FIR filters, it offers exceptional clarity and sound imaging. The rear panel includes combo XLR-1/4” inputs, XLR thru/outputs, a USB port, and etherCON connectors for seamless integration with other Dante-compatible systems. An onboard LCD screen provides easy access to DSP functions, presets, and adjustments.
Model number
DZR12-D
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Yamaha DZR12-D Dante-Equipped Loudspeaker
The Yamaha DZR12-D is a powerful 2-way active loudspeaker ideal for both main/front-of-house (FOH) and floor monitor applications. Featuring advanced digital signal processing (DSP) and built-in Dante networking, it offers outstanding sound quality and versatile connectivity for professional audio setups.
Key Features
| Specification | Details |
|---|---|
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Amplifier Power Rating | 2000 W Peak (Total) |
| Frequency Range | 39 Hz to 20 kHz (-10 dB) |
| Maximum SPL | 139 dB |
| HF Driver | 2” Titanium Compression Driver |
| LF Driver | 12” Woofer |
| Coverage Angle | 90° H x 60° V (Rotatable Horn) |
| Audio Inputs | 2 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Input |
| Audio Outputs | 2 x XLR 3-Pin Male Balanced Output |
| Network I/O | 2 x etherCON (Dante) |
| USB | 1 x USB-A for External Memory and Host Connection |
| DSP Processor | 96 kHz |
| Dimensions | 16.1 x 25.4 x 15.5″ (410 x 646 x 394 mm) |
| Weight | 47.2 lbs (21.4 kg) |
