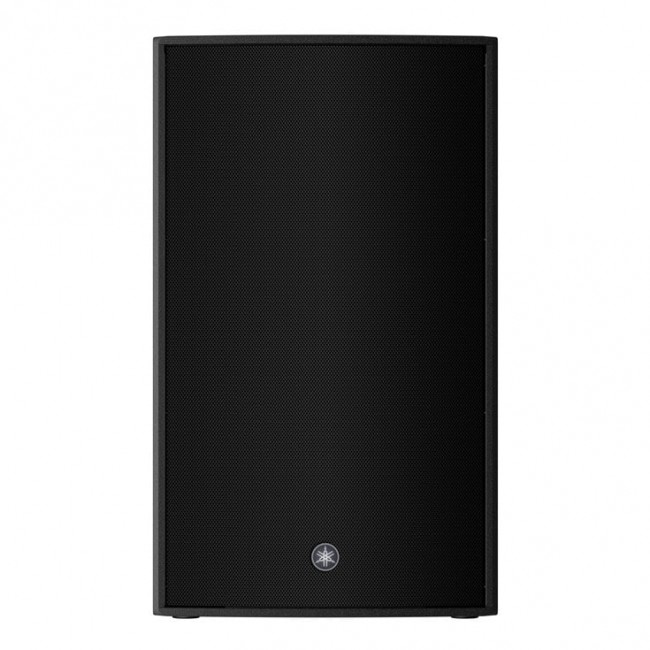

Experience unparalleled audio performance with the DZR10, a Dante-equipped, two-way bi-amped powered loudspeaker that redefines excellence in sound reinforcement. Capable of producing a staggering maximum output of 137dB SPL, this speaker is engineered to deliver crystal-clear audio across a wide frequency range of 44Hz to 20kHz, ensuring every detail of your sound is heard with precision.

Featuring a 10″ low-frequency cone with a 3″ voice coil and a high-frequency 2″ voice coil compression driver with a titanium diaphragm, both powered by neodymium magnets, the DZR10 offers exceptional clarity and power. Its advanced Class-D amplification provides a dynamic power rating of 2000W, making it ideal for live events, installations, and more. With Dante integration, seamless audio networking is at your fingertips, complemented by versatile analog I/O and USB connectivity for effortless setup and control.

Built for durability and portability, the DZR10 boasts a rugged plywood enclosure with a durable polyurea coating, multiple rigging points, and a lightweight design at just 17.9kg (39.5lbs). Whether used as a main speaker or floor monitor with a 50° angle, this speaker adapts to your needs with ease.

Specification Details
Speaker Type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB) 44Hz – 20kHz
Maximum Output Level 137dB SPL
Power Rating (Dynamic) 2000W (LF: 1000W, MF/HF: 1000W)
Dimensions (W x H x D) 315mm x 537mm x 345mm (12.4″ x 21.1″ x 13.6″)
Weight 17.9kg (39.5lbs)
