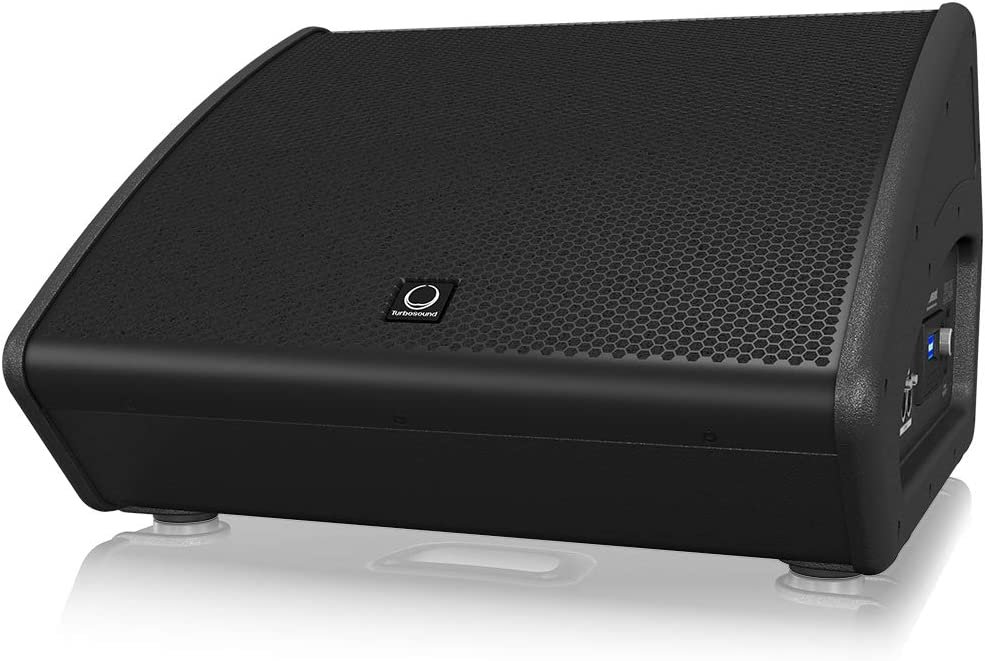

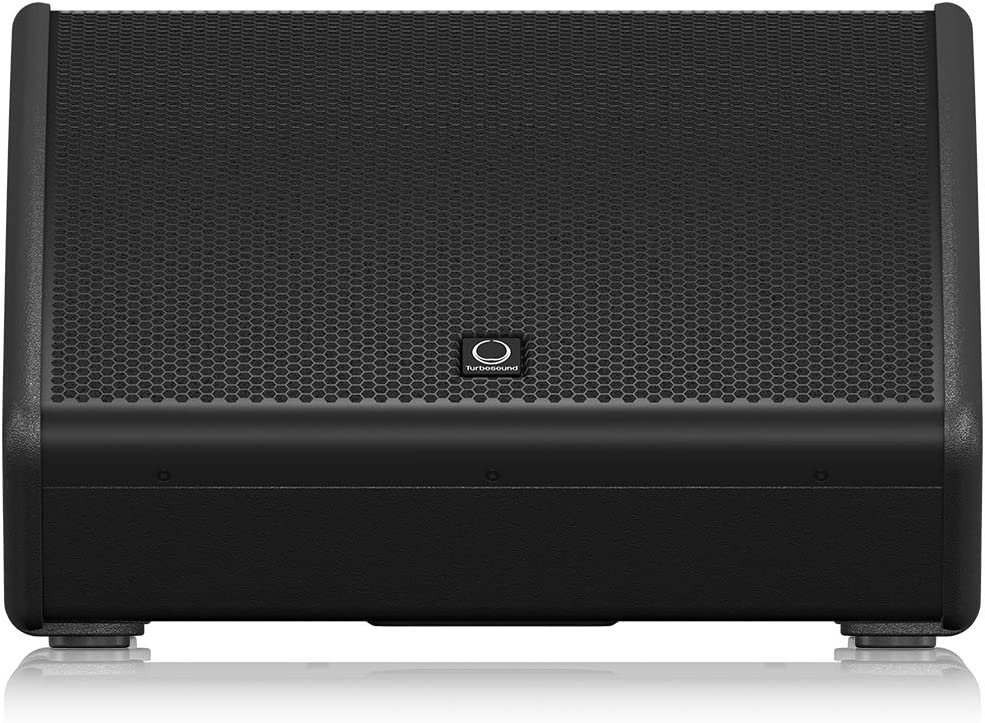

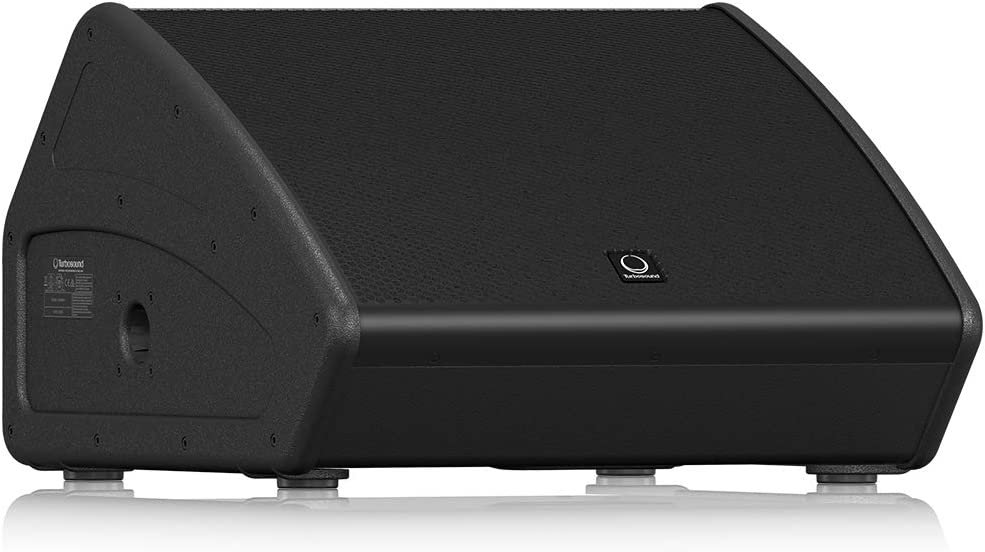

TFX152M-AN Powered Loudspeaker System

The 2-way full range TFX152M-AN is a 1,100 Watt, 15″ powered loudspeaker system ideal for a wide range of portable speech and music sound reinforcement applications. Designed to work independently without a controller, the TFX152M-AN offers superior performance for wedge monitoring, FOH, sidefill, and delay line applications.

Features

  • 2-way stage monitor for portable applications
  • 1,100 Watt power featuring Klark Teknik Class-D technology
  • Klark Teknik Digital Signal Processing for total system control
  • ULTRANET digital audio networking connects to mixers and other sources
  • High excursion 15″ low-frequency driver with low mass voice coil for improved transient response
  • Titanium dome 1″ compression driver with extended high-frequency reproduction
  • Low profile design to maximize audience sight lines
  • Low distortion waveguide provides 60° H x 40° V dispersion

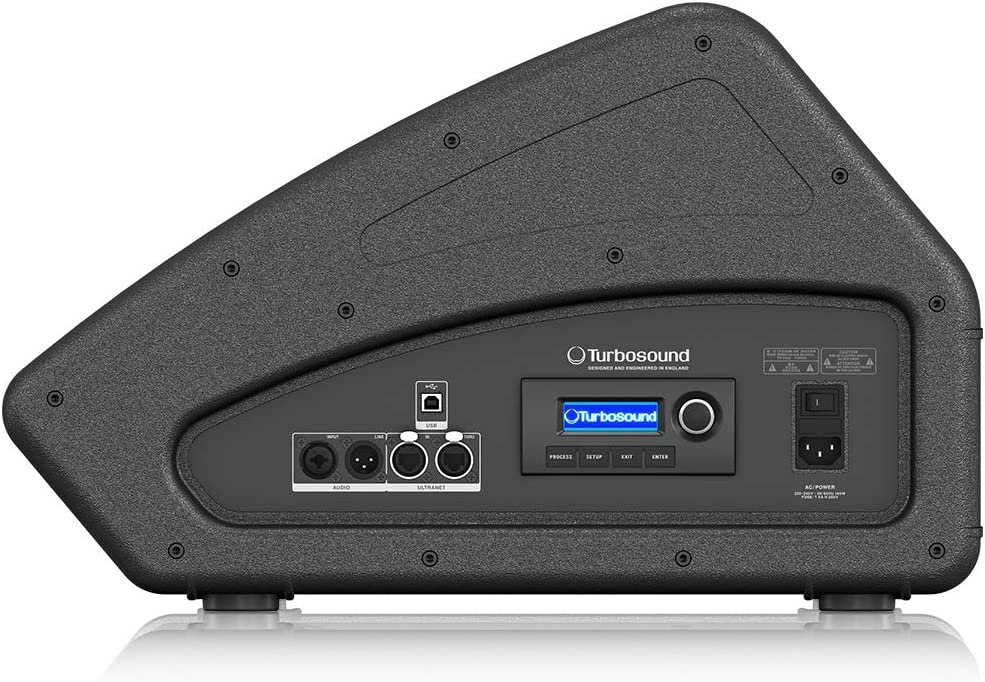

  • Fully featured user interface with LCD display for easy navigation
  • PC remote control software downloadable at turbosound.com
  • 15 mm (5/8″) plywood enclosure with fiberglass reinforced composite end cheeks
  • Hard-wearing semi-matte black paint finish
  • Rugged powder-coated perforated steel mesh grille
  • Durable handle for easy lifting and carrying
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.

Specifications

Specification Details
Powered Yes
LF Driver Size 15″ low mass voice coil driver
HF Driver Size 1″ Titanium dome compression driver
Total Power 1100W Class D
Inputs 1 x XLR-1/4″ combo
Outputs 1 x XLR
Maximum Peak SPL 127 dB SPL @ 1m
Horizontal Coverage Angle 60°
Vertical Coverage Angle 40°
Enclosure Material 15mm plywood with fiberglass composite ends
Height 13.8″
Width 20.9″
Depth 22.3″
Weight 47.3 lbs.
