Turbosound TCX152 15″ 2-Way Loudspeaker 1400W Peak for PA Installation
1,809.15 AED Included (5% UAE VAT)
The DUBLIN TCX152 is a 1,400 Watt compact 15-inch passive two-way loudspeaker designed for portable and installed applications, featuring a 15-inch low frequency driver and a 1-inch high temperature dome compression driver mounted on a rotatable waveguide for 90° horizontal by 60° vertical dispersion.
Model number
TCX152
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
DUBLIN TCX152 15″ Passive Two Way Loudspeaker
The DUBLIN TCX152 is a compact 1,400 Watt 15″ passive two-way loudspeaker, perfectly crafted for versatile applications in both portable and installed sound reinforcement scenarios for speeches and music.
Product Highlights
- High power capacity: 350 Watts continuous, reaching up to 1,400 Watts peak.
- Incorporates a high-excursion 15″ low-frequency driver with a low mass voice coil for an enhanced transient response.
- Features a 1″ high-temperature dome compression driver for superior high-frequency reproduction.
- Rotatable converging elliptical waveguide to achieve a 90° horizontal and 60° vertical dispersion pattern.
- Equipped with M10, M8, and M6 rigging points compatible with Turbosound and OmniMount brackets.
- Trapezoidal cabinet design for creating visually unobtrusive arrays.
- Concealed pole mount socket for easy portability.
- Durable construction with 15 mm birch plywood enclosure and a semi-matt black paint finish.
- Powder-coated perforated steel mesh grille with foam backing for added protection.

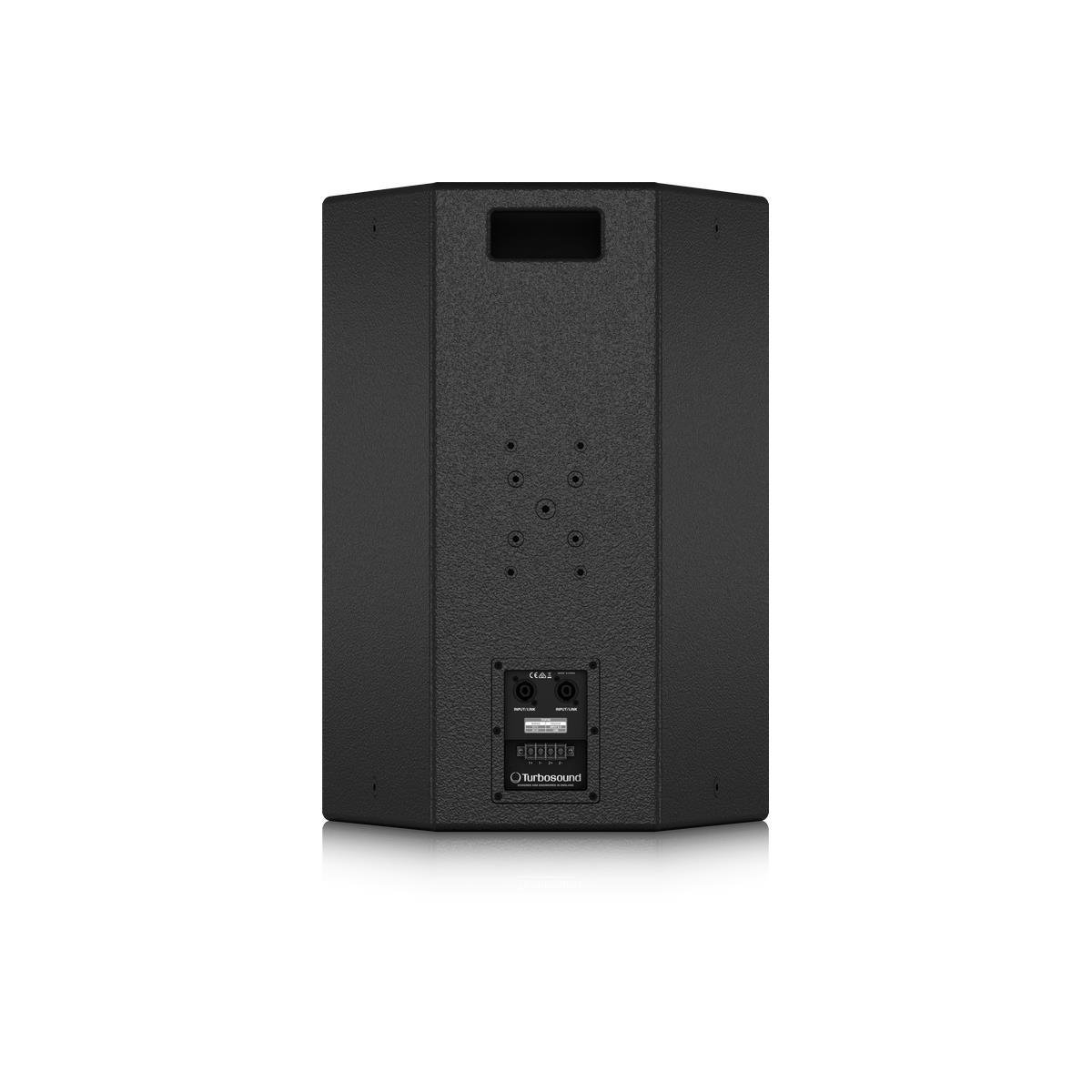

- Neutrik speakON NL4 and barrier strip connectors for reliable connectivity.
Key Specifications
| Specification | Details |
|---|---|
| Frequency Response | 85 Hz – 18 kHz +/-3 dB, 55 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 90° H x 60° V at -6 dB points |
| Power Handling (IEC) | 350 W continuous, 1,400 W peak |
| Sensitivity | 99 dB (1 W at 1 m) |
| Maximum SPL | 125 dB continuous, 131 dB peak |
| Impedance | 8 Ohms |
| Components | 1x 15″ LF driver, 1x 1″ HF compression driver |
| Connectors | 2x Neutrik speakON NL4, 1x barrier strip terminals |
| Wiring | Pins 1+ / 1- input, pins 2+ / 2- link |
| Construction | 15 mm birch plywood |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Flying Hardware | 9x M10, 4x M8, 4x M6 points |
| Dimensions (H x W x D) | 25.7 x 18.3 x 16.6″ / 652.78 x 464.82 x 421.64 mm |
| Weight | 23.5 kg / 51.81 lbs |
