Turbosound MV212-XV Dual 12″ Passive Line Array Speaker 3160W Peak
18,843.30 AED Included (5% UAE VAT)
The Turbosound Manchester Series MV212-XV is a dual 12" 3-way passive line array speaker, ideal for touring, portable, and installed sound applications such as nightclubs and concert halls. It integrates seamlessly with a separate Lab Gruppen PLM+ amplifier for optimized performance, with the ability to suspend up to 16 units for versatile FOH setups.
Model number
MV212-XV
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

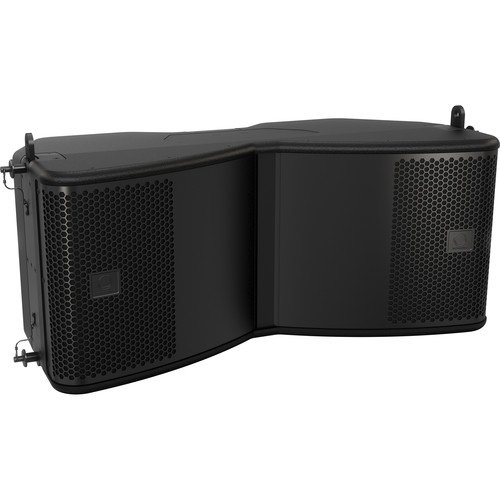

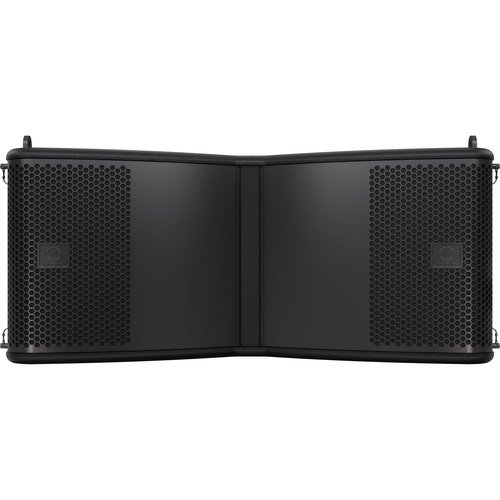

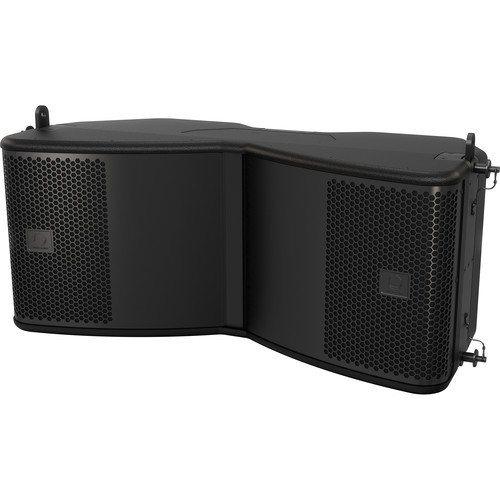

The Turbosound Manchester Series MV212-XV is a full-size, dual 12″ 3-way passive line array speaker element well suited for touring, portable, and installed sound reinforcement applications including nightclubs, concert halls, houses of worship, and more. The MV212-XV is designed to be seamlessly integrated with a Lab Gruppen PLM+ amplifier (sold separately), which offers meticulously designed presets that allow for maximum system performance and consistency. Up to 16 MV212s can be suspended, making this line-array an optimal FOH solution with flexibility that’s adaptable to varying venue requirements.
Two 12″ woofers with neodymium motors and a single dual-concentric MF/HF compression driver deliver remarkable clarity and intelligibility in a compact enclosure. Due to its broad 100° horizontal by 10° vertical dispersion pattern, the MV212-XV provides exceptional coverage in wide rooms and in distributed fill applications.
Key Features
- For Sound Reinforcement Applications
- 3160W Peak Power Handling
- Designed for Lab Gruppen PLM+ Amplifiers
- Dual 12″ Low-Frequency Neodymium Woofers
- 1.4″ Coaxial Mid-High Compression Driver
- 3-Point Suspension System
- Suspend up to 16 x MV212-XV Elements
- Weather-Resistant Enclosure
Specifications
| PA Speaker | Details |
|---|---|
| Configuration | Passive 3-Way |
| Enclosure Type | Bass-Reflex Line Array |
| Total Power Capacity | 3160 W Peak |
| Amplifier Power Rating | LF: 1 x 2400 W Peak (at 8 Ohms) HF/MF: 1 x 760 W Peak |
| System Impedance | LF: 2 x 8 Ohms (Bi-Amp) HF: 1 x 12 Ohms (Bi-Amp) |
| Drivers | Details |
|---|---|
| HF Driver | 1 x 1.4″ / 35.56 mm Horn-Loaded Compression Driver |
| MF Driver | None |
| MF Voice Coil | None |
| LF Driver | 2 x 12″ / 304.8 mm Woofer |
| Magnet | Neodymium |
| Performance | Details |
|---|---|
| Frequency Response | 50 Hz to 20 kHz -3 dB 35 Hz to 20 kHz -10 dB |
| Maximum SPL | 143 dB |
| Coverage Angle | 100° H x 10° V |
| Speaker Sensitivity | LF: 101 dB HF/MF: 117.5 dB |
| Connectivity | Details |
|---|---|

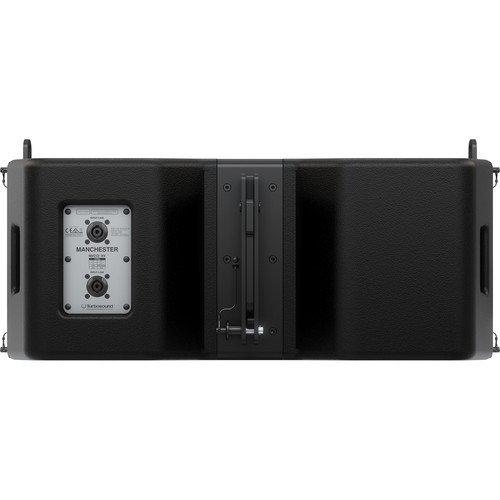

| Audio I/O | 2 x speakON NL4 Speaker Input/Thru (Lockable) |
| Signal Processing | Details |
|---|---|
| Crossover | Bi-Amp |
| EQ | Yes |
| Mounting | Integrated Rigging |
| Construction Material | Plywood |
| Dimensions | 31.9 x 19.3 x 13.9″ / 810.3 x 490.2 x 353.1 mm |
| Weight | 110.2 lb / 50 kg |
