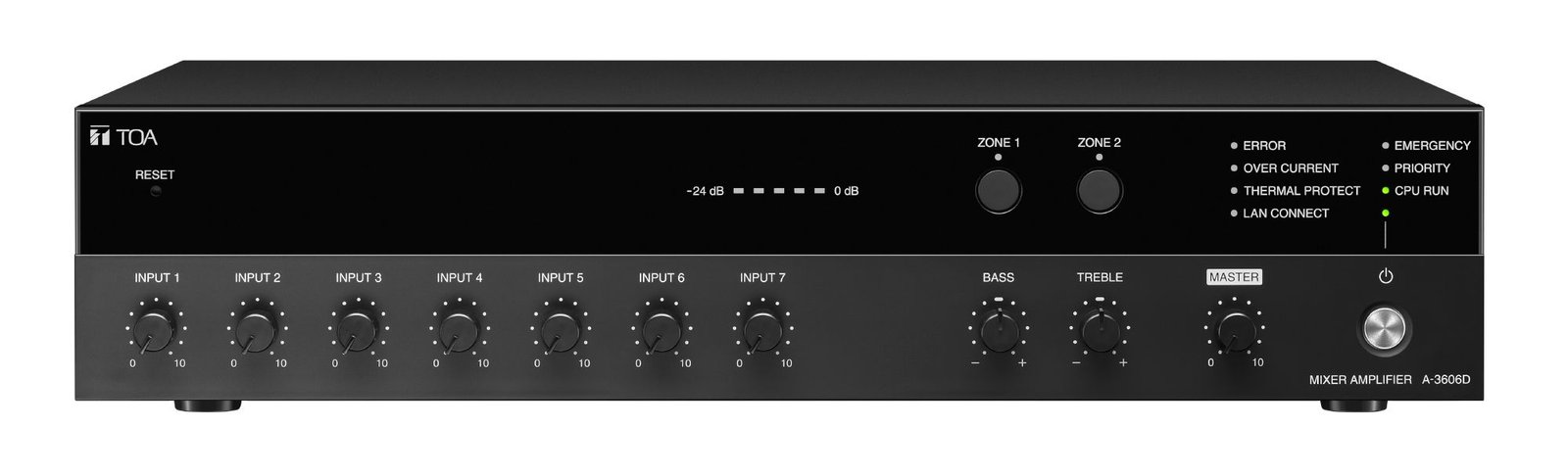

Toa Digital Mixer Amplifier A-3648D 480W Class D for Public Address
5,515.65 AED Included (5% UAE VAT)
The A-3600D Series Digital Mixer Amplifier offers up to seven inputs and 480 W of power, with browser-based control for easy remote management. Featuring a feedback suppressor, input priorities, and sleek design, it's ideal for music, paging, and noise masking in various settings such as retail shops, schools, offices, and factories. Equipped with zone selectors, high and low impedance options, and emergency paging, this energy-efficient amplifier ensures clear audio quality and reliable performance.
Model number
A-3648D 4CEE00
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
A-3600D Series Digital Mixer Amplifier
The A-3600D Series Digital Mixer Amplifier provides a blend of flexibility and high performance. With up to seven audio inputs and a powerful 480 W Class D amplifier, it is designed for diverse audio applications such as background music, paging, and noise masking in various settings such as retail, educational institutions, and offices. The series features browser-based control for convenient system management from any location, making it an efficient solution for modern public address requirements.
Key Features
- Supports high and low impedance speakers
- Operates on 100V – 240V AC mains
- Includes 8 audio inputs (4 MIC/AUX, 2 MIC, 1 AUX, 1 power amp)
- 4 microphone inputs with phantom power
- 2-zone speaker selector for high impedance
- Dual line-out options
- Dedicated recording output
- Zone control inputs/outputs and power remote control output
- Emergency paging capabilities
Specifications
| Power Source | 100 – 240 V AC, 50 / 60 Hz |
|---|---|
| Rated Output | 480 W |
| Frequency Response | 50 Hz – 20 kHz (±3 dB) |
| Distortion | < 1 % (at 1 kHz, rated power) |
| Power Consumption | 113 W (EN62368-1), 601 W (rated output) |
| Speaker Output | Low impedance: 4-16 Ω, High impedance: 100 V, direct, zone 1, zone 2 |
| Amplifier | Class D |
| S/N Ratio | 88 dB (A-weighted) |
| Connectable Microphones | 6 |
| Controls | 7x volume inputs, bass, treble, master volume, zone 1 & 2 switch, power |
| Inputs |
Input 1+2: -60/-20 dBV, 600 Ω, balanced, phantom power switchable; Input 3+4: -60 dBV, 600 Ω, balanced, phantom power switchable; Input 5+6: -60 dBV, 600 Ω, balanced; -20 dBV, 10 kΩ, unbalanced; Input 7: -20 dBV, 10 kΩ, unbalanced |
| Control Input | 4 channels, no-voltage make contact input |
| Outputs | Recording, Line out 1+2: 0 dBV, 600 Ω, unbalanced |
| Control Output | Power remote, emergency, zone control |
| Operating Humidity | 85 % RH or less (no condensation) |
| Operating Temperature | -10 °C to +40 °C (14 °F to 104 °F) |
| Finish | ABS resin, paint, black, Surface-treated steel plate |
| Dimensions (W x H x D) | 420 x 96.1 x 313.1 mm |
| Accessories (included) | Power cord, Audio input removable terminal plugs, Control I/O removable terminal plugs, Remote control plugs, Speaker out terminal plug, Volume control cover |
