Description

Description

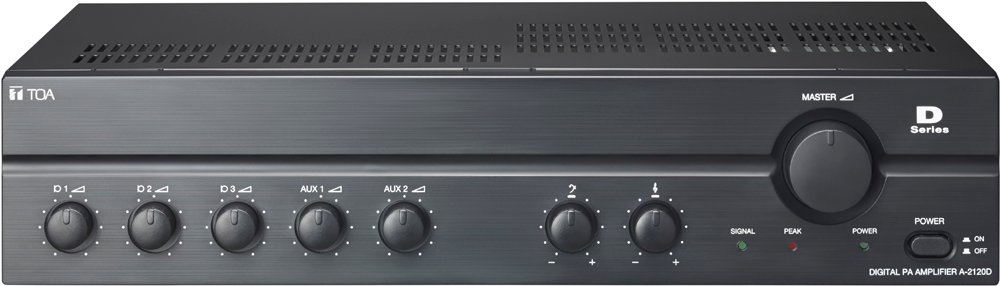

The A-2120DD-EB is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms.

Features

  • 3 microphone inputs, 2 AUX inputs, and 1 recording output
  • DD-varieties with 2 phone jacks and 1 5-pin DIN input
  • D-varieties with 3 phone jacks
  • Speaker output of constant voltage distribution system (100 V)
  • Independent tone control of boost and cut type for both high and low frequency
  • MIC 1 with phantom power and mute function
  • Current limiter to prevent damage due to current overload
  • Excess heat limit to protect the transistor and power transformer
  • Available in 30 W, 60 W, 120 W, and 240 W rated output

Key Features

Specification Details
Microphone Inputs 3
AUX Inputs 2
Recording Output 1
Phone Jacks (DD-varieties) 2
5-pin DIN Input 1 (DD-varieties)
Phone Jacks (D-varieties) 3
Speaker Output Constant voltage (100 V)
Tone Control Independent boost and cut for high and low frequency
Phantom Power Yes, on MIC 1
Mute Function Yes, on MIC 1
Current Limiter Yes
Excess Heat Limit Yes
Output Options 30 W, 60 W, 120 W, 240 W
