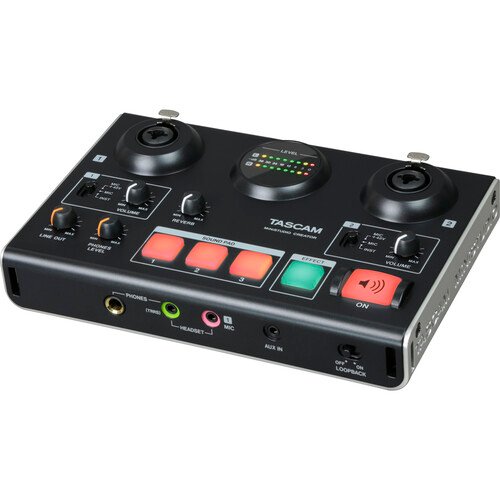

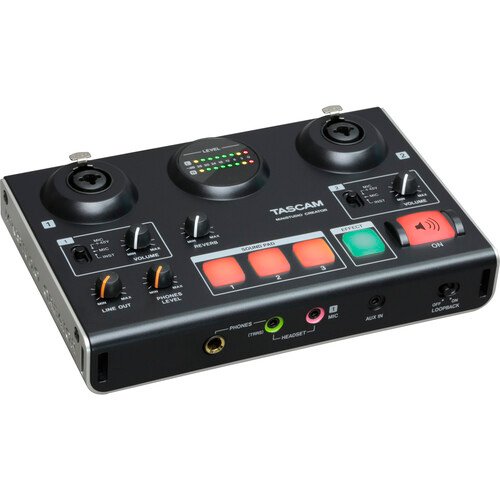

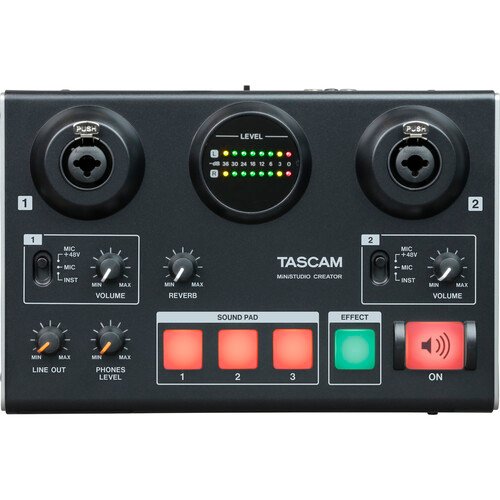

Tascam MiNiSTUDIO Creator US-42B

Designed for beginner and intermediate content creators, the Tascam MiNiSTUDIO Creator US-42B is a versatile tabletop audio interface. It blends simplicity and efficiency, ideal for podcasting, gaming, live streaming, and more. With easy connectivity to both Mac and Windows computers via USB, this compact yet powerful tool offers an array of features to elevate your audio production with professional-quality results.

Features

  • Tabletop Podcast-Production Studio
  • Perfect for Broadcasting, Streaming, and Music Recording
  • 2 Mic/Instrument Inputs with 48V Phantom Power
  • 3 Programmable Pads for Instant Sound Effects
  • Ducking, Reverb, and Voice Effects
  • Dual Headphone Outputs for Host and Guest
  • User-Friendly Audio Software with Easy & Expert Modes
  • Presets for Quick Setup
  • USB Interface with 24-Bit / 96 kHz Audio Quality
  • Bus Powered for Use with Mac, Windows, and iOS

Specifications

Category Details
Signal Processing
  • Pad: None
  • Gain/Trim Range: Mic/Hi-Z Inputs: 45 dB
  • High-Pass Filter: None
Connectivity
  • Analog Audio I/O:
    • 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Hi-Z Input
    • 2 x RCA Coaxial Unbalanced Line Output
    • 1 x 1/8″ / 3.5 mm TRS Unbalanced Aux Input
    • 1 x 1/8″ / 3.5 mm TS Unbalanced Mic Input (Front Panel)
    • 1 x 1/8″ / 3.5 mm TRRS Unbalanced Headphone/Headset In/Out (Front Panel)
    • 1 x 1/4″ TRS Unbalanced Headphone Output (Front Panel)
  • Phantom Power: 48 V, Selectable On/Off (Selectable on Individual Inputs)
  • Digital Audio I/O: None
  • Host Connection / USB: 1 x USB Type-B (USB 2.0)
  • USB (Non-Host): 1 x Micro-USB (Power Input)
  • Sync I/O: None
  • Network I/O: None
  • MIDI I/O: None
Performance
  • Frequency Response:
    • Line Outputs: 20 Hz to 20 kHz +0/-1 dB (at 44.1/48 kHz), 20 Hz to 40 kHz +0/-1 dB (at 88.2/96 kHz)
    • 1/4″ Headphone Outputs: 20 Hz to 20 kHz +0/-3 dB (at 44.1/48 kHz), 20 Hz to 40 kHz +0/-3 dB (at 88.2/96 kHz)
  • Maximum Input Level: +7.7 dBV
  • Maximum Output Level: Line Outputs: +6 dBV
  • Headphone Output Power: 15 mW per Channel into 32 Ohms
  • Impedance:
    • XLR Mic Inputs: 2.4 Kilohms
    • 1/8″ / 3.5 mm Mic Inputs: ≥ 5 Kilohms
    • 1/8″ / 3.5 mm Aux Inputs: ≥ 5 Kilohms
    • Line Outputs: ≥ 200 Ohms
    • Hi-Z Inputs: ≥ 1 Megohms
  • SNR: Mic Inputs: 100 dB
  • THD: Mic Inputs: ≤ 0.005% (1 kHz)
  • Crosstalk: Mic Inputs: 95 dB (1 kHz)
  • EIN: Mic Inputs: < -120 dB (150-Ohm Source)
Digital Audio
  • Sample Rates: 44.1 / 48 / 88.2 / 96 kHz
  • Bit Depths: 16 / 24-Bit
Audio Storage & Playback Memory Card Slot: None
Compatibility
  • OS Compatibility:
    • Windows 7
    • Windows 8.1
    • Windows 10
    • macOS 10.9 or Later
    • iOS 7 or Later
    • iPadOS
    • *As of June, 2022: check with manufacturer for the most up-to-date compatibility
  • Included Software: None
  • Processor Requirement: 2 GHz
  • RAM Requirements: 2 GB
  • Mobile Device Compatibility: iPhone, iPad
  • Required Hardware: Available USB 2.0 Port
  • Internet Connection: Required for Software/Driver Download
