Tascam MM-2D-E 2-Channel Mic/Line Dante Converter with DSP Mixer and 96kHz/24-bit
2,943.15 AED Included (5% UAE VAT)
The MM-2D-E is a compact converter designed to transform 2-channel mic/line input/output signals into Dante signals, featuring a half-1U rack size. This analog output unit integrates seamlessly with various Dante systems and includes a built-in DSP mixer for enhanced performance. It supports up to 96kHz/24bit resolution and utilizes Euroblock connectors for reliable mic/line input/output connections, making it a versatile component of the TASCAM Dante Compact Processor Series.
Model number
MM-2D-E
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
TASCAM MM-2D-E Dante Compact Processor
The MM-2D-E is a compact converter that effectively transforms 2-channel mic/line input and output signals into Dante signals. With half the size of a standard 1U rack, this unit is designed to suit various Dante systems, acting as an extraordinary analog output unit. Featuring a built-in DSP mixer, it allows small scale systems to fully utilize the numerous input/output models that the TASCAM Dante Compact Processor Series offers. The MM-2D-E supports up to 96kHz/24bit and implements Euroblock connectors for analog mic/line input/output.
Features
- 2-channel mic/line input with phantom power (+48V) support
- Remote mic gain control capability
- 2 line outputs
- 4 Dante inputs/outputs
- Power over Ethernet (PoE) support
- High-resolution audio up to 24bit/96kHz
- Comprehensive DSP functions for different operational environments, including output effects and a 6 in/4 out matrix mixer
- Ability to daisy chain Dante devices without a network switch
- Compatibility with Dante Domain Manager and Dante AES67 Mode
- Scene preset function ensuring adaptability in different areas with up to 50 presets
- Timer event function for automatic scene switching at planned times (future version update expected)
- Two types of user-control software available for Windows/Mac/iOS/Android devices
- Remote control capabilities via GPI and Dante
- Half-rack mountable size ideal for various installations
- Status indicators for LAN, connection status, and sample rate
- Signal indicators for monitoring line input/output signals
- Configurable reference level via remote control
- Surface rack mountable angles included for installation under desks
- Optional accessories: AC adapter PS-P1220E for redundant power and rack-mountable shelf AK-RS1
Specifications
| Formats and Channels | 44.1/48/88.2/96kHz, 16/24-bit, 2 channels |

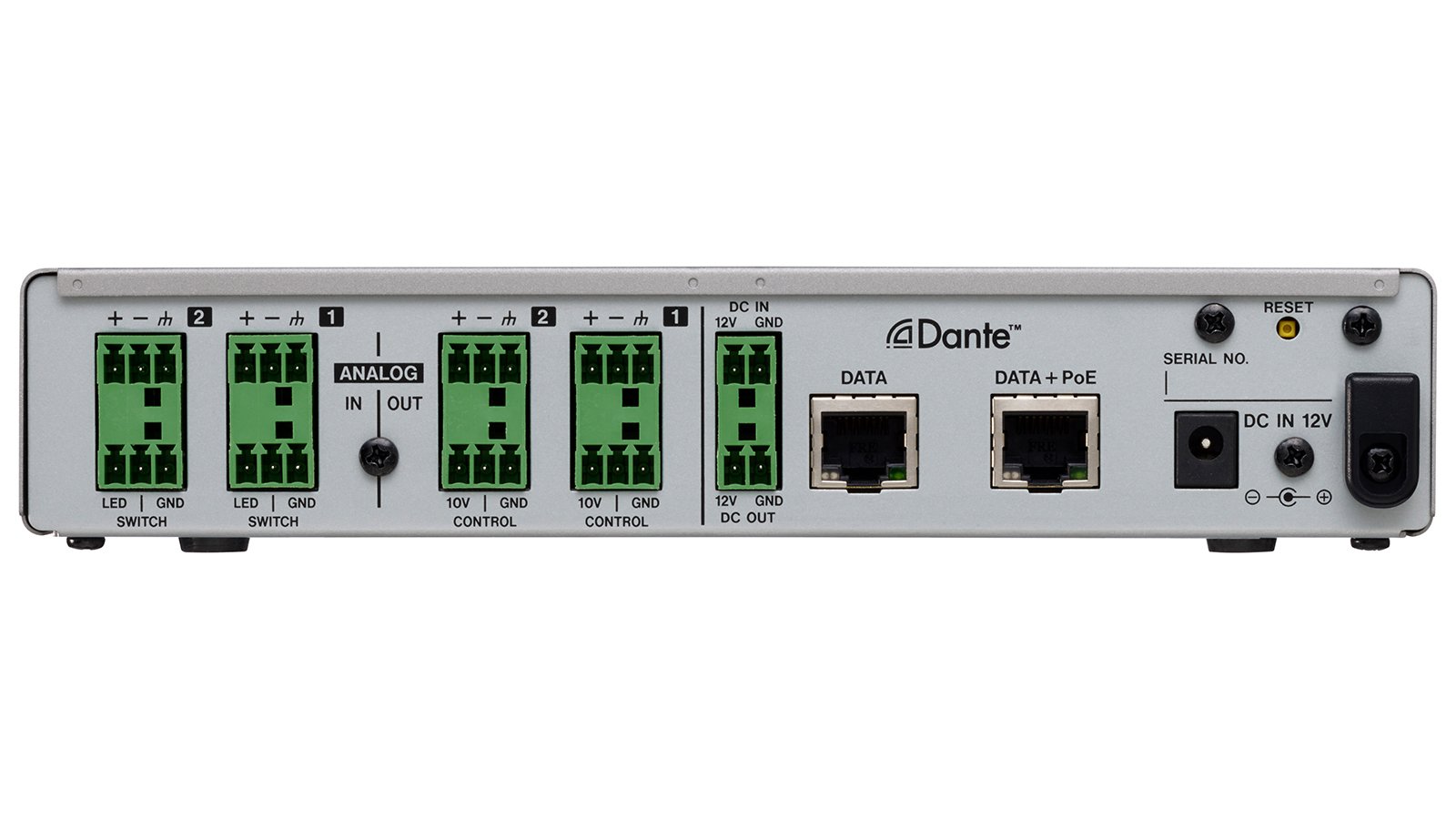

| Connector | RJ-45 (Dante), Euroblock (Analog IN/OUT) |
| Transmission Protocol | Dante |
| Supported Ethernet Standard | 1000BASE-T (IEEE 802.3ab) |
| Recommended Cables | Category 5e or faster STP cables |
| Minimum Input Level | -74 dBu |
| Maximum Input Level | +26 dBu |
| Power | PoE class 0, TASCAM PS-P1220E AC adapter (sold separately) |
| Power Consumption | 6W |
| Dimensions | 214 x 44.45 x 136.1 mm (W x H x D, including protrusions) |
| Weight | 878 g |
| Operating Temperature Range | 0°C-40°C |
| Included Items | Installation brackets, Euroblock plugs, Cable band kit, Owner’s manual (including warranty) |
