Tascam Dante Analog Converter ML-32D 32-Channel 96 kHz Audio
11,350.50 AED Included (5% UAE VAT)
The Tascam ML-32D Dante / Analog Converter integrates analog audio into Dante networks through D-Sub connectors, supporting up to 1024 channels of 32-bit / 192 kHz audio over Cat 5/6 Ethernet, facilitating connections with devices like preamps, mixers, and interfaces.
Model number
ML-32D
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

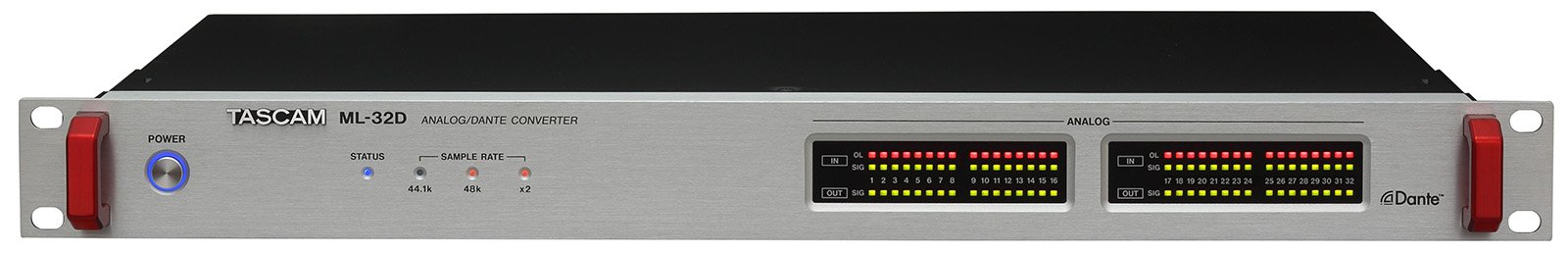

Tascam ML-32D Dante / Analog Converter
Experience seamless analog and digital audio integration with the Tascam ML-32D Dante / Analog Converter. This advanced converter allows you to insert or extract analog audio into or out of a Dante network using external breakout devices equipped with D-Sub format connectors.
Product Features
- Intuitive interface for connection to a Dante audio network.
- Supports 32-channel analog line input and output (48 kHz / 96 kHz) through 8 D-Sub connectors.
- Dual Ethernet jacks for primary and secondary connections.
- Delivers up to 24-bit / 96 kHz audio quality.
- LED display indicating signal level and overload per channel.
- Reference level dip switches for selectable dBu level metering.
- Firmware updates via Dante port for continuous improvement.
- Compatible with AES67 and Revenna.
Specifications
| Specification | Details |
|---|---|
| Form Factor | Rackmount |
| Channels of I/O | 32 Input / 32 Output |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Mic Preamps | None |
Connectivity

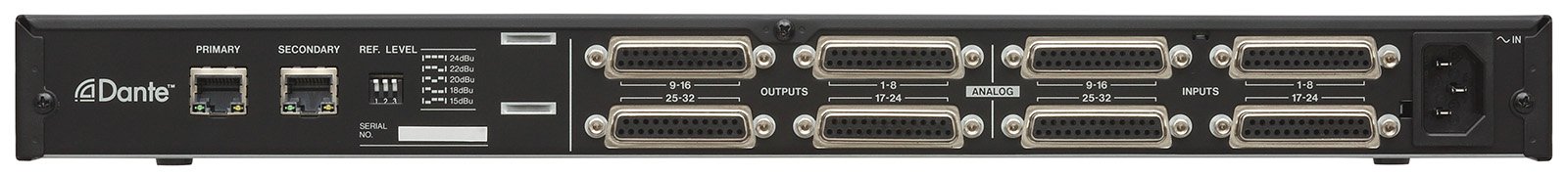

| Analog Audio I/O | 4 x DB-25 25-Pin 8-Channel Input, 4 x DB-25 25-Pin 8-Channel Output |
| Digital Audio I/O | None |
| Network I/O | 2 x RJ45 Dante |
| MIDI I/O | None |
Performance
| Frequency Response | 20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz), 20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz) |
| Impedance | ≥ 10 Kilohms (DB-25 Inputs) |
| SNR | 113 dB |
| THD+N | 0.001% |
| Crosstalk | > 115 dB |
Digital Audio
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Bit Depths | 16 / 24-Bit |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 22 W |
Physical
| Rackmount Size | 1 RU |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 19 x 12 x 1.8″ / 483 x 303.8 x 45 mm |
| Weight | 7.7 lb / 3.5 kg |
Packaging Info
| Package Weight | 11.55 lb |
| Box Dimensions (LxWxH) | 21.6 x 16.9 x 5.9″ |
