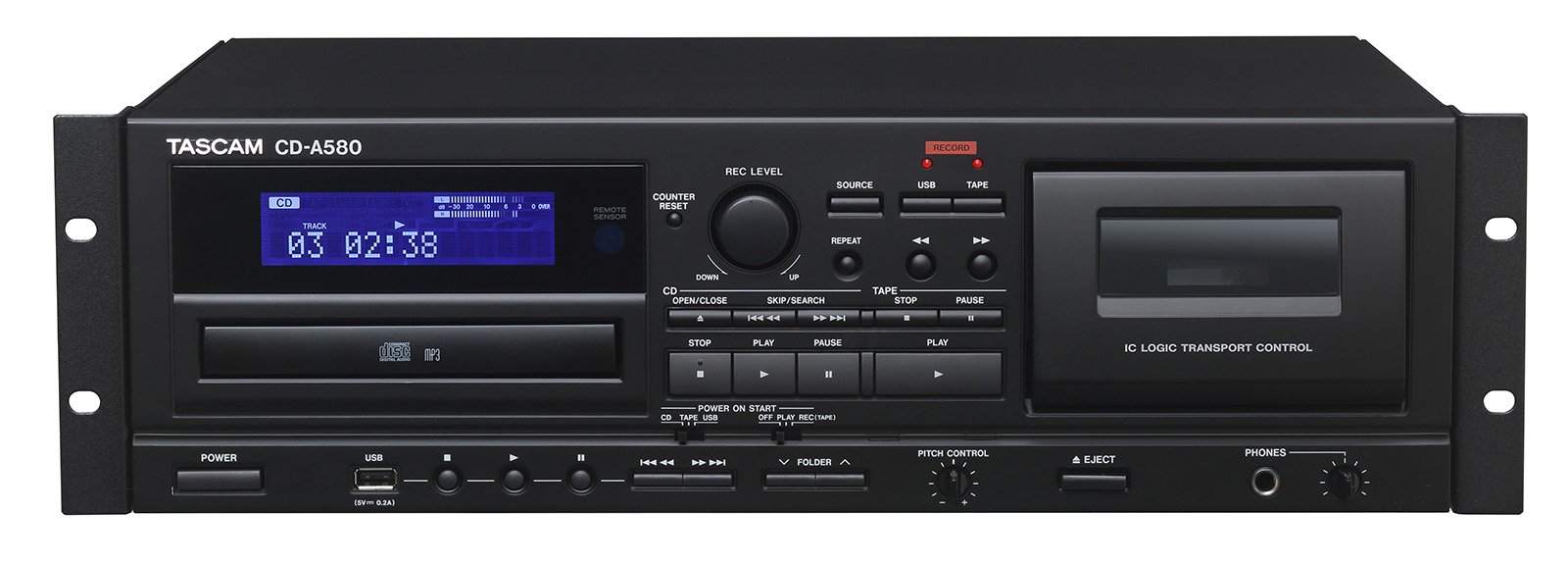

Tascam CD-A580 Cassette, CD, and USB Player/Recorder with Pitch Control
2,823.45 AED Included (5% UAE VAT)
The Tascam CD-A580 is a versatile recording and playback device capable of handling cassette tapes, multiple types of CD files, and USB flash media. It features RCA line inputs and outputs, a 1/4" headphone jack with a dedicated volume knob, and an LCD display for level readouts, all within a 3RU rack mountable unit suitable for professional and installation environments.
Model number
CD-A580
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Record MP3s to Cassette Tape—and Vice Versa with Tascam’s CD-A580
The Tascam CD-A580 is a versatile recording and playback device designed to meet the needs of both professionals and enthusiasts. It supports cassette tapes, CD files of various types, and USB flash media, all within a compact 3 RU rack-mountable unit. Whether you need to record from CD to MP3, tape, or line-input, the CD-A580 has you covered. The unit includes RCA line inputs and outputs, a 1/4″ headphone jack with a dedicated volume knob, and an informative LCD display for level monitoring.
Key Features
- Cassette Deck, CD Player & MP3 Player
- Plays Back CDs, Cassettes & MP3s
- Record from CD to MP3 & Tape
- Record from Tape to MP3
- Record from Line-Input to Tape & MP3
- Supports CDs, CD-RWs & Data CDs
- Shuffle, Program, All & Single Playback
- Pitch Control on Cassette Deck Playback
- 3 RU of Space, Rackmount Kit Included

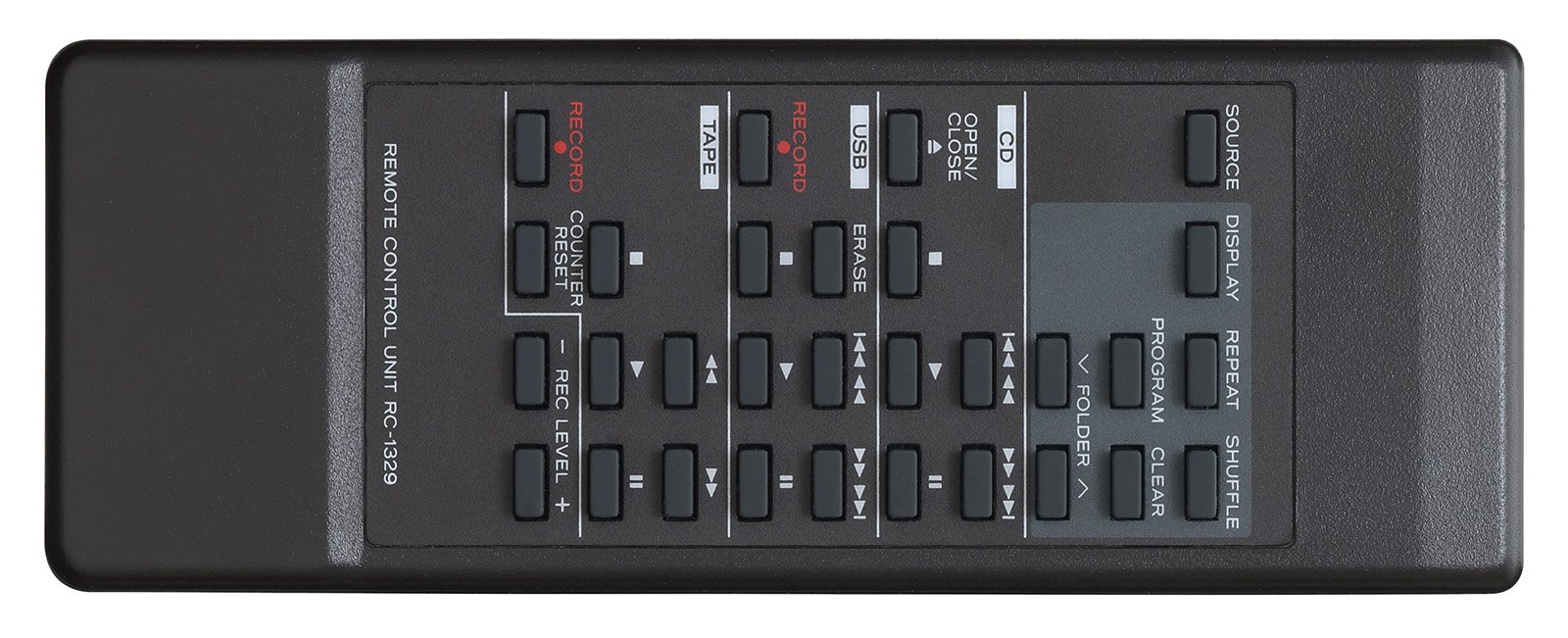

- Remote & Batteries Included
Specifications
Tape
| Supported Formats | Cassette tape (C-10 through C-90); Normal (TYPE I) & Chrome (TYPE II) recording; Normal (TYPE I), Chrome (TYPE II) & Metal (TYPE IV) playback |
| Track System | Stereo |
| Head Structure | 1 x Record/Playback Head; 1 x Erase Head |
| Pitch Control | ±10%, Playback Only |
| Wow & Flutter | 0.3% (W.RMS) |
| Frequency Response | 50 to approx. 12.5 kHz, ±4 dB (Chrome & Normal) |
| Signal to Noise Ratio | 59 dB (Maximum Input Level, A-weighted) |
| Sensitivity | 4.5 dBu (0.46 V) |
| Impedance | >50 kOhms |
CD Player
| Supported Discs | CD, CD-R, CD-RW (8 / 12 cm) |
| Disc Formats | CD-DA, MP3 Data CD (ISO9660 Level 1 / Level 2) |
| Frequency Response | 20 Hz to approx. 20 kHz, ±2 dB |
| THD+N | Less than 0.02% (1 kHz) |
| Maximum Output Level | +6 dBV (2.0 V) |
USB
| Format | MP3, Playback and Record |
| Sampling Frequency | 16 to 48 kHz, 8 to 320 kbps playback; 44.1 kHz, 128 kbps record format |
| File/Folder Limits | 8 Levels Supported |
| Frequency Response | 20 Hz to 15 kHz at ±3 dB (Playback); 20 Hz to 15 kHz at ±3 dB (Record – CD), 100 Hz to 15 kHz at ±3 dB (Line-in) |
| Signal to Noise Ratio | >85 dB (Playback & Record) |
General

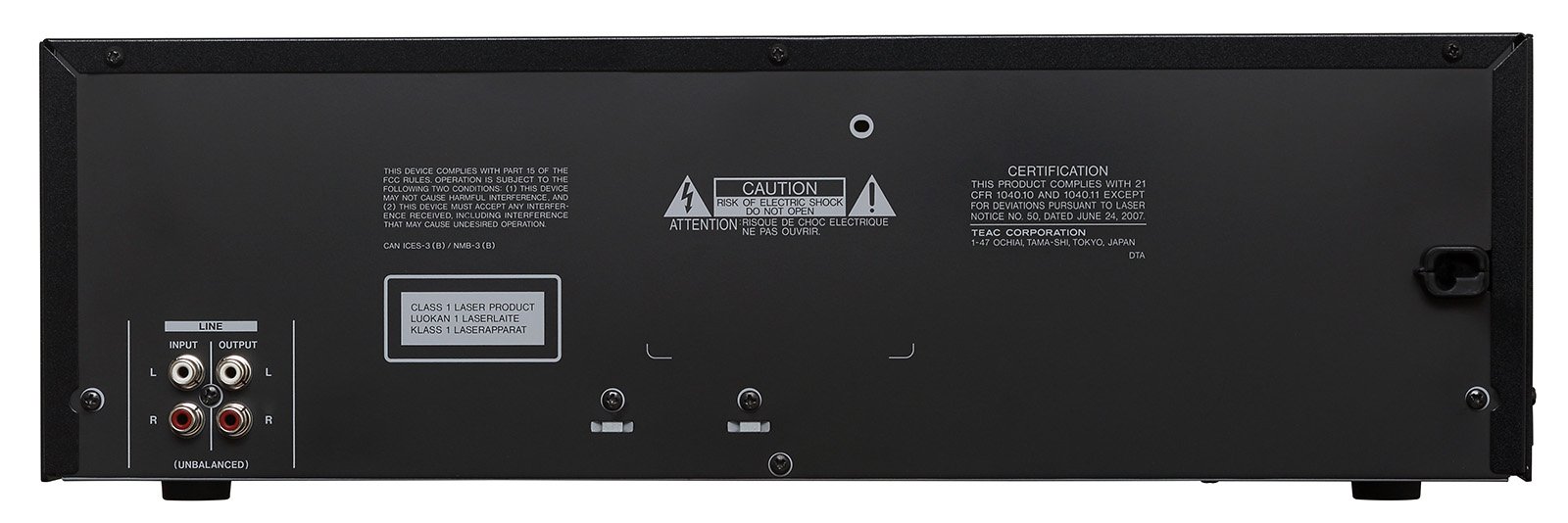

| Analog I/O | 2 x Unbalanced Line Inputs, RCA; 2 x Unbalanced Line Outputs, RCA; 1 x Stereo Headphone Output, 1/4″ Phone Type |
| Nominal Input Level | -4.5 dBu (-0.46 V), RCA |
| Maximum Output Level | +6 dBV (2.0 V), RCA |
| Impedance | Input: >50 kOhms; Headphone Output: 32 Ohms |
| Headphone Output | 10 mW + 10 mW (THD + N 0.1%) |
| Dimensions | 19.0 x 5.5 x 11.4″ / 48.3 x 14.0 x 29.0 cm |
| Weight | 13.2 lb / 6.0 kg |
Packaging Info
| Package Weight | 17.2 lb |
| Box Dimensions (LxWxH) | 22 x 14.8 x 9.4″ |
