50 in stock

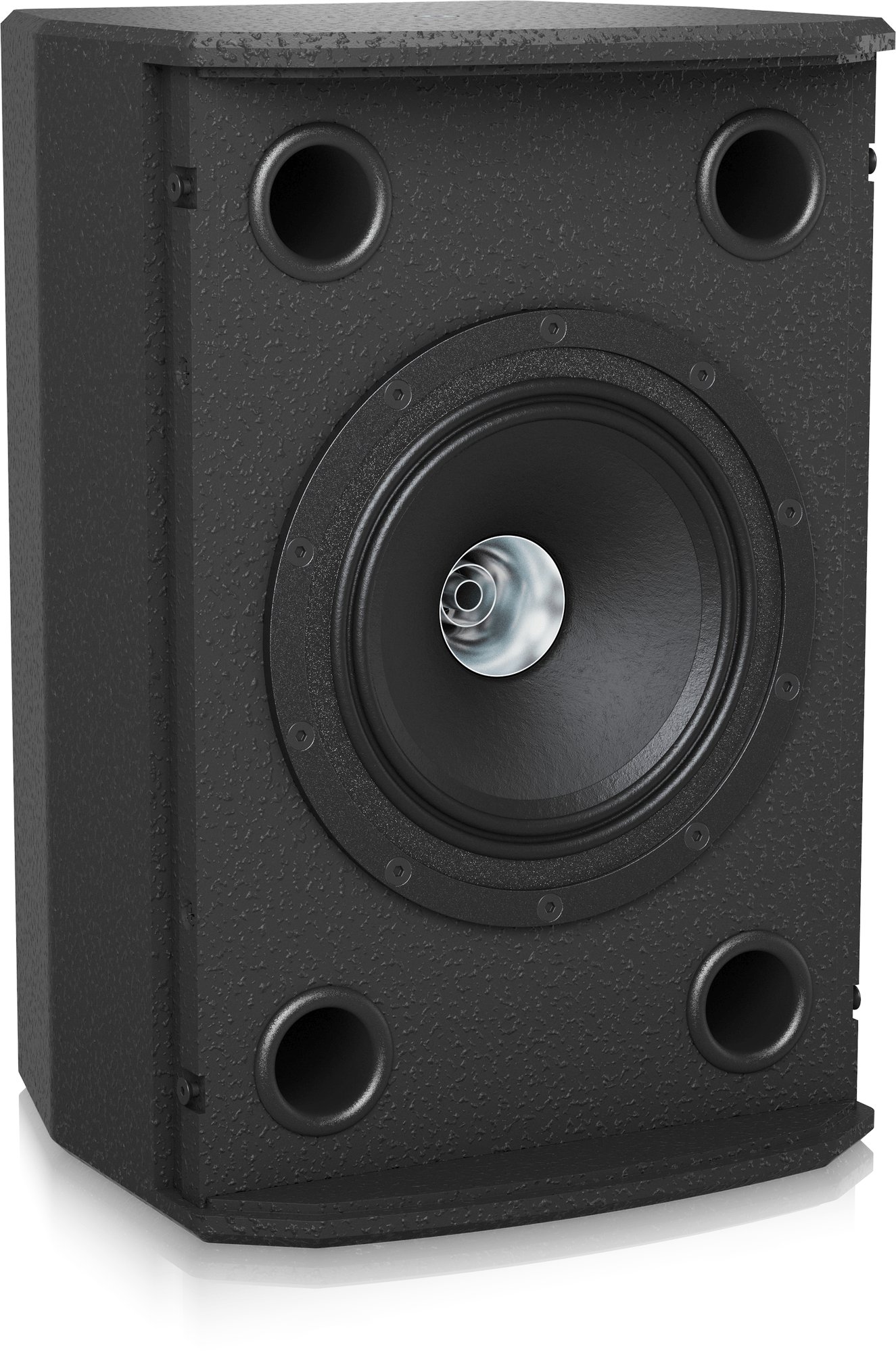

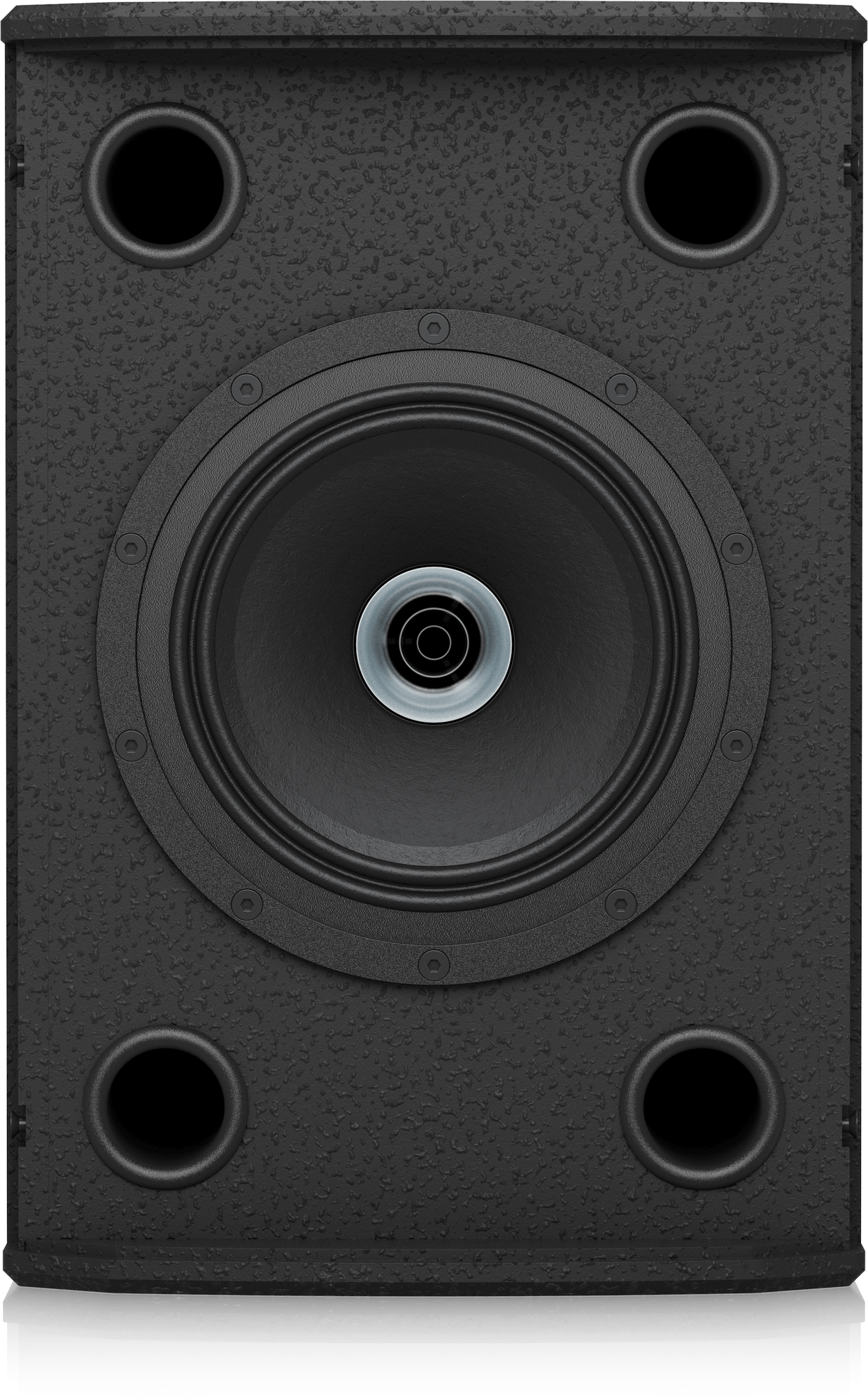

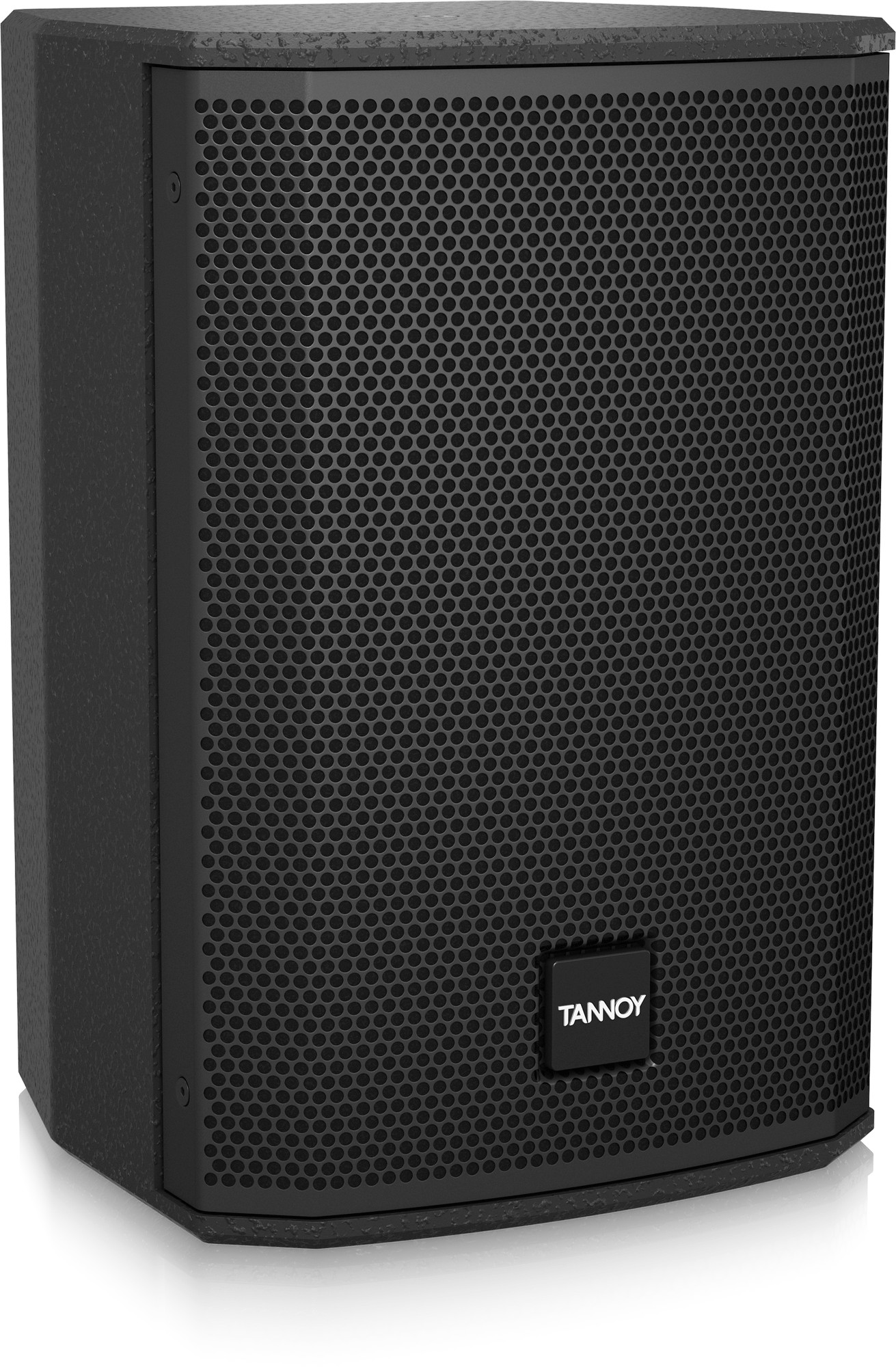

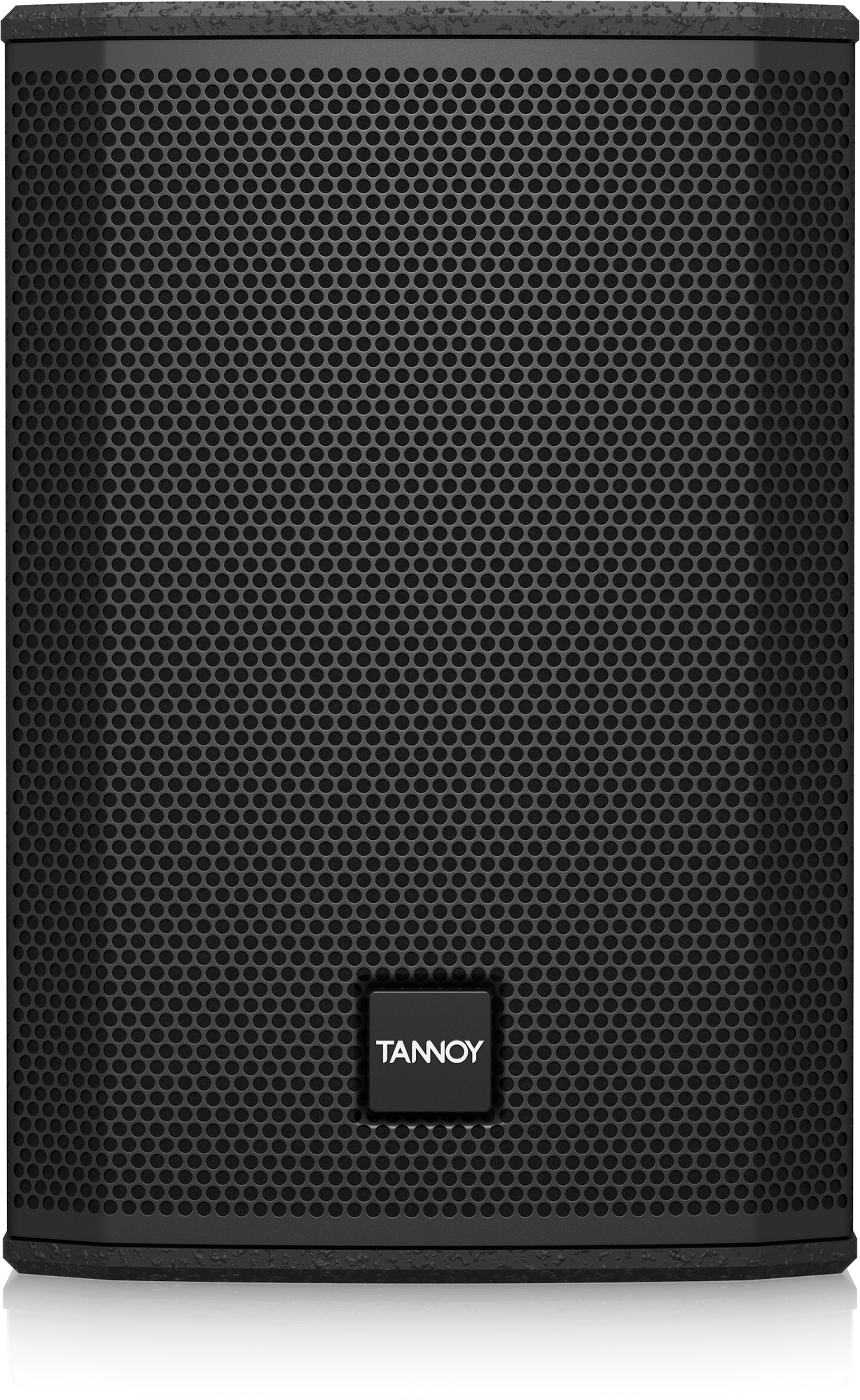

Tannoy VXP 6 1600 Watt 6″ Dual Concentric Powered Sound Reinforcement Loudspeaker
3,638.25 AED Included (5% UAE VAT)
The VXP 6 may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Model number
VXP 6
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The VXP 6 may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features
- Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
- 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
- 6″ Dual Concentric full range driver for point source phase coherence
- Tightly controlled 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, delay and stage front fill applications
- Switchable full range or high pass filter operation
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi matt black paint
- Rugged powder coated perforated steel mesh grille
- M6 pole mount socket for small-scale portable PA
- Optional horizontal mounting yokes (available separately)
- Fully balanced input and link output on Neutrik* XLR connectors
- Neutrik powerCON* for a secure locking mains power connection
Specifications
System
| Frequency response (Full range mode) |
88 Hz – 35 kHz ±3 dB80 Hz – 45 kHz -10 dB |
| Frequency response (Hi-pass mode) |
120 Hz – 35 kHz ±3 dB100 Hz – 45 kHz -10 dB |
| Nominal dispersion |
90° conical @ -6dB point |
| Directivity factor (Q) |
5.6 |
| Directivity index (DI) |
7 |
| Dynamic range |
106 dB |
| Maximum SPL |
123 dB peak |
| Crossover type |
Passive 1.6 kHz with dynamic HF protection |
| Transducers |
150 mm (1 x 6″) constant directivity Dual Concentric™ |
Amplifier
| Maximum output power* |
1600 W |
| Type |
Class-D |
| Protection |
Output current limiter, clip limiter, brownout protection and recovery, thermal |

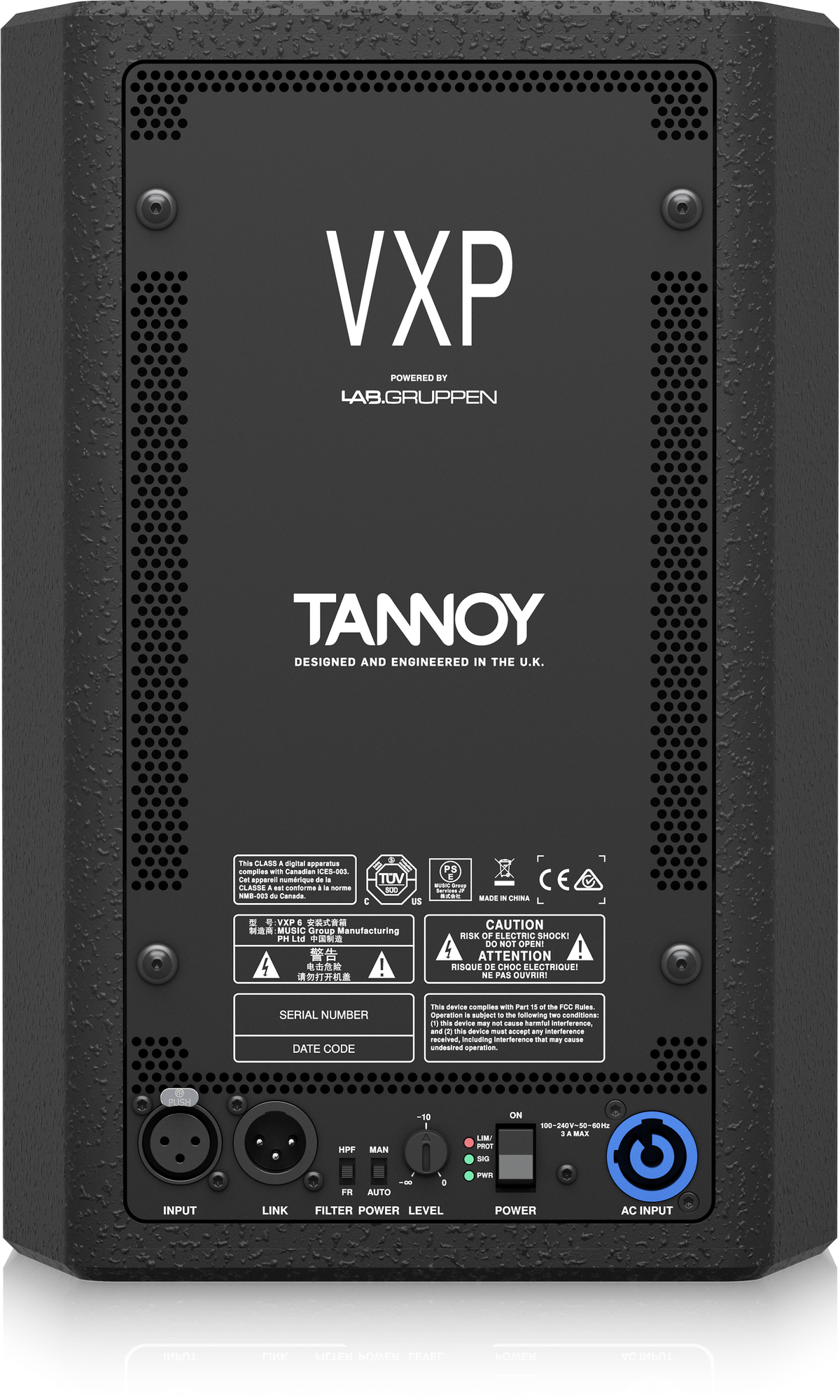

Connectors
| Input |
1 x XLR, balanced |
| Input impedance |
10 kΩ unbalanced,20 kΩ balanced |
| Maximum input level for clip |
+4.5 dBu (hard clip at+14.5 dBu input signal) |
| Link |
1 x XLR |
| Mains Supply |
Neutrik powerCON 20A† |
| Controls | |
| Level |
Recessed potentiometer |
| Filter |
Hi-pass (HPF)/ full range (FR), switchable |
| Power mode |
Manual (MAN)/ auto (AUTO), switchable |
Power Supply
| Type |
Switch-mode autorange power supply |
| Mains voltage |
100-240 V~, 50/60 Hz |
| Power consumption |
60 W @ 1⁄8 max power |
Enclosure
| Dimensions (HWD) |
334 x 226 x 216 mm (13.1 x 8.9 x 8.5″) |
| Net weight |
7.2 kg (15.9 lbs) |
| Construction |
12 mm (½ “) plywood, vented and internally braced |
| Finish |
Semi matt black paint (white optional) |
| Grille |
Powder coated perforated steel |
| Flying hardware |
2 x M6 yoke bracket inserts Blanking plate for optional VTH pole mount |
