500 in stock

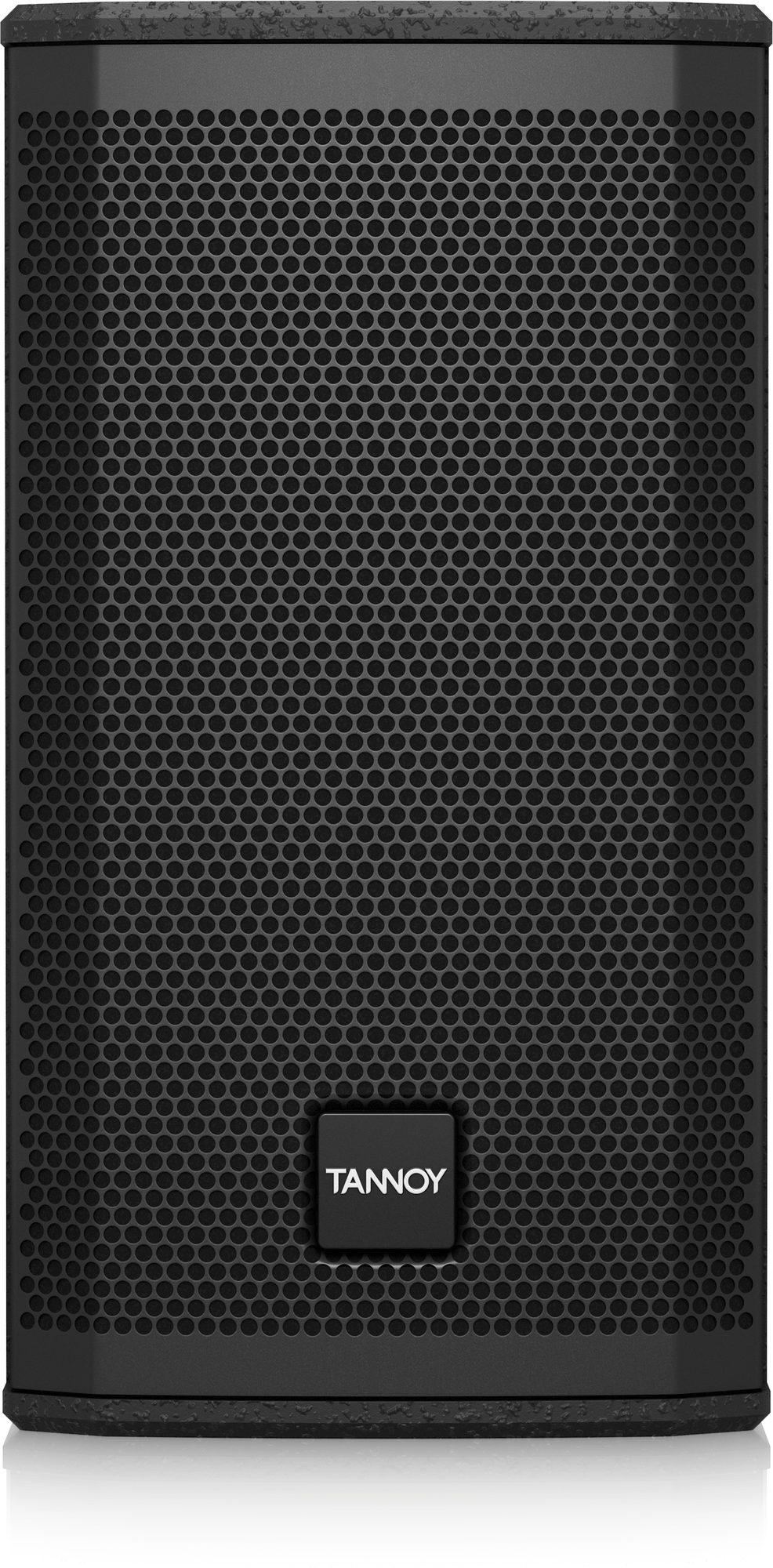

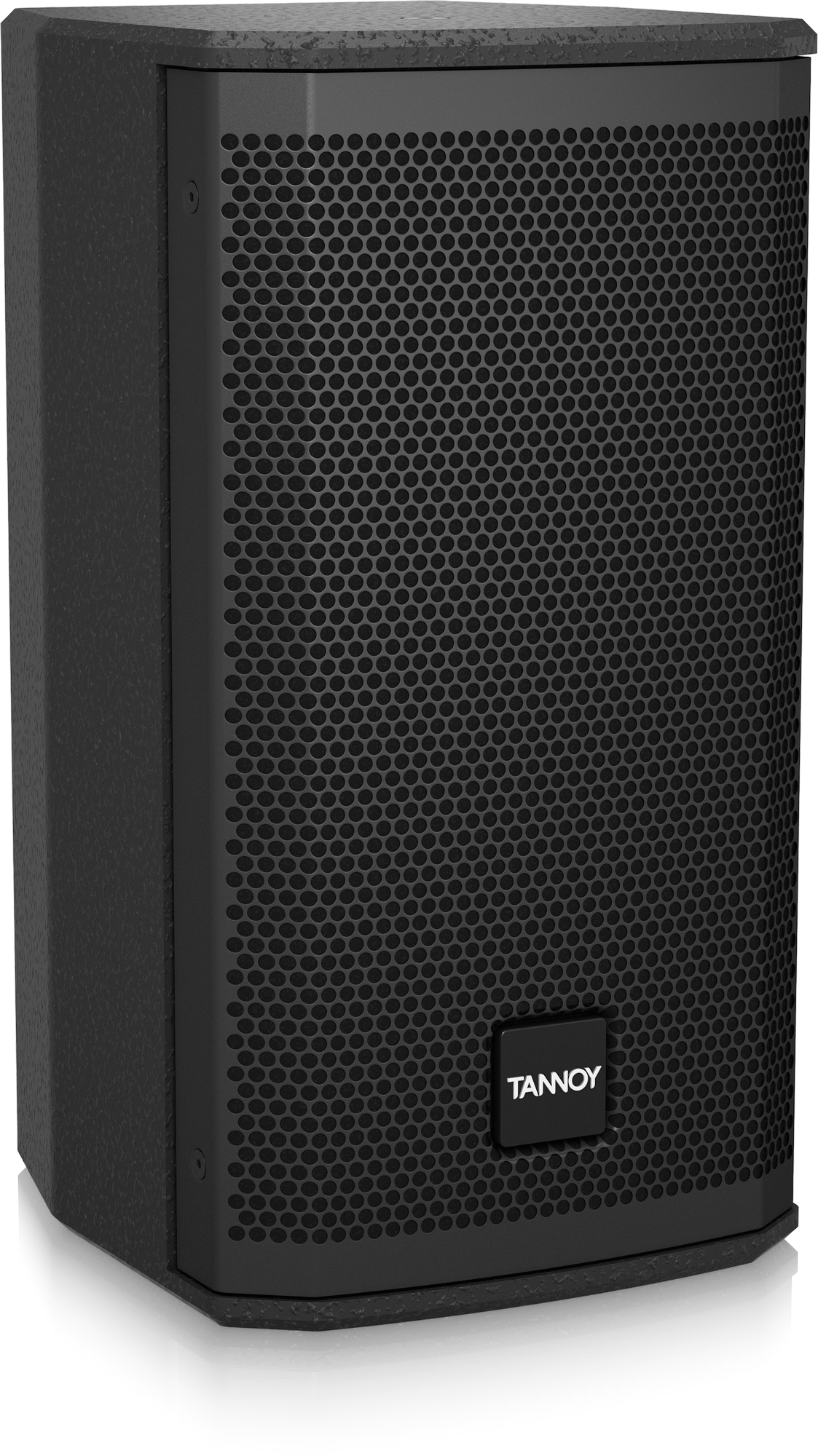

Tannoy VX 5.2 5-Inch Dual Concentric Loudspeaker 130W
1,346.10 AED Included (5% UAE VAT)
The VX 5.2, the most compact Dual Concentric full range loudspeaker in its series, delivers an impressive performance-to-size ratio. Effortlessly handling small-scale sound reinforcement and high-fidelity speech applications, it ensures clarity and natural vocal reproduction. Its twin driver design and adaptable mounting options also make it ideal for complementing larger audio systems, suitable for both permanent installations and portable use.
Model number
VX 5.2
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
VX 5.2 Compact Dual Concentric Loudspeaker
The VX 5.2 is the most compact Dual Concentric full range loudspeaker in the VX range, offering a top-notch performance-to-size ratio. Tailored for small-scale sound reinforcement, demanding background music, and high-clarity speech applications, the VX 5.2 ensures natural vocal reproduction and exceptional sonic clarity. This versatile loudspeaker is designed with a twin driver setup and flexible mounting options, making it perfect for both installed and portable scenarios.
Features
- Full range multi-purpose loudspeaker suitable for both portable and installation uses
- 130 Watts continuous, 520 Watts peak power handling

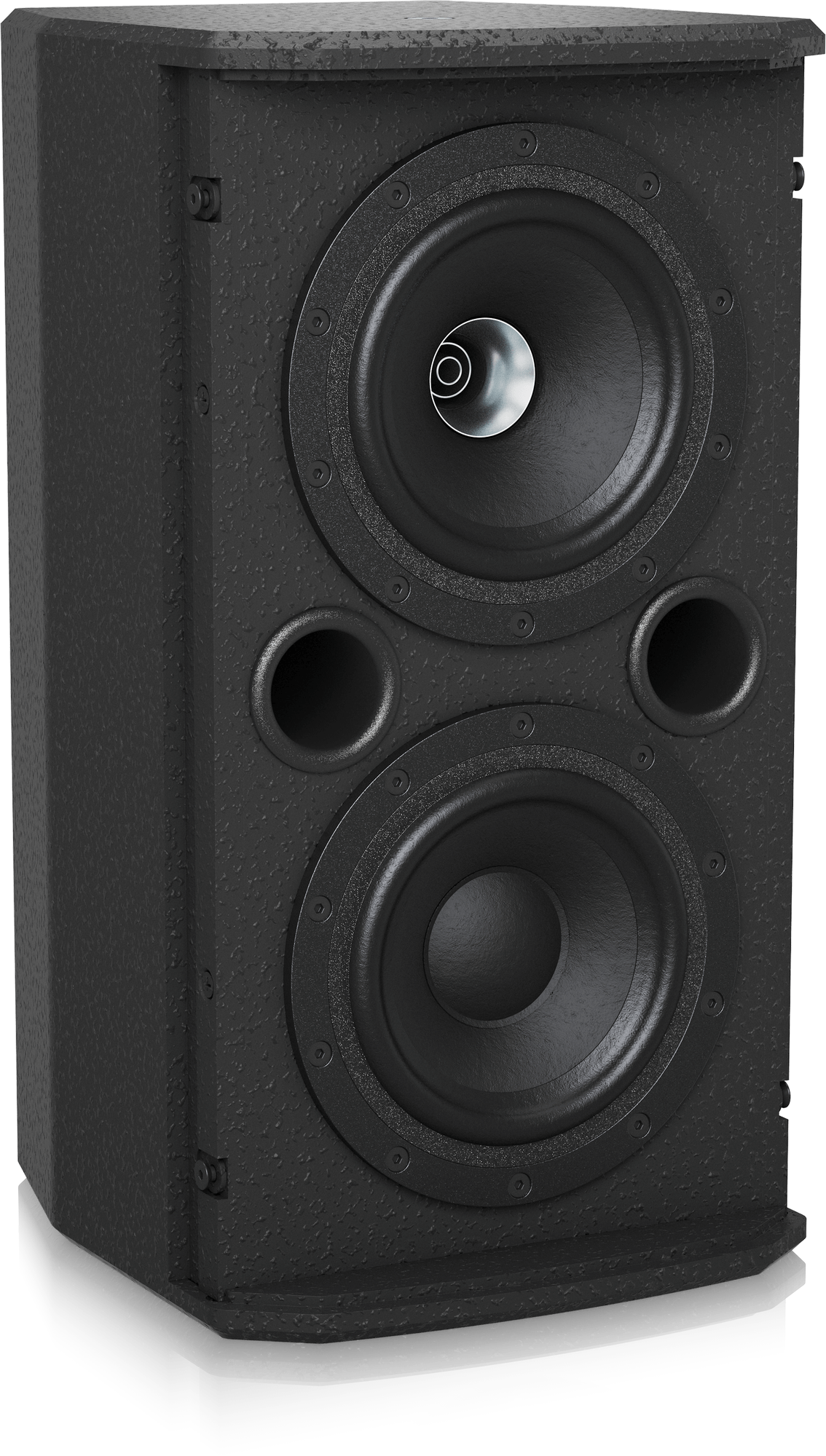

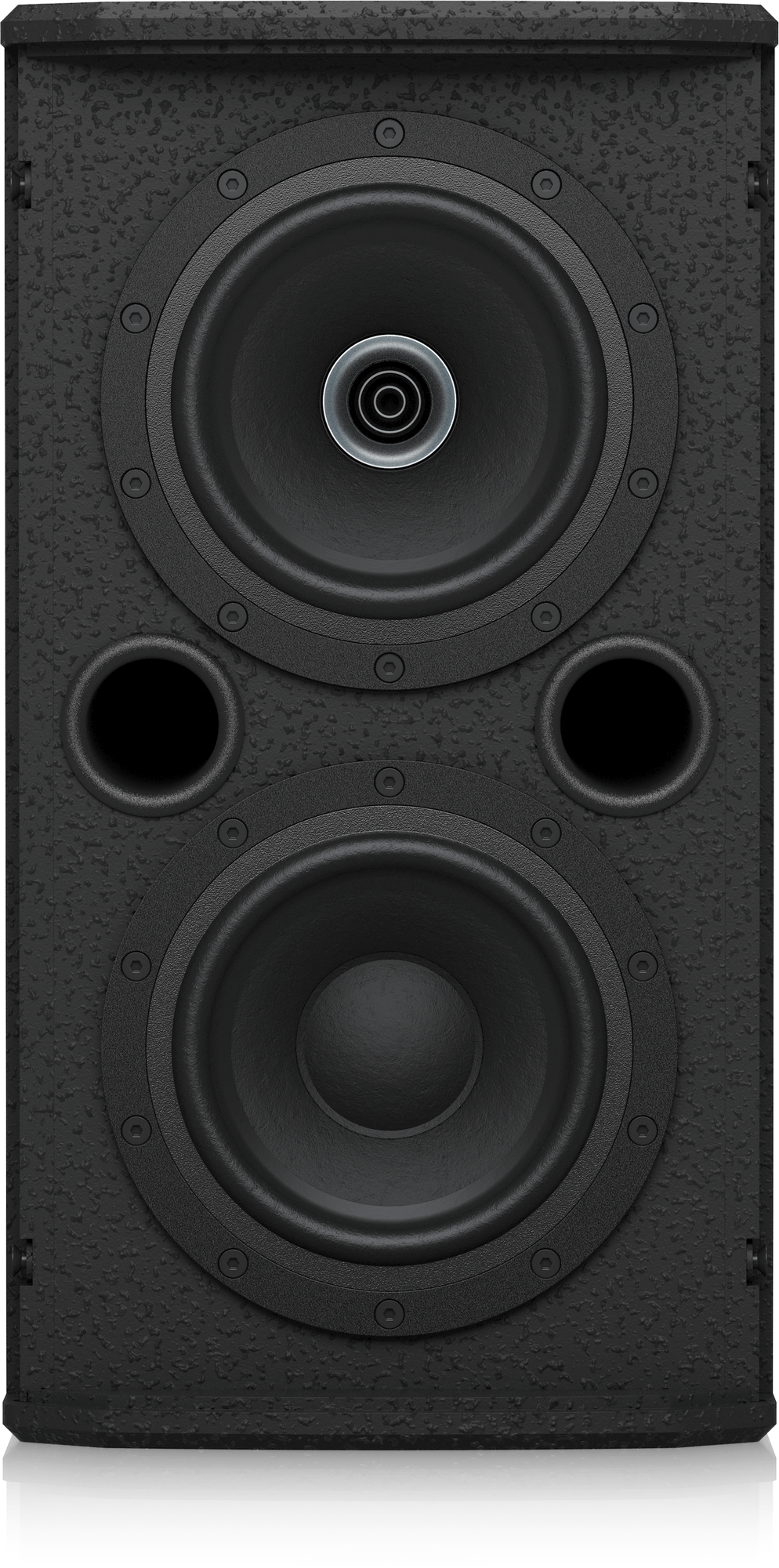

- 5″ Dual Concentric full range driver for precise phase coherence
- 5″ low frequency driver for enhanced bass response
- 120° H x 90° V dispersion for ideal coverage and projection
- Perfect for front-of-house, floor monitoring, delay, and stage front fill uses
- Durable vented and internally braced plywood enclosure
- Elegant semi-matte black finish
- Robust powder coated perforated steel mesh grille
- M6 pole mount socket for portable PA applications
- Optional horizontal mounting yoke available

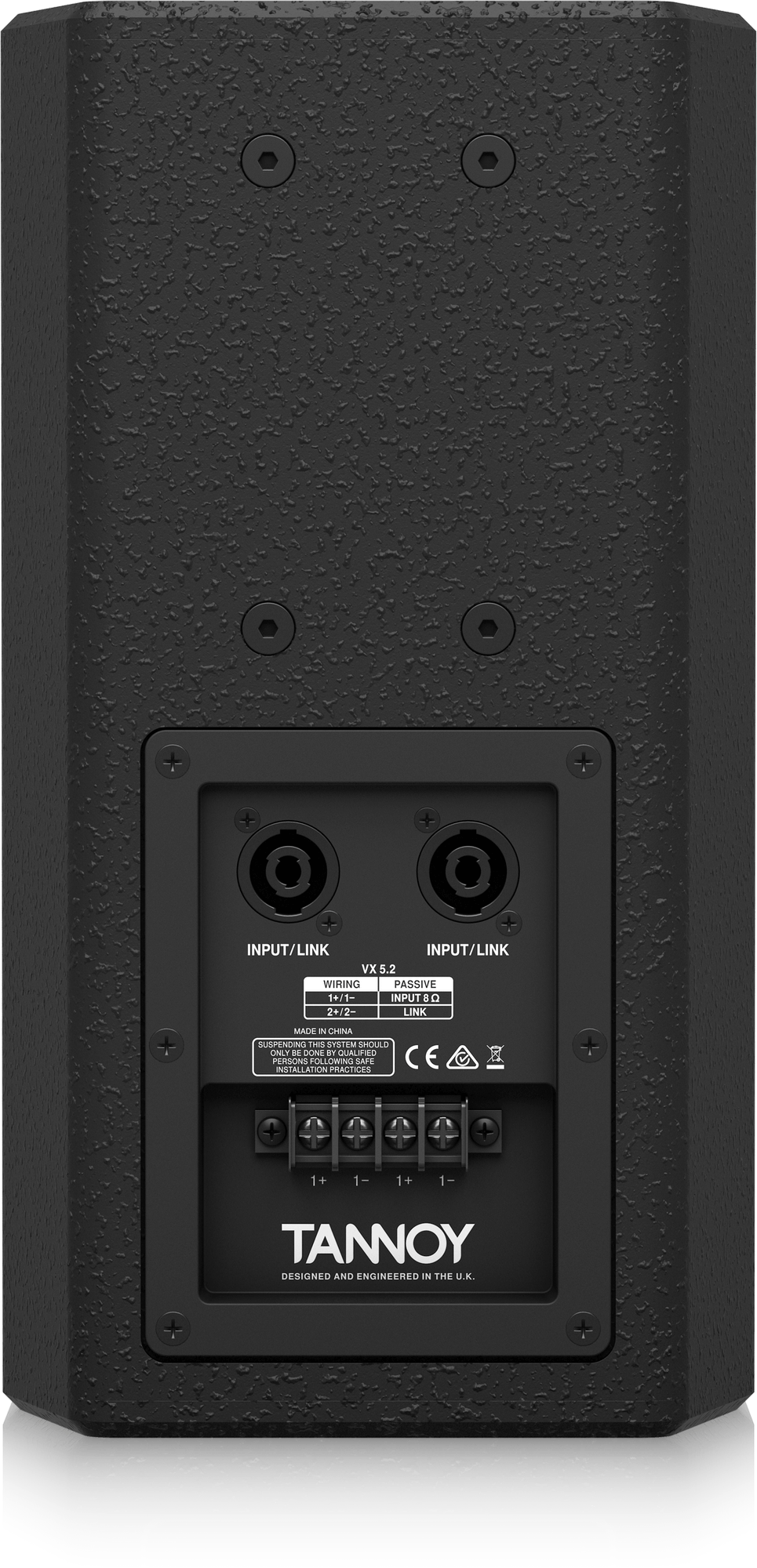

- Neutrik speakON* NL4 and barrier strip connectors for input and output linking
Specifications
| Specification | Details |
|---|---|
| Frequency Response | 87 Hz – 35 kHz ±3 dB, 65 Hz – 45 kHz -10 dB |
| Nominal Dispersion | 120° H x 90° V @ -6dB points |
| Directivity Factor (Q) | 7.3 |
| Power Handling (Passive) | 130 Watts continuous, 520 Watts peak |
| Sensitivity | 90 dB (1 W @ 1 m) |
| Maximum SPL | 111 dB continuous, 117 dB peak |
| Impedance | 8 Ω |
| Crossover Type | Passive with dynamic HF protection |
| Components | 1 x 5″ LF driver, 1 x 5″ constant directivity Dual Concentric driver |
| Connectors | 2x Neutrik speakON* NL4, 1 x barrier strip terminals |
| Dimensions (H x W x D) | 334 x 181 x 201 mm (13.1 x 7.1 x 7.9”) |
| Net Weight | 4.4 kg (9.7 lbs) |
| Construction | 12 mm (1/2”) plywood, vented and internally braced |
| Finish | Semi-matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying Hardware | M6 x 2 yoke bracket inserts (4 mm Allen key), M6 x 4 inserts, compatible with industry standard brackets |
