Tannoy VSX 12.2BP-WH Twin 12″ Compact Band Pass Passive Subwoofer

Description

The 4,000-Watt VSX118B-WH is a direct radiating passive 18″ subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX118B-WH’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

Features

• Compact band pass subwoofer for portable and installation applications
• 800 Watts continuous, 3,200 Watts peak power
• Twin 12″ bass drivers for extended low frequency system response to below 40 Hz
• Low distortion dual port design for maximum sound pressure levels
• Ideal for background music playback in clubs, bars, theatres and AV applications
• Internally braced plywood enclosure
• Finished with a hard wearing semi matt white paint finish

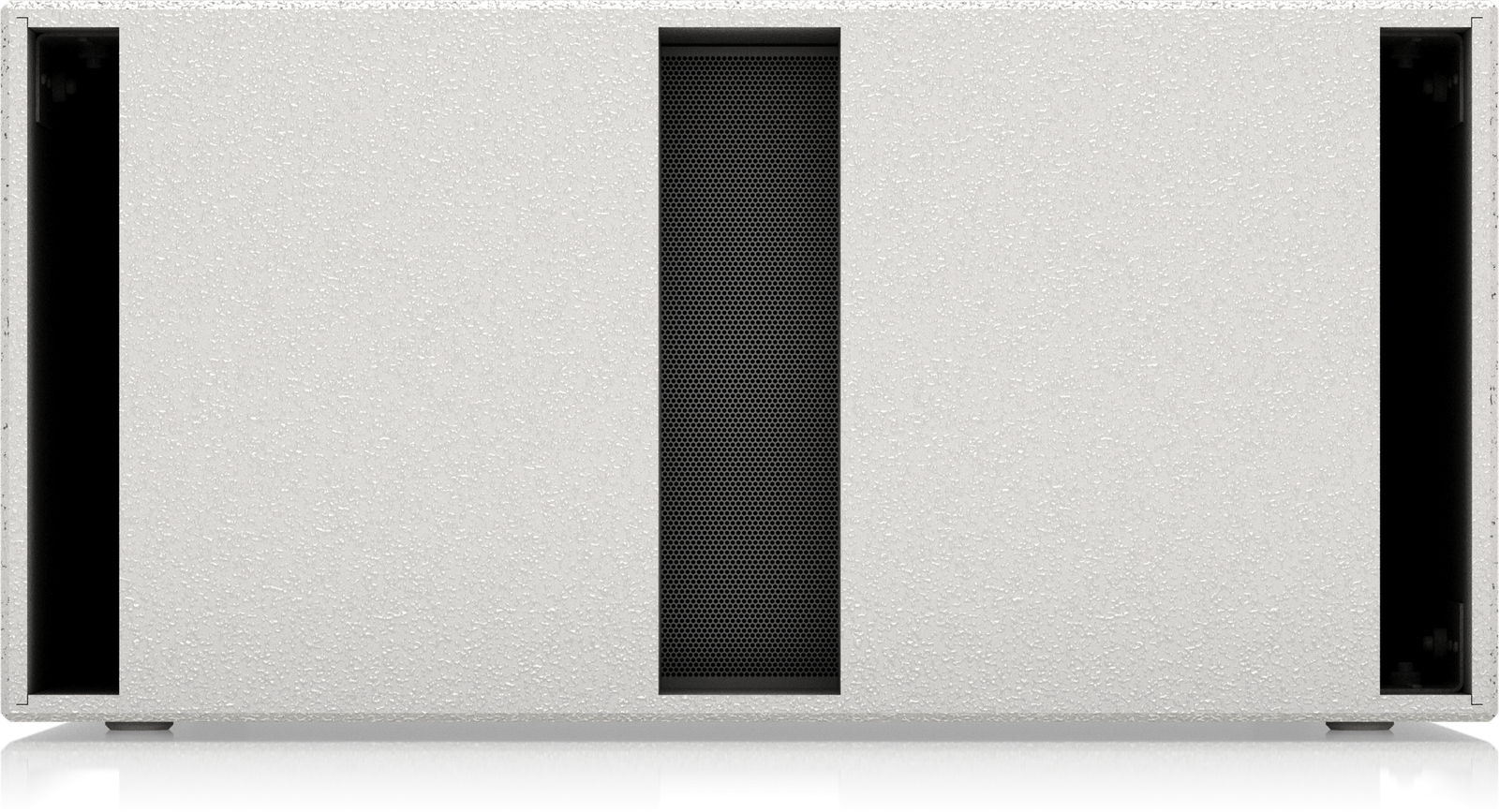

• Rugged powder coated perforated steel mesh grille
• Blanking plate for optional VTH pole mount
• Integral M10 rigging points for ease of installation
• Integrip handles ergonomically integrated into rear of cabinet

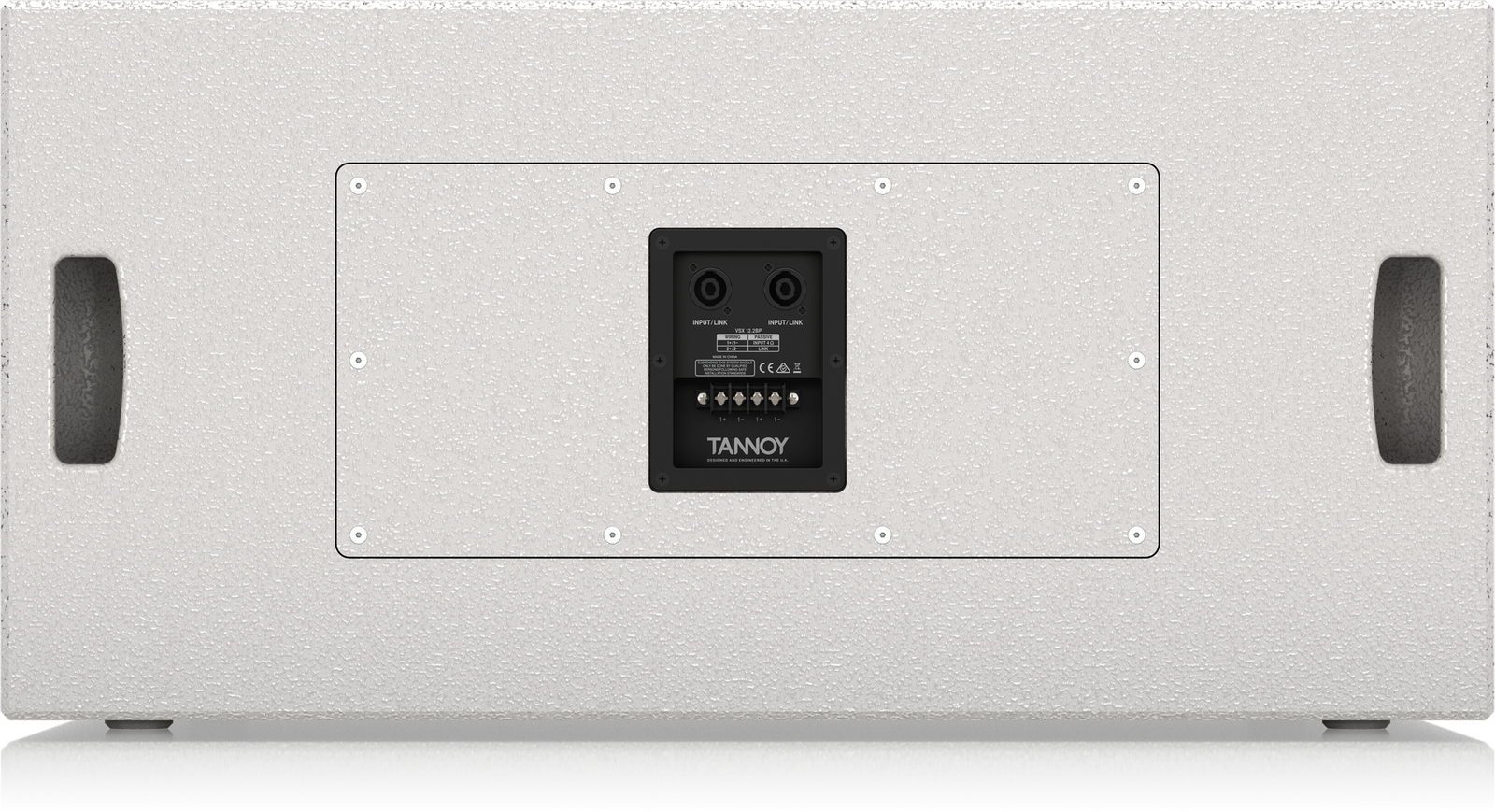

• Neutrik speakON* NL4 and barrier strip connectors for input and link output

Specifications

ApplicationsJump to…

Applications

Night club or bar system
Transportation hubs
Performing arts spaces
Stage front installation
High output retail (e.g.. fashion stores)
Portable AV/PA
Multimedia installations (e.g.. museums, galleries)
Theme parks
Auditoria

PerformanceJump to…

Frequency response

40 Hz – 160 Hz (-3 dB)
35 Hz – 200 Hz (-10 dB)

System sensitivity

100 dB (1W = 2V for 4Ohms) (1W at 1m)

Power Handling

Average: 800W
Programme: 1600W
Peak: 3200W
Recommended amplifier power: 1600W at 4Ohms

Rated maximum SPLJump to…

Average

129 dB

Peak

135 dB

Nominal impedance

4Ohms

Driver complement

2x 300mm (12″) bass drivers

Recommended crossover

80 Hz – 150 Hz, 24 dB / octave
Recommended high-pass filter 38 Hz, 24 dB / octave

DistortionJump to…

10% full power (28.3V)

2nd Harmonic:
50 Hz: 1.38%, 100 Hz: 1.29%

3rd Harmonic:
50 Hz: 0.62%, 100 Hz: 0.14%

1% full power (8.9V)

2nd Harmonic:
50 Hz: 0.32%, 100 Hz: 0.29%

3rd Harmonic:
50 Hz: 0.18%, 100 Hz: 0.16%

ConstructionJump to…

Enclosure

194 liters, 15mm birch plywood, internally braced

Connectors

2x speakON NL4MP and barrier strip

Fittings

12x M10 flying inserts (portrait or landscape mounting)
2x Integrip carrying handles

GeneralJump to…

Dimensions (HxWxD)

400 x 830 x 720mm (15.75 x 32.68 x 28.35″)

Weight

40.5kg (89.29 lbs)
