Tannoy QFLEX 32-WP Digitally Steerable Column Loudspeaker with IP54 Rating
35,053.20 AED Included (5% UAE VAT)
The QFLEX 32-WP is a digitally steerable, powered column array loudspeaker designed for challenging acoustic environments, including houses of worship, transportation hubs, convention centers, and more. With IP54-rated protection against water and dust, it is ideal for indoor pools, dusty work areas, and moderate outdoor conditions. The system features our proprietary VNET platform for advanced DSP control, ensuring high speech intelligibility, robust music reinforcement, and comprehensive system diagnostics.
Model number
QFLEX 32-WP
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

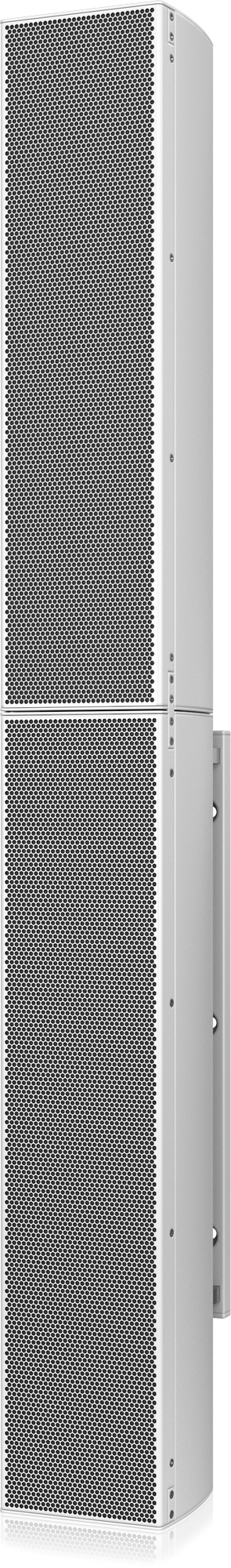

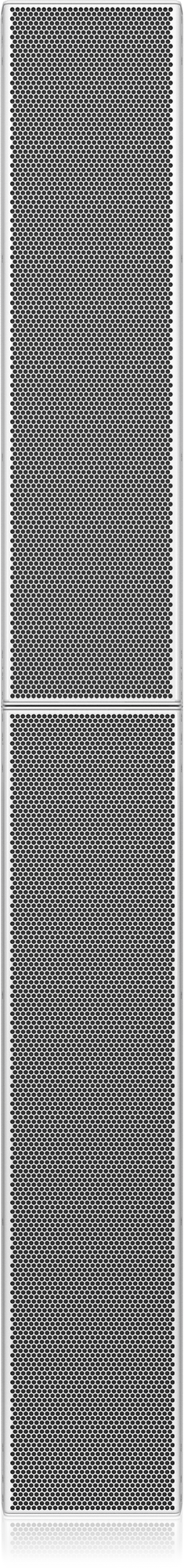

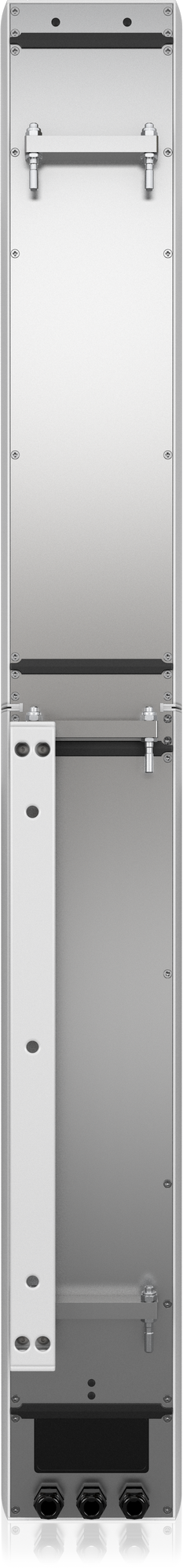

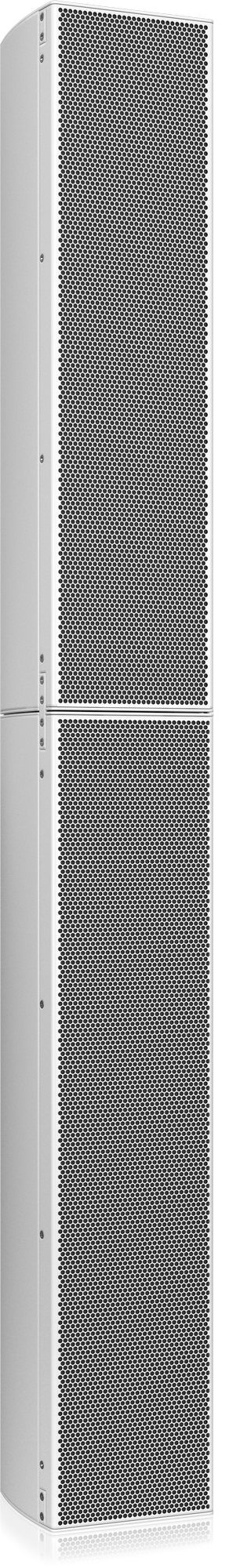

QFLEX 32-WP Multi-Channel Column Array Loudspeaker
The QFLEX 32-WP is a powered, digitally steerable, column array loudspeaker, meticulously crafted for environments with demanding acoustics. Ideal for houses of worship, transportation hubs, conference facilities, and more, this loudspeaker ensures exceptional sound quality and reliability even in the most challenging settings.
Designed with an IP54 water and dust ingress protection rating, the QFLEX 32-WP is suitable for both indoor and outdoor applications under moderate weather conditions. It utilizes the proprietary VNET networking platform for superior speech intelligibility, impactful music reinforcement, and comprehensive system diagnostics.
Key Features
- Digitally steerable column array speaker for high intelligibility speech and music reproduction

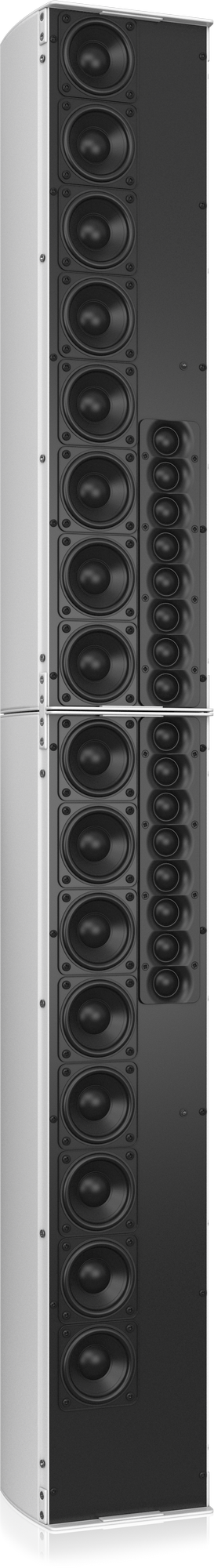

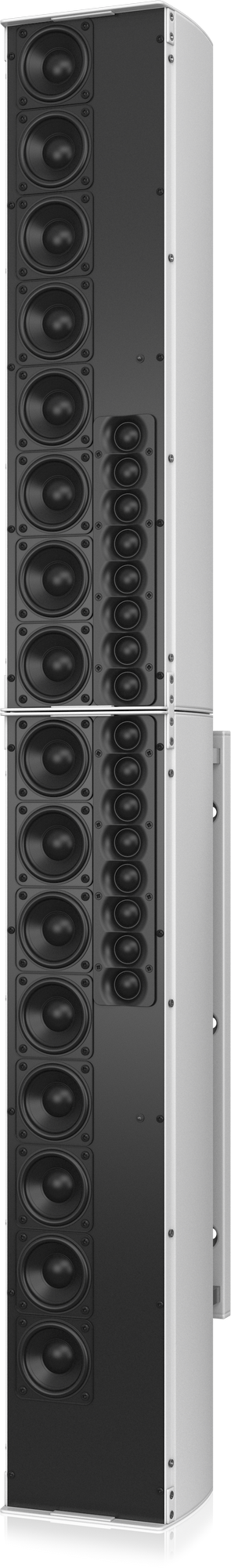

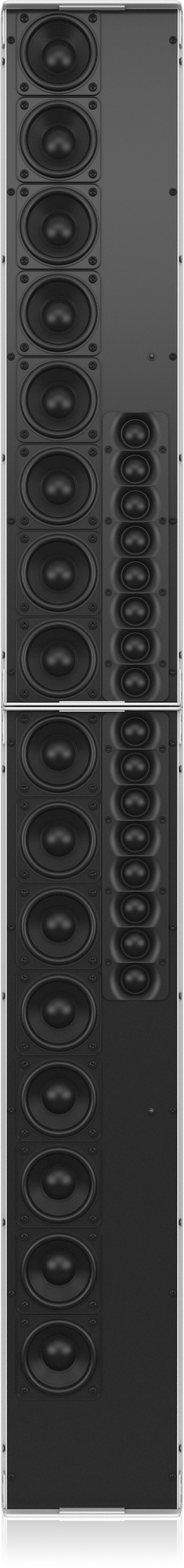

- Contains 16 low-frequency and 16 high-frequency drivers, each with a 100W Class D amplifier for optimal performance
- Offers ±70° steering control with 32 channels of integrated DSP and amplification
- Intuitive BeamEngine GUI for creating asymmetric patterns and ensuring even near and far field sound coverage
- Ideal for venues with coverage distances up to 50m
- Certified to IP54 for resistance against dust and moisture
- Supports input options for constant voltage systems and Audinate Dante digital audio networks
- Lightweight, architecturally styled aluminum enclosure with a semi-matt white finish
- Included custom brackets for quick and accurate installations
- Fully PA/VA compliant
Specifications
| Specification | Details |
|---|---|
| Application | Houses of worship, transportation hubs, museums, shopping malls, theatres, government buildings, conference facilities, hotel ballrooms, corporate HQ atria |
| Driver Configuration | 16x 3″ LF, 16x 1″ HF |
| Amplifier Channels | 32x 100W rms at 4Ohms |
| Amplifier Type | Class D |
| Horizontal Dispersion | 130 degrees |
| Vertical Dispersion | Variable 5-100 degrees |
| Aiming Angle Limit | ±70 degrees |
| LF Beam Control Limit | 400Hz |
| Frequency Range | 130Hz-20kHz (-10dB) |
| Maximum SPL | 100dB at 30m (98.42′) |
| Application Distance | 50m (164.04′) |
| Sampling Rate | 96kHz |
| Network | VNET monitoring and control standard (optional Dante) |
| Analogue Audio Connectors | 2 inputs (A & B), Phoenix 6-pin connectors |
| VNET Connectors | Dual RJ45 connectors In/Link (for Cat-5 cable) |
| AES/EBU Connectors | RJ45 (same Cat-5 as VNET) via AES/VNET interface |
| Power Connector | GST18 3-pole female power connector |
| Enclosure Material | Extruded Aluminum |
| Protective Grille | Painted Aluminum |
| Power Supply | Universal 100 – 230V / 50-60Hz |
| Weather Protection | IP54 Water and Dust Resistance |
| Dimensions (HxWxD) | 54.6 x 6.7 x 5.9″ (138.68 x 17.02 x 14.99cm) |
| Weight | 25.27kg (55.7 lbs) |
