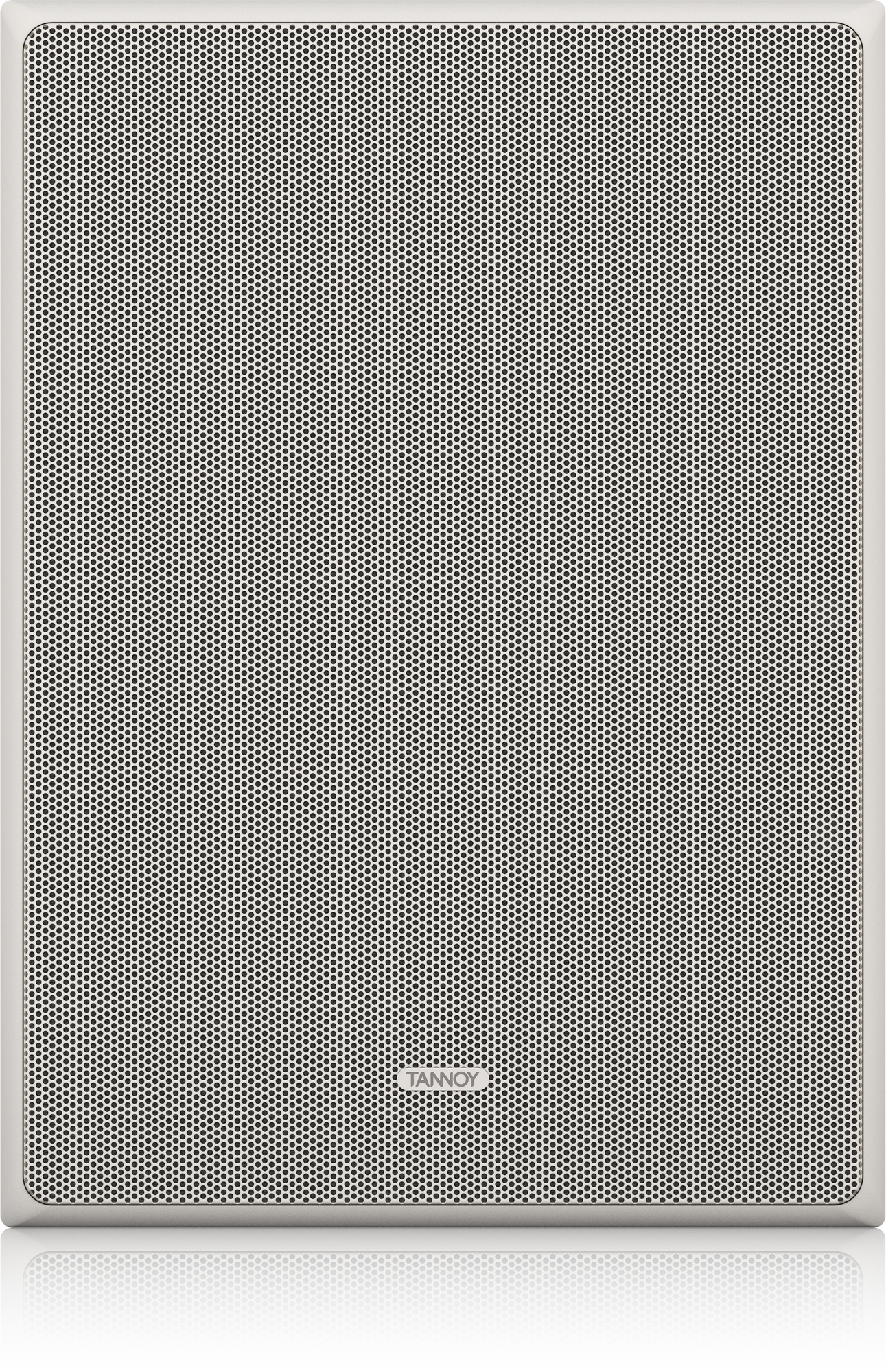

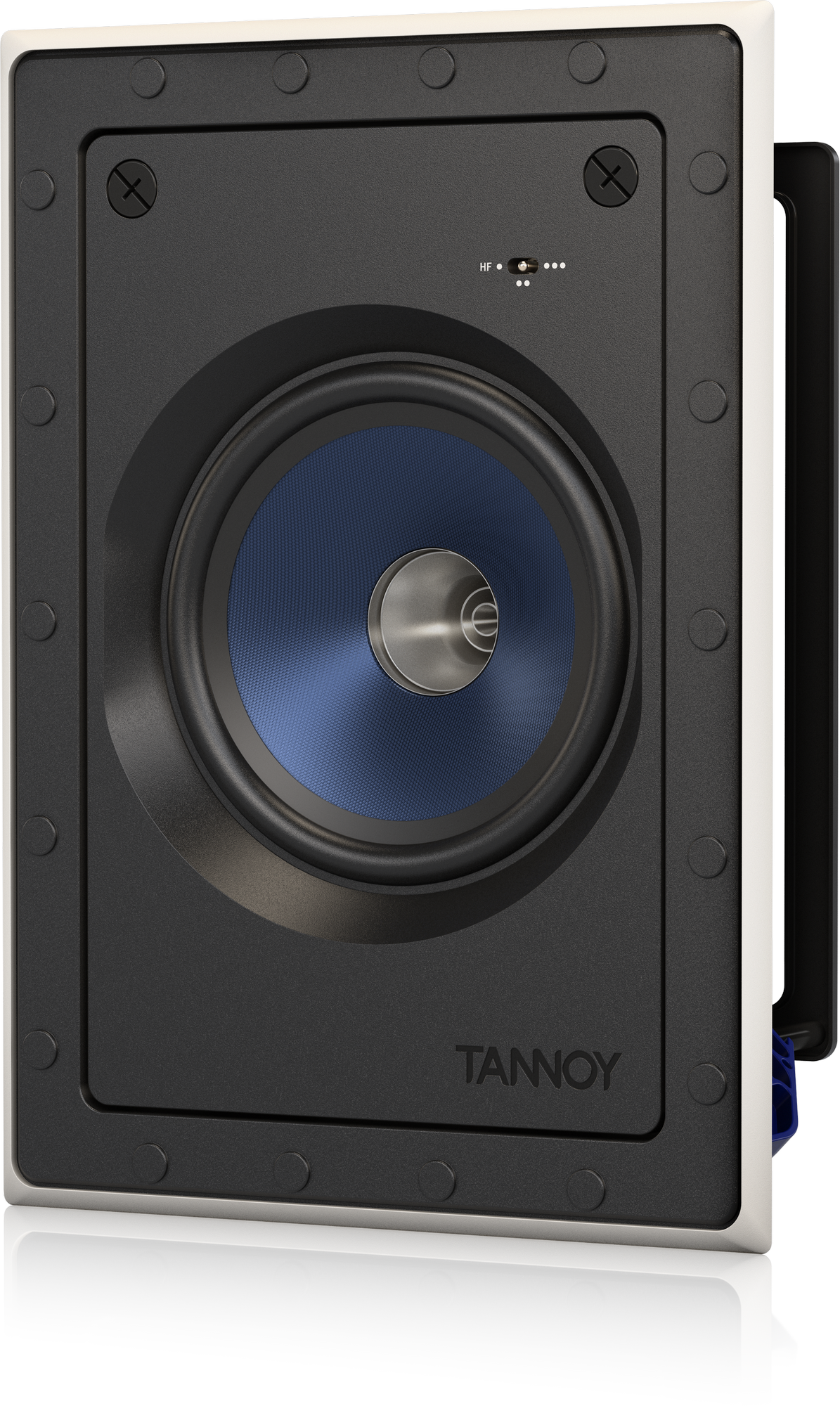

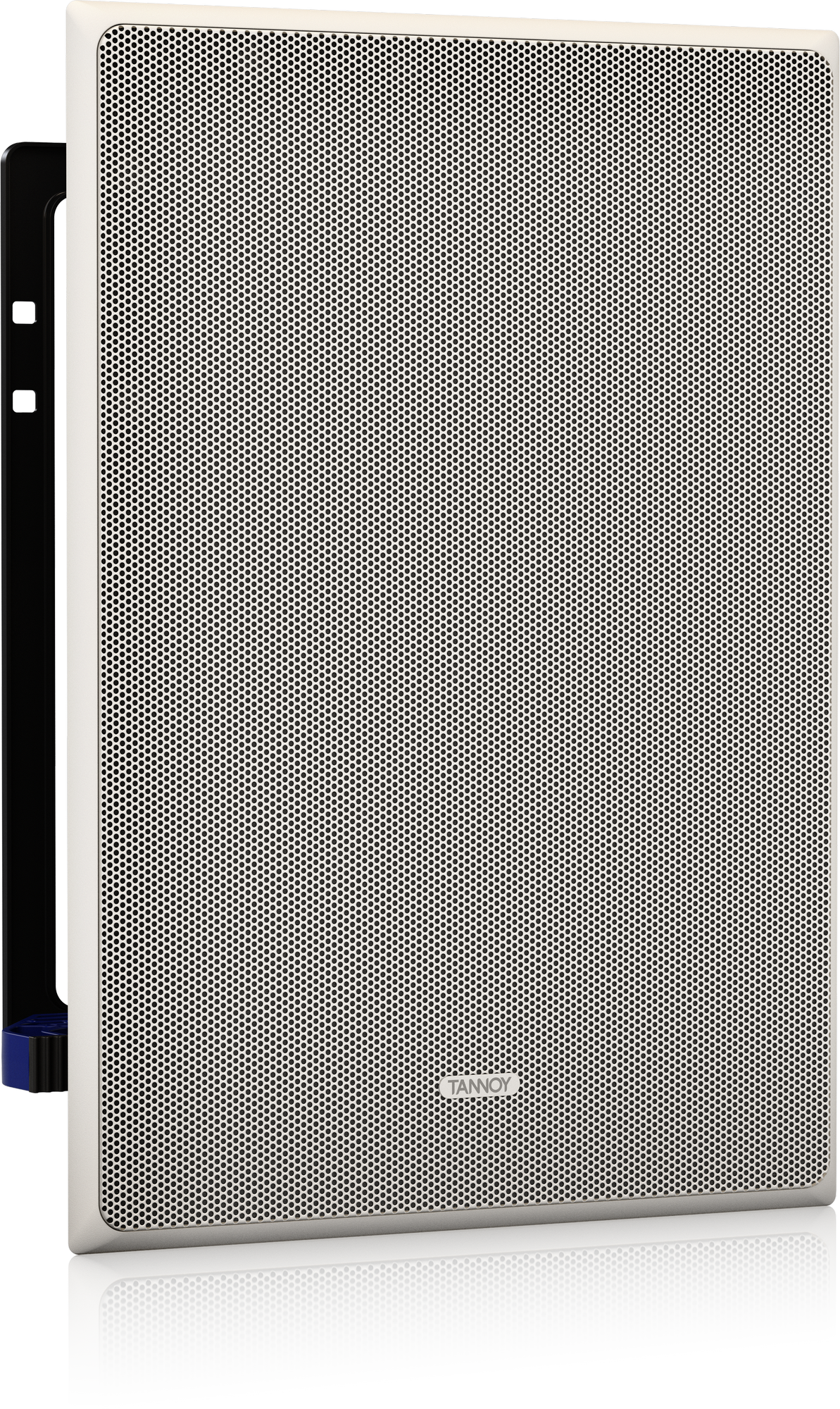

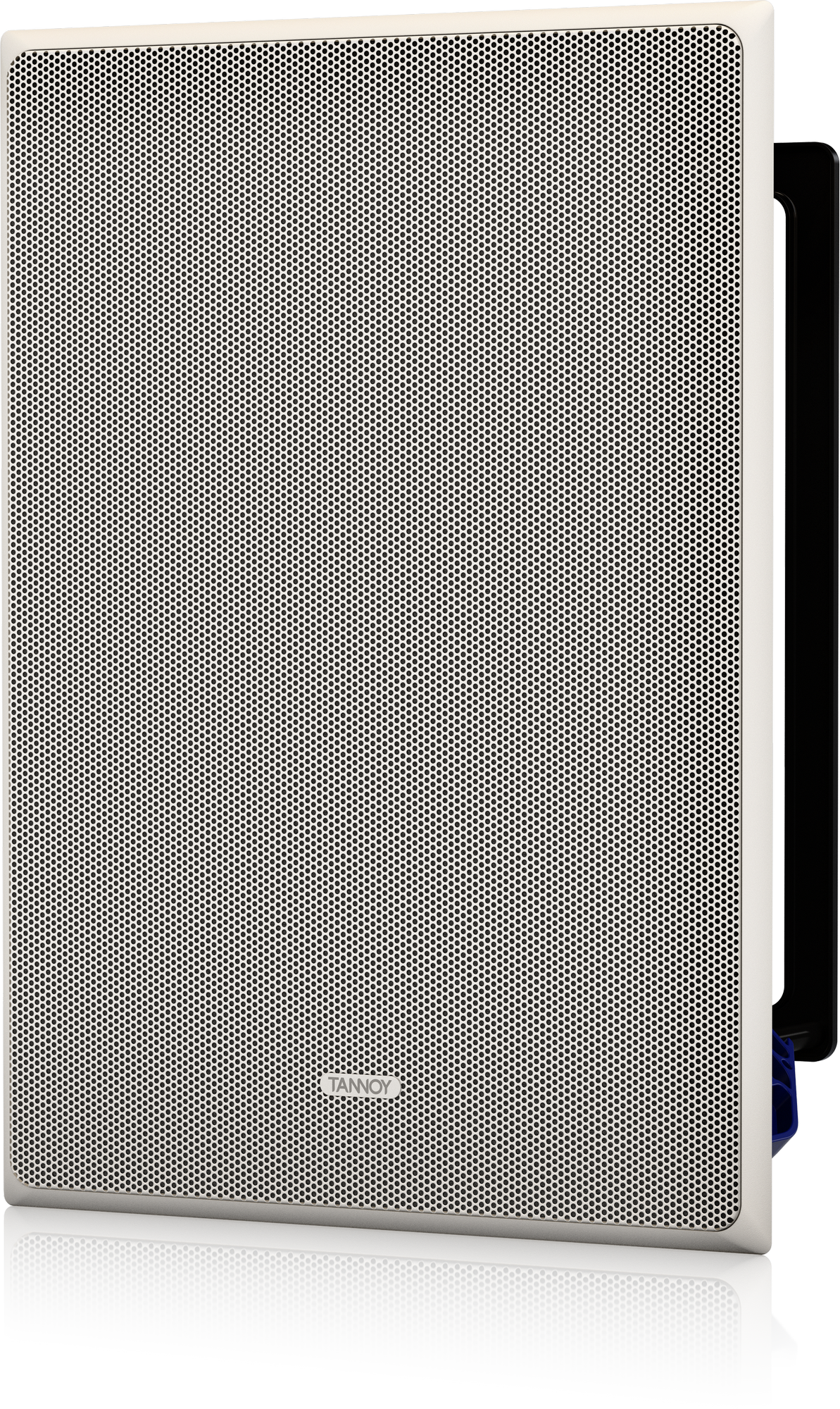

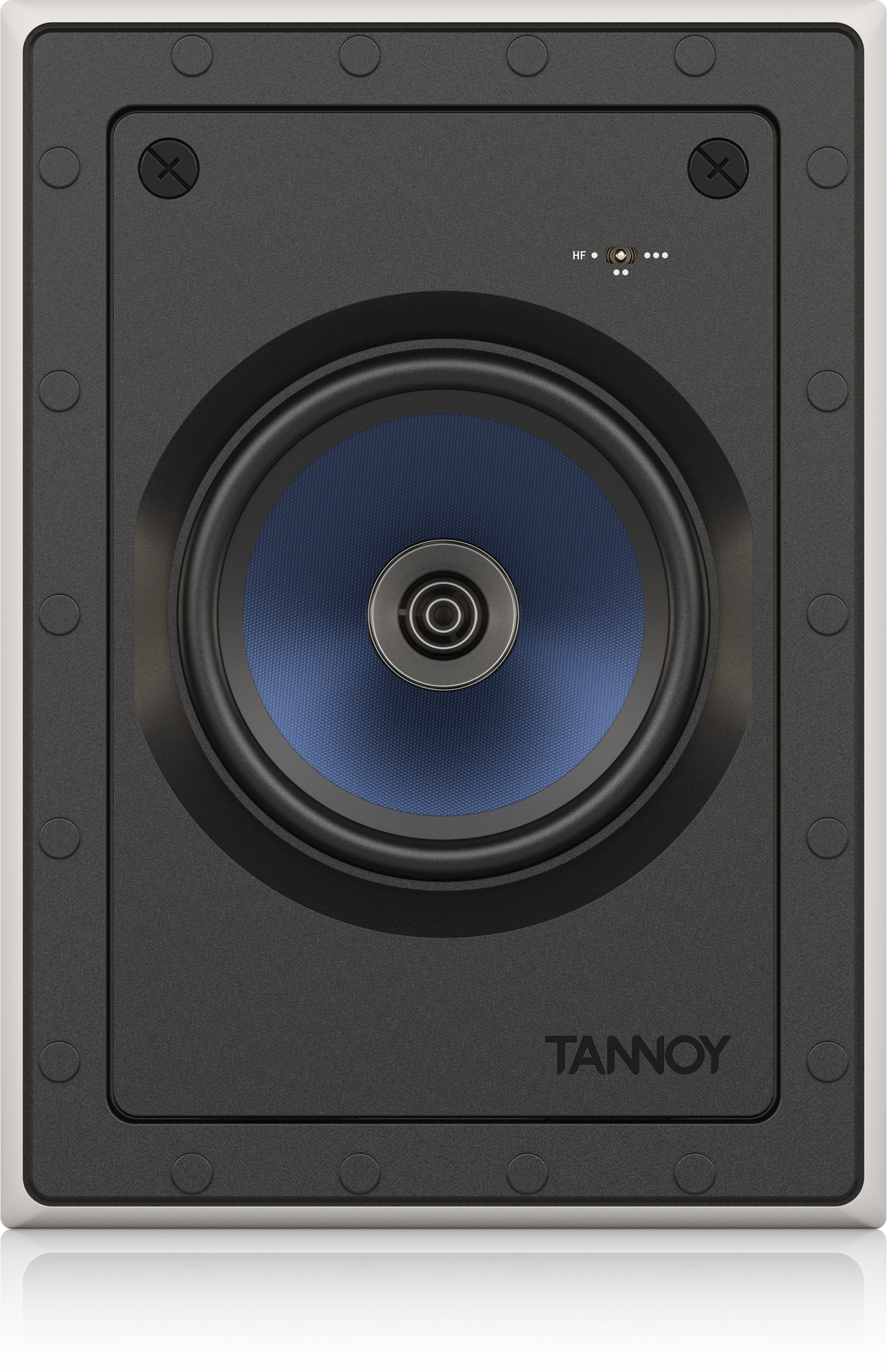

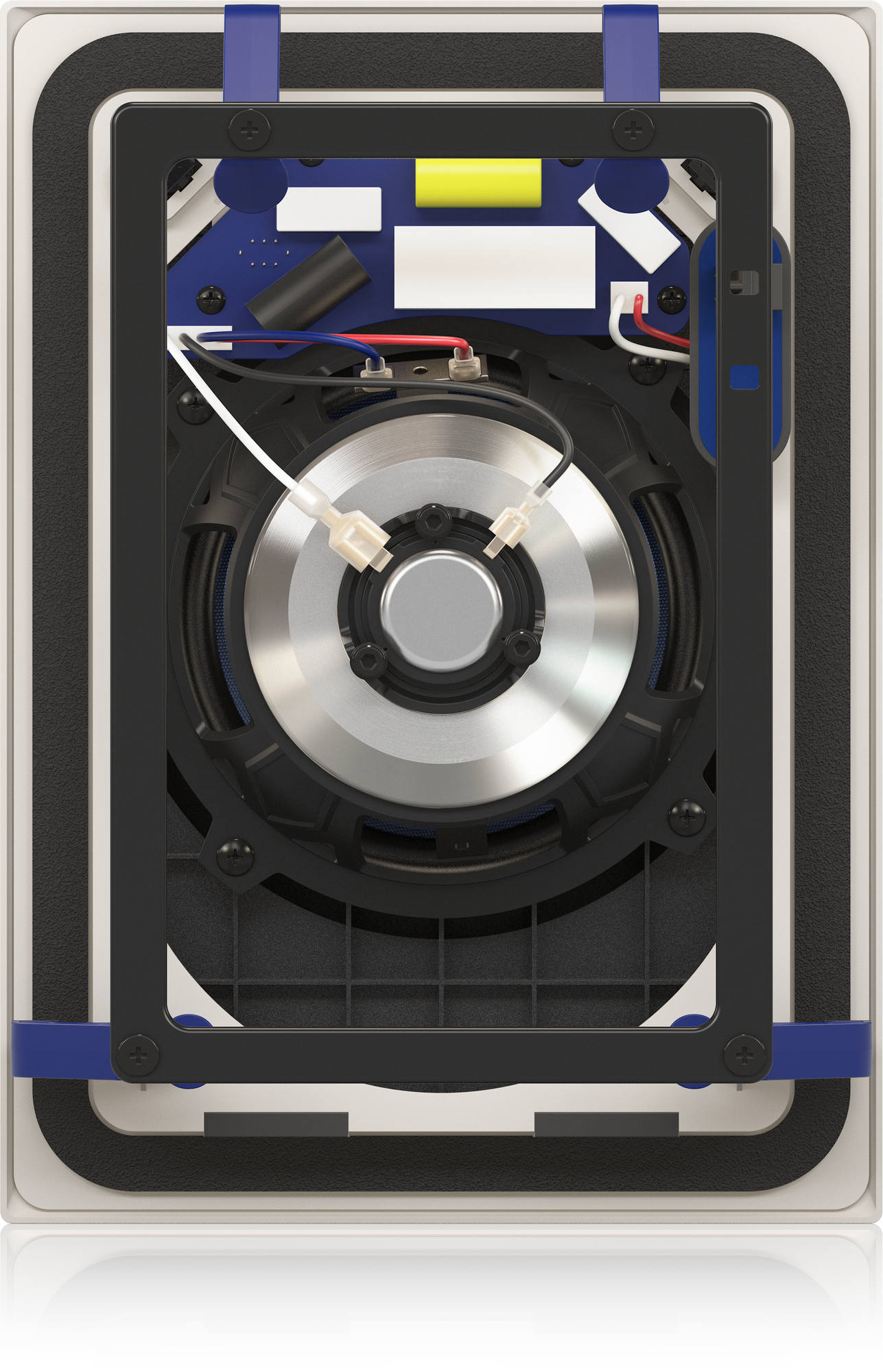

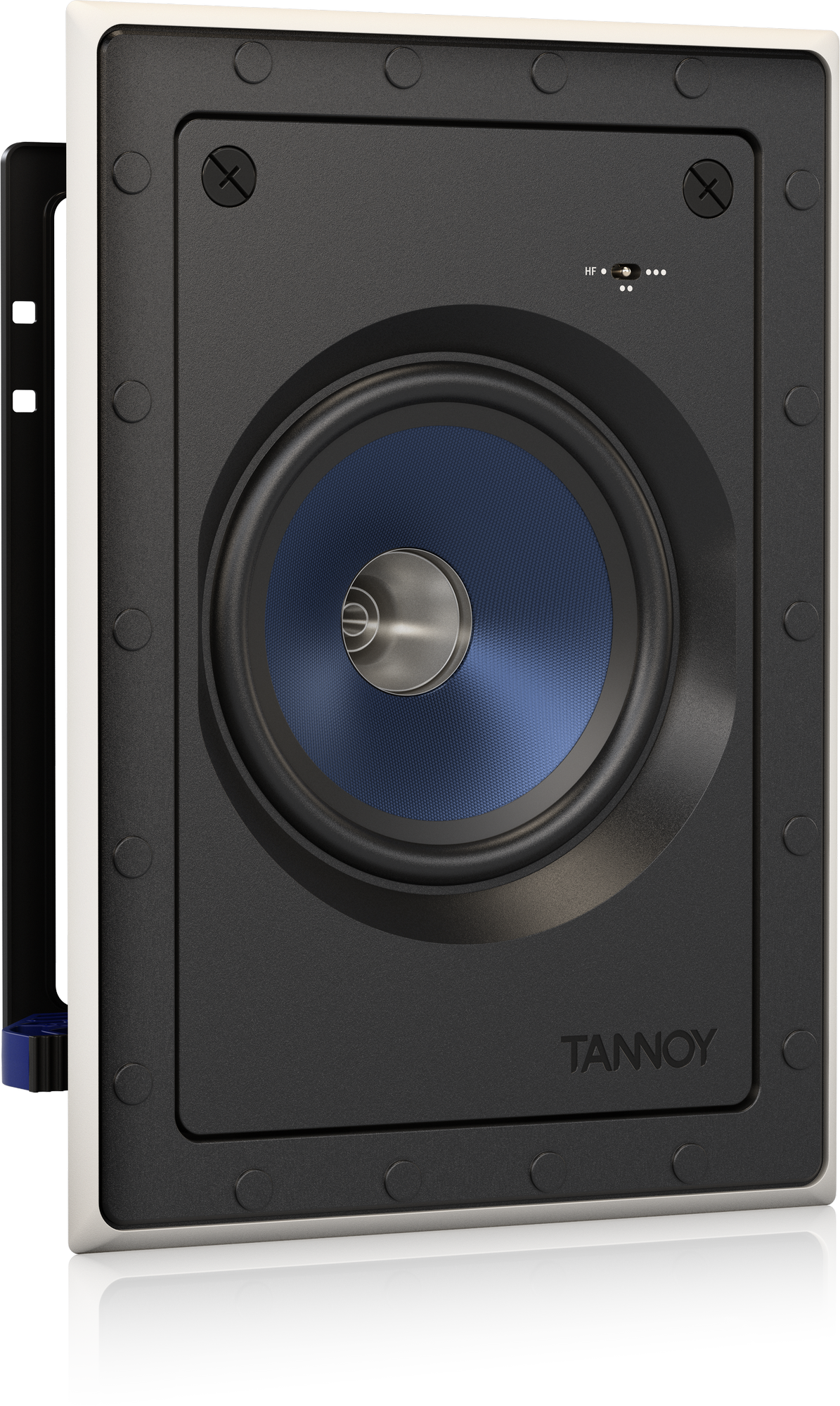

Tannoy PCI 5DC IW 5″ Dual Concentric In-Wall Loudspeaker – White
1,010.10 AED Included (5% UAE VAT)
The PCI 5DC IW features an advanced Dual Concentric driver technology, engineered in the UK, that delivers up to 240 Watts of power. This compact and stylish design includes a 130mm LF/MF driver with a blue Kevlar cone and high-excursion rubber surround, complemented by a centrally located HF driver for improved sound dispersion and balance.
Model number
PCI 5DC IW
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
PCI 5DC IW In-Wall Loudspeaker
Discover the outstanding performance of the PCI 5DC IW, engineered with the latest advancements in audio technology. Designed in the UK, this compact, stylish loudspeaker integrates a 5″ LF/MF driver with a blue Kevlar cone and a high-excursion rubber surround, along with a centrally located HF driver. The innovative Dual Concentric driver provides enhanced dispersion for a more balanced sound across your listening area.
Features
- Premium, high-definition loudspeaker for in-wall installation applications
- 5″ Dual Concentric driver featuring TANNOY point-source constant directivity
- Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage
- Blue Kevlar cone with high-excursion, rubber surround for high power handling
- 3-way variable high-frequency level switch for customized performance preferences
- 60 Watts continuous, 240 Watts peak power
- Extremely thin bezel for discreet installation
- Rigid diecast chassis for improved bass performance and durability
- Integrated single unit construction for easy installation
- Semi-matte white finish fits unobtrusively in any environment
- Powder-coated, UV-resistant, perforated steel mesh grille with dust protection
- Removable grille for custom painting
- Self-aligning clamp mounting system
- Removable TANNOY grille badge
- Tannoy – Over 90 years of British sound heritage and innovation
Key Specifications
| Specification | Details |
|---|---|
| Frequency Response (±3dB) | 50 Hz – 20 kHz |
| Frequency Response (-10dB) | 30 Hz – 20 kHz |
| Sensitivity (1W @ 1m) | 85 dB |
| Directivity Factor (Q) | 4.2 averaged 1 kHz to 10 kHz |
| Directivity Index (DI) | 6.2 averaged 1 kHz to 10 kHz |
| Rated Power Handling (Average/Program/Peak) | 60W / 120W / 240W |
| Recommended Amplifier Power | 180W @ 8 Ω |
| Nominal Impedance | 8 Ω |
| Maximum SPL | 106 dB |
| Crossover Point | 1.6 kHz |
| Coverage Angles (500 Hz) | 180° horizontal, 161° vertical |
| Coverage Angles (1 kHz) | 156° horizontal, 164° vertical |
| Coverage Angles (2 kHz) | 131° horizontal, 143° vertical |
| Coverage Angles (4 kHz) | 107° horizontal, 89° vertical |
| LF Diameter/Material/Type | 128 mm (5″) |
| HF Diameter/Material/Type | 20.4 mm (0.8″) |
| Back Can | Steel, powder coating |
| Baffle | Reflex loaded UL94 V-0 rated ABS |
| Grille | Steel, with weather-resistant coating |
| Clamping Design | Security toggle clamp |
| Connectors | Phoenix Contact terminal block |
| Dimensions (HxWxD) | 264 x 191 x 102 mm (10.4 x 7.5 x 4.0″) |
| Hole Cutout Dimensions | 248 x 173 mm (9.8 x 6.8″) |
| Net Weight | 1.7 kg (3.7 lbs) |
| Included Accessories | Grille, paint mask, cutout template |
| Optional Accessories | BACK CAN IW, PMK 5 IW |
