Tannoy In-Wall 3-Way Speaker iW 62DS 6″ 320W – White
614.25 AED Included (5% UAE VAT)
The iW 62DS-WH is a versatile 320-Watt wall mount loudspeaker that delivers high-quality sound with remarkable clarity, ideal for use in paging systems, boardrooms, offices, music systems, reception rooms, houses of worship, retail spaces, shopping malls, and bars.
Model number
iW 62DS-WH
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

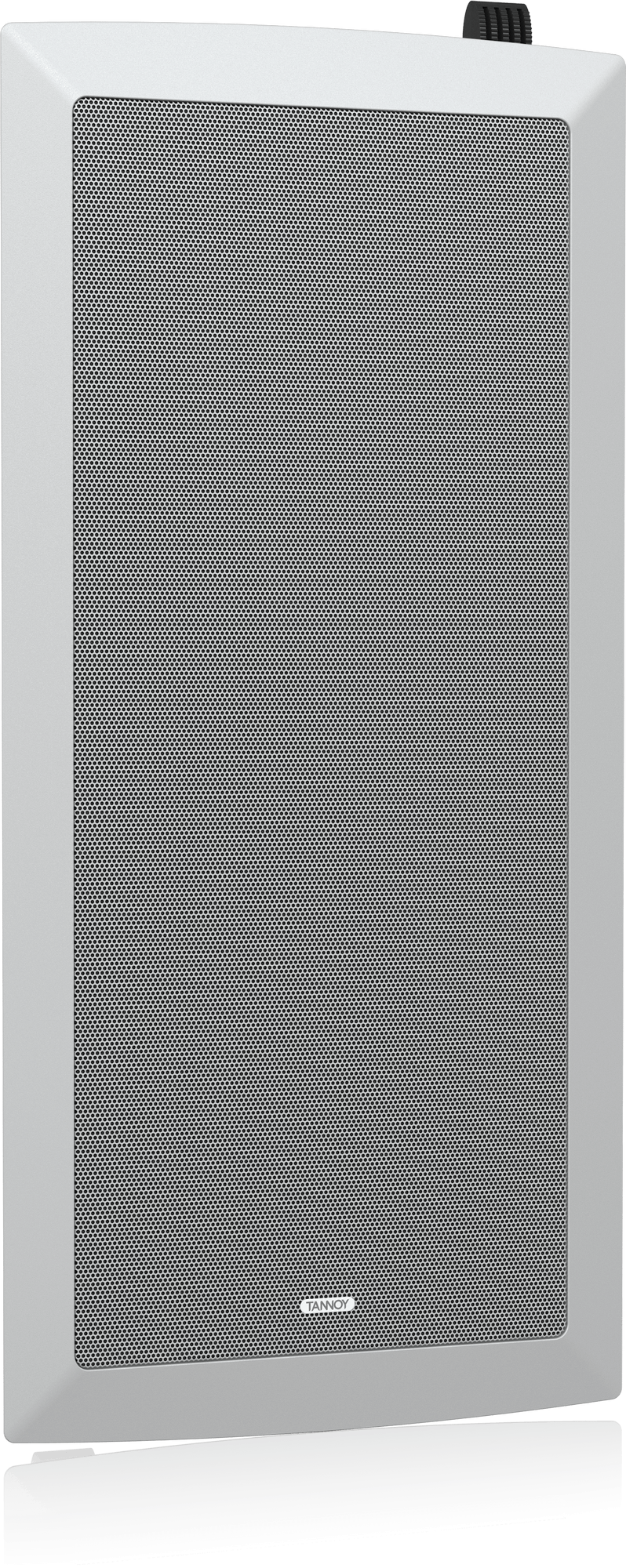

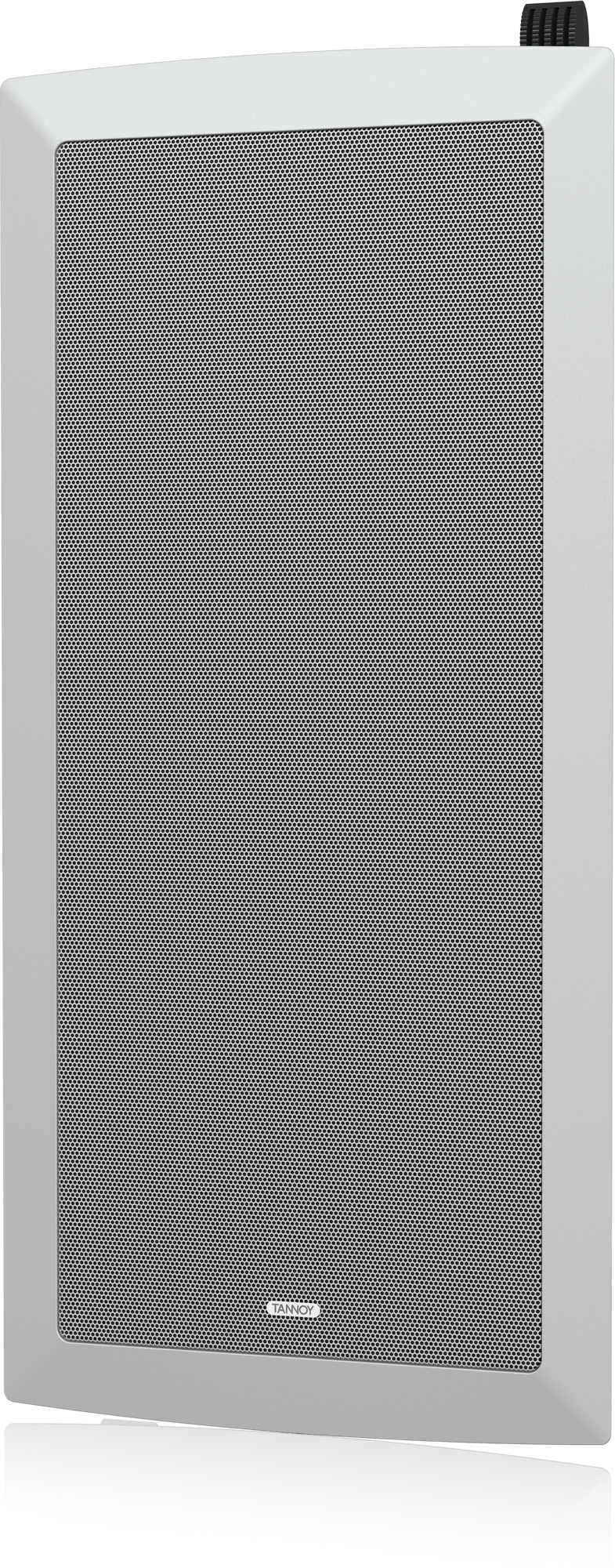

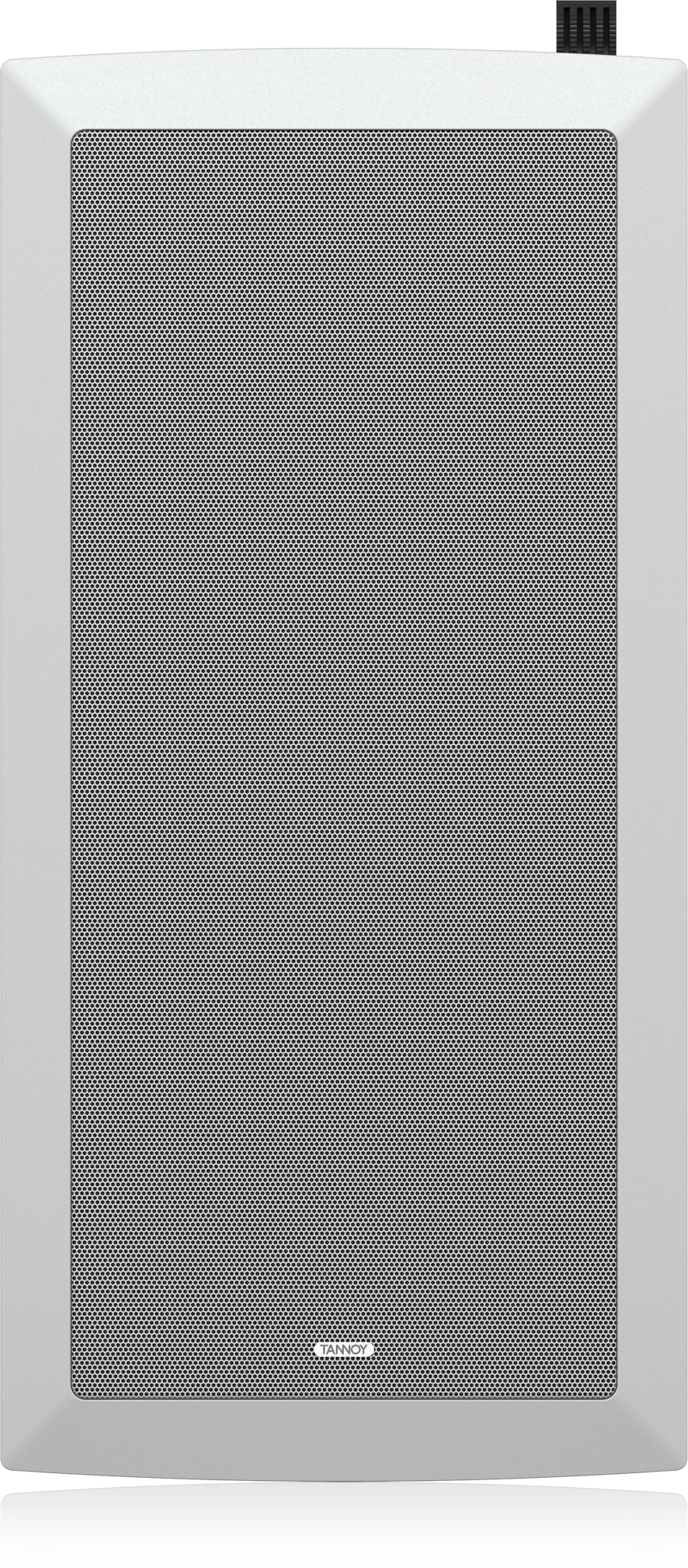

iW 62DS-WH Wall Mount Loudspeaker
Designed to excel in a wide variety of sound reinforcement applications, the full range iW 62DS-WH is a compact 320-Watt wall mount loudspeaker that provides inspiring acoustic performance with exceptional clarity and articulation. The iW 62DS-WH is ideally suited for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls, and bars.
Features
- 3 way compact wall mount loudspeaker for multi-zone music and AV systems
- 25 mm titanium diaphragm high frequency unit delivers exceptional clarity and articulation throughout the high frequency range
- 2 x 6″ bass drivers provide exceptional low frequency performance
- 80 Watts continuous, 320 Watts peak power handling delivers exceptional dynamics and realism
- Highly efficient 92 dB/Watt sensitivity
- WideBand* tweeter technology to enhance reproduction of wide band digital audio formats
- Robust construction and performance allows use within commercial environments
- Ideal for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls, and bars
- Weather resistant steel mesh grille to protect driver
- Semi matt white finish fits unobtrusively in any environment
- Both baffle and grille may be painted to match décor
- Innovative self-aligning clamping system for easy installation into standard stud partition wall
- Bi-wireable to improve signal transmission and integrity
- Dynamic high frequency protection
- Tannoy – Over 90 years of British sound heritage and innovation
Specifications
| Performance | Details |
|---|---|
| System Type | In-wall loudspeaker |
| Frequency Response | 70Hz – 51kHz (+/-3dB) |
| Low Frequency Alignment | 34Hz (-6dB) |
| Recommended Amplifier Power | 20 – 210W @ 8 Ohms |
| Power Handling | Average: 105W, Programme: 210W, Peak: 420W |
| Sensitivity | Anechoic: 92dB, Half space: 95dB |
| Maximum SPL | Average: 112dB, Peak: 118dB |
| Impedance | 8 Ohms |
| Drive Units | Details |
|---|---|
| Dispersion | 90 degrees |

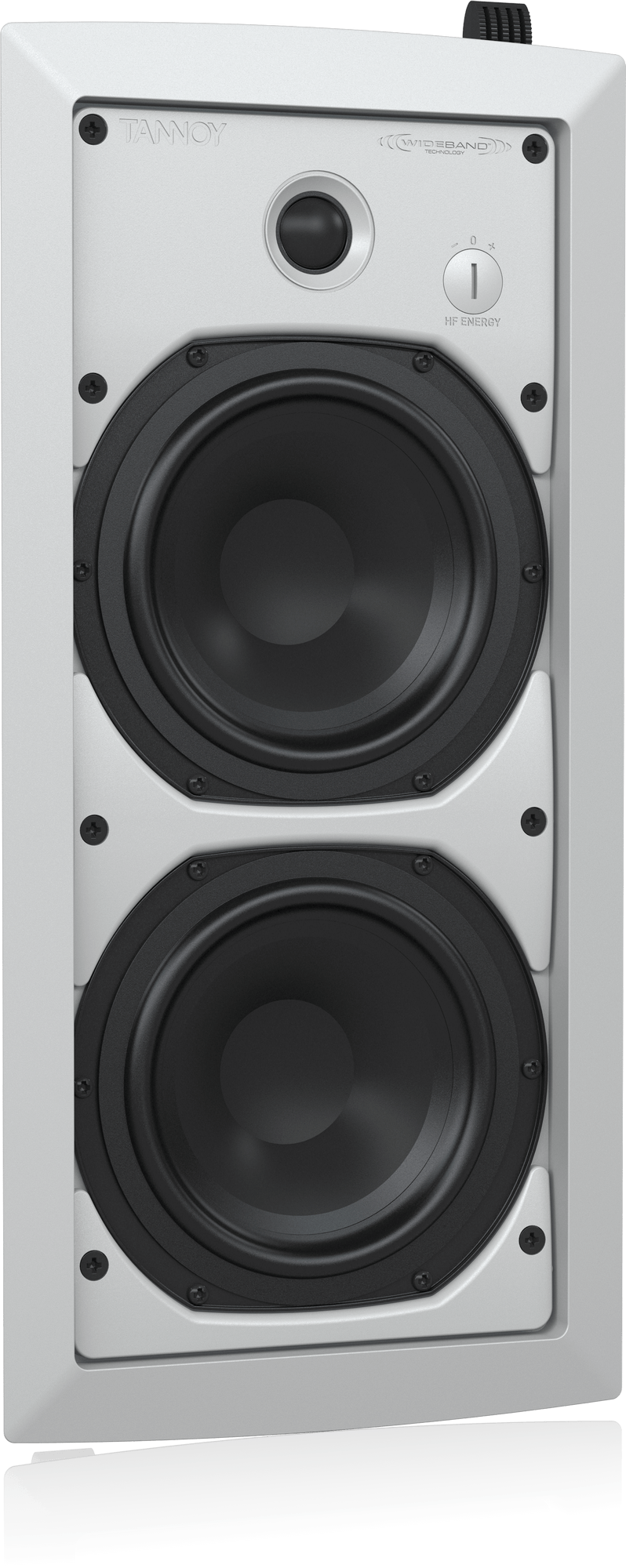

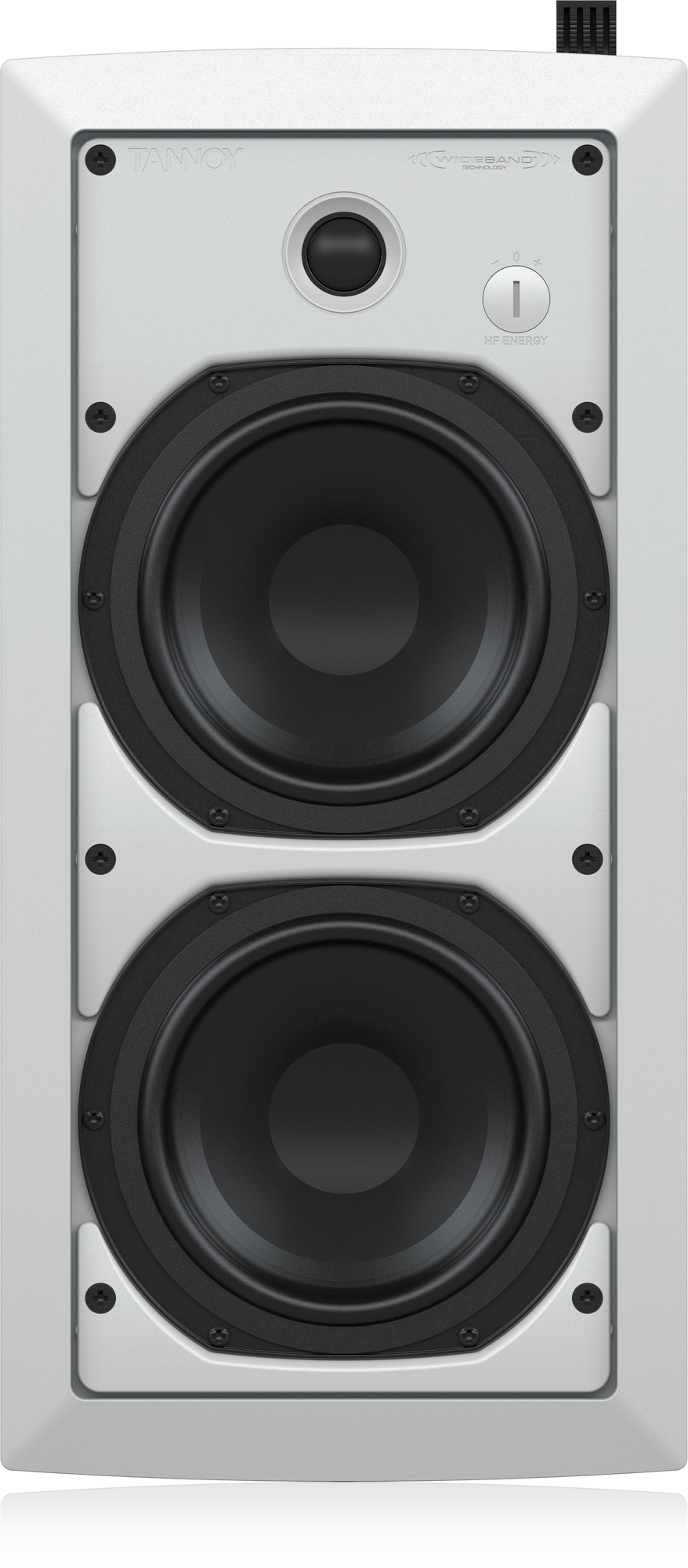

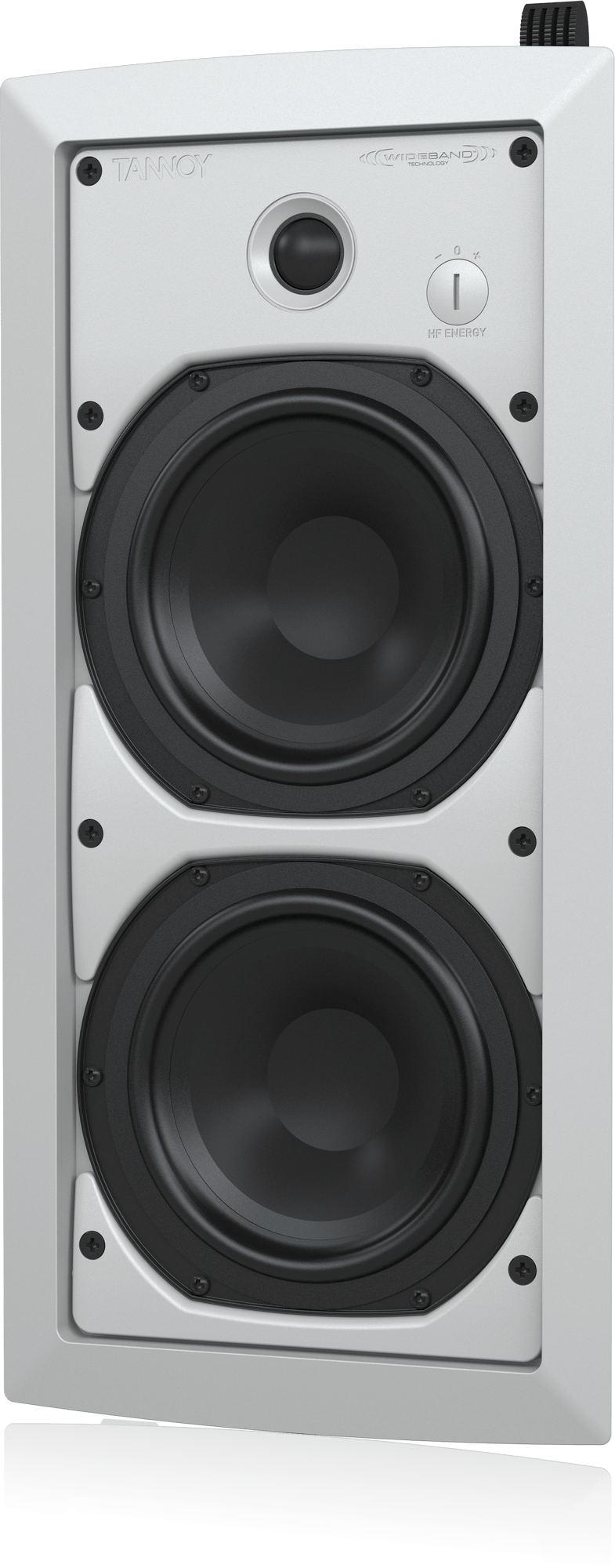

| Driver Complement | SuperTweeter™: 25mm (1.00”) titanium dome, Dual Concentric™: 165mm (6.50”), Bass driver: 165mm (6.50”) |

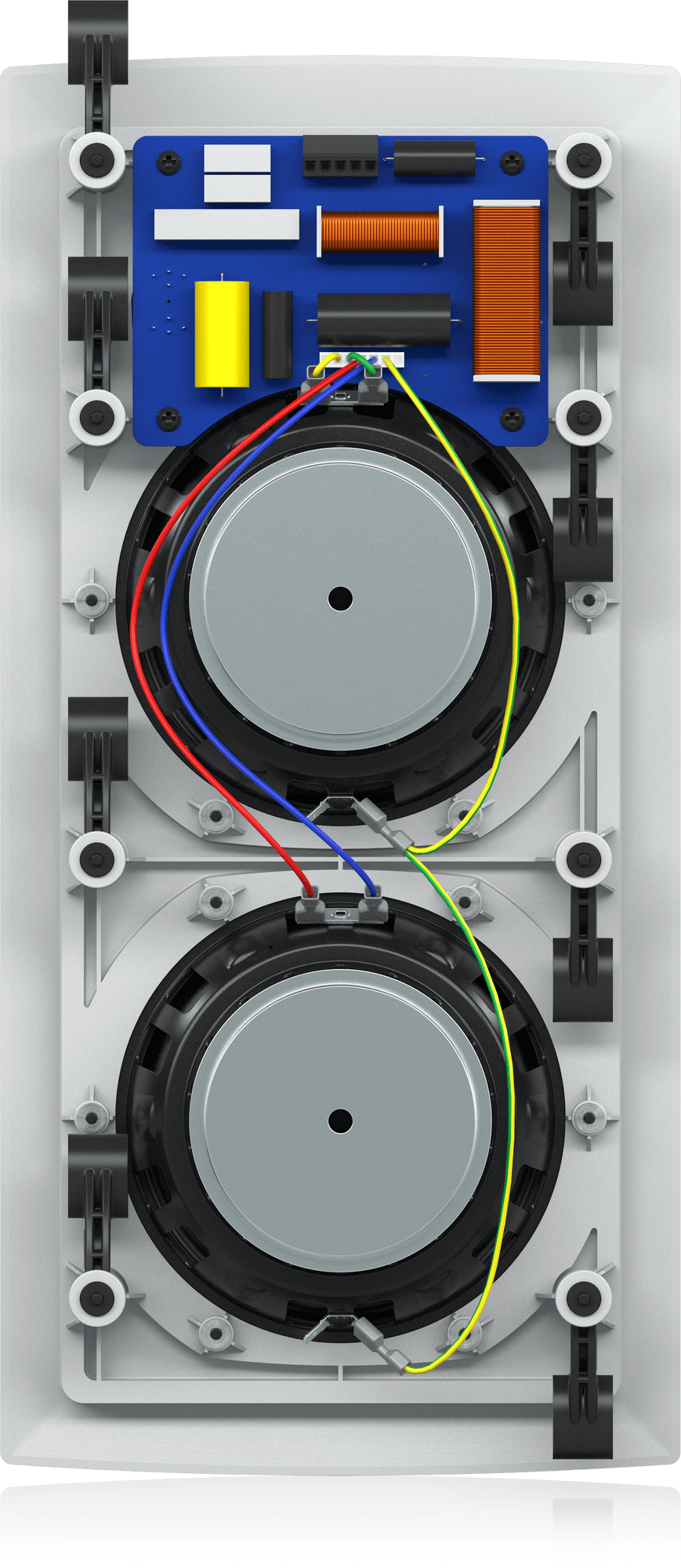

| Crossover | Details |
|---|---|
| Frequency | 750Hz, 1.8kHz, 16kHz |
| Type | Passive |
| Optional THP 60 Transformer | Details |
|---|---|
| Maximum SPL | 107dB |
| Wattage Tap Selections | 60, 30, 15, 7.5 Watts |
| Construction | Details |
|---|---|
| Finish | White – paintable |
| Connectors | Gold plated spring terminals |
| Dimensions (H x W) | Front Baffle: 473.5 x 227mm (18.64 x 8.94”), Maximum wall thickness: 25mm (1.00”) |
| Cut-out Dimensions (H x W) | 426.10 x 187.60mm (16.76 x 7.39″) |
| Rec. in-wall Mounting Volume | 30 litres (1.1 cu.ft.) |
| Mounting Depth | 99mm (3.89”) |
| Weight (each) | 5kg (11lbs) |
| Accessories | Pre-installation ring, Back can, Back can with 60 Watt transformer |
