500 in stock

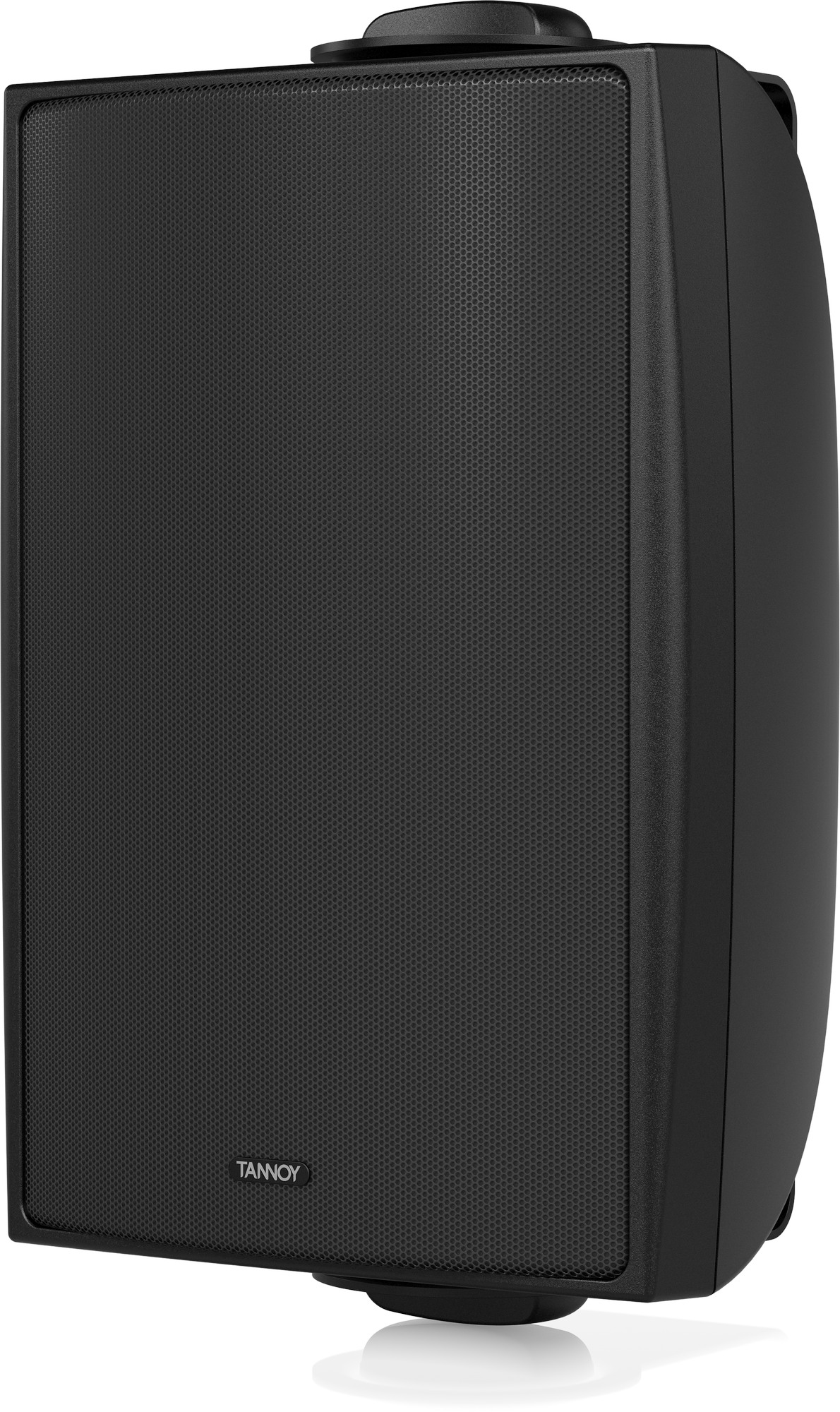

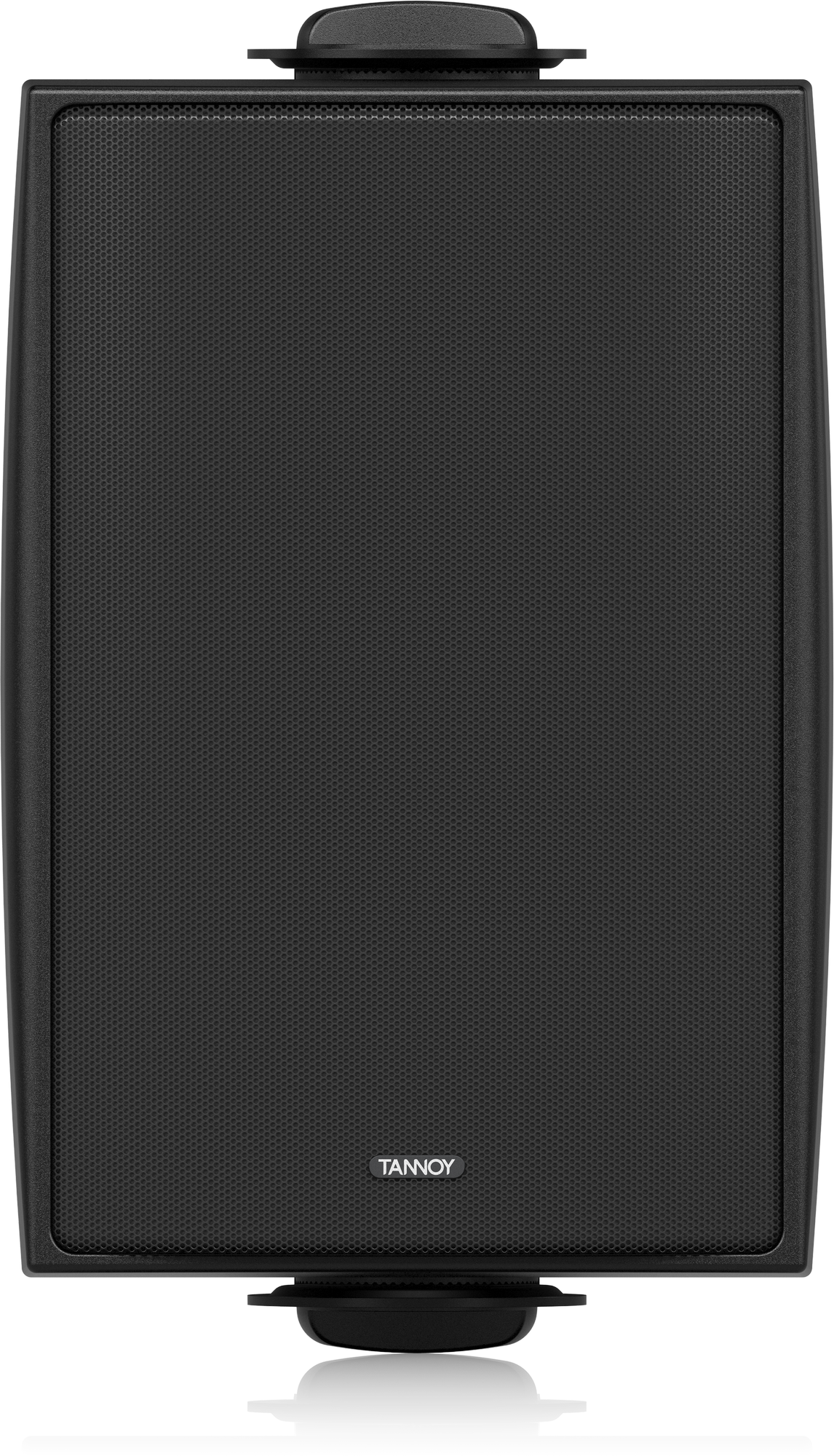

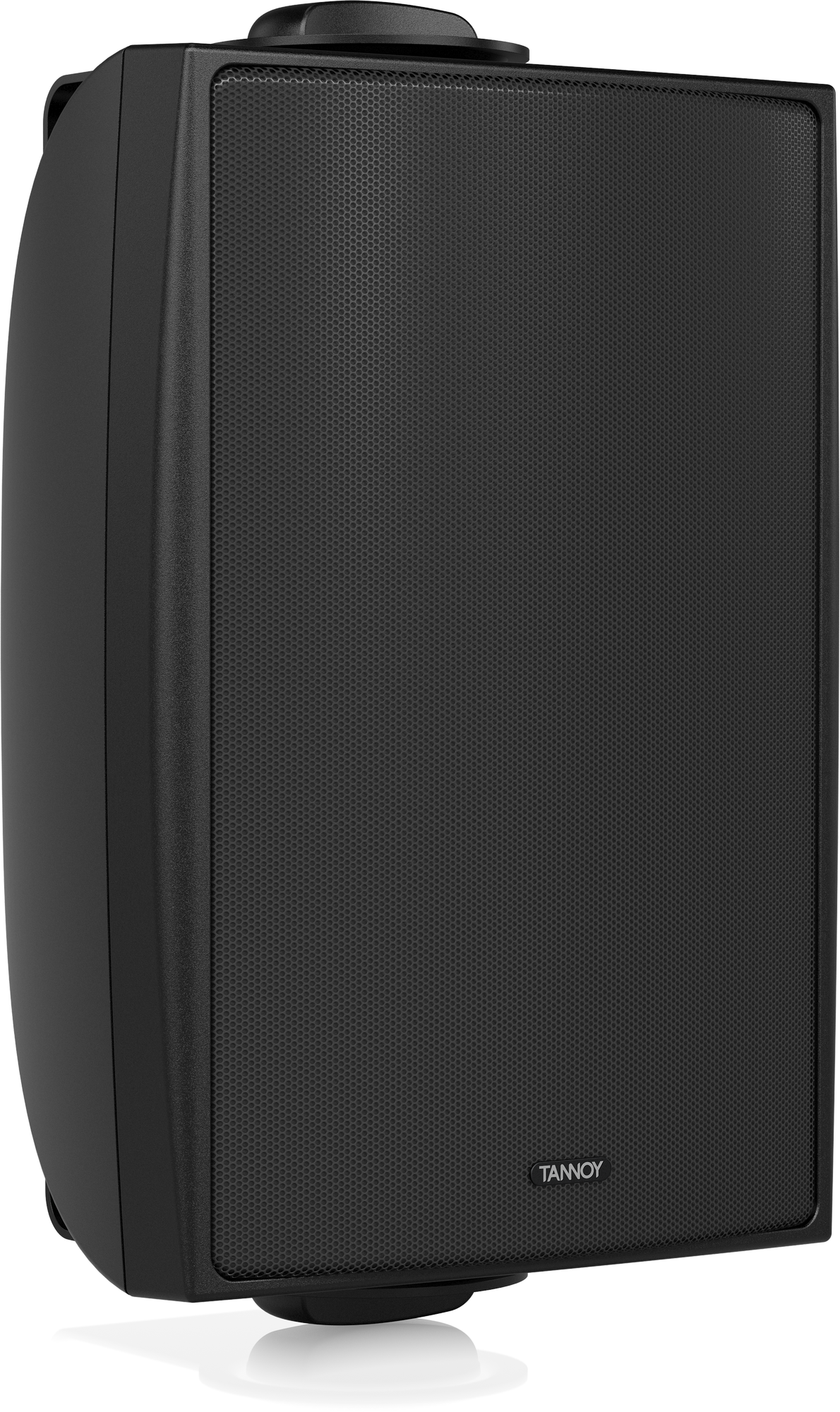

Tannoy DVS 4 4-Inch Coaxial Surface-Mount Loudspeaker 160W for Indoor Outdoor Use
552.30 AED Included (5% UAE VAT)
The DVS 4 is a versatile 160-Watt surface mount loudspeaker designed for diverse sound reinforcement needs, delivering high acoustic performance and value. Ideal for background or foreground music in theme parks, hotels, restaurants, bars, retail stores, corporate AV setups, residential areas, and houses of worship.
Model number
DVS 4
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4 is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Key Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 40 Watts continuous, 160 Watts peak power

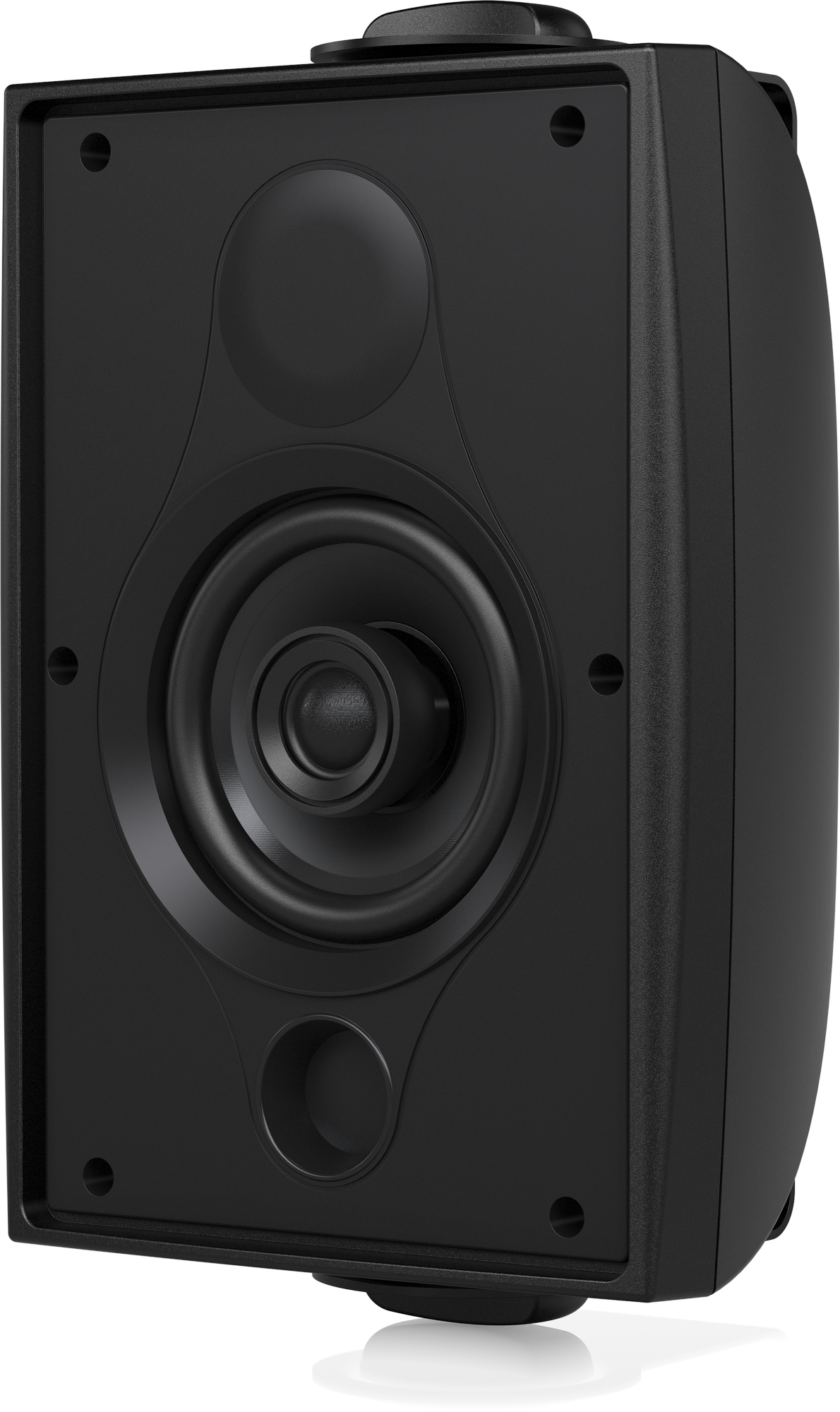

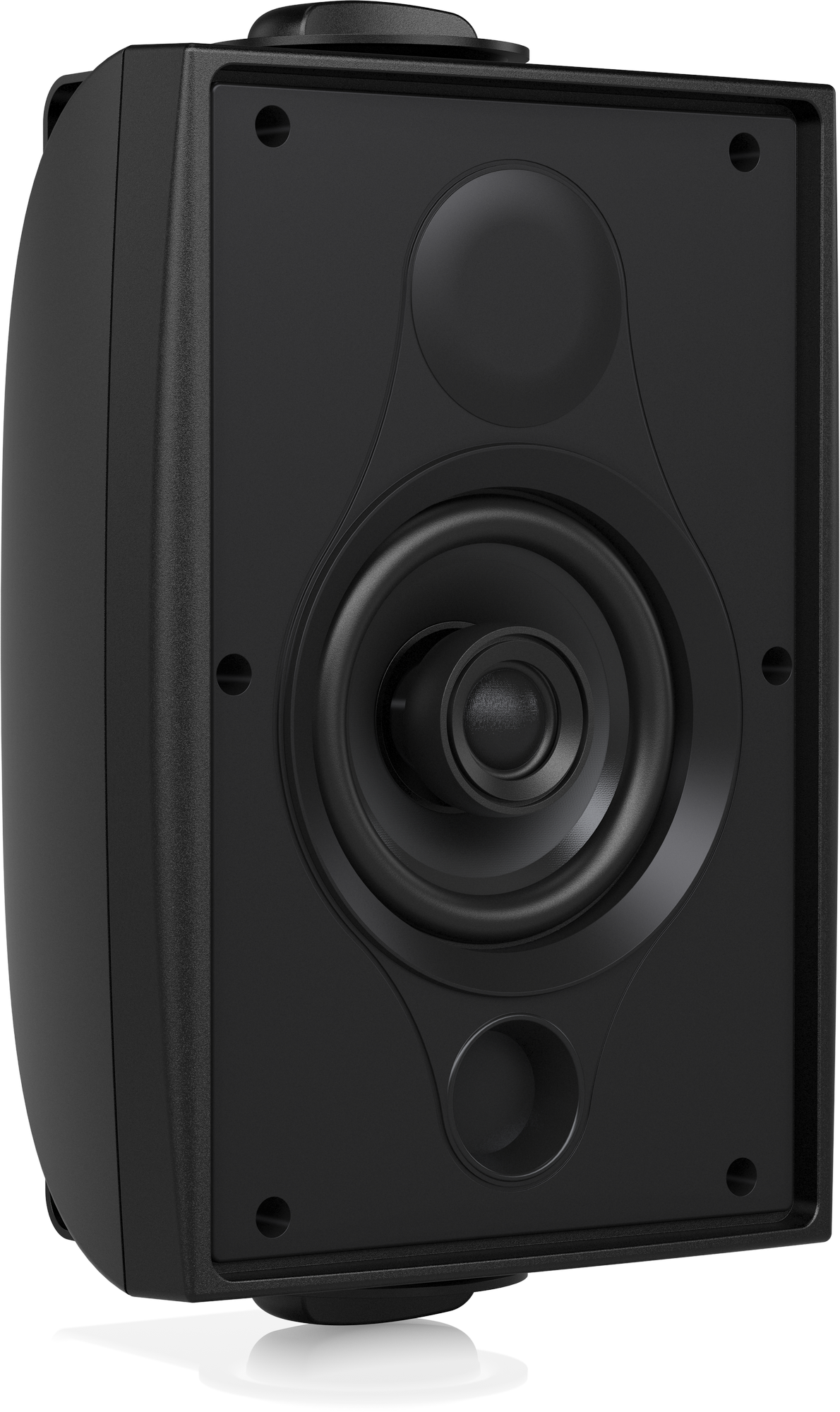

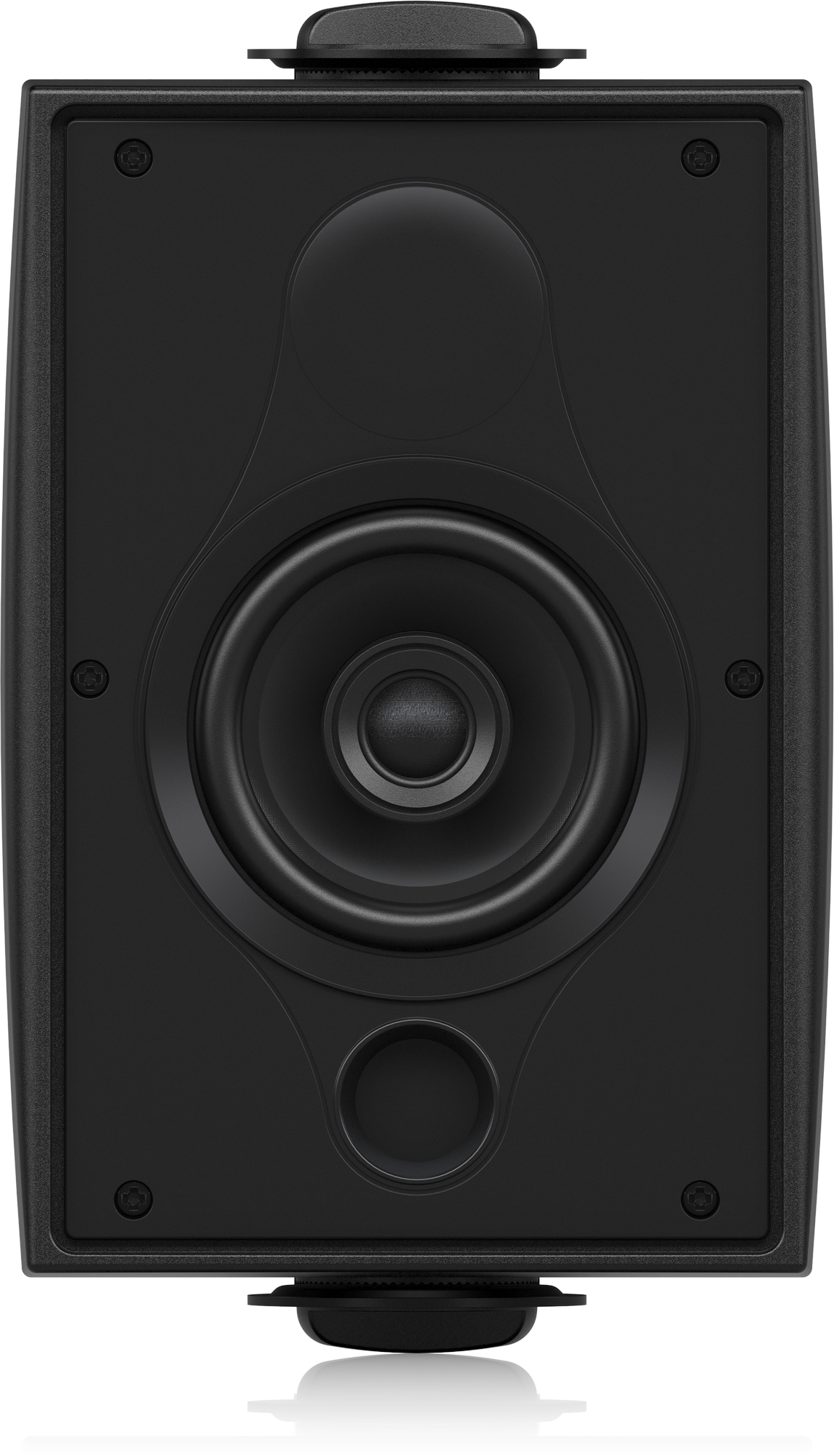

- 4″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
- 110° constant directivity dispersion for optimum coverage
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- 6 Ohm direct input for low impedance applications
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
- Painted perforated aluminium mesh grille with dust protection

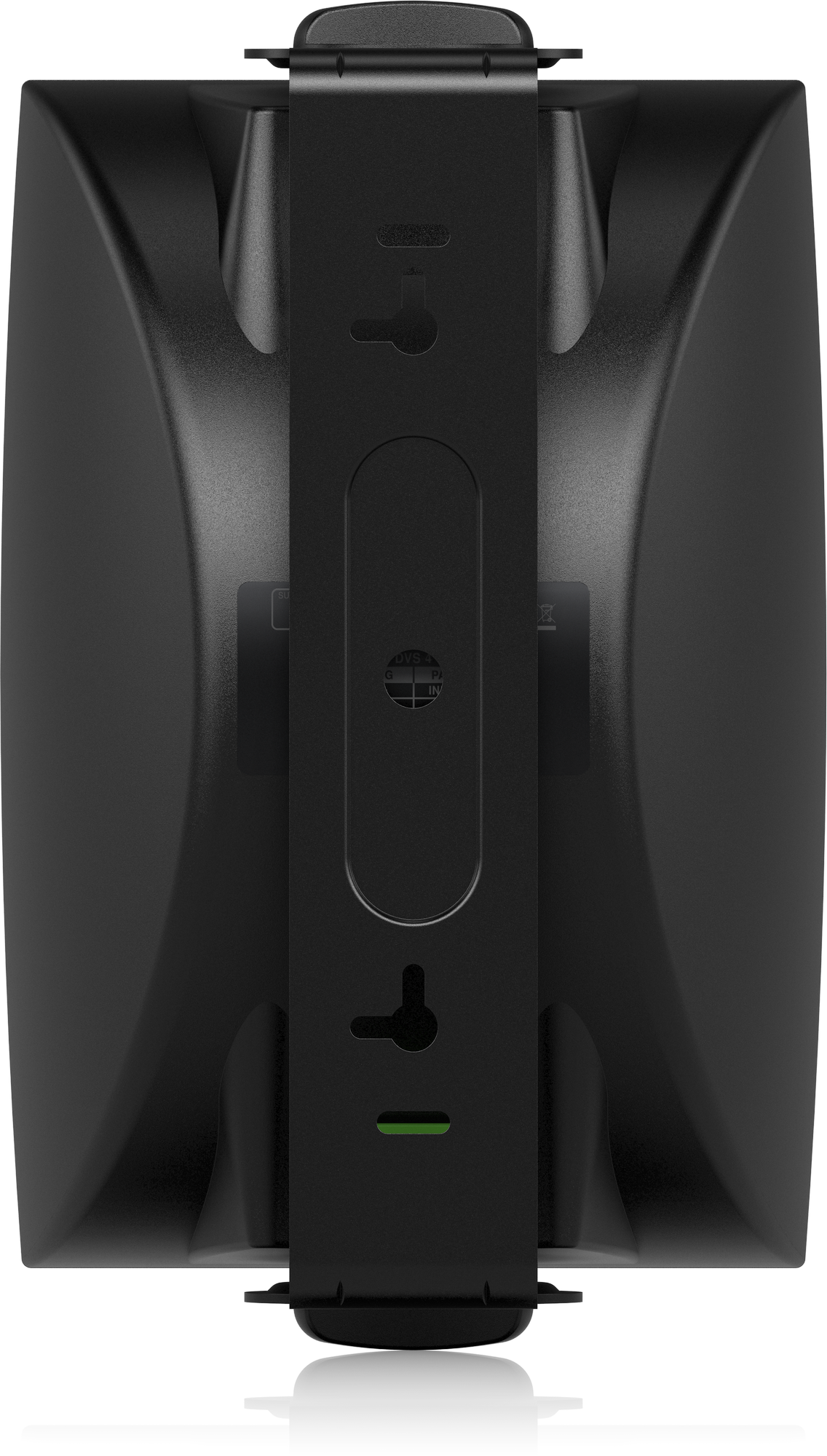

- Yoke bracket included for ease of installation

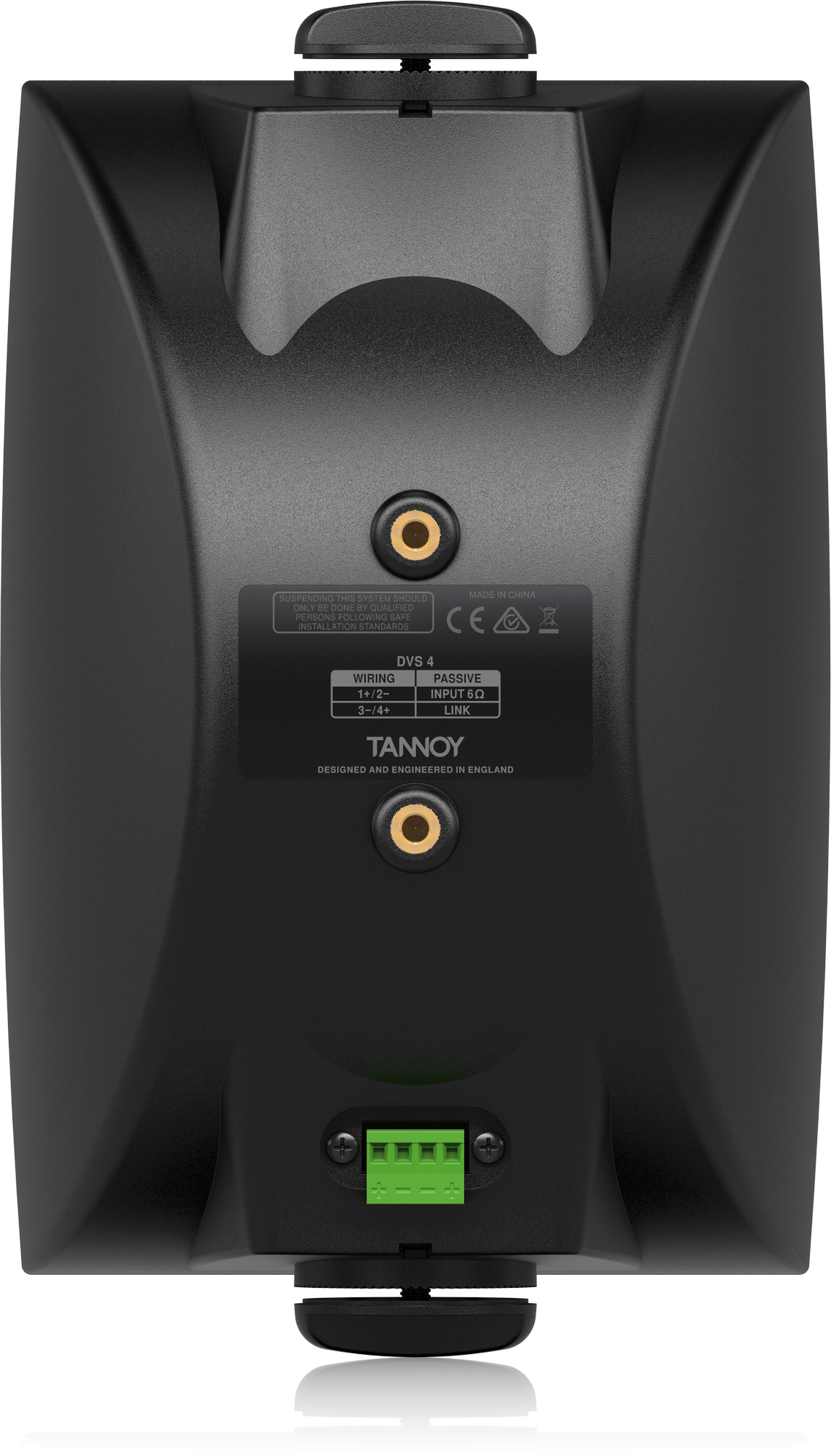

- Phoenix* connectors for input and link output
Specifications
| Specification | Details |
|---|---|
| Frequency response (-3 dB) | 75 Hz – 20 kHz |
| Frequency response (-10 dB) | 60 Hz – 30 kHz |
| System sensitivity (1 W @ 1 m) | 84 dB |
| Dispersion (-6 dB) | 110 degrees conical |
| Transducers | Coaxial |
| Low frequency | 100 mm (4.00″) mineral loaded cone material |
| High frequency | 20 mm (0.79) |
| Crossover | 3.9 kHz – 2nd order LF, 2nd order HF |
| Directivity (Q) | 6.5 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 5.3 averaged 1 kHz to 10 kHz |
| Rated maximum SPL | 100 dB (average) 106 dB (peak) |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL-1480, CE |
| Average Power Handling | 40 W |
| Programme Power | 80 W |
| Peak Power | 160 W |
| Recommended Amplifier Power | 80 W @ 6 Ohms |
| Nominal Impedance | 6 Ohms |
| Enclosure | ABS |
| Grille | Aluminium, painted |
| Connectors | Euroblock type removable locking connector with screw terminals with “loop through” facility |
| Supplied Accessories | Yoke bracket |
| Packed Quantity | 2 |
| Dimensions (H x W x D) | 277.0 x 170.4 x 165.6 mm (10.91 x 6.71 x 6.52″) |
