500 in stock

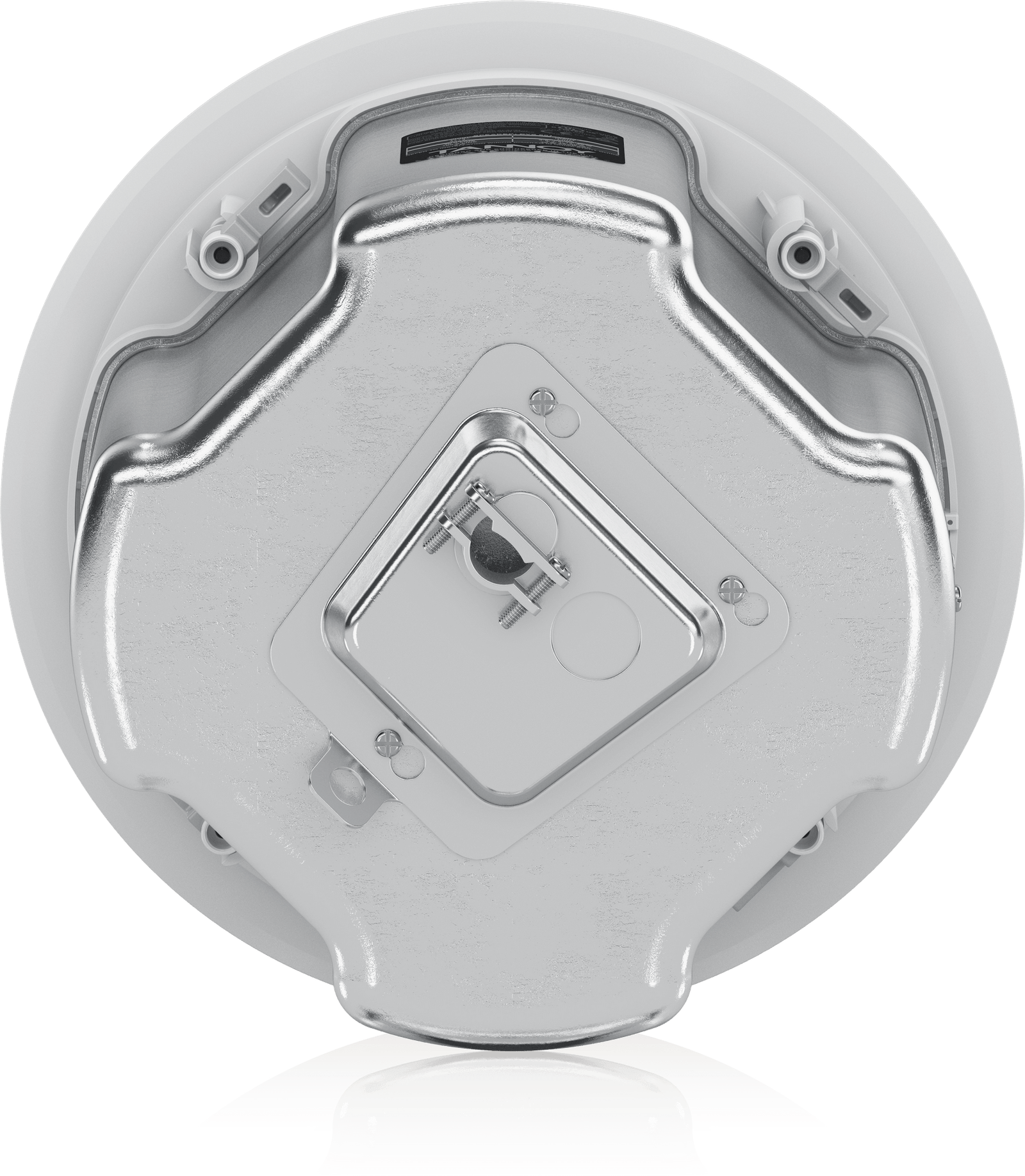

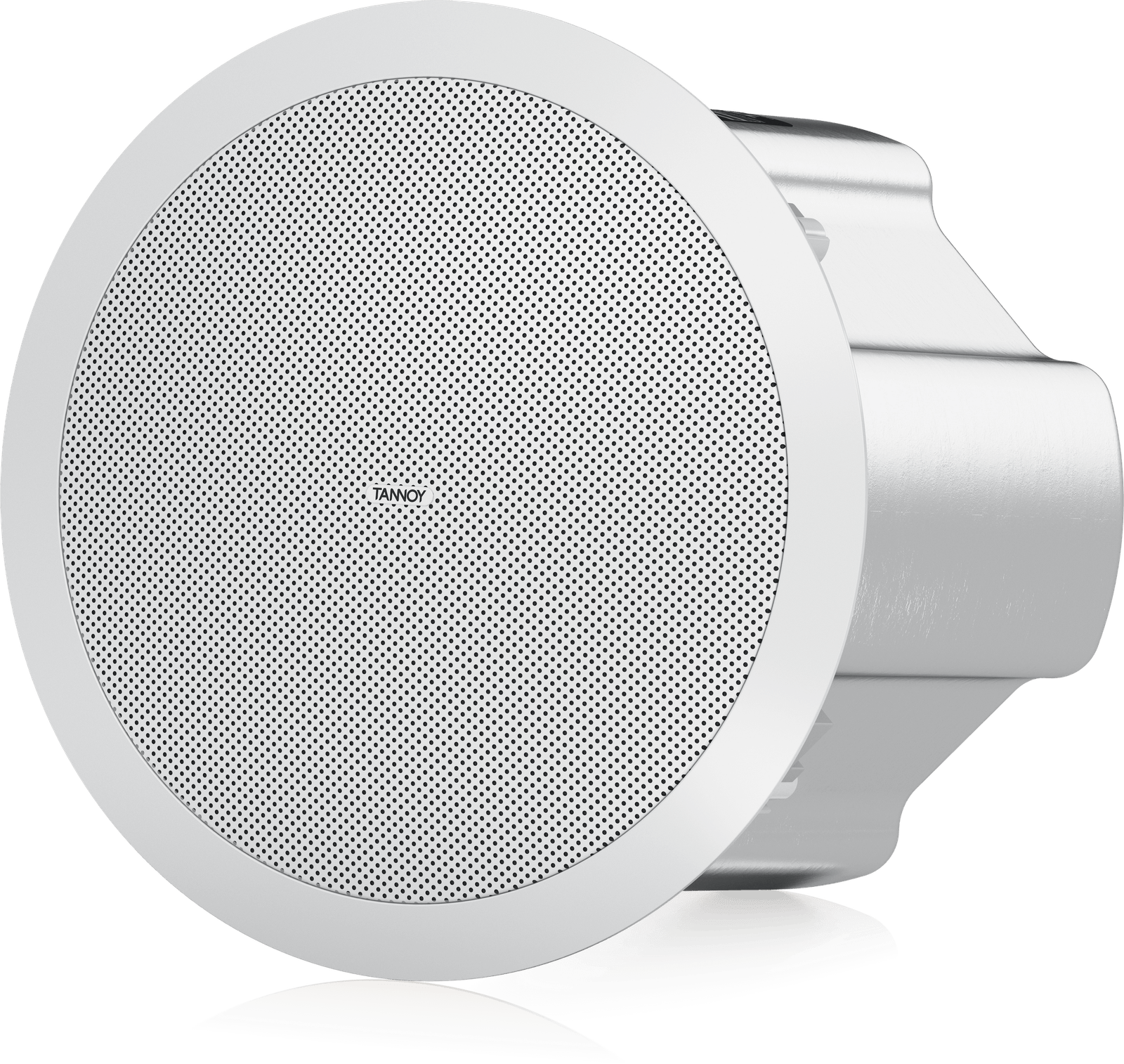

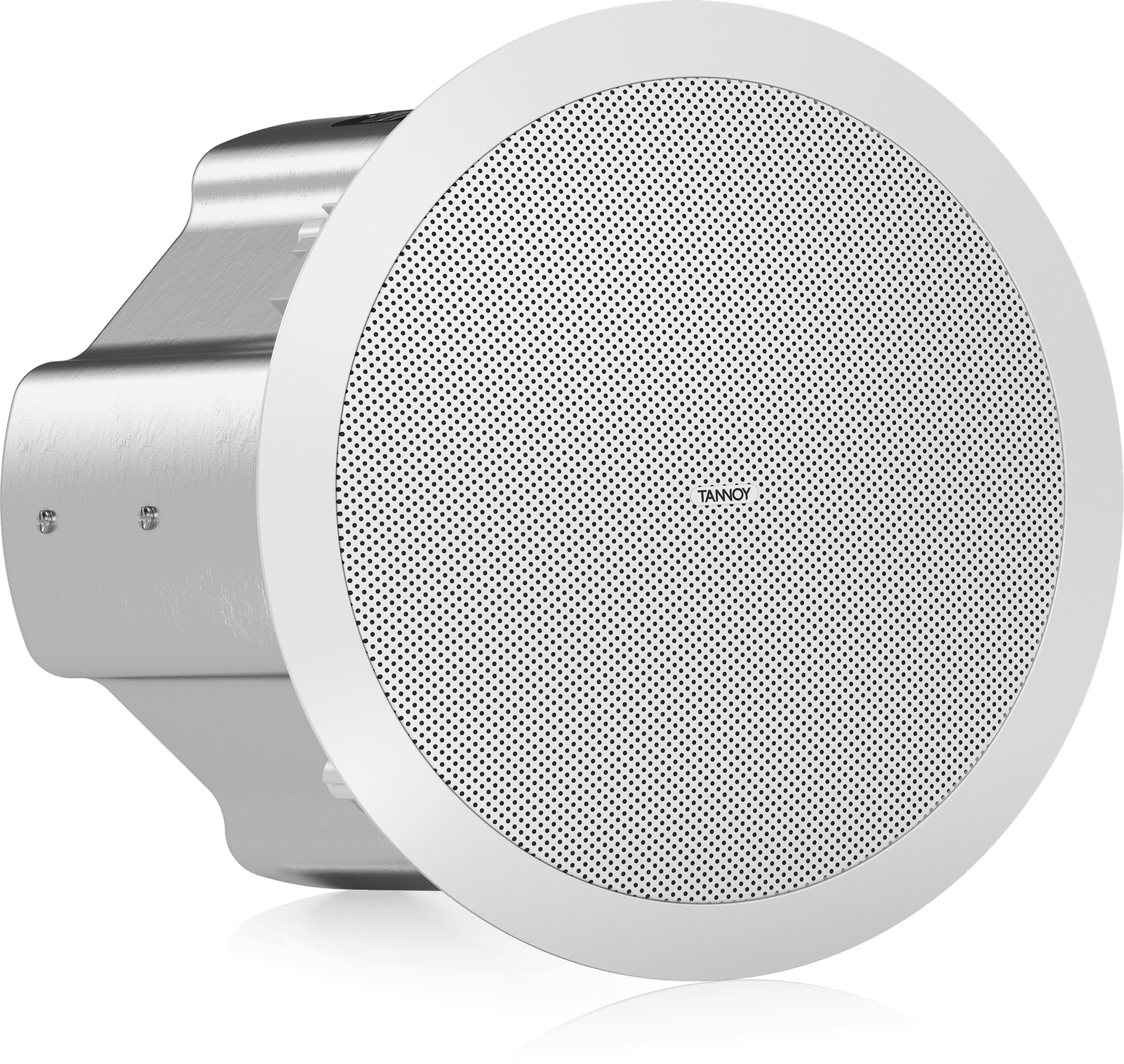

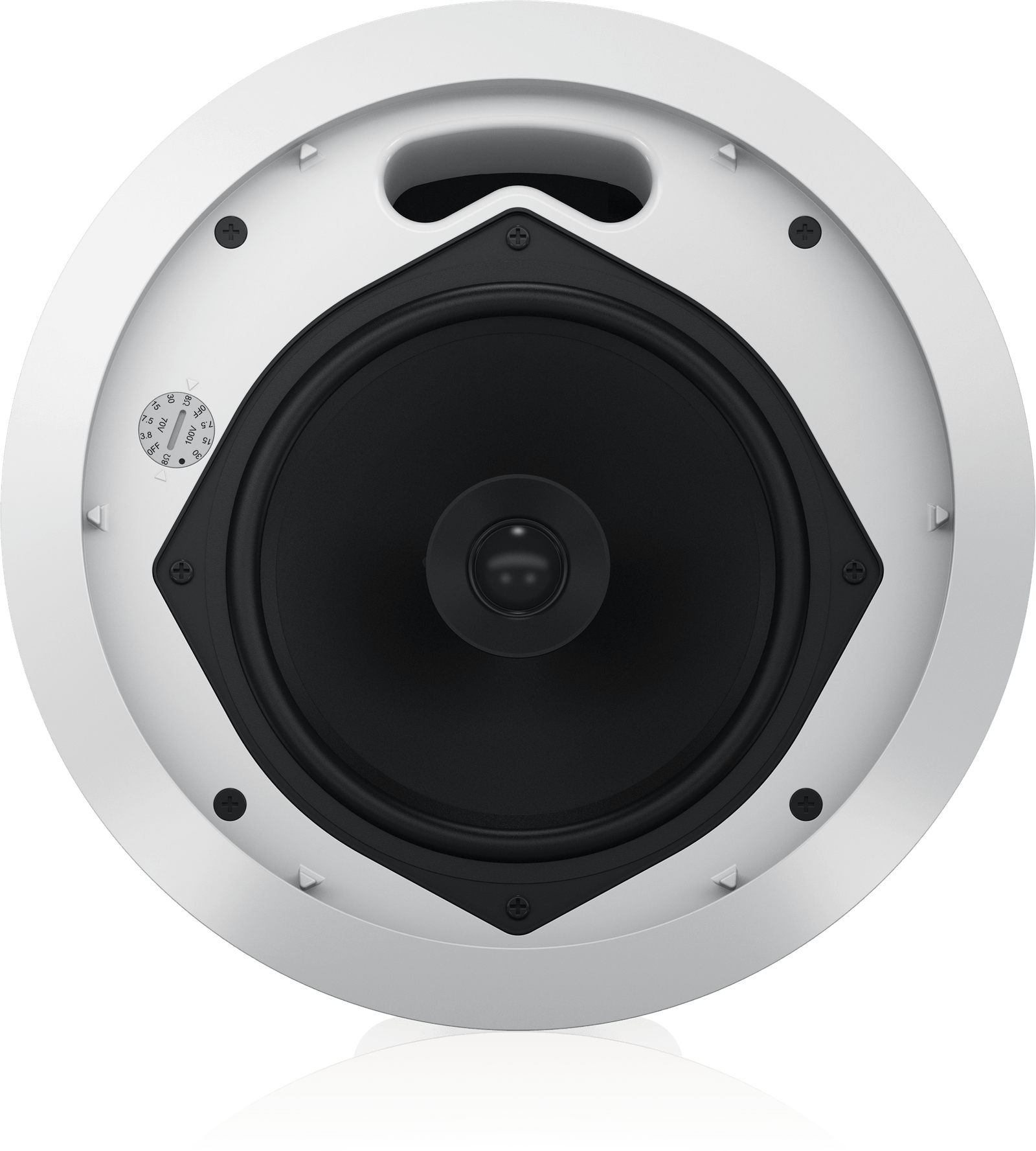

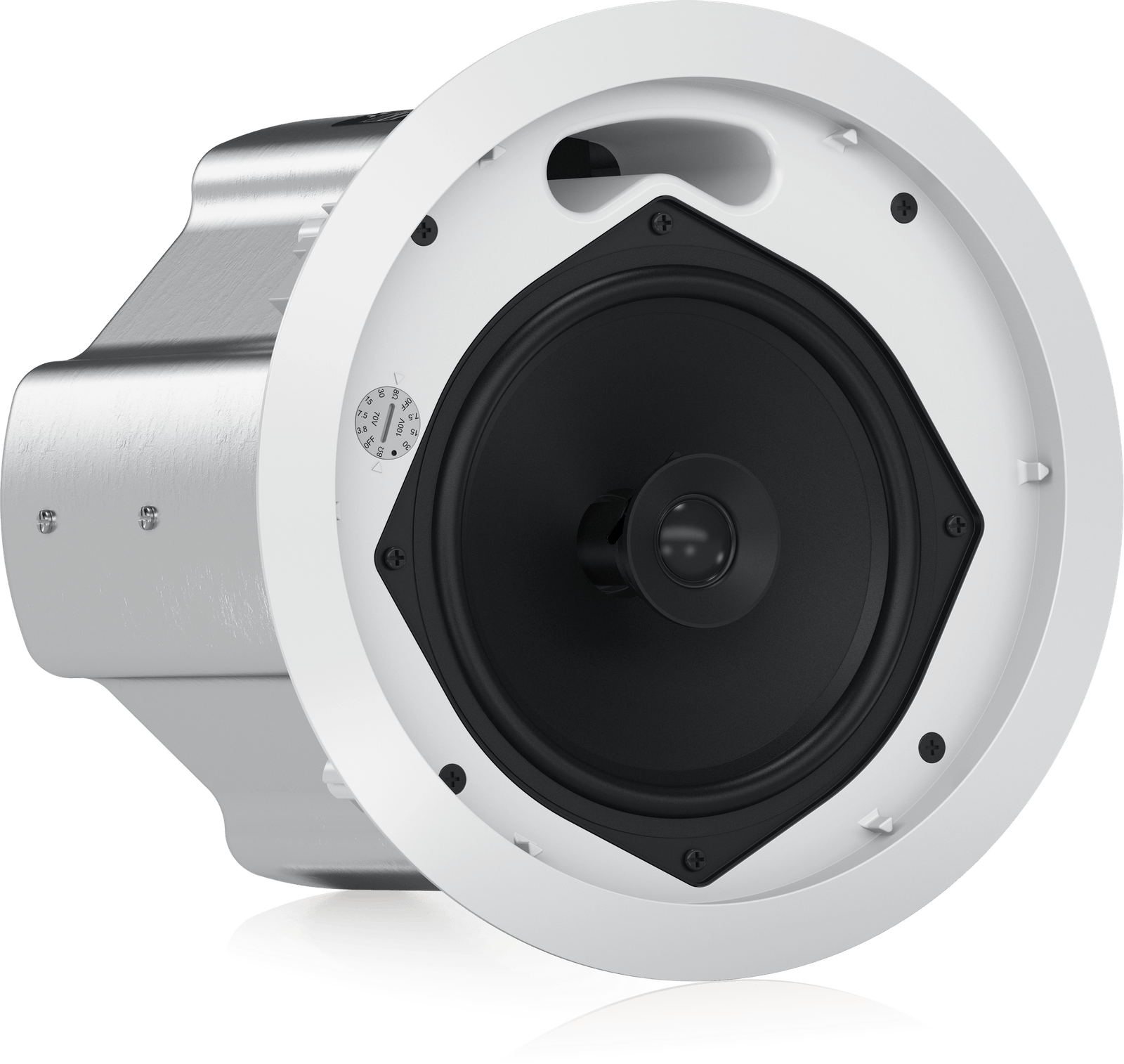

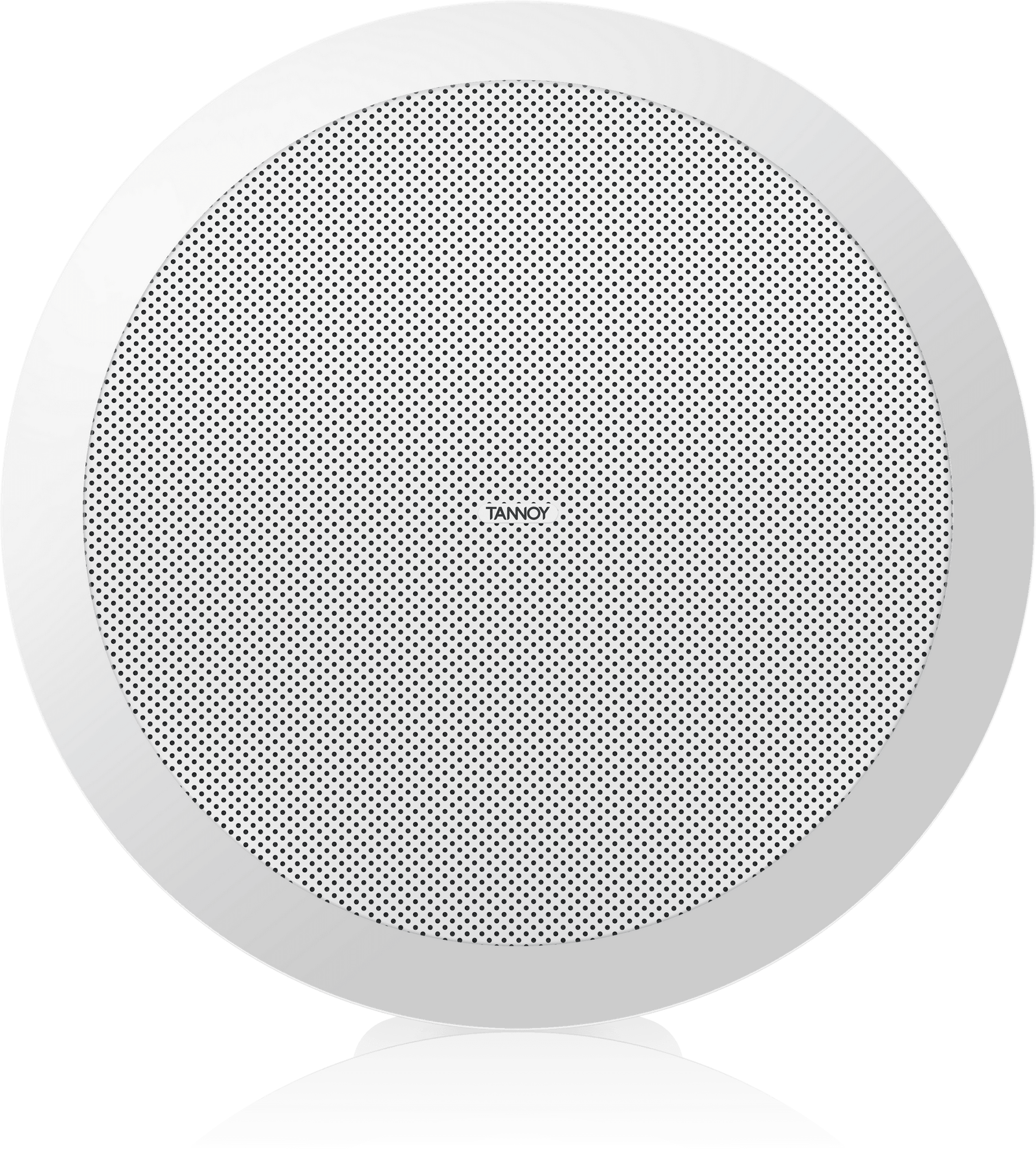

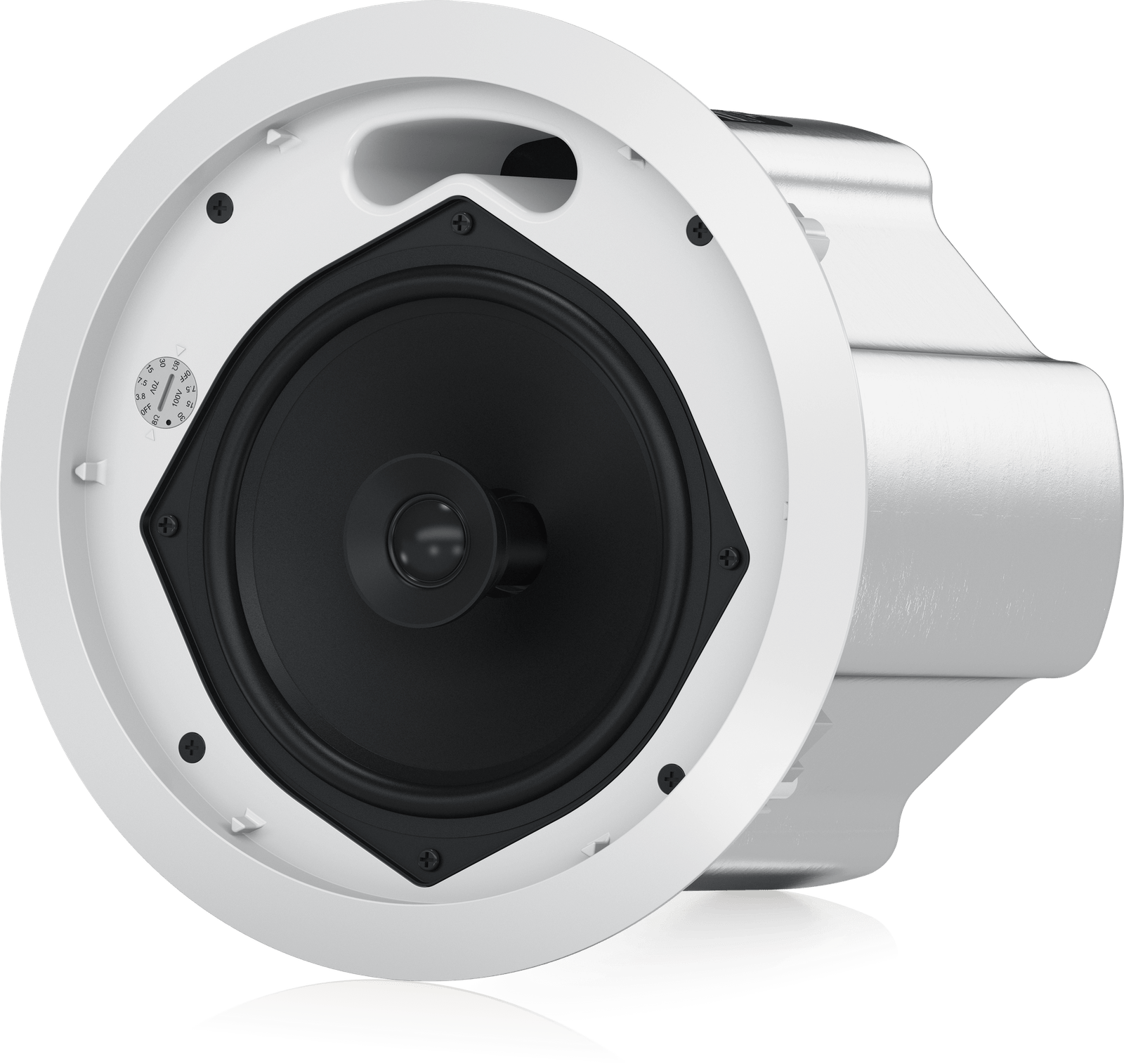

Tannoy CVS 601 6.5″ Coaxial In-Ceiling Speaker 50W White
536.55 AED Included (5% UAE VAT)
The CVS 601 is a coaxial ceiling loudspeaker designed for superior audio in diverse settings such as restaurants, hotels, houses of worship, and various businesses. It features exceptional power handling, a wide frequency response, and low distortion, typically associated with high-end products. The CVS 601 is EN 54-24 certified for fire systems, UL 1480 certified for fire-protected signaling, and UL 2043 certified for air-handling spaces, ensuring both high performance and safety.
Model number
CVS 601
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
CVS 601 Coaxial Ceiling Loudspeaker
The CVS 601 is a state-of-the-art coaxial ceiling loudspeaker designed for optimal audio performance in both background and foreground music systems. This versatile loudspeaker is ideal for a range of environments including restaurants, hotels, houses of worship, and various business settings. With its robust power handling, extensive frequency response, and minimal distortion, the CVS 601 rivals higher-end products in quality. It is certified for both fire detection (EN 54-24) and fire-protected signaling systems (UL 1480), and is suitable for air-handling spaces (UL 2043).
Features
- Coaxial full-range ceiling loudspeaker
- 50 Watts continuous, 200 Watts peak power
- 6.5″ polypropylene driver with butyl rubber surround
- 0.75″ ferrofluid cooled soft dome high frequency driver
- Wide dispersion for optimal coverage
- Fire and air-handling certified
- Durable UV and weather-resistant construction
- Powder-coated aluminum mesh grille
- Multiple transformer taps for flexible installation
- Low insertion loss 30W line transformer
- Semi-matte white finish
- Comes with mounting hardware
Specifications
| Specification | Details |
|---|---|
| Color | White |
| Frequency Response (+3dB, -3dB) | 105 Hz – 20 kHz |
| Frequency Response (-10dB) | 74 Hz – 20 kHz |
| Sensitivity at 1m/1W | 90 dB |
| Nominal Coverage Angle | 115 Degrees |
| Directivity Factor (Q) | 7.3 |
| Directivity Index (DI) | 8.6 |
| Power Handling | 50 W Average, 100 W Programme, 200 W Peak |
| Nominal Impedance | 8 Ohm |
| Transformer Taps | 70 V: 30 W/15 W/7.5 W/3.8 W, 100 V: 30 W/15 W/7.5 W |
| Transducers | 6.5″ PP cone (Low Frequency), 0.79″ coaxially mounted (High Frequency) |
| Enclosure | Blind mount |
| Back Can | Anodized steel |
| Baffle | Reflex loaded UL 94V-0 rated ABS |
| Grille | Aluminum, powder-coated |
| Safety Features | Rear enclosure safety ring |
| Clamping Design | Security toggle clamp |
| Connectors | Euroblock-style connector with screw terminals |
| Dimensions | Bezel diameter: 10″ (254mm), Depth: 8.19″ (208mm) |
| Weight | 8.36 lb (3.8kg) +/- 10% |
