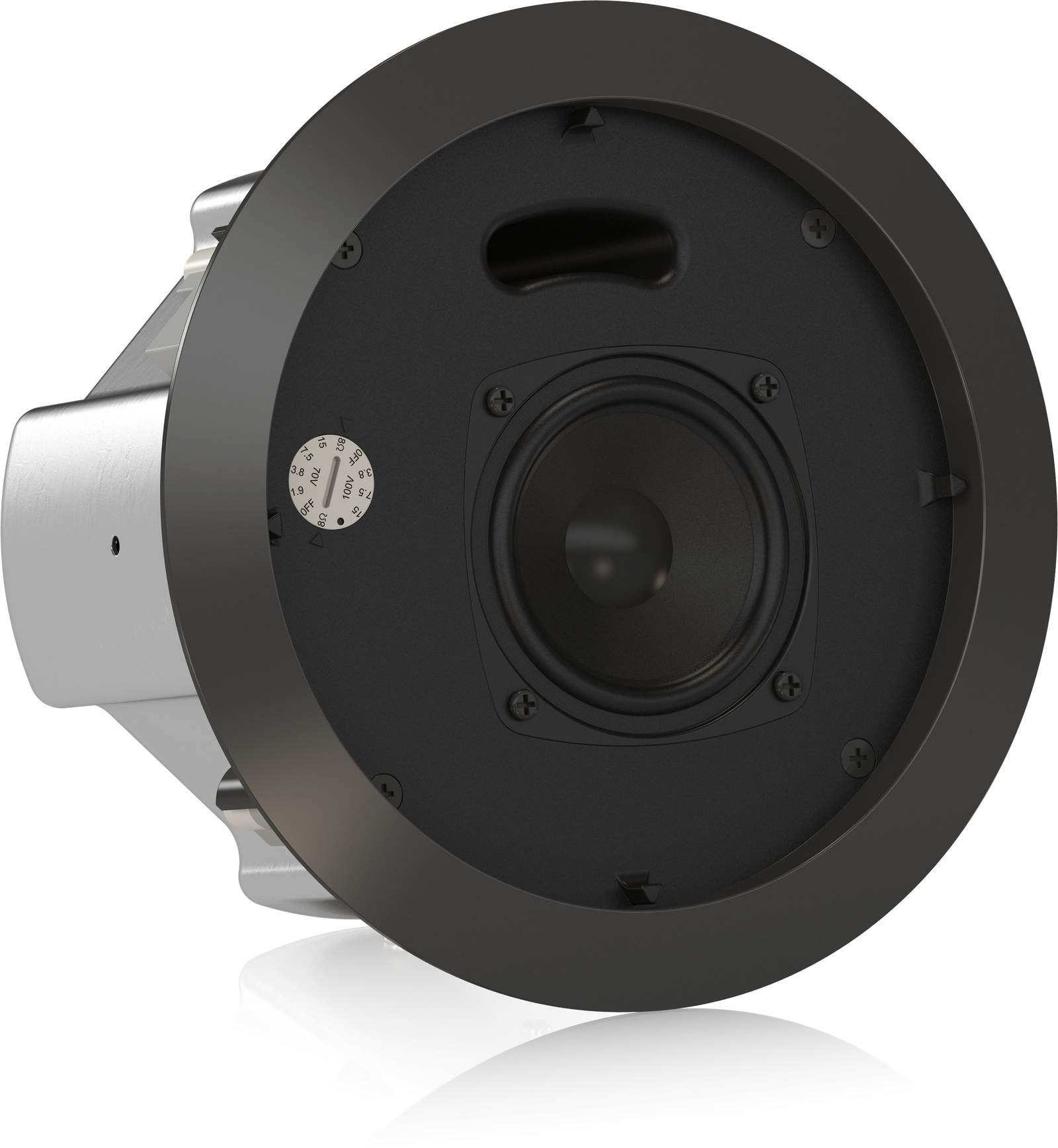

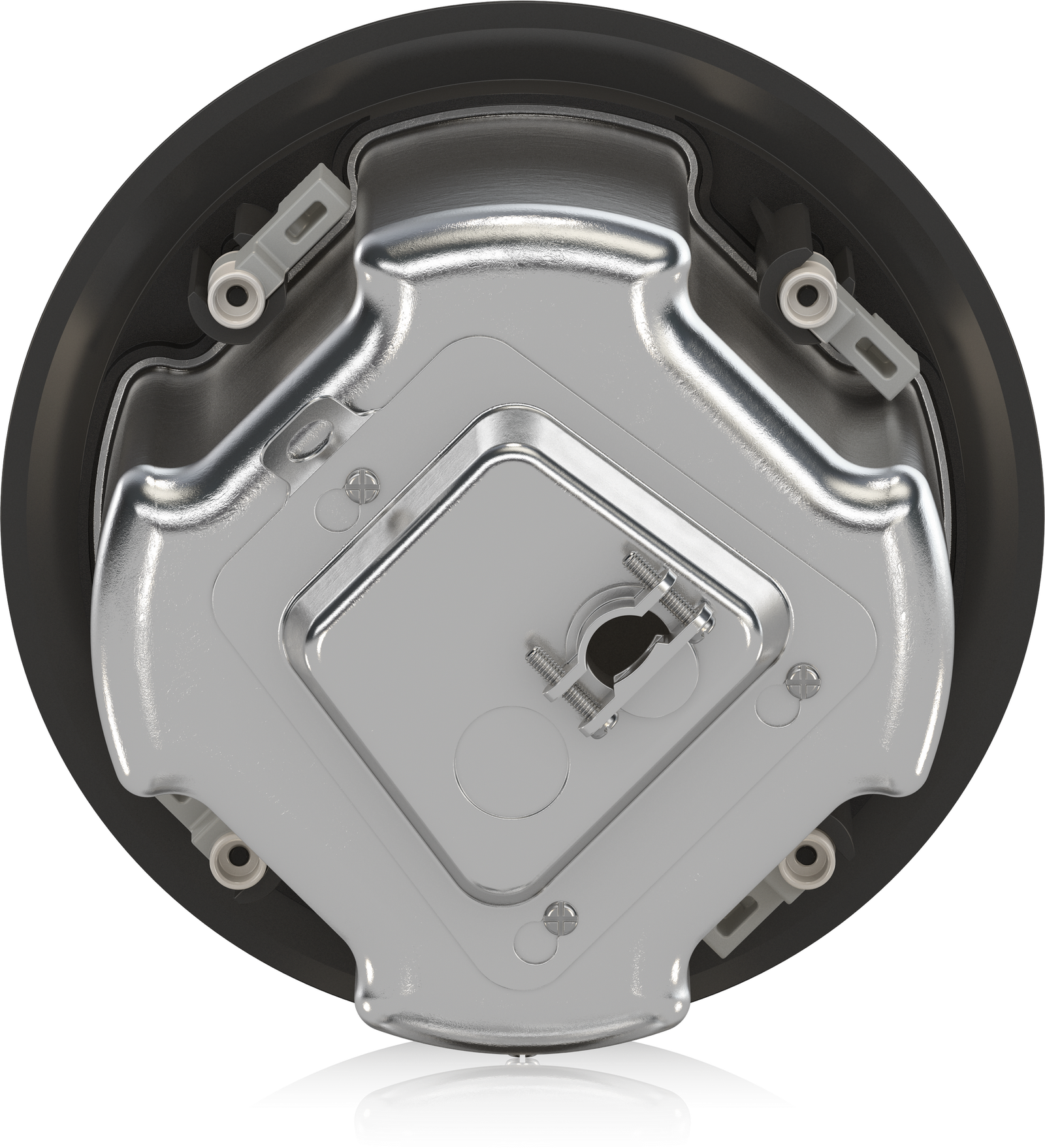

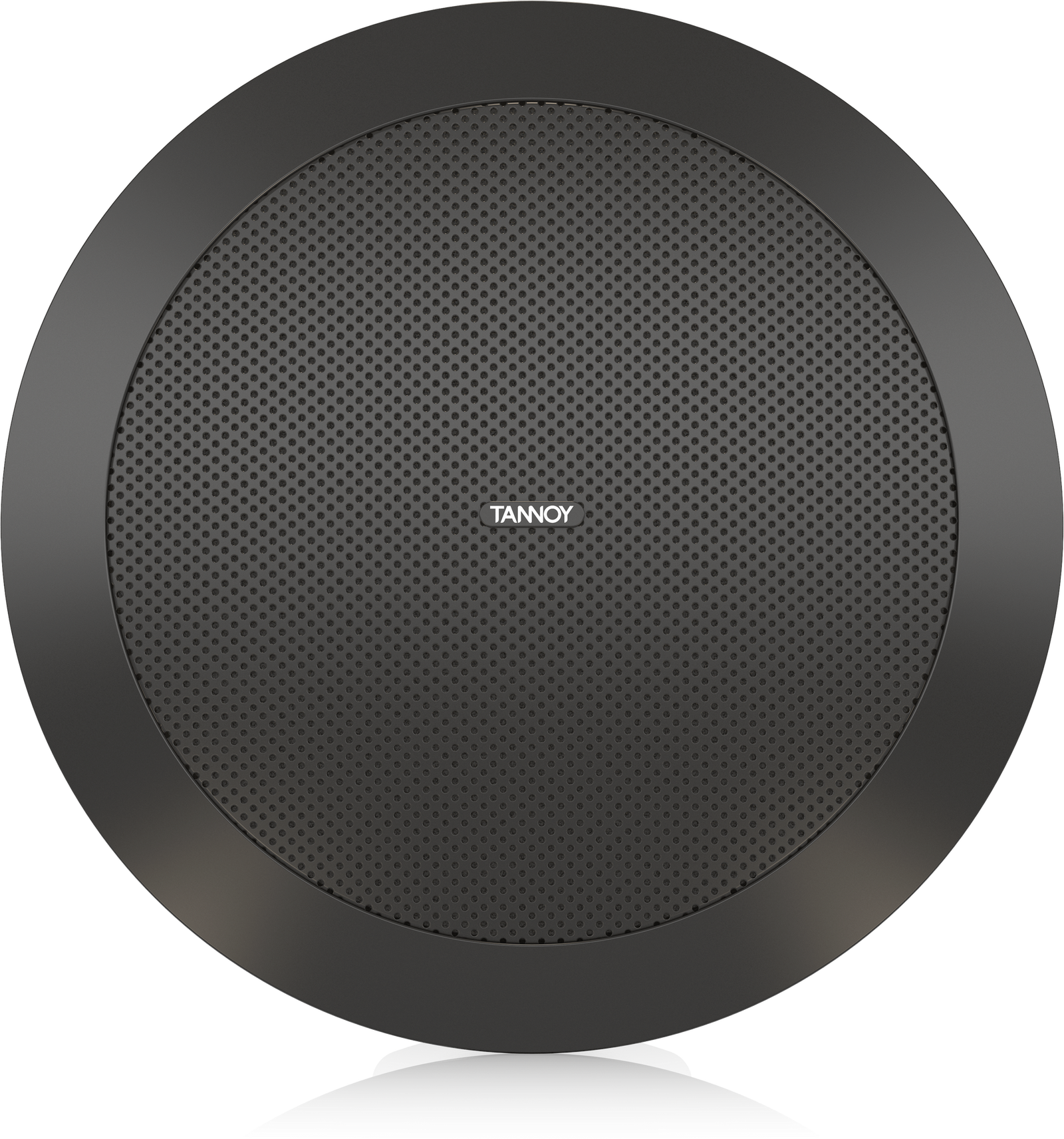

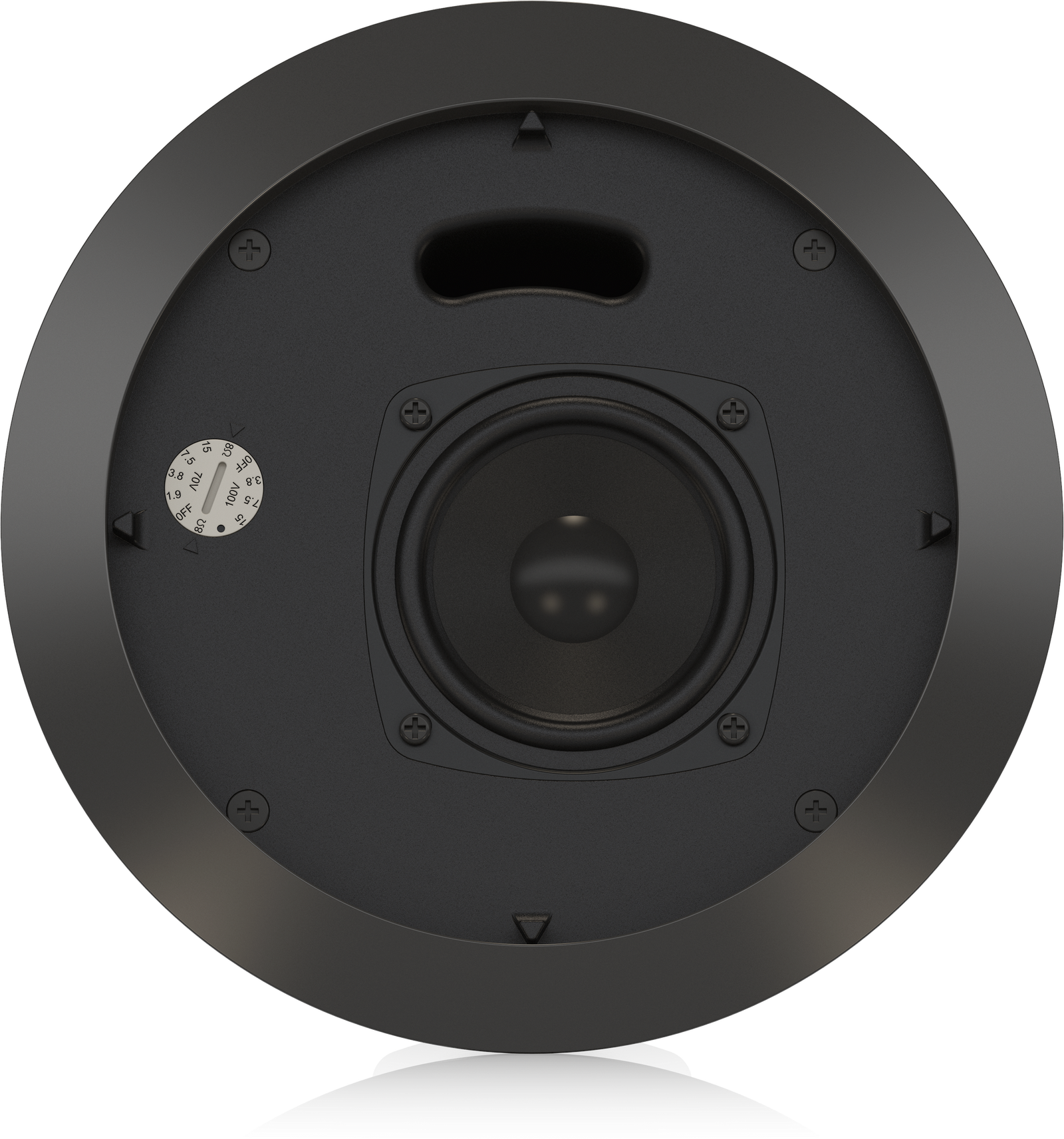

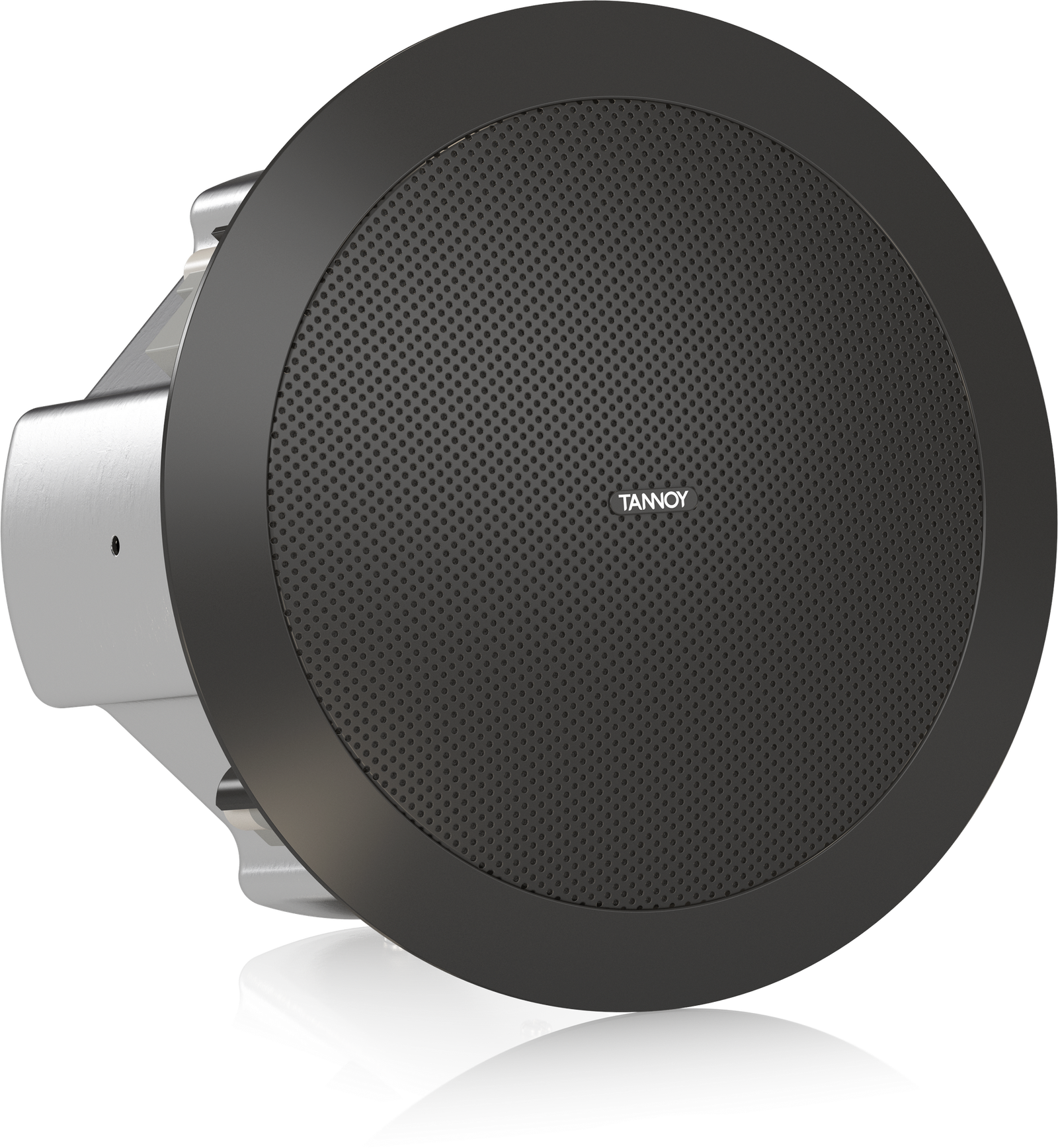

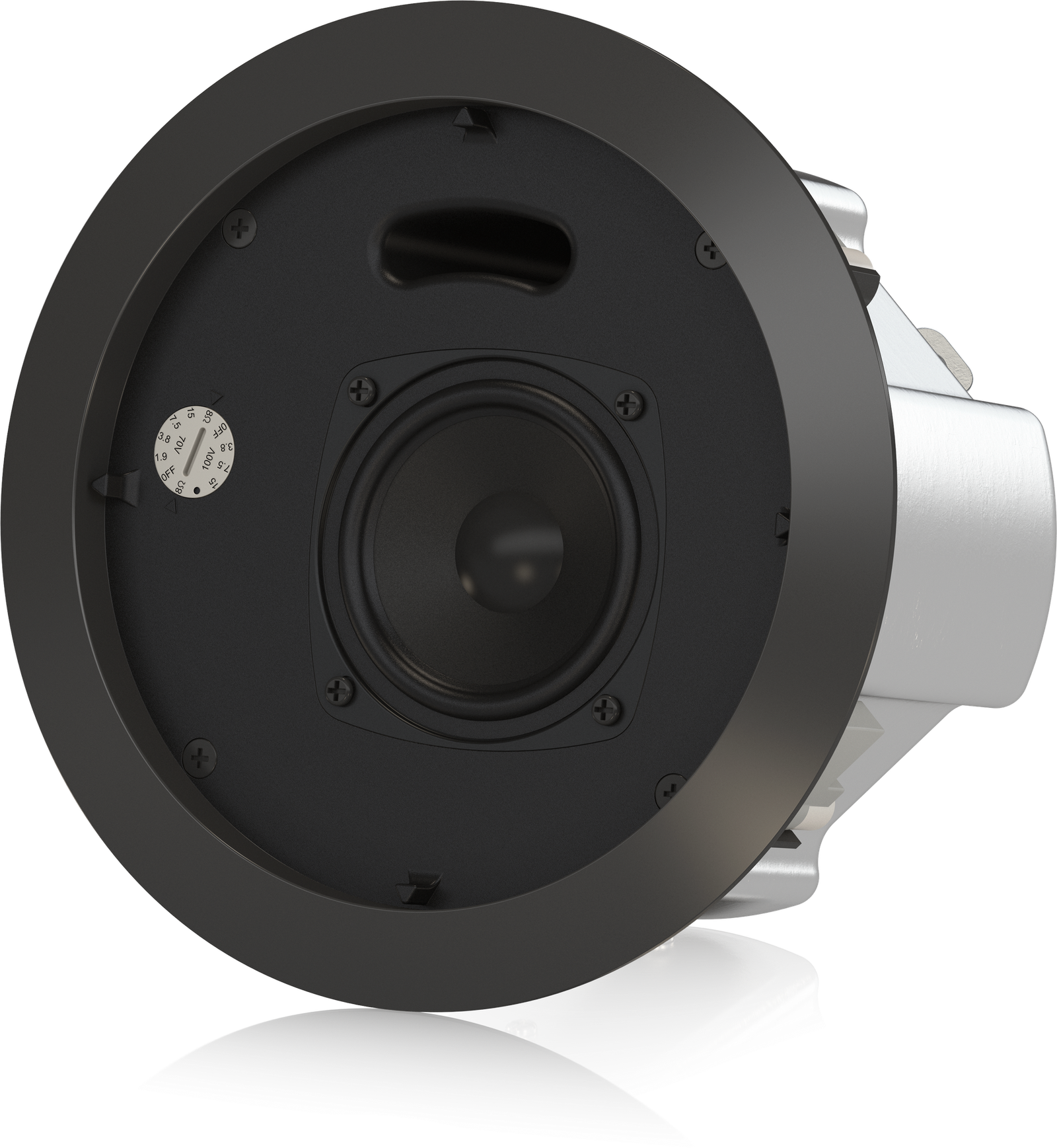

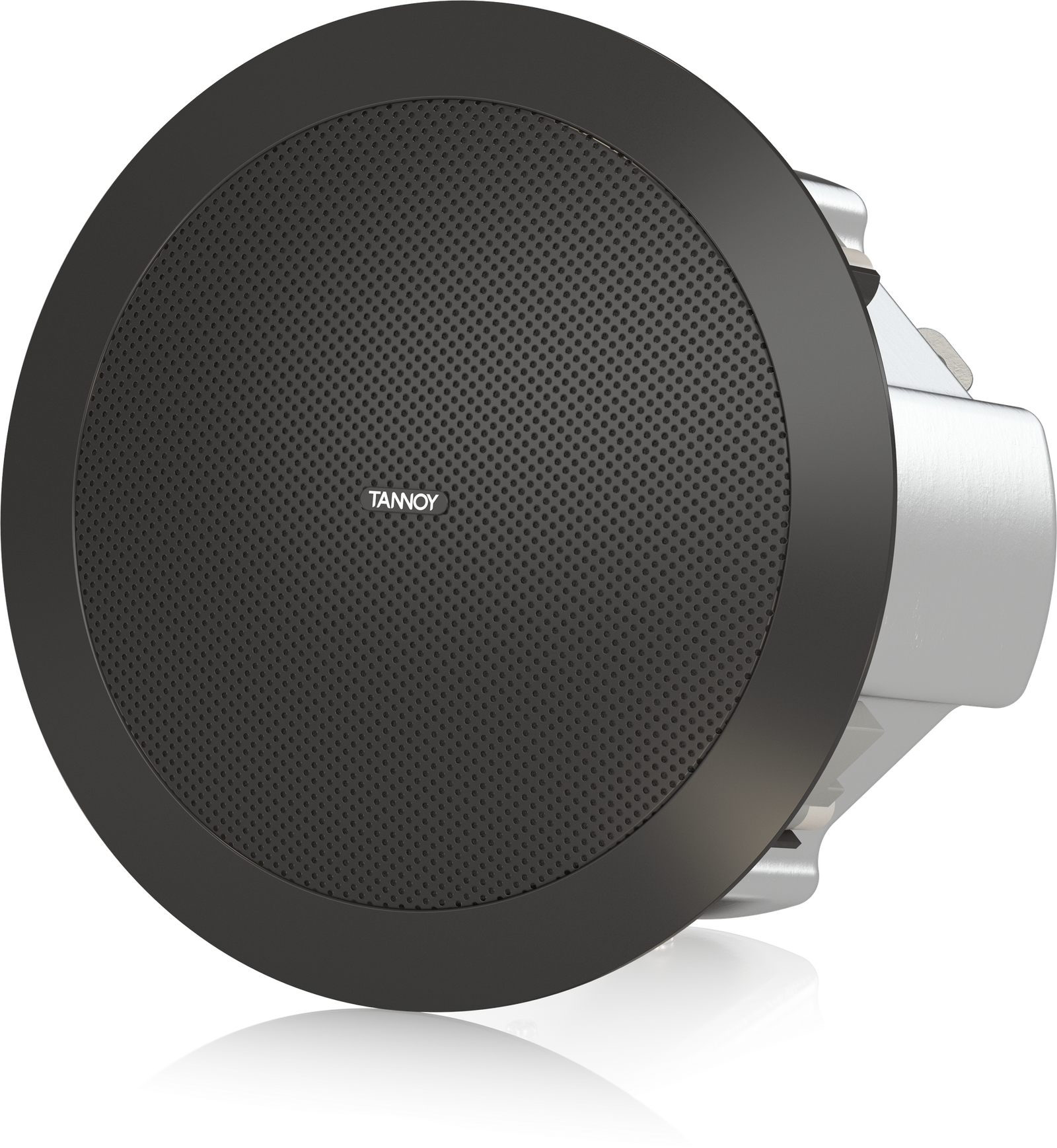

Tannoy CVS 301-BK 3″ In-Ceiling Speaker 20W Black for Commercial Use
357.00 AED Included (5% UAE VAT)
The CVS 301-BK is a ceiling loudspeaker designed for exceptional audio performance in diverse settings, from restaurants to places of worship. Featuring high power handling, wide frequency response, and low distortion, it rivals higher-end models. Safety certifications, including EN54-24 for fire detection, UL 1480 for fire-protected signaling, and UL 2043 for air-handling spaces, make it an excellent choice where safety is critical.
Model number
CVS 301-BK
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The CVS 301-BK is a ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 301-BK offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN54-24 certification for fire detection and fire alarm systems makes the CVS 301-BK the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.
Features
- Full range ceiling loudspeaker for installation applications
- 20 Watts continuous, 80 Watts peak power
- 3″ polypropylene full-range driver with butyl rubber surround for enhanced durability and long-term reliability
- Wide constant directivity dispersion for optimum coverage
- EN54-24:2008 certified Type A
- UL 1480 certified for fire-protected signalling systems
- UL 2043 certified for air-handling spaces
- UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
- Powder coated aluminium mesh grille with dust protection
- Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
- Low insertion loss 15 W line transformer with easily accessible tapping switch
- Semi matt black finish fits unobtrusively in any environment
- Mounting C-ring and ceiling tile rails included
- Steel cover and strain relief clamping mechanism for fire rated cable
Specifications
| Specification | Details |
|---|---|
| Frequency response (+3dB, -3 dB) | 85 Hz -19 Hz |
| Frequency response (-10 dB) | 68 Hz-20 Hz |
| Sensitivity at 1m/1W | 85 dB |
| Nominal coverage angle | 130° |
| Directivity factor (Q) averaged 1 kHz to 6 kHz | 4.1 |
| Directivity index (DI) averaged 1 kHz to 6 kHz | 6.1 |
| Power handling (LoZ) | 20 W (Average), 40 W (Programme), 80 W (Peak) |
| Recommended amplifier power | 40 W @ 8 Ω |
| Nominal Impedance (Switch to LoZ) | 8 Ω |
| Rated maximum SPL (1 m, Switch to LoZ) | 101 dB |
| Average SPL | 98 dB |
| Peak SPL | 104 dB |
| Transformer taps | 70 V: 15 W / 7.5 W / 3.8 W / 1.9 W, 100 V: 15 W / 7.5 W / 3.8 W |
| Transducers | Low frequency: 76 mm (3″) PP cone |
Physical Specifications
| Specification | Details |
|---|---|
| Enclosure | Blind mount (BM) |
| Back can | Anodized steel |
| Baffle | Reflex loaded UL 94V-0 rated ABS |
| Grille | Aluminum, powder coated |
| Safety Features | Rear enclosure safety ring for load-bearing bond |
| Clamping Design | Security toggle clamp |
| Connectors | Euroblock-style connector with screw terminals (with input cover and cable gland supplied) |
| Bezel diameter (grille max diameter) | 200 mm (8″) |
| Rear face of baffle to rear of back can | 130 mm (5.12″) |
| Rear face of baffle to top of safety loop | 143 mm (5.63″) |
| Rear face of baffle to rear of flex conduit | 155 mm (6.10″) |
| Hole cutout diameter | 172 mm (6.77″) |
| Net weight | 2.41 kg (5.30 lbs) ±10% |
| Included accessories | Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template |
| Optional accessories | Mud ring, 48″ Tile rail |
| Packed quantity | 1 pair |
