Tannoy CMS 801 SUB PI 8″ Compact Ceiling Subwoofer 400W Peak
1,333.50 AED Included (5% UAE VAT)
The CMS 801 SUB PI is a compact 400-Watt subwoofer designed for use with CMS ceiling monitor systems. Featuring an 8-inch long excursion LF driver, this UL certified subwoofer ensures dynamic low frequency extension and high-quality audio for both music and speech reinforcement applications.
Model number
CMS 801 SUB PI
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

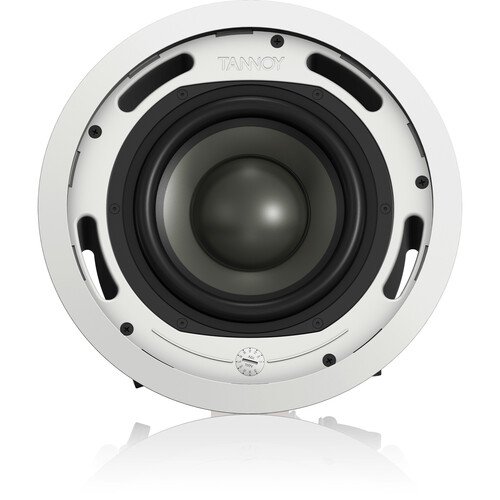

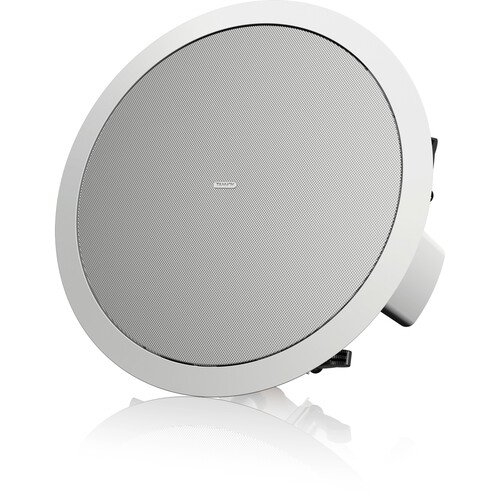

CMS 801 SUB PI Compact Ceiling Subwoofer
The CMS 801 SUB PI is a powerful and compact ceiling subwoofer designed to complement the full range of CMS ceiling monitor systems. With its 8″ long excursion LF driver, this subwoofer delivers dynamic low-frequency extension, making it an excellent choice for both music and speech reinforcement applications.
Features
- Compact design for installation applications
- 100 Watts continuous, 400 Watts peak power
- 8″ long excursion driver for enhanced low-frequency response

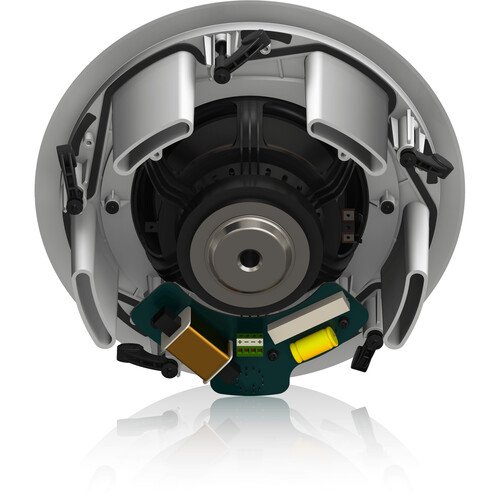

- Pre-install version supplied without back can (available separately)
- Multiple transformer taps for 70 V and 100 V line systems
- Direct input option at 6 Ohms with the optional CMS 801 OHM PI BACKCAN
- UL 1480 and UL 2043 certified for safety
- Semi matt white finish to blend into any environment

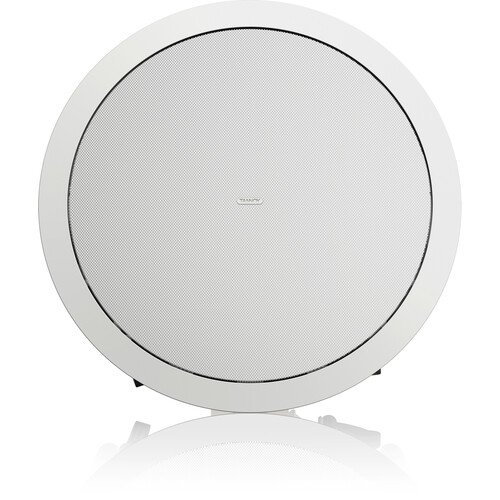

- Removable, paintable grille for custom finishes
- Self-aligning 5-way clamp mounting system
- Mounting C-ring and ceiling tile rails included
Specifications
| Specification | Details |
|---|---|
| Frequency response (-3 dB) | 58 Hz – 160 Hz |
| Frequency range (-10 dB) | 42 Hz – 300 Hz |
| System sensitivity (1 W @ 1 m) | 92 dB (1 W = 2.45 V for 8 Ohms) |
| Rated maximum SPL | 112 dB (average), 118 dB (peak) |
| Driver | 8″ long throw woofer with multi-fiber paper pulp cone |
| Safety certifications | UL-1480, UL-2043, CE |
| PI hole cutout diameter | 295 mm (11.61″) |
| Bezel diameter | 325 mm (12.80″) |
| Net weight | Not specified |
| Included accessories | C-ring, tile bridge, paint mask, cutout template, grille |
| Optional accessories | Plaster (Mud) Ring |
