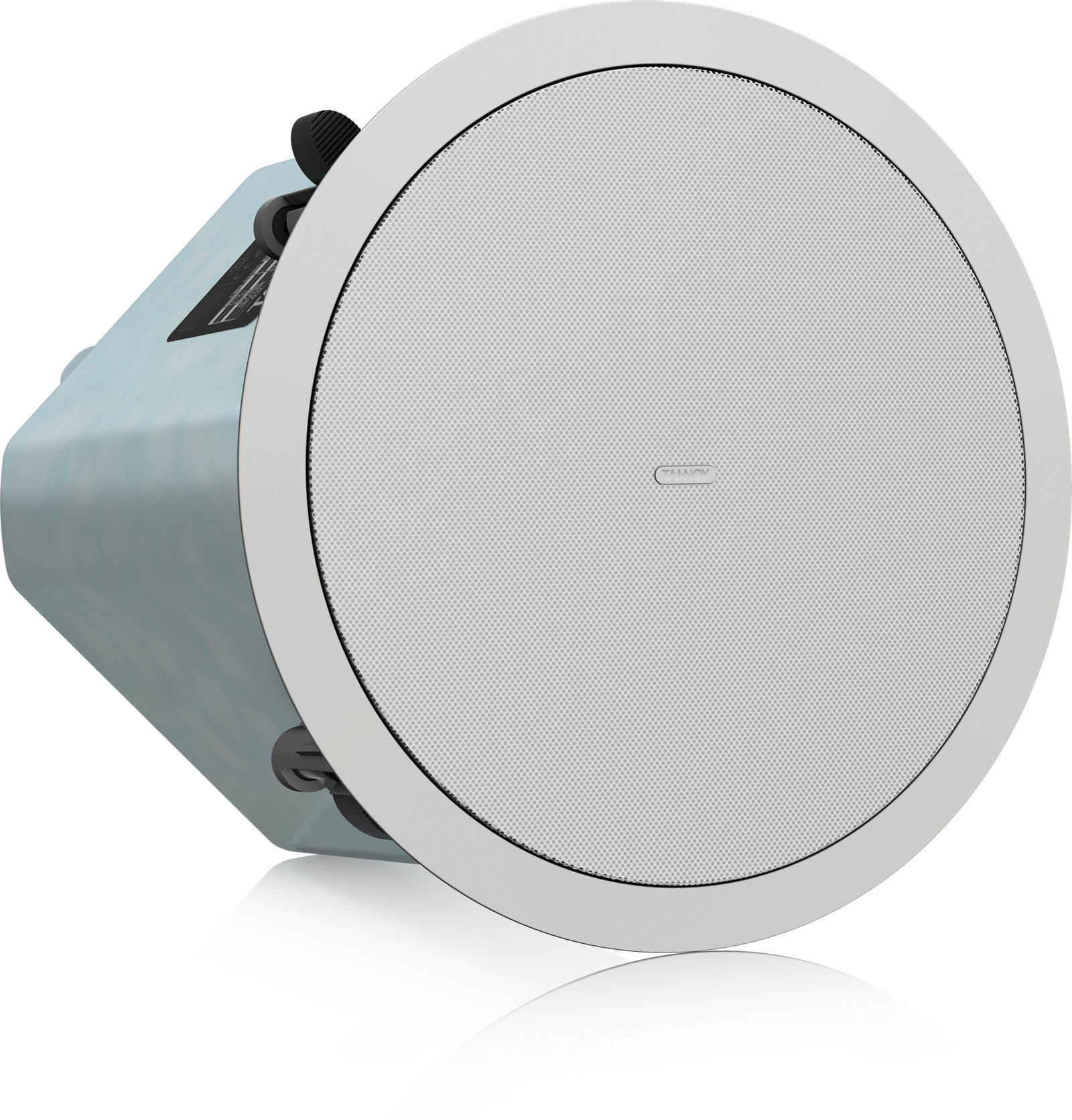

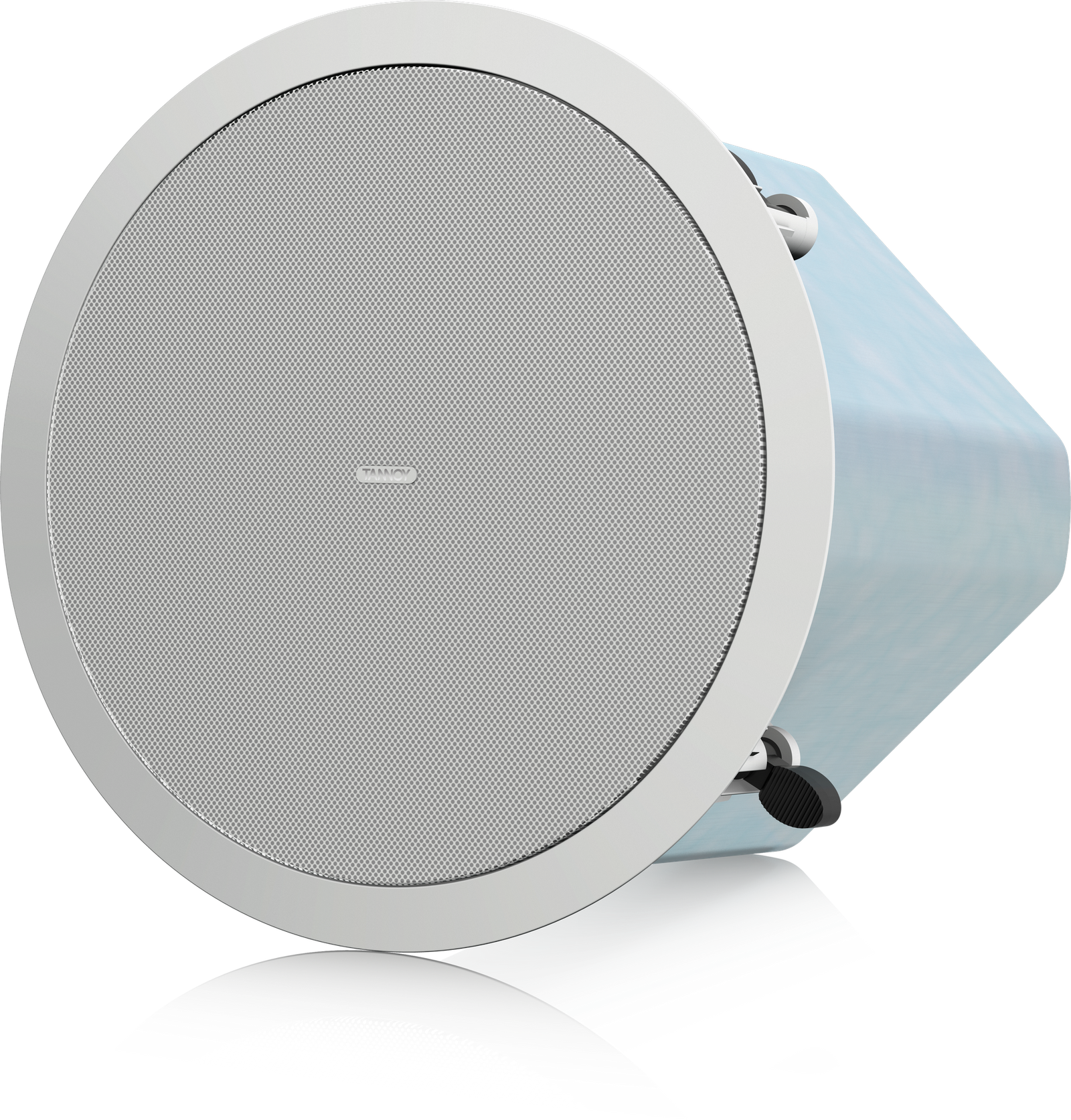

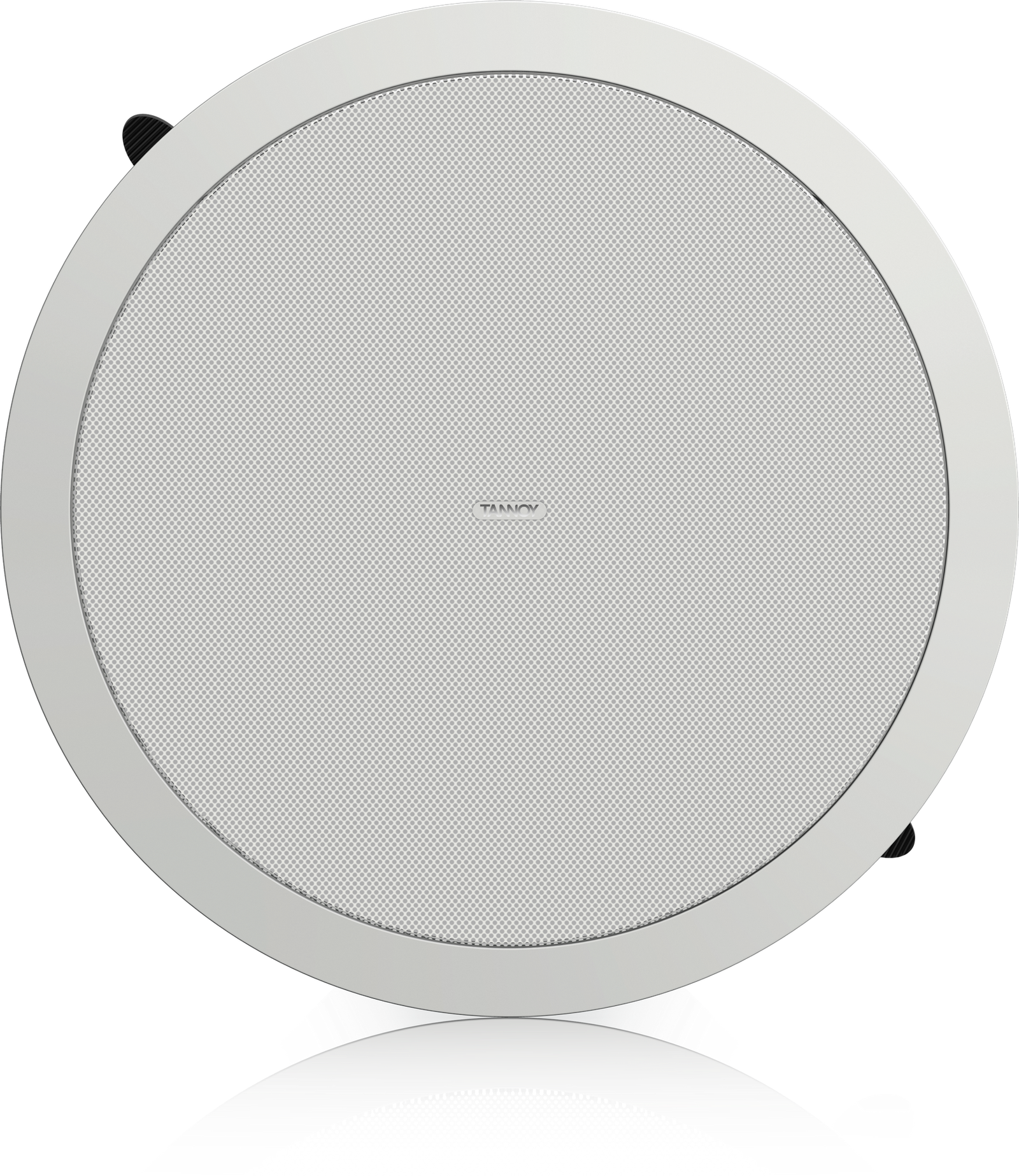

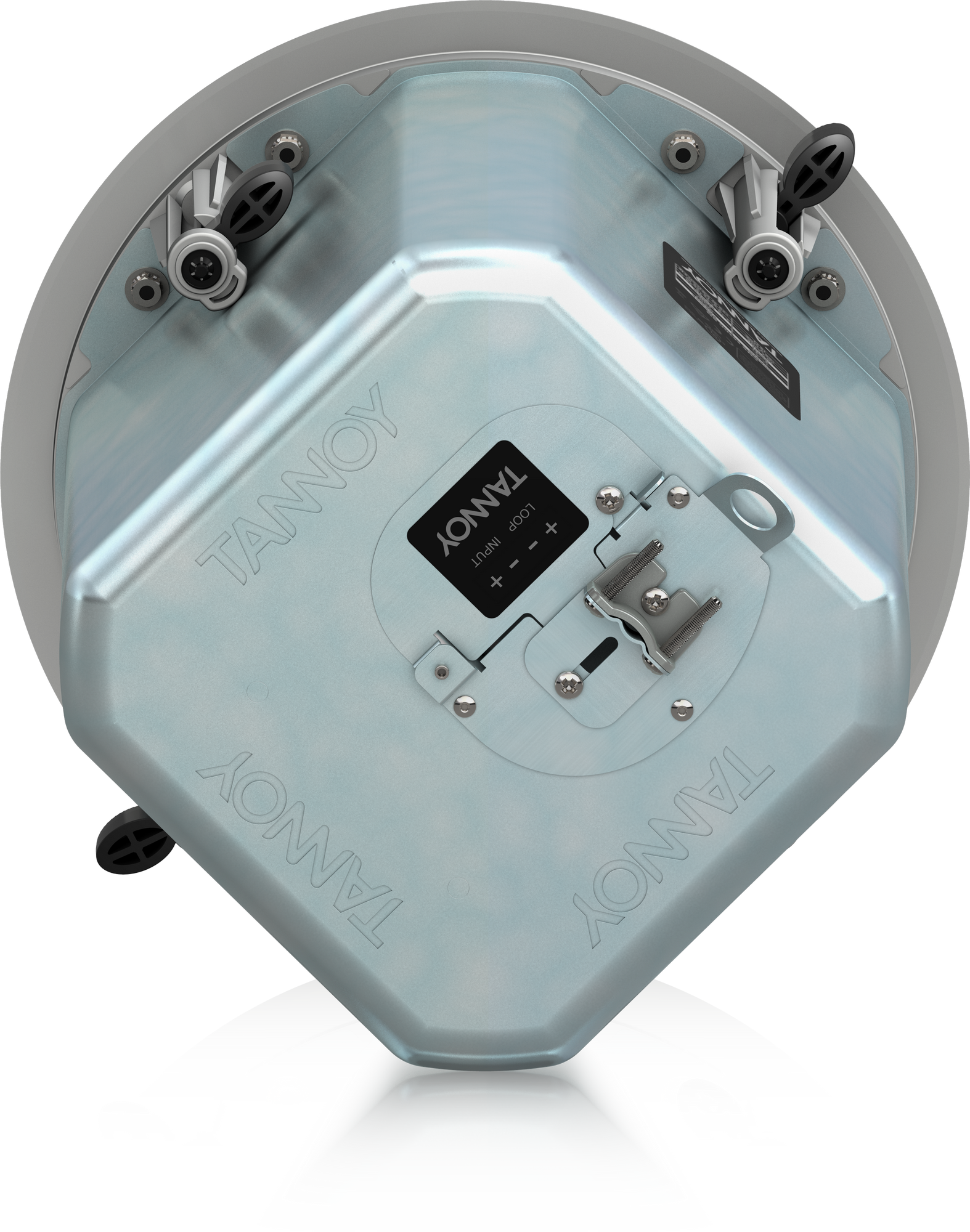

CMS 603ICT LS Loudspeaker

The CMS 603ICT LS is a high-performance 240-Watt loudspeaker designed with our third generation Ceiling Monitor System technology (CMS 3.0). This powerful unit is UL certified for non-DC supervised systems and is ideal for constant-use applications. It’s driven by an advanced 6″ ICT (Inductive Coupling Technology) point source driver that ensures exceptional directivity and clarity across extended frequency ranges, providing enhanced intelligibility.

Features

  • Full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power

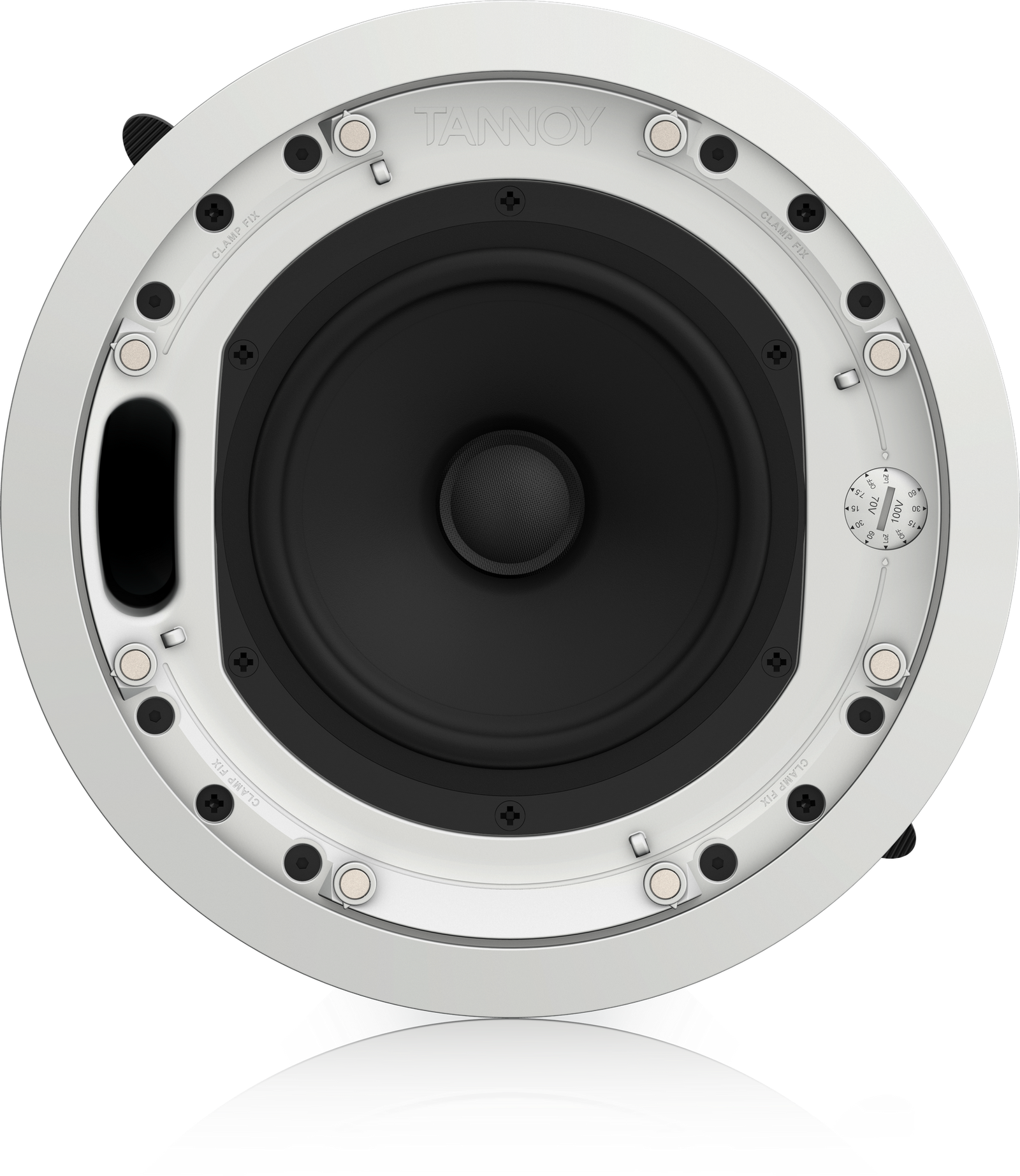

  • 6″ ICT point source driver for extended frequency range
  • Durable construction for constant usage
  • UL certified for various applications
  • Multiple transformer taps for versatile system compatibility
  • Self-aligning mounting system for easy installation
  • Semi-matt white finish for unobtrusive fitting

Specifications

Performance

Frequency response (-3 dB) 78 Hz – 22 kHz
System sensitivity (1 W @ 1 m) 91 dB
Recommended Amplifier Power 120 W @ 16 Ohms
Nominal Impedance 16 Ohms
Crossover 7 kHz inductively coupled

Transducers

Low Frequency 165 mm (6.50″) mineral loaded polypropylene
High Frequency ICT aluminum dome

Physical

Net Weight 5.4 kg (11.9 lbs)
Hole cutout diameter 253 mm (9.96″)
