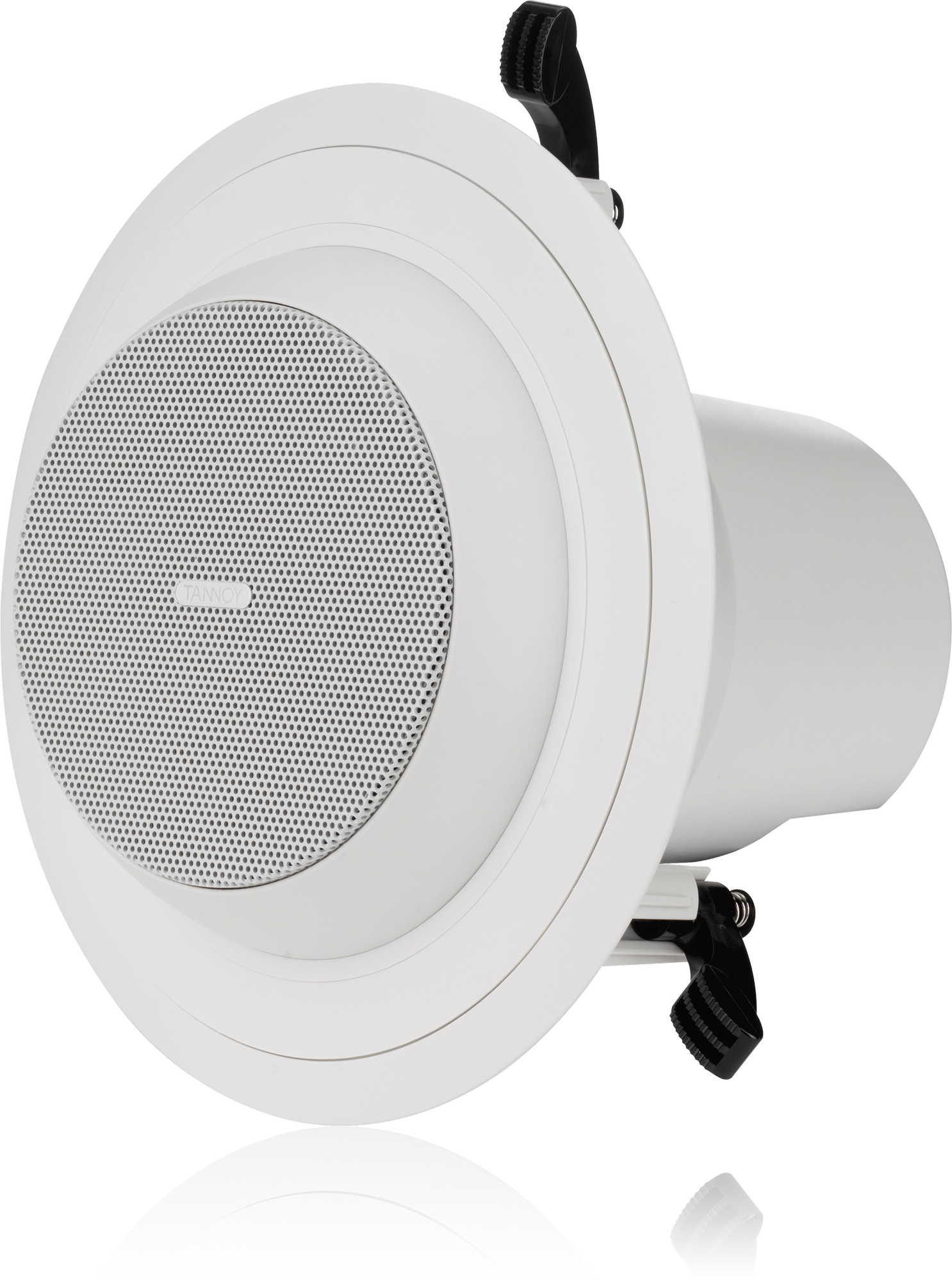

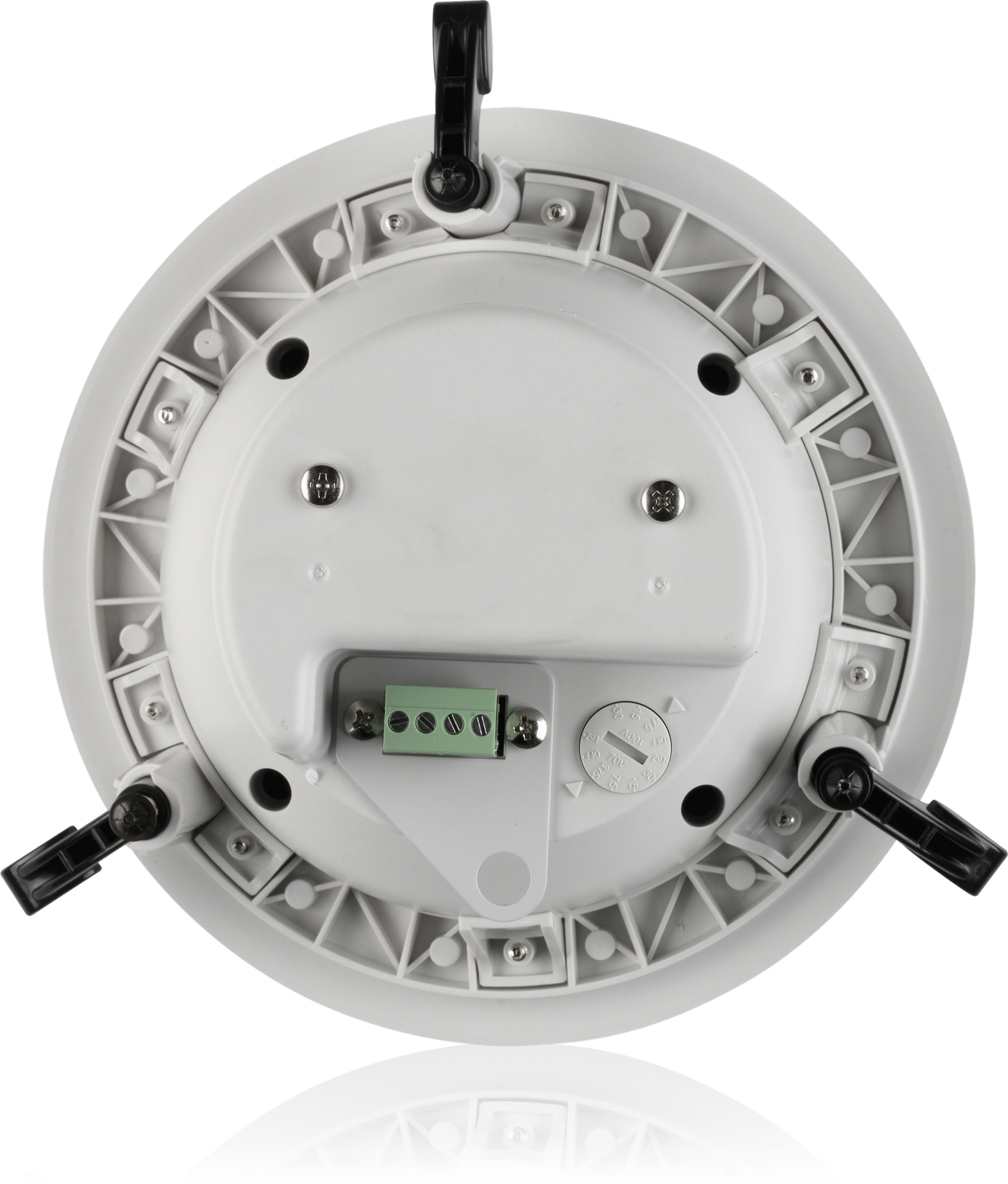

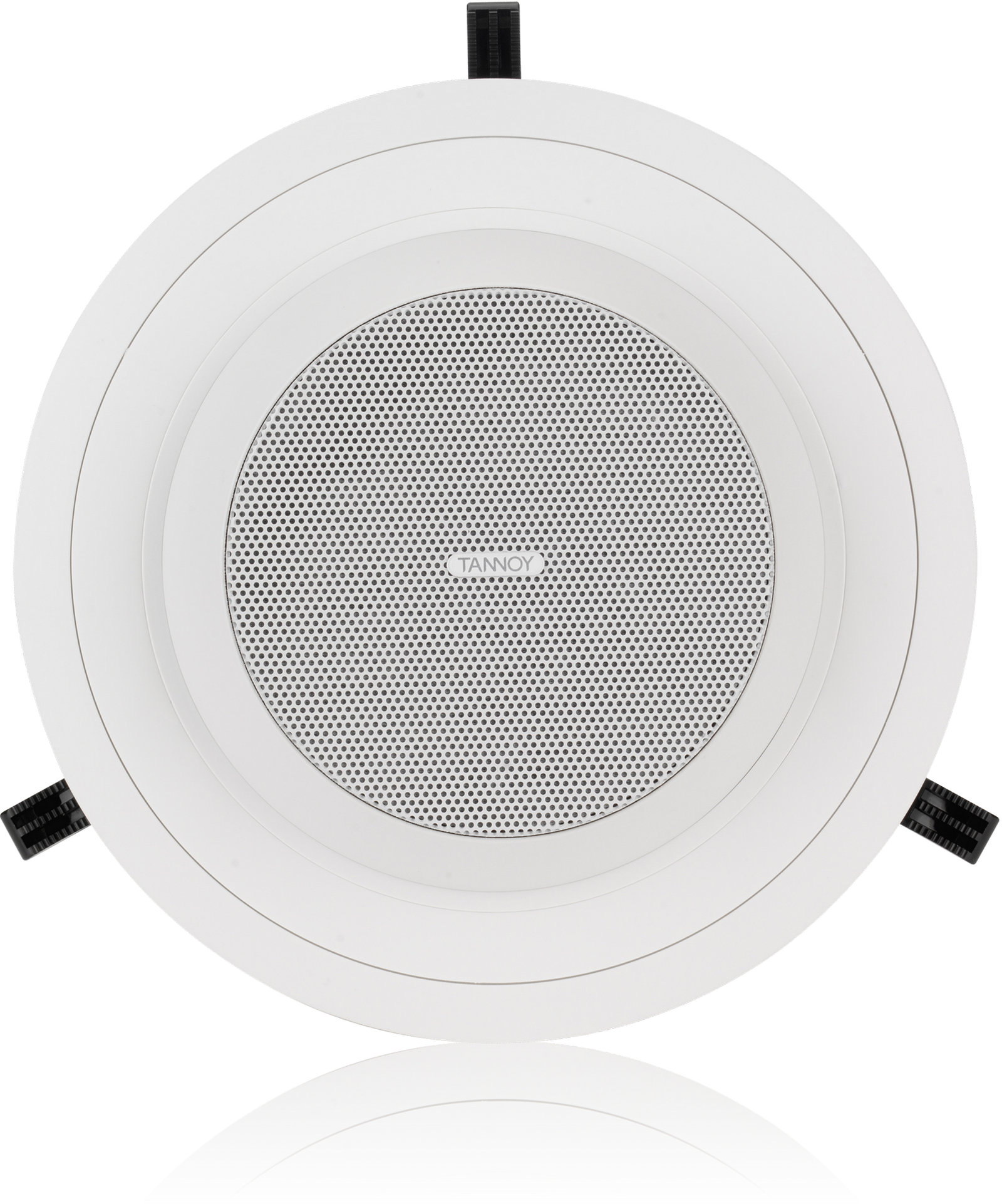

Tannoy Ceiling Loudspeaker CMS 403DCE 4″ Dual Concentric Driver 160W
883.05 AED Included (5% UAE VAT)
The CMS 403DCE is a 160-Watt high sensitivity loudspeaker featuring the advanced CMS 3.0 technology and a proprietary 4" Dual Concentric point-source driver with Omnimagnet technology. Its Torus Ogive Waveguide ensures wide, consistent broadband directivity and enhanced intelligibility, delivering accurate and linear response for excellent audio performance.
Model number
CMS 403DCE
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
CMS 403DCE Full Bandwidth Loudspeaker
The CMS 403DCE is a professionally engineered, high-performance ceiling loudspeaker designed to offer crystal-clear audio in a variety of installation scenarios. Utilising third-generation Ceiling Monitor System technology, this 160-Watt powerhouse is ideal for both commercial and residential environments.
Features
- 4″ Dual Concentric point-source driver with Omnimagnet technology
- 160 Watts peak, 40 Watts continuous power handling
- Torus Ogive Waveguide for enhanced high-frequency response
- Adjustable tilt and 360° rotation
- Multiple transformer taps for 70V, 100V, and 16 Ohm systems
- Quick and easy installation with integrated construction and clamp mounting system
- Durable and discreet semi-matt white finish
- Powder-coated UV resistant perforated steel mesh grille
Specifications
Performance
| Frequency Response (-3 dB) | 110 Hz – 50 kHz |
| Frequency Range (-10 dB) | 80 Hz – 54 kHz |
| System Sensitivity (1 W @ 1 m) | 88 dB |
| Nominal Coverage Angle | 90 degrees conical |
Transducers
| Dual Concentric Point Source Driver | 1 x 100 mm (4.0″) with Omnimagnet technology |
| Low Frequency | 35 mm (1.38″) voice coil with multi-fiber paper pulp cone |
| High Frequency | 20 mm (0.79″) PEI dome |
Physical
| Safety Features | Safety ring for load-bearing safety bond |
| Clamping Design | Min/Max clamping range: 0.0 mm / 20.0 mm, Recommended clamp torque: 1.5 Nm |
| Accessories | C-Ring, tile-bridge kit, paint mask, cut-out template, grille |
| Optional Accessories | Plaster (mud) ring |
| Packed Quantity | 2 |
