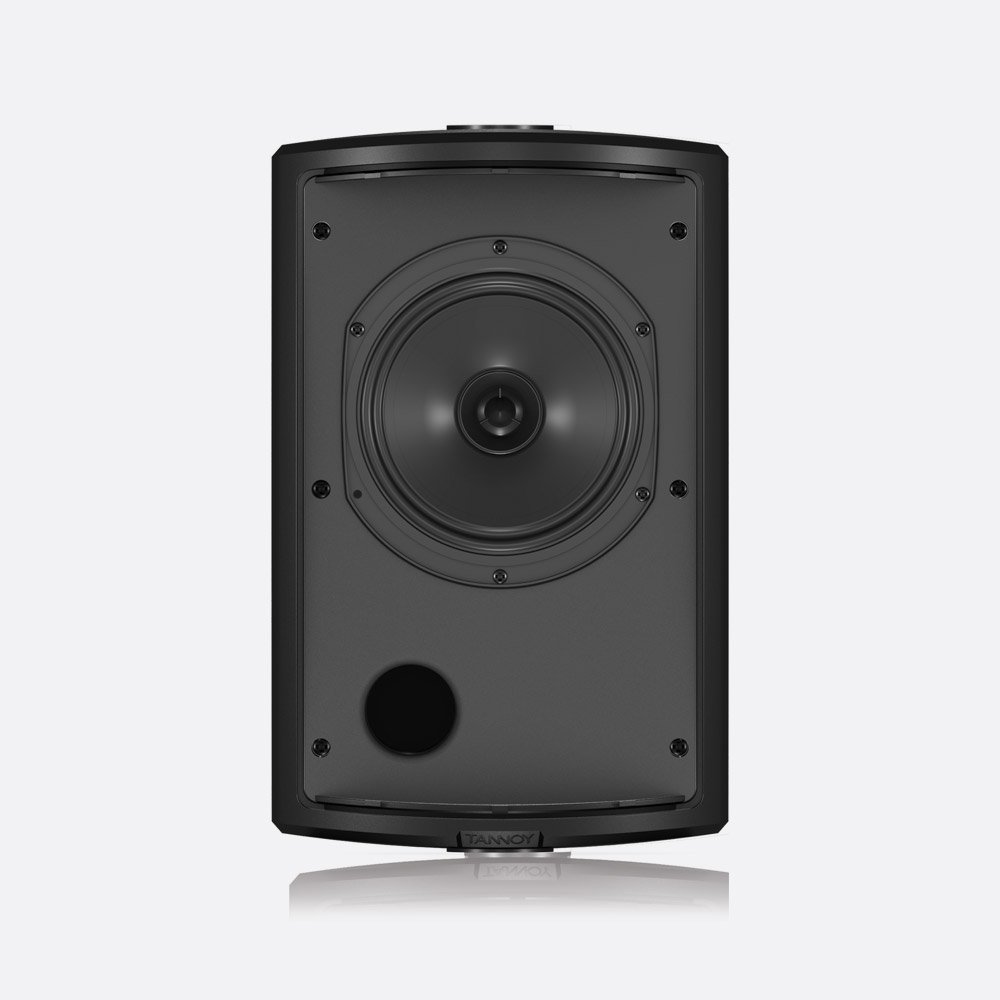

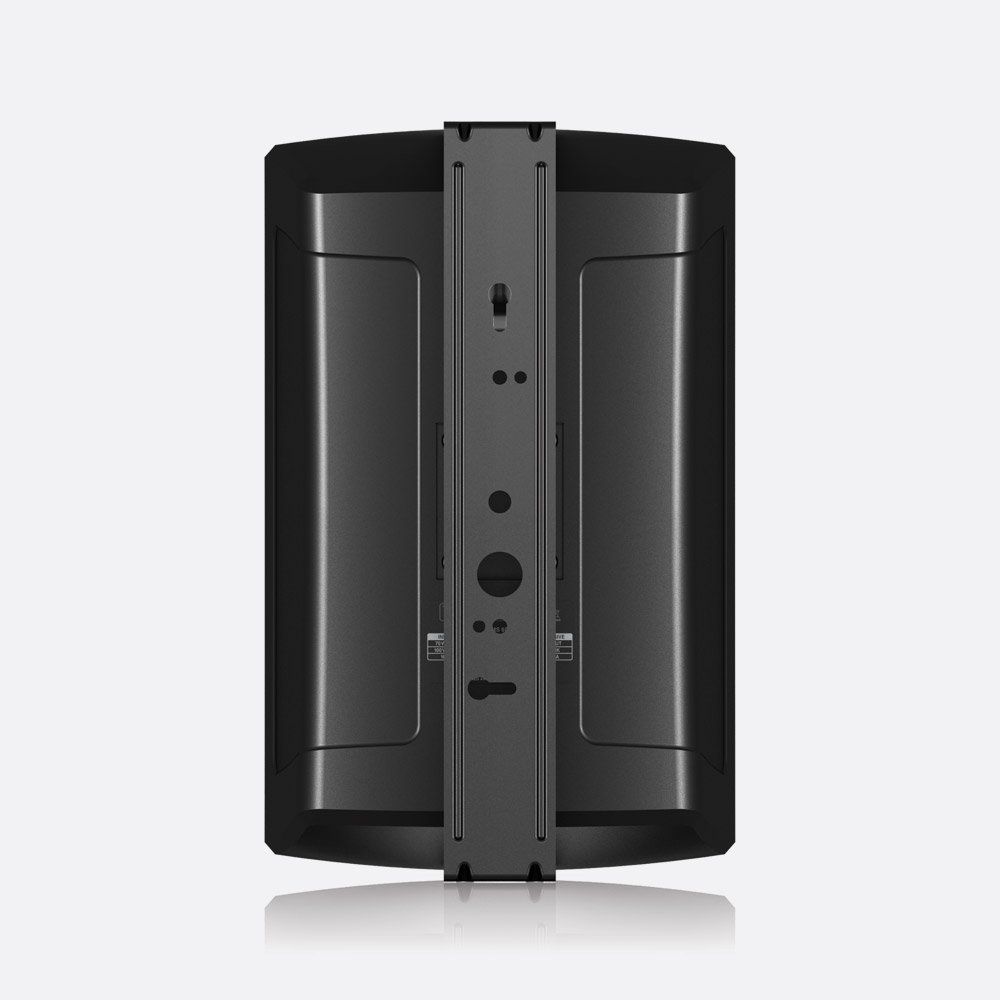

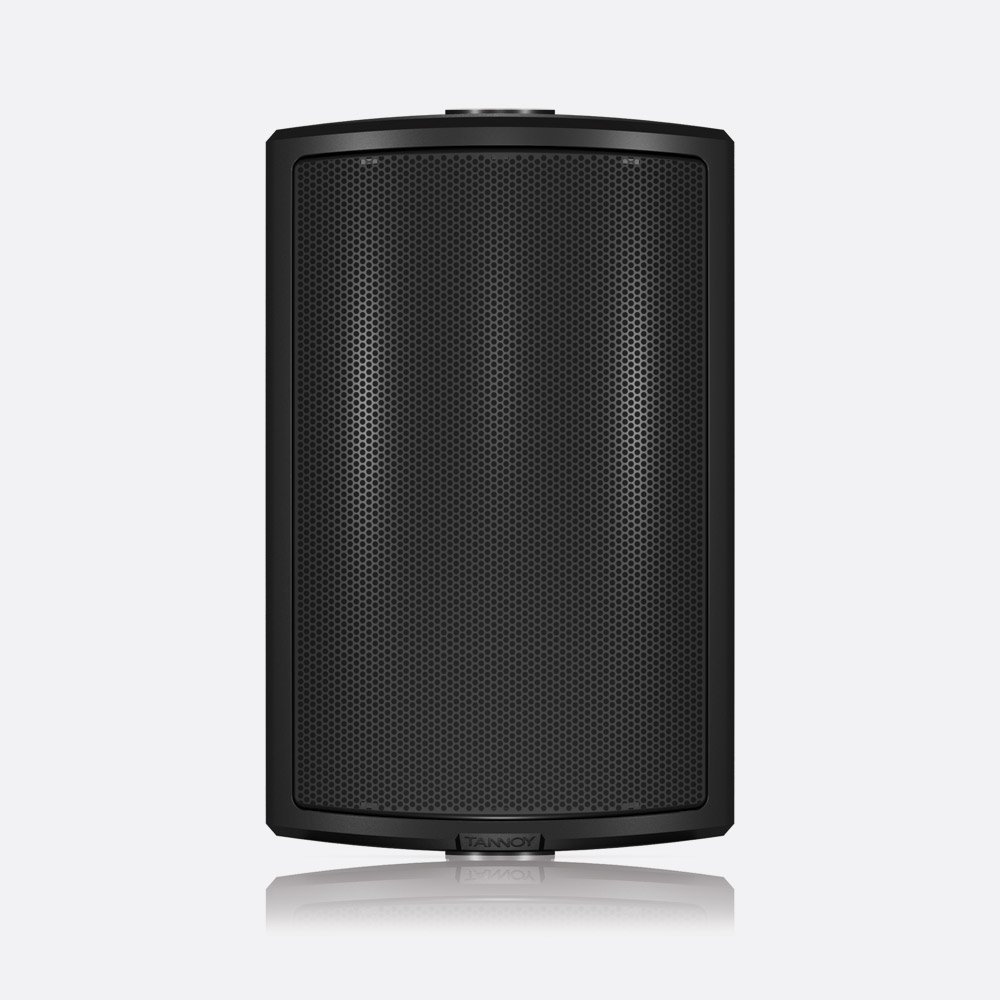

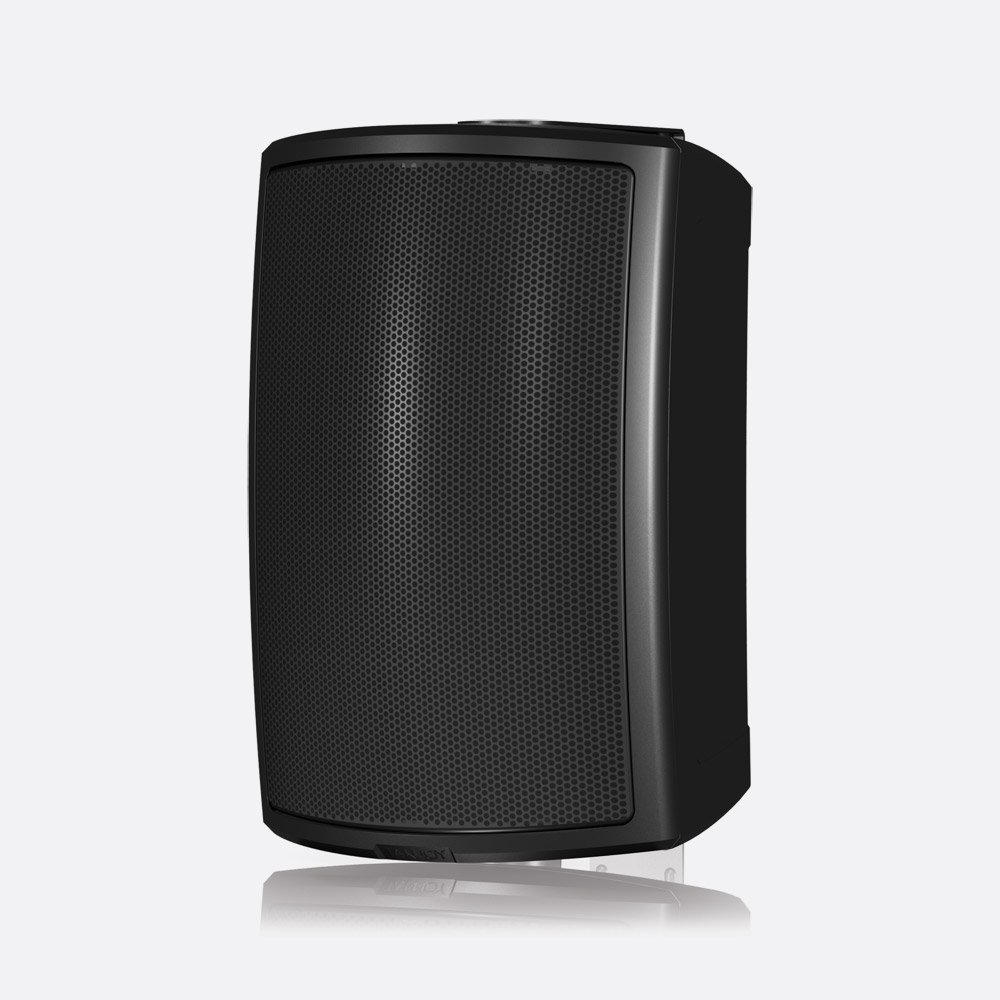

Tannoy AMS 6DC 6 Inch Dual Concentric Loudspeaker 320W IP65 for Installations
1,408.05 AED Included (5% UAE VAT)
The AMS 6DC is a 320-Watt high sensitivity loudspeaker featuring a 6" Dual Concentric point-source driver with Omnimagnet technology and a Torus Ogive Waveguide for broad directivity and clear sound. It is suitable for various applications including theme parks, hotels, restaurants, retail stores, corporate AV, residential developments, and houses of worship, ensuring consistent audio performance across multiple zones.
Model number
AMS 6DC
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
AMS 6DC Loudspeaker Overview
The AMS 6DC is a versatile, high-performance 320-Watt loudspeaker designed for both indoor and outdoor audio applications. Featuring a cutting-edge 6″ Dual Concentric driver with Omnimagnet technology and a Torus Ogive waveguide, it ensures wide and consistent directivity with superior intelligibility, mirroring the linear response of renowned studio monitors. The AMS 6DC is perfect for high-quality music playback in diverse settings like theme parks, hotels, restaurants, retail stores, corporate environments, residential complexes, and places of worship. Seamlessly integrate this loudspeaker into multi-zoned environments with both ceiling and wall-mounted options for a cohesive sound experience.
Key Features
- Full range surface-mount loudspeaker ideal for indoor and outdoor use
- Delivers 80 Watts continuous, 320 Watts peak power
- Next-generation 6″ Dual Concentric driver with Omnimagnet technology
- Torus Ogive waveguide enhances high-frequency response and directivity
- Flexible installation with multiple transformer taps for 70V and 100V line systems or 16 Ohm direct input
- Low insertion loss 60W line transformer with an easily accessible tapping switch
- Optimized for use with Lab Gruppen low impedance LUCIA amplifiers
- Weather-resistant components suitable for outdoor use (IP65 rating)
- High temperature resistant ABS enclosure, rated up to 120°C
- Semi-matt black paint finish blends into any environment
- Includes yoke bracket for simple installation
- Optional VARIBALL multi-angle bracket for precise audience coverage
- Weatherproof cable gland cover for Phoenix connectors and tap selector switch
Specifications
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) | 75 Hz – 30 kHz |
| Frequency Range (-10 dB) | 55 Hz – 40 kHz |
| System Sensitivity (1 W @ 1 m) | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 80 W Programme: 160 W Peak: 320 W |
| Recommended Amplifier Power | 160 W @ 16 Ohms |
| Rated Maximum SPL | Average: 108 dB Peak: 114 dB |
| Transformer Taps (via front rotary switch) | 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation |
| Dual Concentric point source driver | 1 x 165 mm (6.5″) Dual Concentric driver with Omnimagnet technology |
| Low Frequency | 44 mm (1.75″) voice coil, treated multi-fiber paper pulp cone |
| High Frequency | 25 mm (1.00″) PEI dome |
| Enclosure | ABS |
| Grille | Weather-resistant zinc nickel-plated steel grille |
| Connectors | Removable locking connector with screw terminals |
| Transformer setting | Rotary switch |
| Dimensions (H x W x D) | 364.8 x 230.0 x 268.8 mm (14.36 x 9.05 x 10.58″) |
| Net Weight (each) | 6.08 kg (13.40 lbs) |
| Shipping Weight | 6.76 kg (14.90 lbs) |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |
