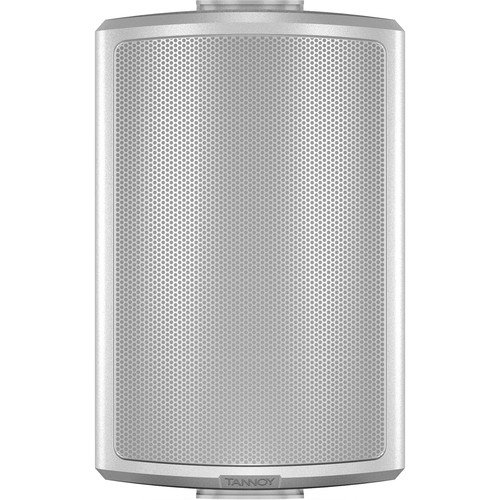

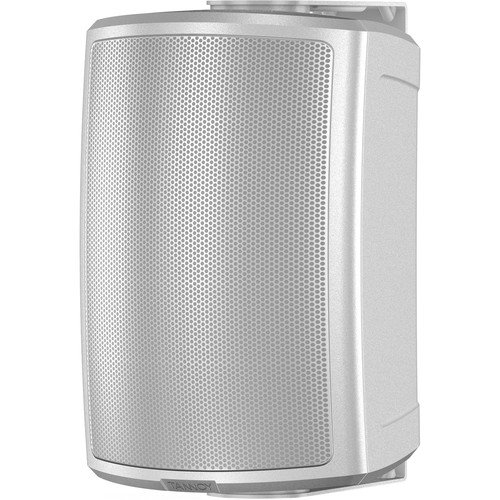

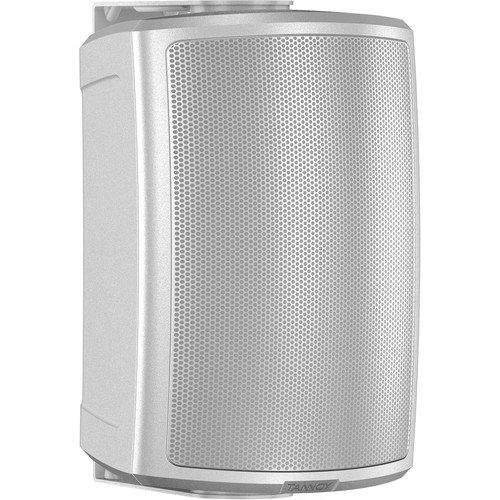

Tannoy AMS 5DC-WH 5″ Dual Concentric Loudspeaker 240W White Indoor/Outdoor
971.25 AED Included (5% UAE VAT)
The AMS 5DC-WH is a 240-Watt high sensitivity loudspeaker featuring a proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, offering wide and consistent broadband directivity and enhanced intelligibility. Ideal for both background and foreground music applications, it suits various settings such as theme parks, hotels, restaurants, bars, retail stores, corporate AV environments, residential developments, and houses of worship.
Model number
AMS 5DC-WH
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
AMS 5DC-WH Loudspeaker
The AMS 5DC-WH is a high-performance 240-Watt loudspeaker designed to deliver superb audio quality, making it perfect for various environments such as theme parks, hotels, restaurants, retail stores, and more. Featuring Tannoy’s innovative 5″ Dual Concentric driver with Omnimagnet technology and a Torus Ogive Waveguide, this loudspeaker guarantees wide and consistent broadband directivity with exceptional clarity and intelligibility.
Key Features
- Full range surface-mount loudspeaker for both indoor and outdoor installations
- 240 Watts peak power with 60 Watts continuous power
- 5″ Dual Concentric driver with Omnimagnet technology for enhanced audio performance
- Torus Ogive waveguide for superior high-frequency response
- Transformer taps for 70V and 100V line systems or 16 Ohm direct input
- Weather-resistant components with IP65 rating for outdoor use
- ABS enclosure with a high-temperature resistance of up to 120°C and a semi-matt white finish

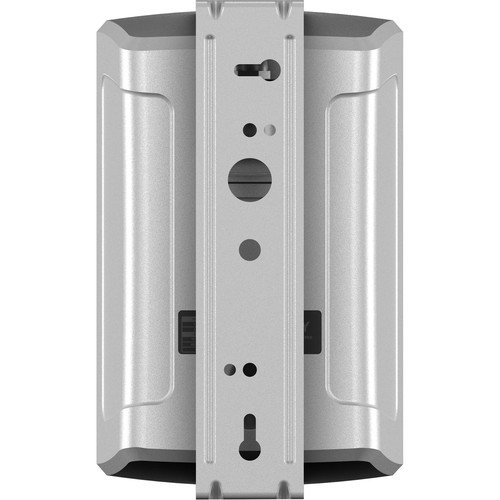

- Comes with a yoke bracket for easy installation and an optional VARIBALL multi-angle bracket
Specifications
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) | 90 Hz – 30 kHz |
| Frequency Range (-10 dB) | 80 Hz – 40 kHz |
| System Sensitivity (1 W @ 1 m) | 87 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | 60 W (average), 120 W (programme), 240 W (peak) |
| Recommended Amplifier Power | 120 W @ 16 Ohms |
| Nominal Impedance | 16 Ohms |
| Rated Maximum SPL | 105 dB (average), 111 dB (peak) |
| Transformer Taps | 70 V: 30 W / 15 W / 7.5 W / 3.75 W / OFF & low impedance operation
100 V: 30 W / 15 W / 7.5 W / OFF & low impedance operation |

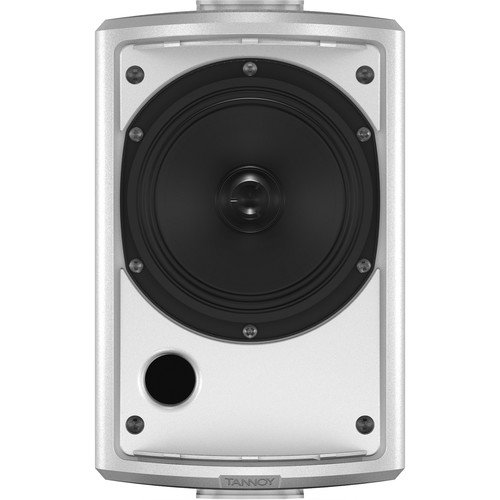

| Dual Concentric Driver | 5.0″ with Omnimagnet technology |
| Low Frequency | 35 mm voice coil, multi fiber paper pulp cone |
| High Frequency | 20 mm PEI dome |
| Enclosure | ABS |
| Grille | Weather-resistant zinc nickel-plated steel |
| Connectors | Removable locking connector with screw terminals |
| Transformer Setting | Rotary switch |
| Dimensions (H x W x D) | 248.0 x 155.0 x 203.9 mm |
| Net Weight | 3.25 kg |
| Shipping Weight | 3.66 kg |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |
