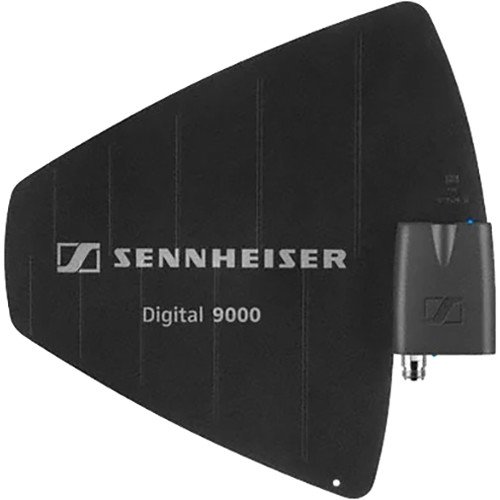

Sennheiser Directional Antenna AD 9000 470-638 MHz with 17 dB Amplification for Digital 9000 Series
6,528.38 AED Included (5% UAE VAT)
The Sennheiser AD 9000 is an advanced antenna for the Digital 9000 Series EM 9046 receiver, featuring the AB 9000 booster and eight bandpass filters to ensure precise signal selection and high resistance to interference, with remote frequency window selection and automatic gain adjustment for optimal performance.
Model number
AD 9000 A1-A8
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Sennheiser AD 9000 – High Performance Receiving Antenna
The Sennheiser AD 9000 is a versatile and high-performance directional antenna designed for the Digital 9000 Series EM 9046 receiver. Tailored for professional audio applications, it comes equipped with the integrated AB 9000 booster, enhancing signal reception and performance.
This antenna is built with eight selective bandpass filters that allow frequencies within a 24 MHz window while blocking unwanted signals. The filters’ frequency windows can be automatically or manually selected, ensuring operational flexibility for different environments. Additionally, the linear RF amplifier ensures high resistance to intermodulation and compensates for up to 14 dB cable loss, maintaining signal integrity efficiently.
Key Features
- Directional receiving antenna
- AB 9000 active, intelligent antenna booster
- Eight selective bandpass filters
- Filter selection: automatic or manual
- Highly linear RF amplifier with 17 dB amplification
- N-type connectors
Specifications
| Specification | Details |
|---|---|
| Frequency Band | 470 to 638 MHz |
| Radiation Pattern | Directional |
| Amplification | 17 dB, Constant |
| Antenna Connector | N-Socket (50 Ω) |
| Antenna Gain | 4.6 dBi |
| Apex Angle | 100° (-3 dB) |
| Front-to-Back Ratio | ≥ 14 dB |
| Current Consumption | 160 mA at 12 V, Maximum |
| OIP3 | ≥ 35 dBm |
| Operating Voltage | 9 to 18 VDC Feed via Antenna Cable from EM 9046 Receiver |
| Mounting Thread | 3/8″-16 |
| Dimensions | 13.0 x 12.7 x 0.9″ / 329 x 322 x 23 mm |
| Weight | 22.0 oz / 625 g |
