500 in stock
QSC Large Aluminum Array Frame AF2102-LA-BK Black for WideLine-10, 1423 lbs Capacity
13,976.64 AED Included (5% UAE VAT)
The QSC AF-2102-LA Large Aluminum Black Array Frame is designed for rigging the Wideline-10 line array loudspeaker, supporting up to 1423 pounds with a 7:1 strength rating or 8 enclosures. It features a three-point suspension system with front, left/right articulated joints, and a single rear link bar allowing for 2-degree increments of articulation, or 1-degree increments from 3 degrees using the second link bar location. The angular adjustments range from 0 to 10 degrees. The frame includes all necessary pieces and locking pins with lanyards, eliminating the need for additional ancillary items.
Model number
AF2102-LA-BK
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

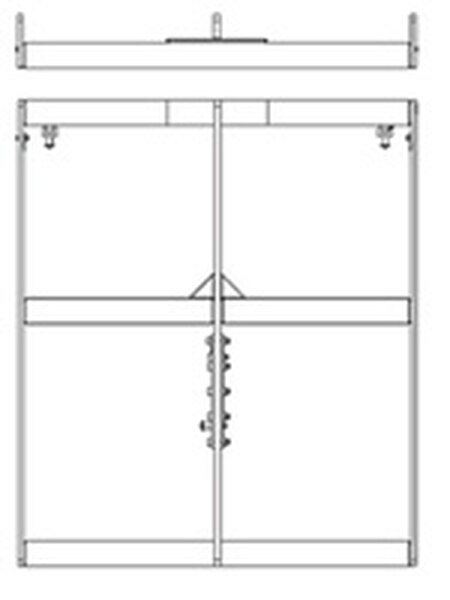

QSC AF-2102-LA Large Aluminum Black Array Frame
The QSC AF-2102-LA Large Aluminum Black Array Frame is designed for safely rigging the WideLine-10 line array loudspeaker. Crafted from heavy-duty aluminum, this fly grid is robust and reliable, capable of supporting up to 1423 pounds (646.8 kg) with a 7:1 strength rating. It can accommodate up to 8 stacked enclosures in a secure manner.
Featuring a three-point suspension system, WideLine-10 enclosures are equipped with front, left/right, and captive articulated joints, along with a single rear link bar. This system allows articulation in 2° increments using the first location on the link bar. For finer adjustments, the second location permits 1° increments, starting from 3°. Overall, the angular increments available are 0°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, and 10°.
All components, including locking pins, remain with the enclosures, ensuring no additional items are necessary for suspension. Ball-lock pins come with lanyards to prevent loss, adding to the convenience and reliability of the system.
Key Specifications
| Specification | Details |
|---|---|
| Material | Heavy-duty Aluminum |
| Color | Black |
| Maximum Load Capacity | 1423 pounds (646.8 kg) |
| Strength Rating | 7:1 |
| Maximum Stacked Enclosures | 8 |
| Suspension System | Three-point |
| Angular Increments | 0° to 10° |
| Locking Pins | Equipped with Lanyards |
