QSC Pendant Speaker AD-P4T 4.5″ Woofer 150° Coverage Black
1,117.20 AED Included (5% UAE VAT)
The black QSC AD-P4T is a 4.5" pendant-mount loudspeaker designed for 70/100V or 16-ohm operation, suitable for various music applications. It features a weather-treated woofer, aluminum dome tweeter, 150° conical coverage, and a frequency range of 65 Hz to 20 kHz. The speaker handles 30W RMS, produces 108 dB peak SPL, and includes a 4-pole Euroblock connector, UV-treated ABS enclosure, magnetic steel grille, and efficient installation hardware.
Model number
AD-P4T-BK
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

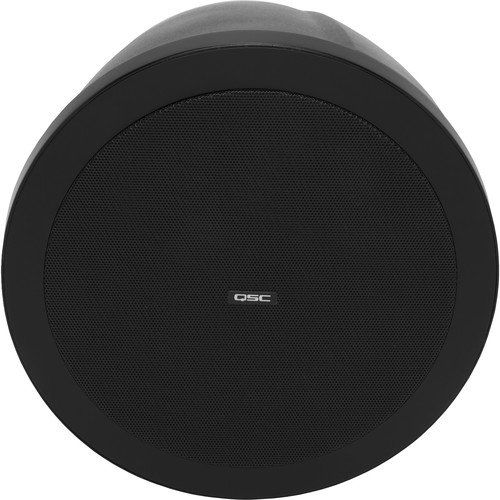

QSC AD-P4T 4.5″ Pendant-Mount Loudspeaker
The QSC AD-P4T, part of the AcousticDesign Series, is a versatile pendant-mount loudspeaker designed to provide consistent audio coverage for both foreground and background music applications. This black loudspeaker is equipped with a 4.5″ weather-treated woofer and a 0.75″ aluminum dome tweeter, delivering a wide frequency range and uniform sound dispersion, making it ideal for various environments such as restaurants, retail spaces, educational facilities, and worship centers.
Key Features
- 4.5″ weather-treated paper cone woofer and 0.75″ aluminum dome tweeter
- 150° conical coverage for broad, even sound dispersion
- UV-treated ABS enclosure to prevent discoloration

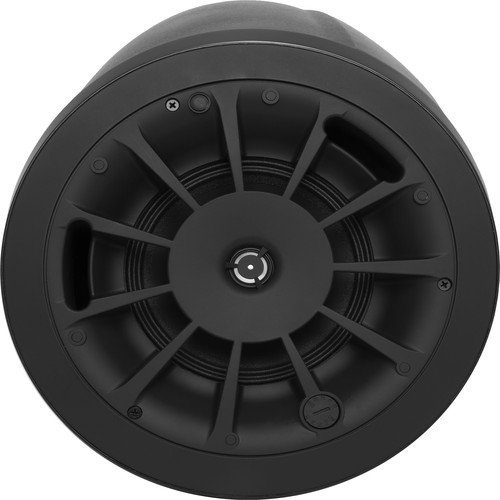

- Snap-fit magnetic grille and a blemish-free removable logo
- 70/100V transformer with 16-ohm bypass
- DMT (Directivity Matched Transition) waveguide for uniform frequency response
- Includes quick-link cable assemblies and slip-lock fasteners for easy installation
Specifications
| Specification | Details |
|---|---|
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | 30 W RMS |
| Recommended Amplifier Power | 60 W |
| Constant Voltage / Transformer Taps | 70 V: 30 / 15 / 7.5 / 3.75 W or 16 Ohms Bypass 100 V: 30 / 15 / 7.5 W or 16 Ohms Bypass |
| Impedance | 16 Ohms (Nominal, Transformer Bypassed) |
| Transformer Wattage | 30 W |
| Enclosure Type | Sealed |
| HF Driver | 0.75″ Waveguide-Coupled Aluminum Dome Tweeter |
| LF Driver | 4.5″ Paper Woofer |
| LF Voice Coil | 1″ |
| Frequency Range | 65 Hz to 20 kHz (-10 dB) |
| Maximum SPL | 102 dB (Continuous), 108 dB (Peak) |
| Sensitivity | 87.9 dB |
| Coverage Angle | 150° (Conical) |
| Directivity | 4.5 (Directivity/Q Factor), 6.5 dB (Directivity Index) |
| Maximum Input Voltage | 22 V RMS |
| I/O | 1 x Block 4-Pole Speaker Input/Thru (Locking, Removable) |
| Maximum Wire Gauge | 18 AWG |
| Certifications | UL |
| Environmental Protection | Advertised as Water Resistant, IP34 |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Color | Black |
| Mounting | 1 x Suspension (Rear) |
| Construction Material | ABS, Metal Grille |
| Dimensions | 10.7 x 9.3 inches |
| Weight | 6.5 lbs |
| Package Weight | 8.95 lbs |
| Box Dimensions | 14.4 x 12.9 x 11.6 inches |
